Cantek Drawer Notcher for Concealed Undermount Drawer Slides 230V 3Ph JEN-60
This item may incur additional shipping costs and lead times.
Product Details
Features:
• Designed to notch and drill the underside of a drawer box for mounting undermount drawer slides
• Pneumatic cutter & drill stroke by foot pedal operations
• Cutter stroke and drill speed are adjustable for optimum finish resultss
• Drill will automatically position for both left and right drawer notches by activating a switch in the fences
• Machine will not cycle unless a drawer is up against the switch for safe operations

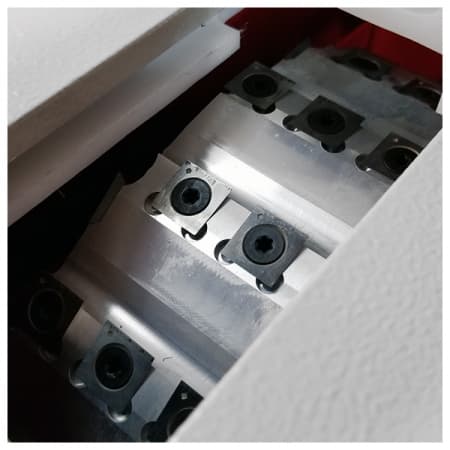

• Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool lifes
• 2-1/4" (57mm) wide cutter allows for a wide range of undermount slidess
• Comes with insert cutterhead with inserts and 1/4" (6.3mm) solid carbide drill bits
• Capable of notching up to 220 drawer boxes (both left and right) per hours
Machine Includes:
10" (255mm) x 2-1/4" (57mm) insert cutter head with 70 pcs. (14x14x1.5mm)
Solid carbide drill bit 1/4" (6.3MM) 118°
Specifications:
Main cutter motor: 3 HPs
Notch dimensions: 2-1/4" (57mm) x 0.5" highs
Cutter diameter: 10"s
Drill diameter: 1/4"s
Table size: 49" x 22"s
Table height from floor: 32"s
Dust port: 4" (670 CFM requirement)s
Compressed air required: 90 - 100 PSI
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | |
| Length | |
| Width | |
| Height | |
| Suitable For | |
| Assembly Modes |
