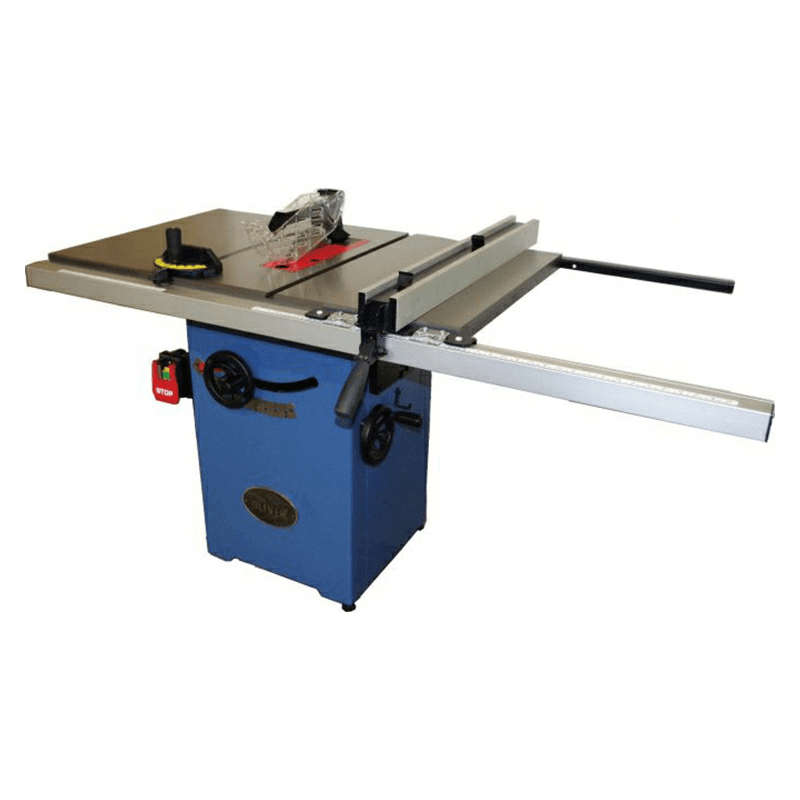

Oliver 10" Table Saw Professional with 36" Rail, 1.75HP/1 Phase

Features:

• Large precision ground table with cast iron extension wings

• Cabinet mounted blade trunnion

• Spindle lock for easy blade changes

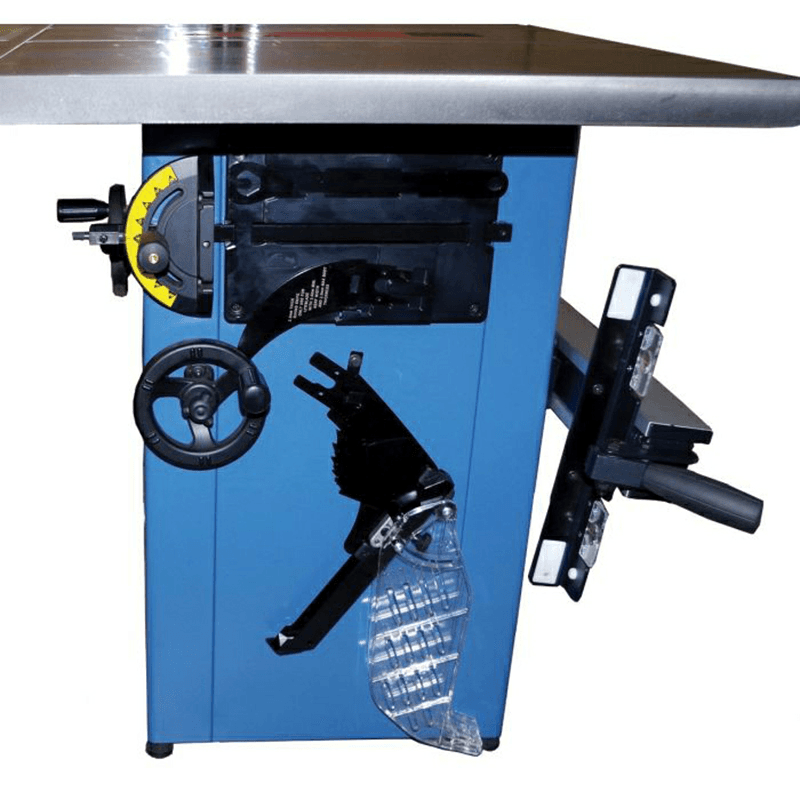

• Built in storage for fence, blade guard, miter gauge, and riving knife

• Saw blade included

• Poly V-belt for long life and smooth operation

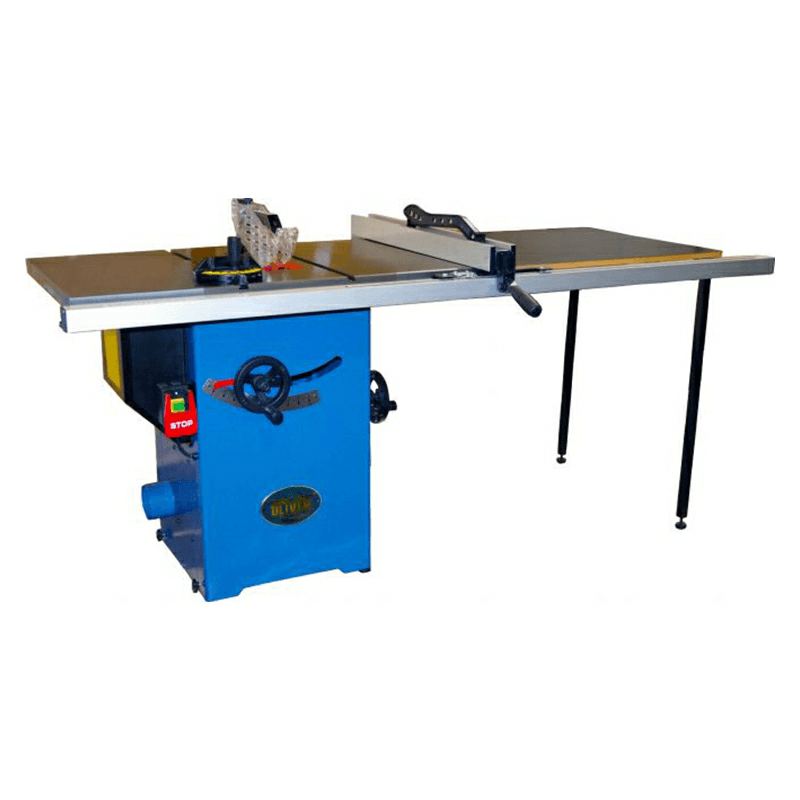

• Extension table and legs included with 52" model

• Quick mount and release blade guard

• Riving knife included

• Built in wheels with locks for mobility

• Industrial switch with large OFF paddle

• Dust shroud and hose for efficient dust management

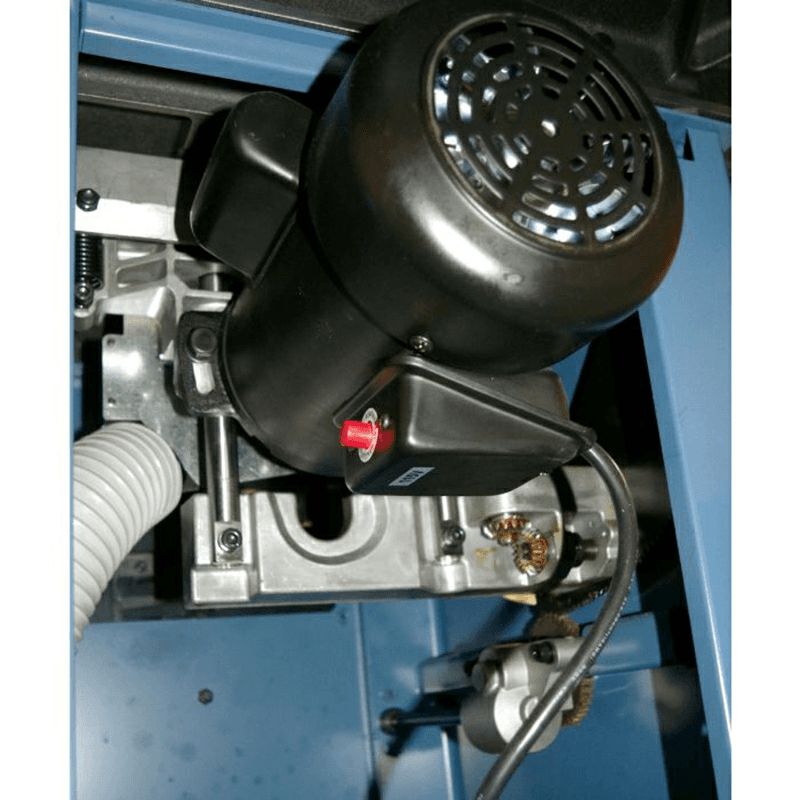

• Motor includes thermos overload reset switch for added protection

Application Specifications:

• Blade Diameter: 10"

• Arbor Diameter: 5/8"

• Blade Tilt: Left

• Maximum Depth of Cut at: 90° 3-1/8"

• Maximum Depth of Cut at: 45° 2-1/4"

• Maximum Width of Dado: 13/16"

• Maximum Cut to Right of Blade: 36" or 52"

• Maximum Cut to Left of Blade: 12"

• Dust Port Diameter: 4"

• Wing Size: 27" x 12"

Drive Package Specifications:

• Motor Horsepower: 1.75 HP

• Motor Phase: 1

• Motor Voltage: 115V/220V Prewired 115V (14.8/7.4 Amp)

• Arbor Speed: 4,500 RPM

Dimension Specifications:

• Table Dimensions without Extensions: 27" D x 20" W

• Table Height: 35"

• Overall Dimensions: 32" x 67" or 83"
