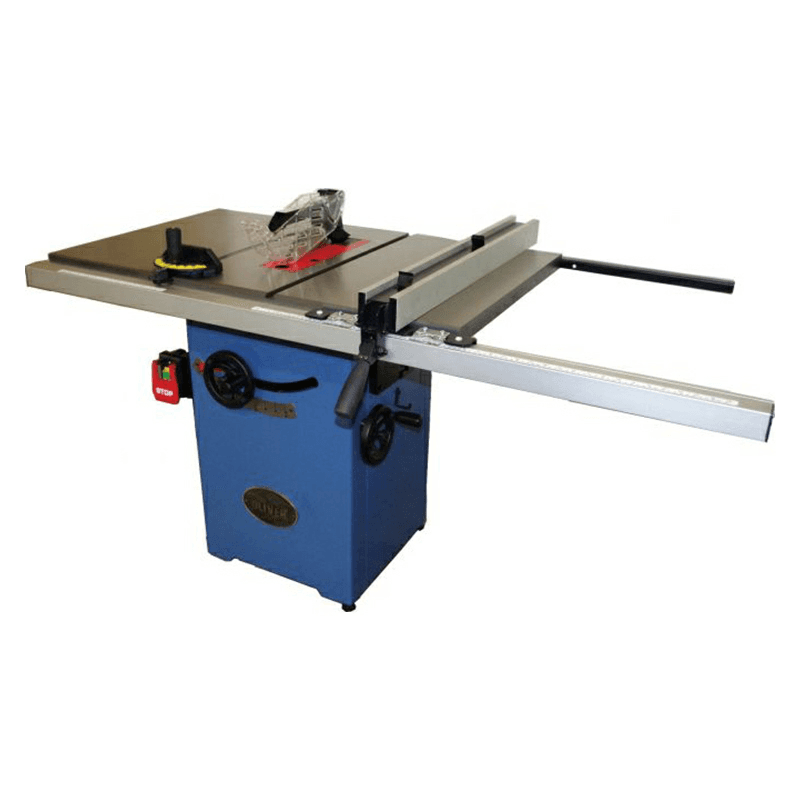

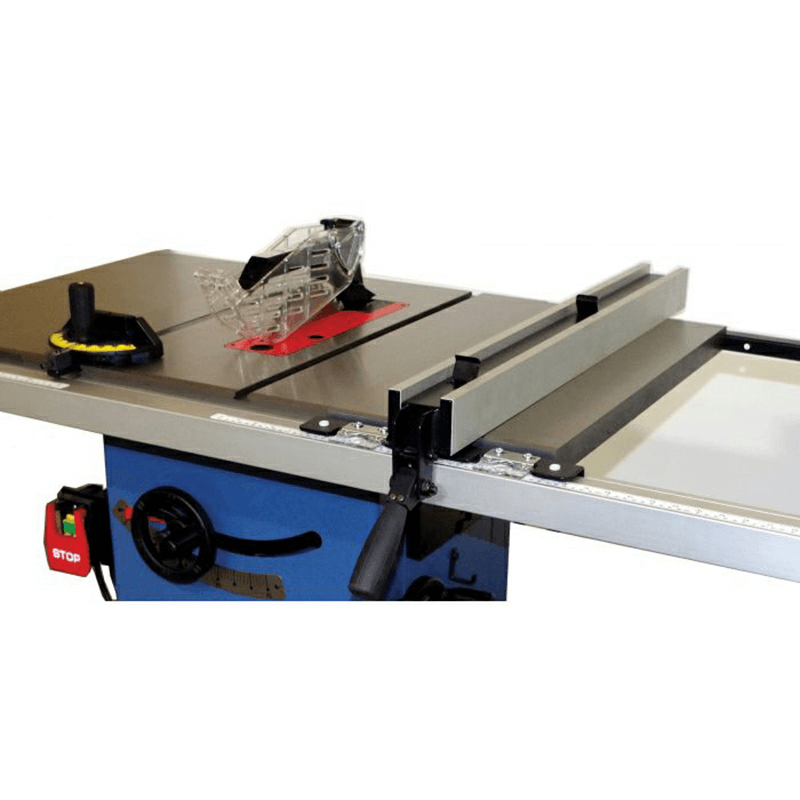

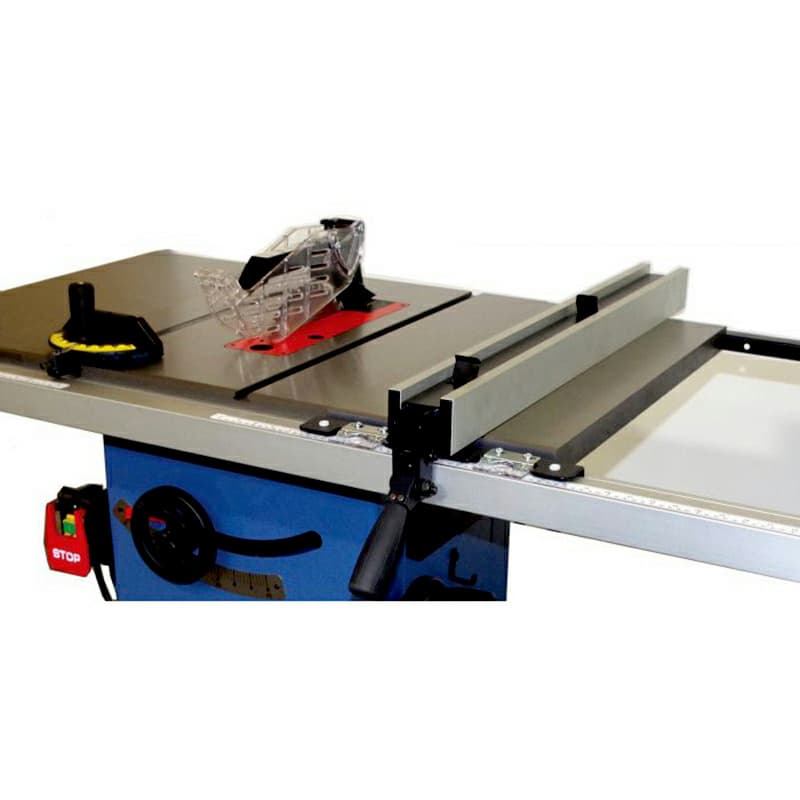

Oliver 10" Table Saw Professional with 52" Rail, 1.75HP/1 Phase
Item # OLV10040.002
•Mfr # 10040.002
This item may incur additional shipping costs and lead times.
Product Details
Features:
- Large precision ground table with cast iron extension wings

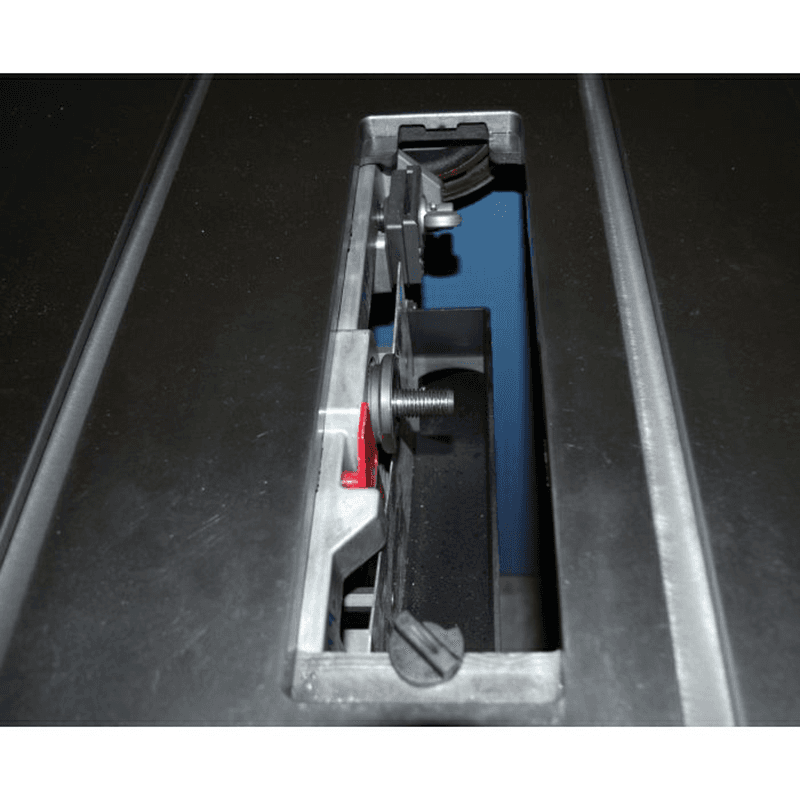

- Cabinet mounted blade trunnion
- Spindle lock for easy blade changes

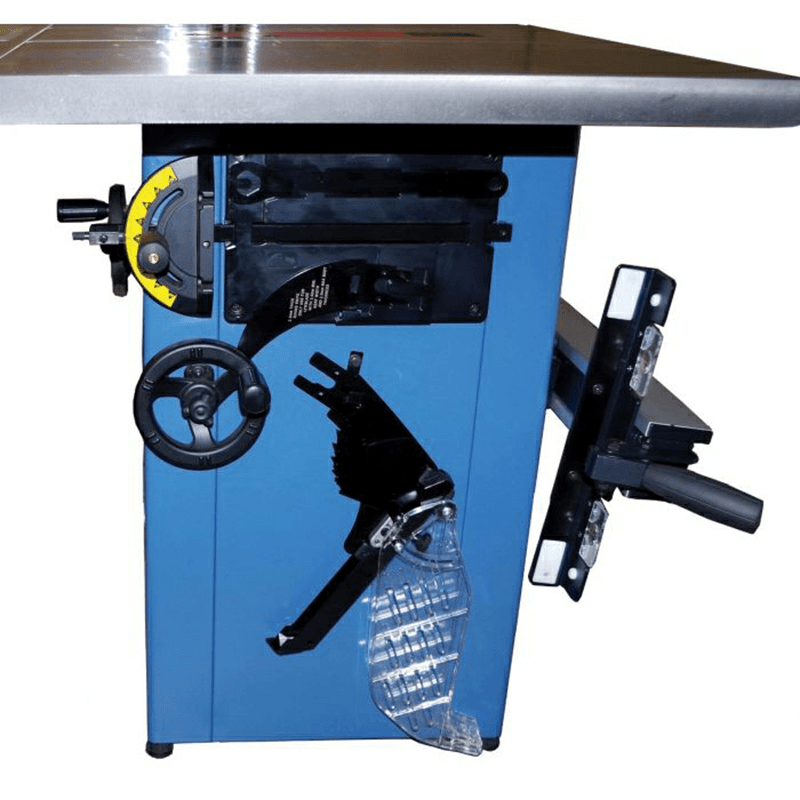

- Built in storage for fence, blade guard, miter gauge, and riving knife
- Saw blade included
- Poly V-belt for long life and smooth operation

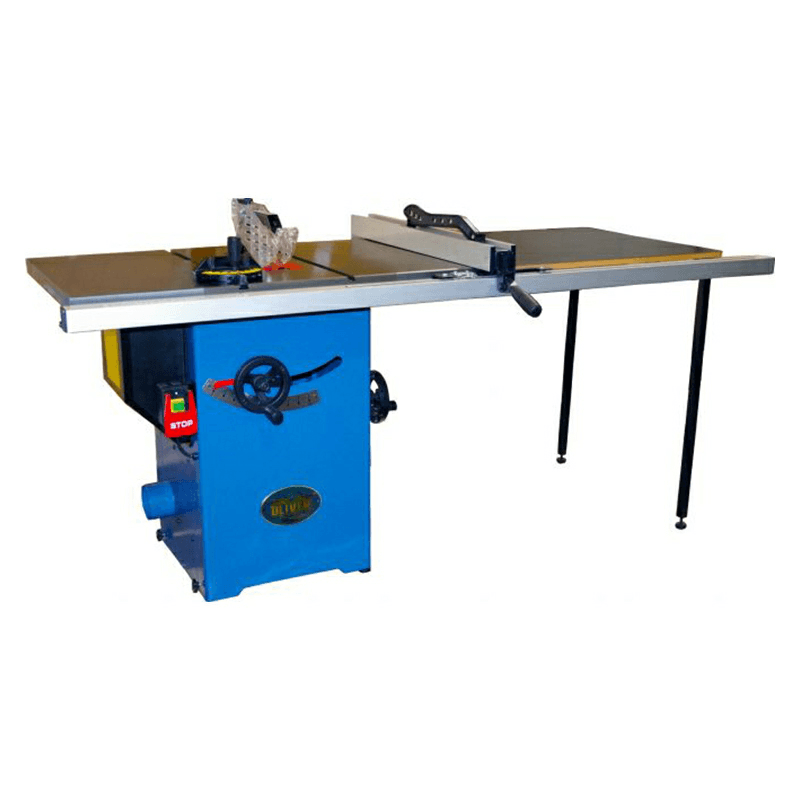

- Extension table and legs included with 52" model
- Quick mount and release blade guard
- Riving knife included
- Built in wheels with locks for mobility
- Industrial switch with large OFF paddle
- Dust shroud and hose for efficient dust management

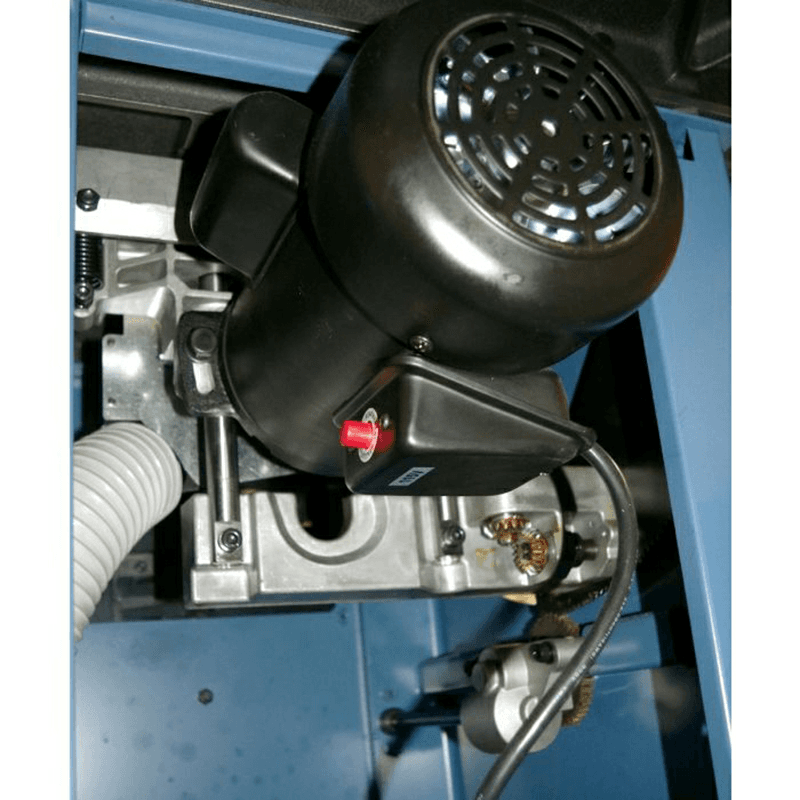

- Motor includes thermos overload reset switch for added protection
Application Specifications:
- Blade Diameter: 10"
- Arbor Diameter: 5/8"
- Blade Tilt: Left
- Maximum Depth of Cut at: 90° 3-1/8"
- Maximum Depth of Cut at: 45° 2-1/4"
- Maximum Width of Dado: 13/16"
- Maximum Cut to Right of Blade: 36" or 52"
- Maximum Cut to Left of Blade: 12"
- Dust Port Diameter: 4"
- Wing Size: 27" x 12"
Drive Package Specifications:
- Motor Horsepower: 1.75 HP
- Motor Phase: 1
- Motor Voltage: 115V/220V Prewired 115V (14.8/7.4 Amp)
- Arbor Speed: 4,500 RPM
Dimension Specifications:
- Table Dimensions without Extensions: 27" D x 20" W
- Table Height: 35"
- Overall Dimensions: 32" x 67" or 83"
Specifications
| Box Quantity | 1 |
