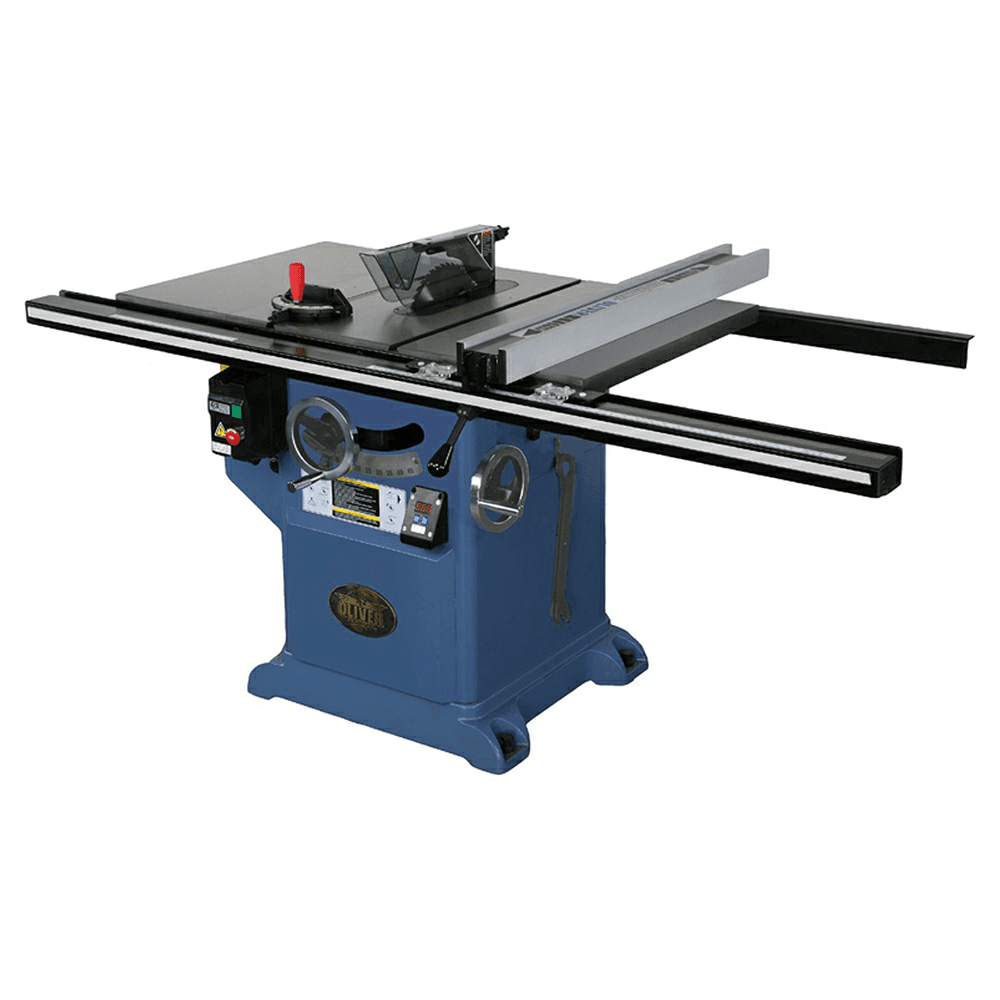

Oliver 10" Heavy Duty Professional Table Saw with Side Table/52" Rail, 5HP/1 Phase

Features:

• Large precision ground table provides a stable work surface

• Cast iron base offers a steady platform

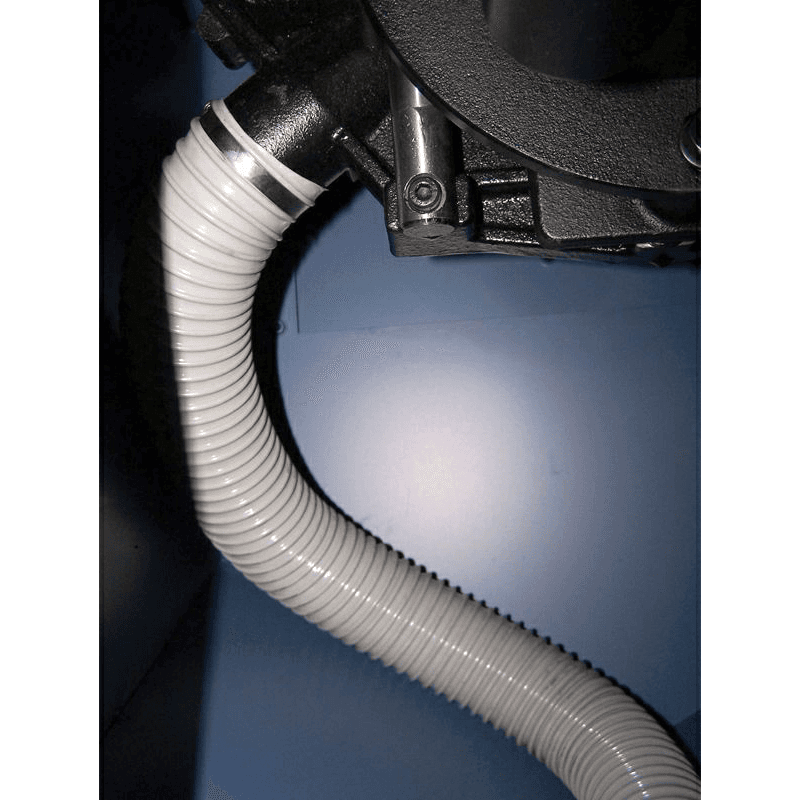

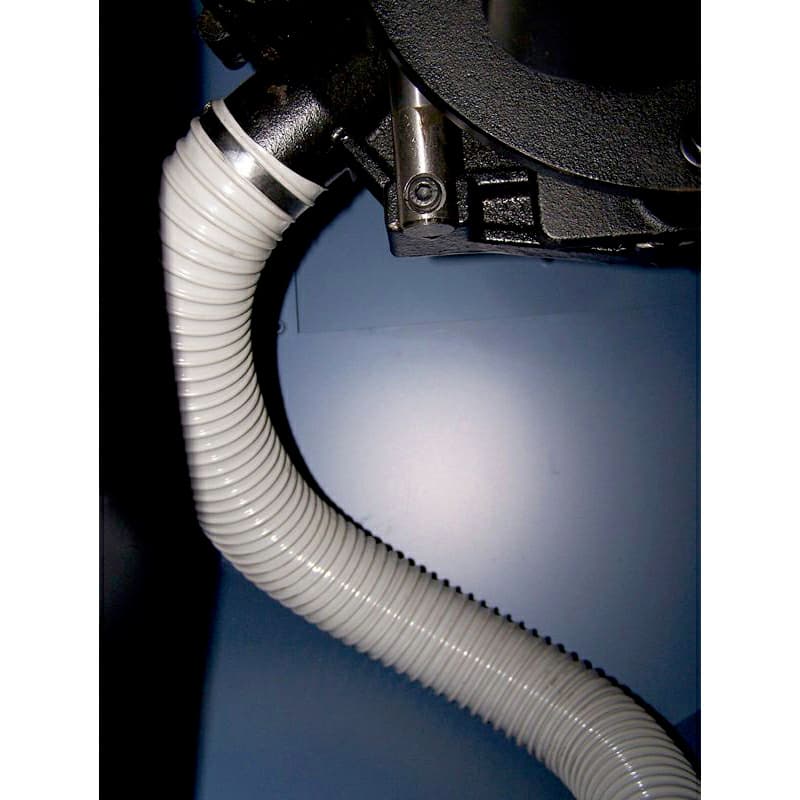

• Fully enclosed cabinet and blade dust shroud for better dust management

• Precision ground 5/8" arbor

• Wide stance trunnion features a left tilt blade

• Poly V-belt drive smoothly transfers power to the blade

• Hydraulic assisted blade lift mechanism for easy movement

• Large chrome hand wheels allow easy adjustments

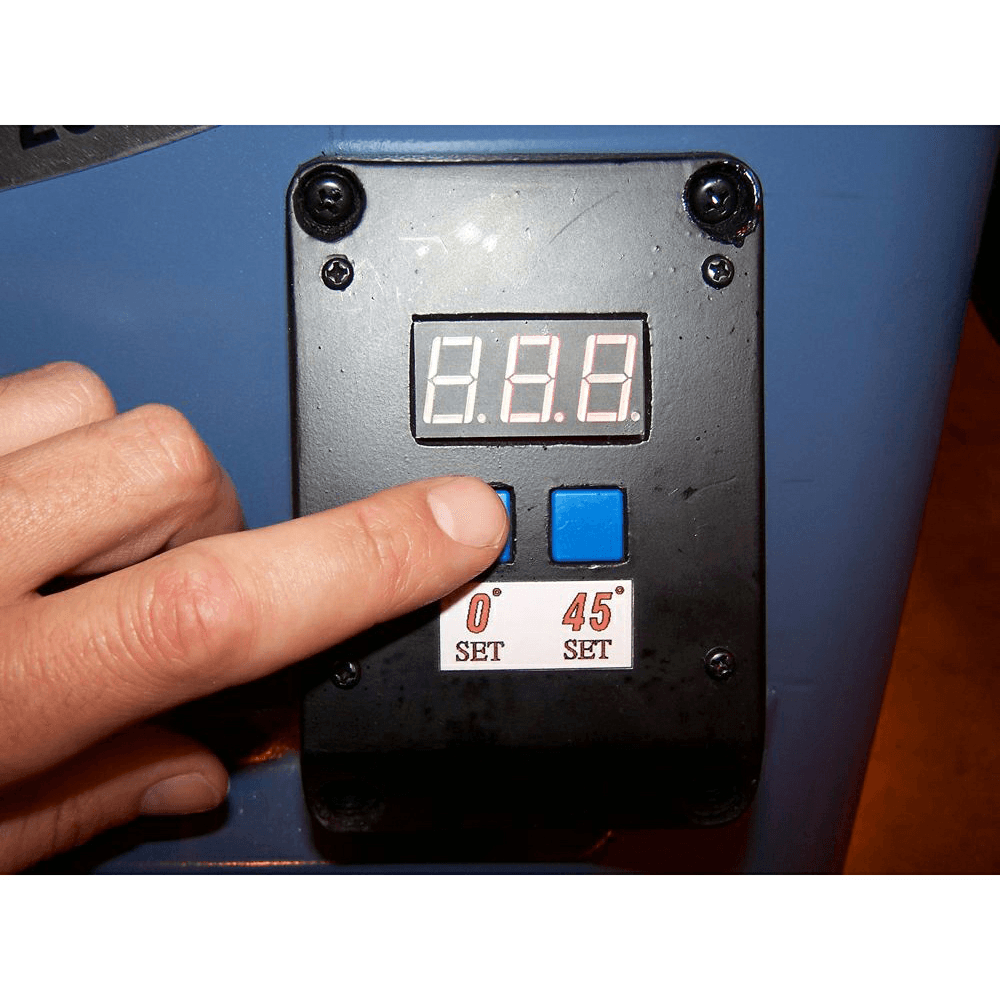

• Includes digital readout of blade tilt

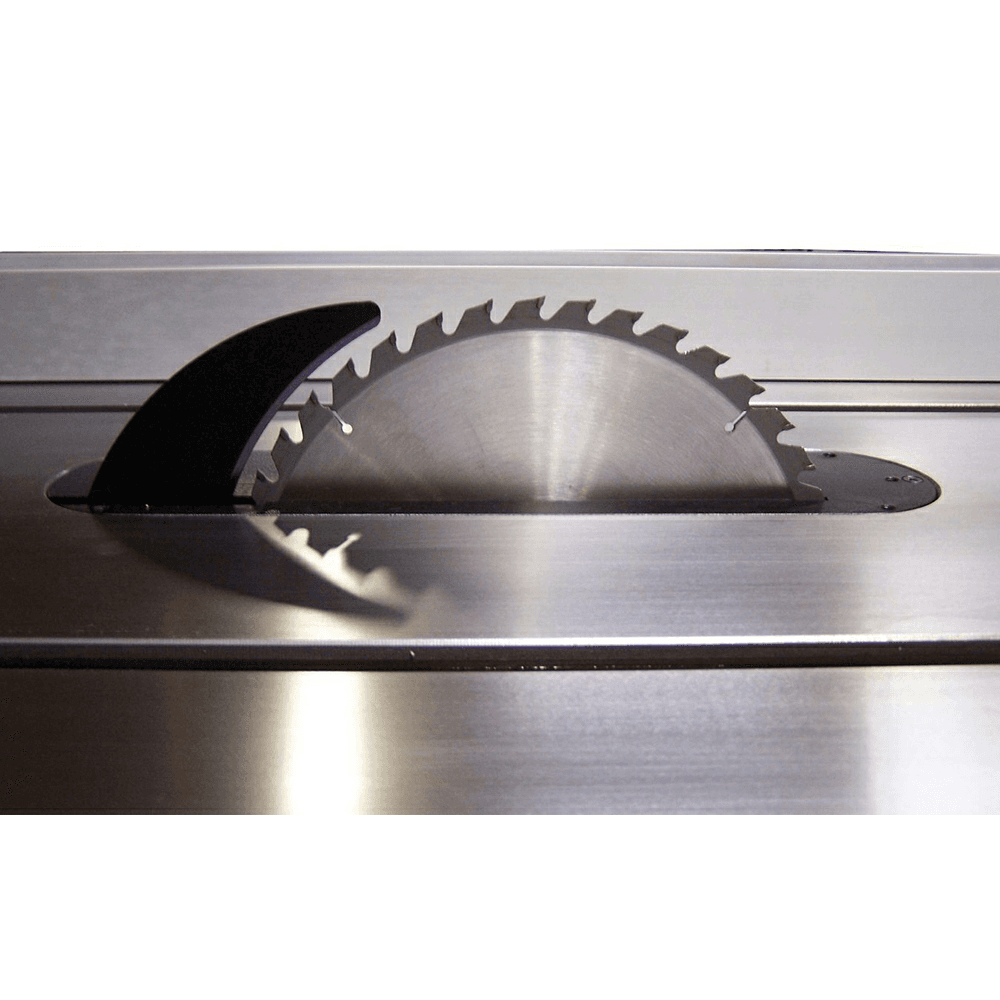

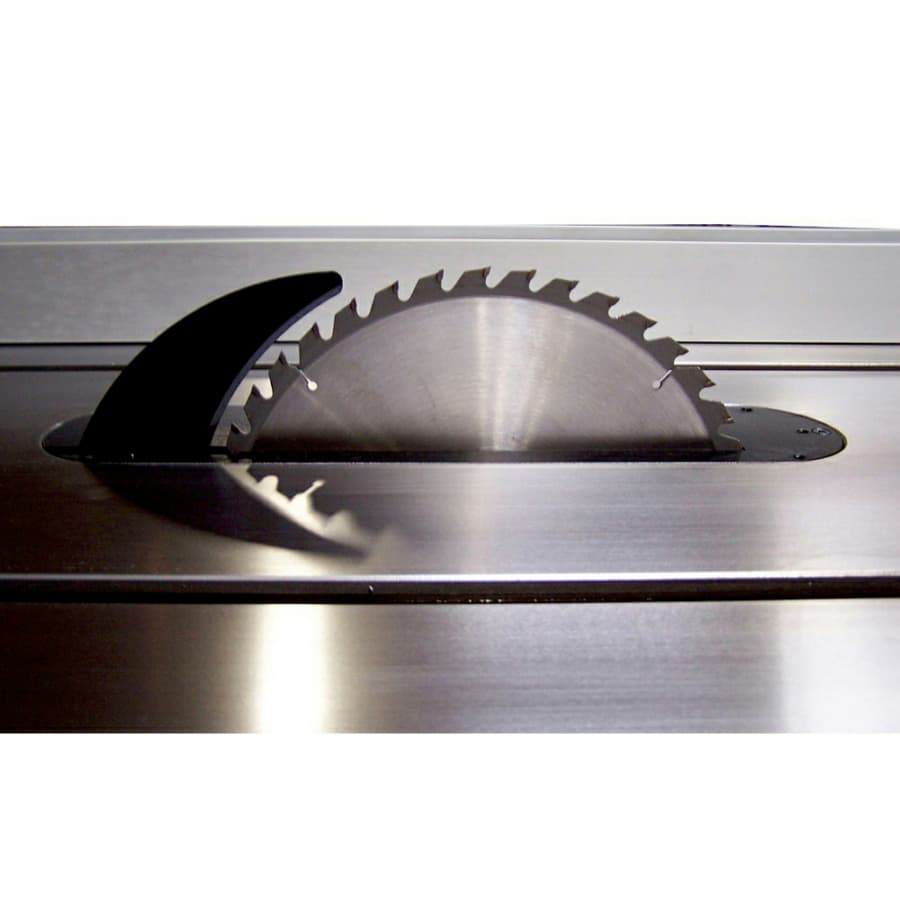

• Riving knife splitter for added safety against kick-back

• Optimus T-square fence available in 52" rip capacity

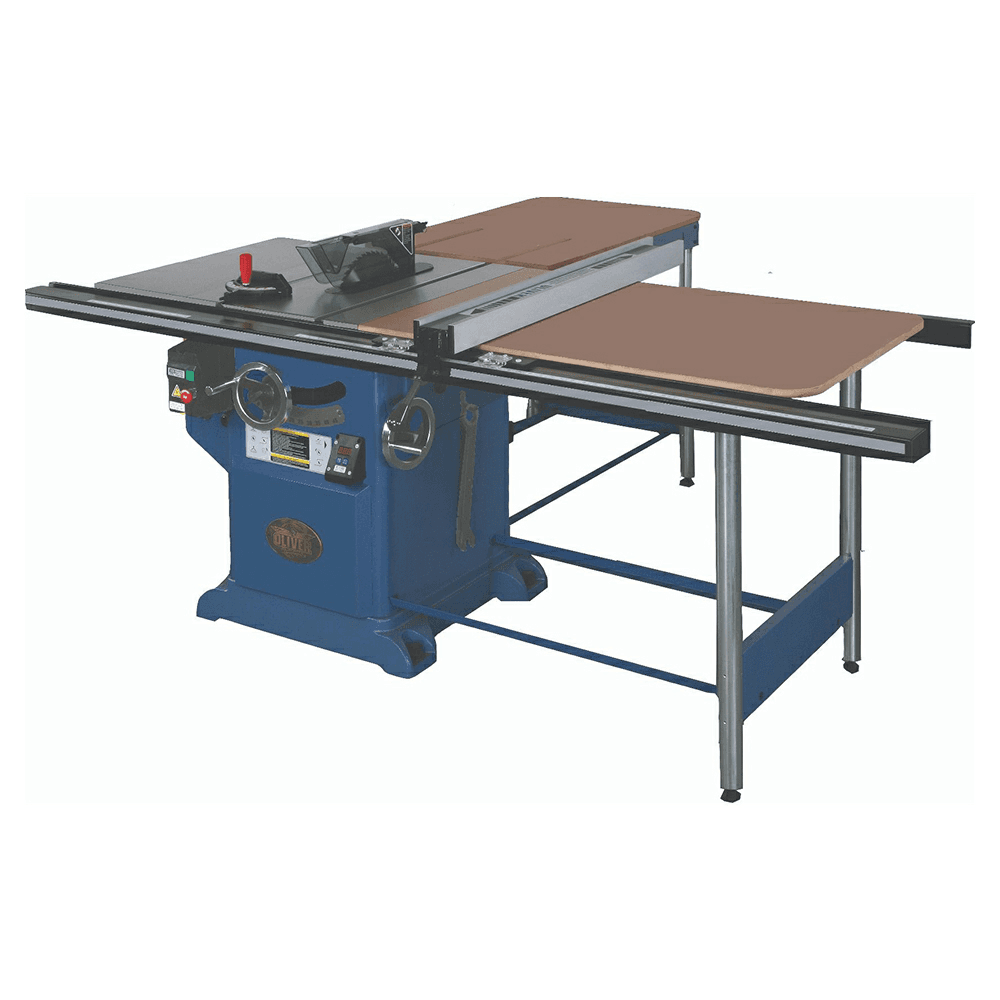

• 52" rail includes wood side table and (1) cast iron extension wing

• Optional rear support table available

• Magnetic controls with emergency off switch

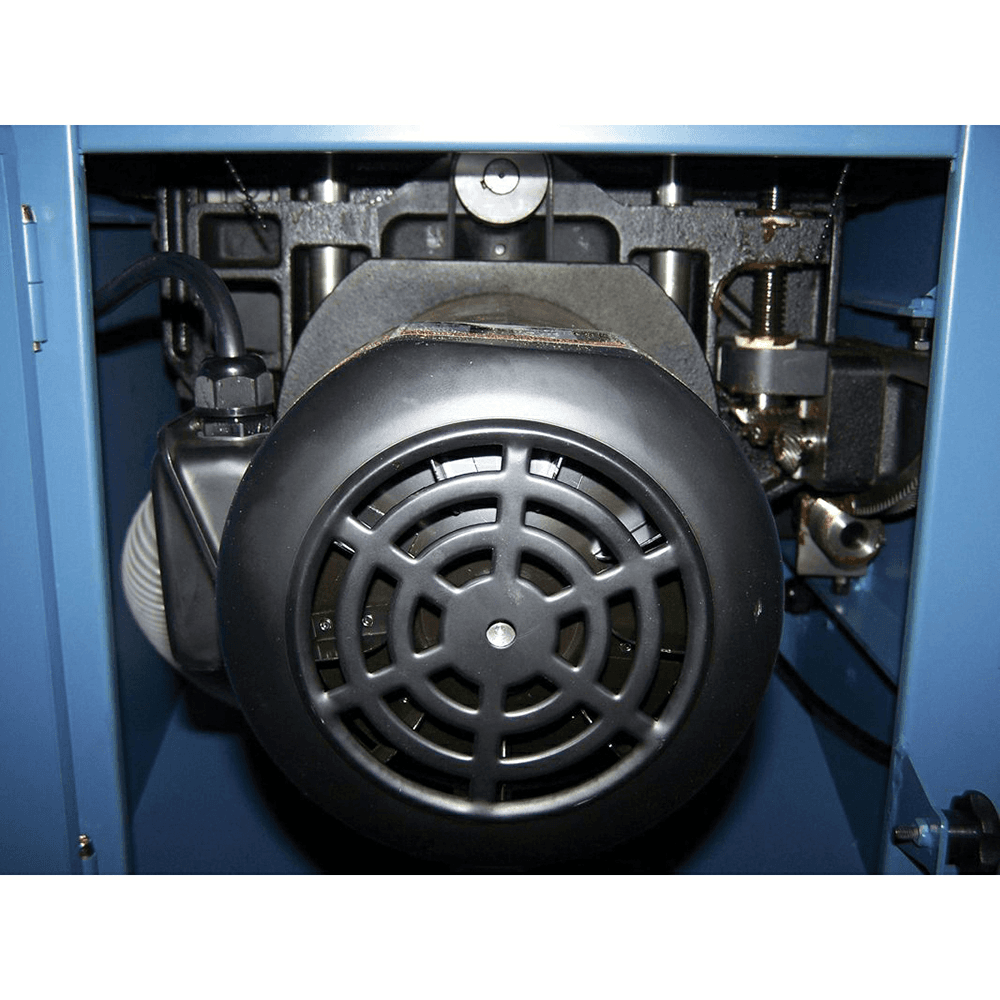

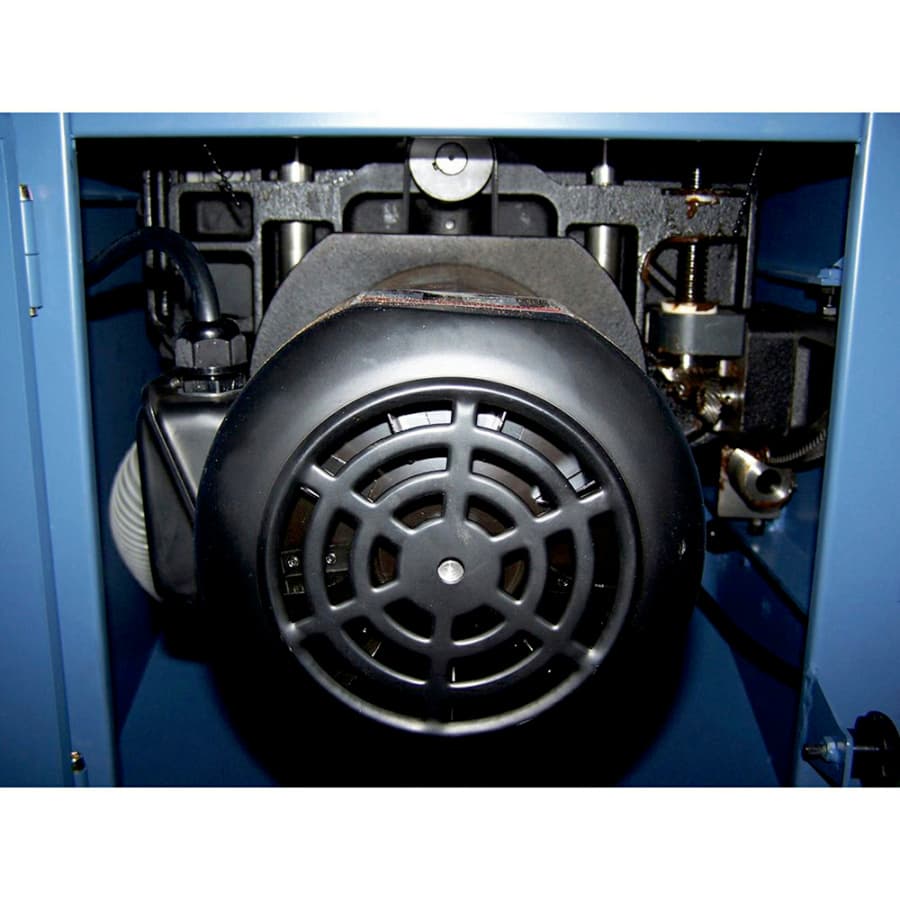

• Powerful TEFC motor available in single-phase

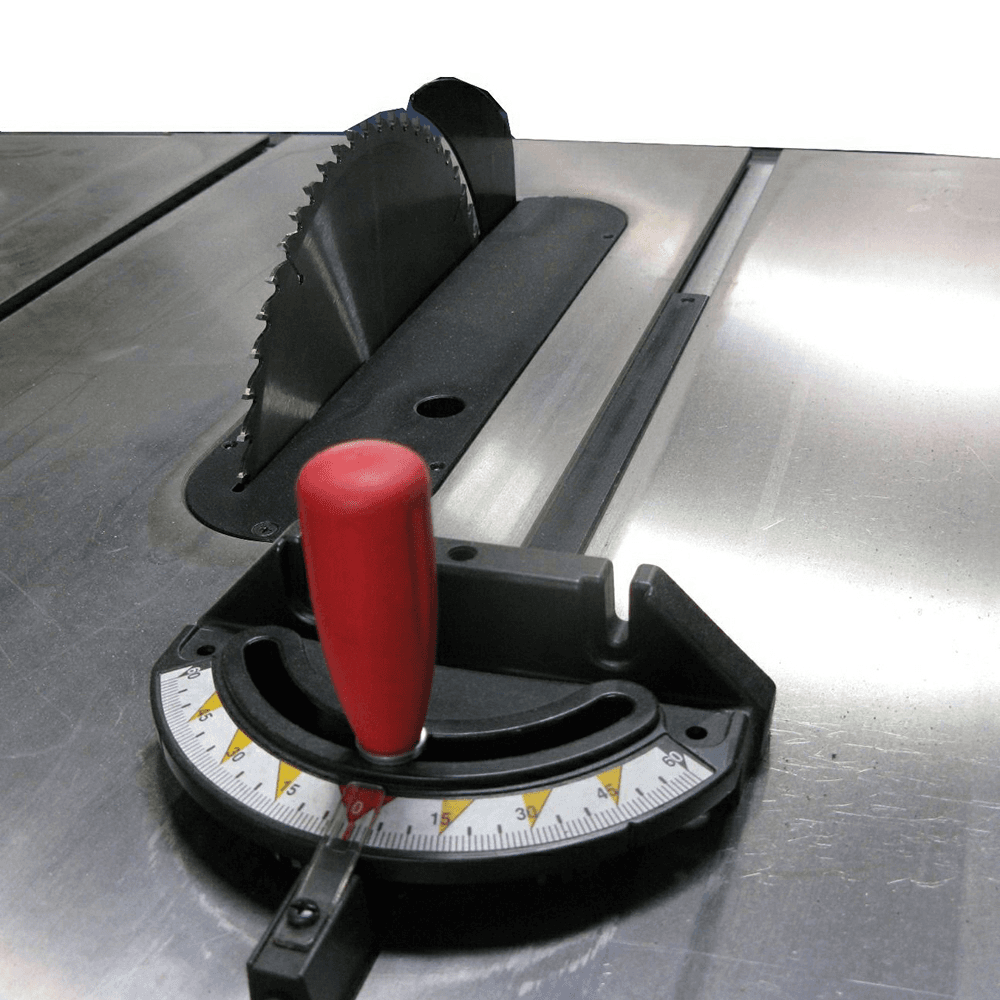

• Miter gauge included

• Blade not included

Application Specifications:

• Blade Diameter: 10"

• Arbor Diameter: 5/8"

• Blade Tilt: Left

• Maximum Depth of Cut at: 90° 3

• Maximum Depth of Cut at: 45° 2-1/4"

• Maximum Width of Dado: 13/16"

• Maximum Cut to Right of Blade: 36"or 52" with side table

• Maximum Cut to Left of Blade: 12"

• Wing Size: 27" x 12"

• Dust Port Diameter: 4"

Drive Package Specifications:

• Motor Horsepower: 5 HP

• Motor Phase: 1

• Motor Voltage: 220V Only (18 amps)

• Arbor Speed: 3,450 RPM

Dimension Specifications:

• Table Dimensions without Extensions: 27" D x 21-1/4" W

• Table Height: 36"

• Overall Dimensions: 74" L x 32-1/2" W x 40" H
