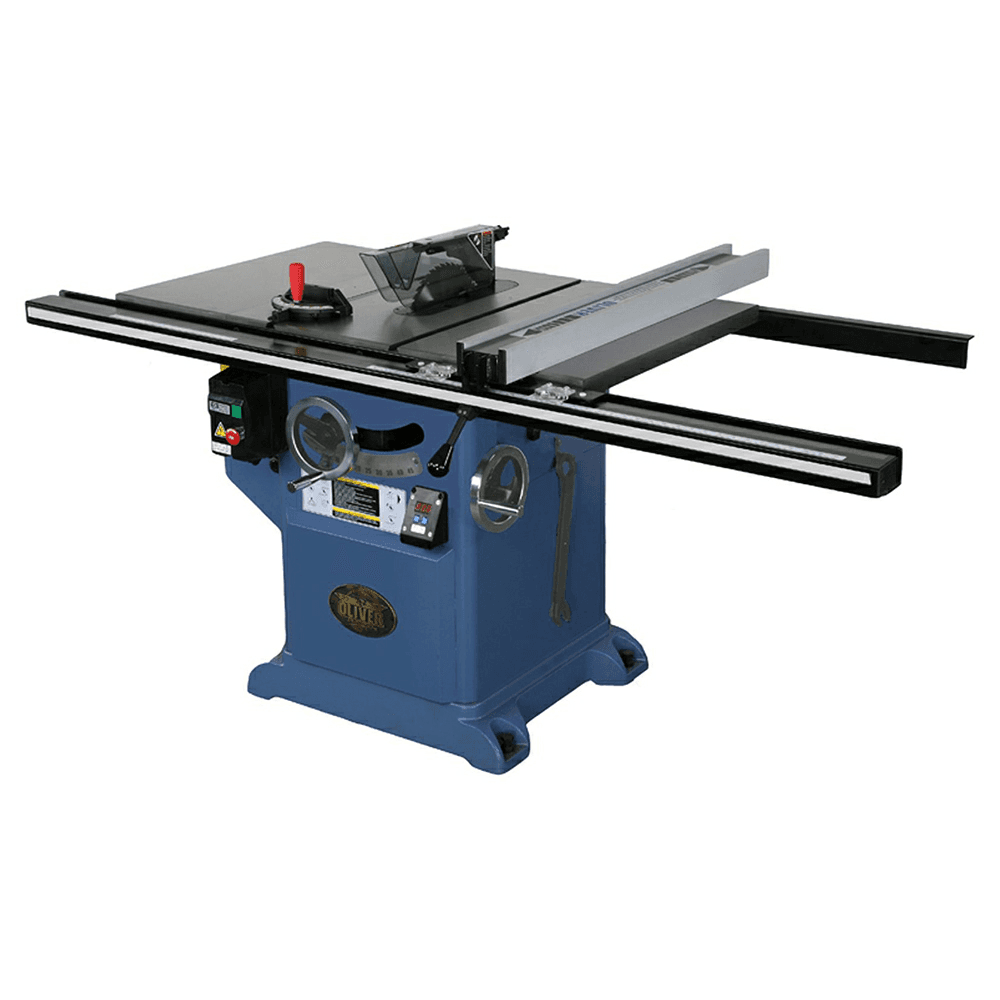

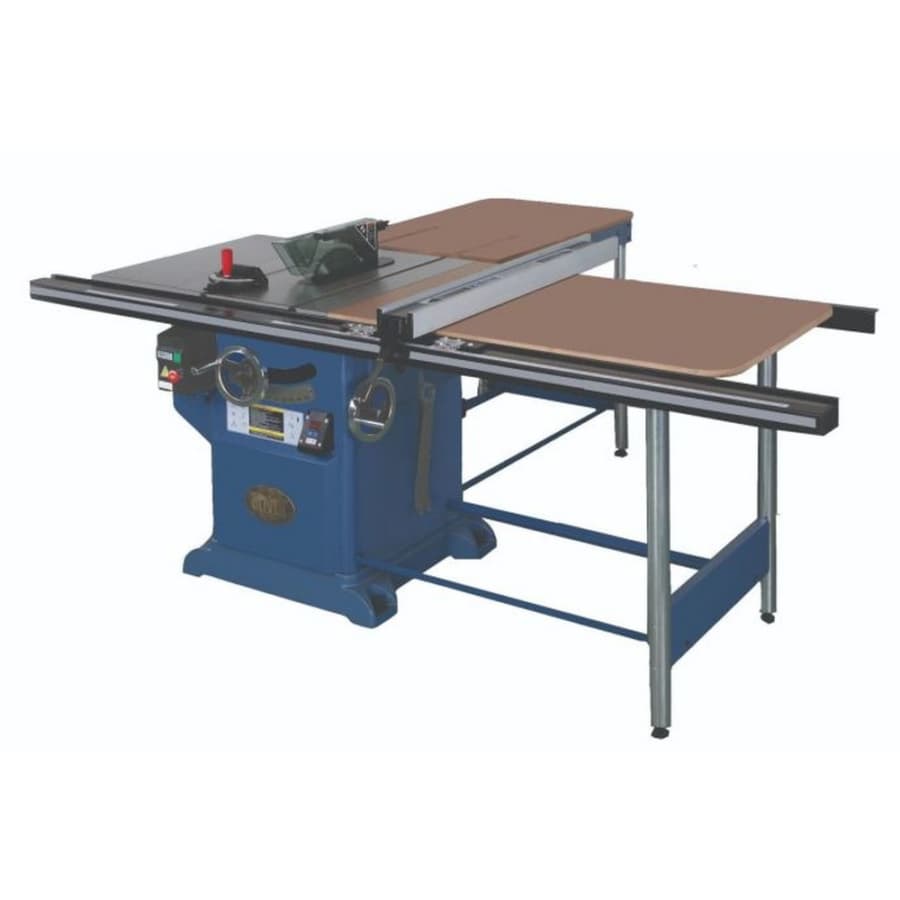

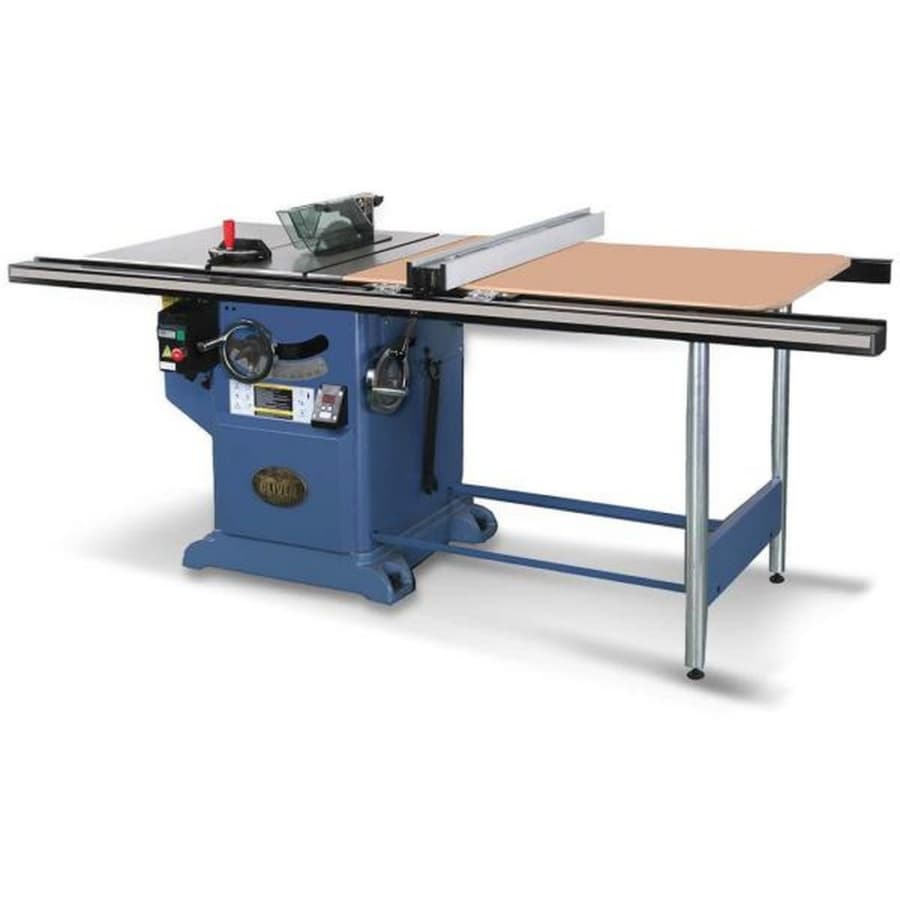

Oliver 10" Heavy Duty Table Saw with 36" Rail, 5HP/3 Phase
Item # OLV4016.004
•Mfr # 4016.004
$3,999.99
/Each
Freight: $525.00
Min Order: 1
Quantity Multiple by: 1
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
Features:
- Large precision ground table provides a stable work surface
- Cast iron base offers a steady platform

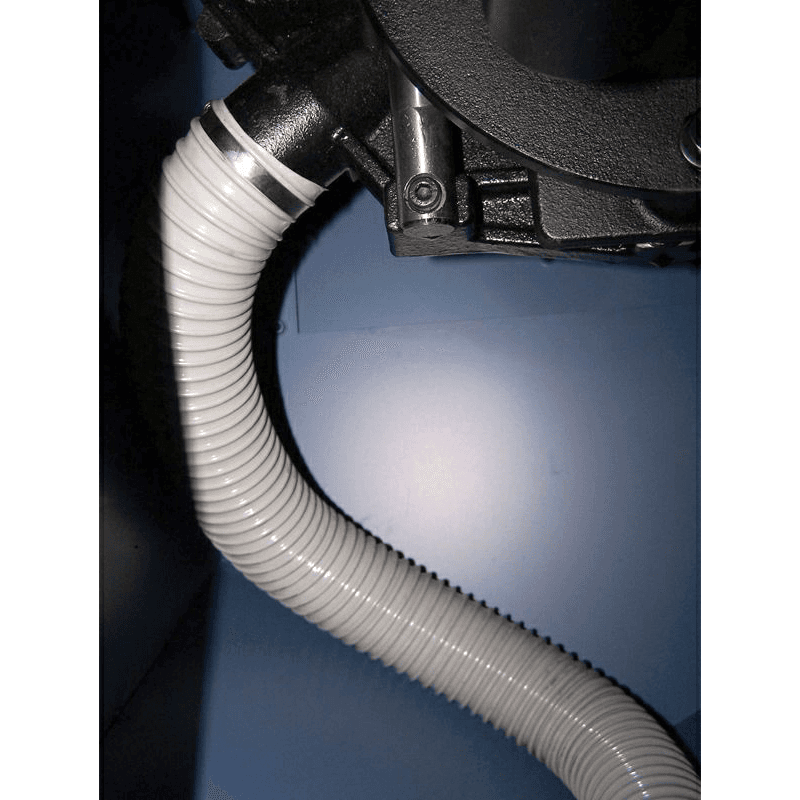

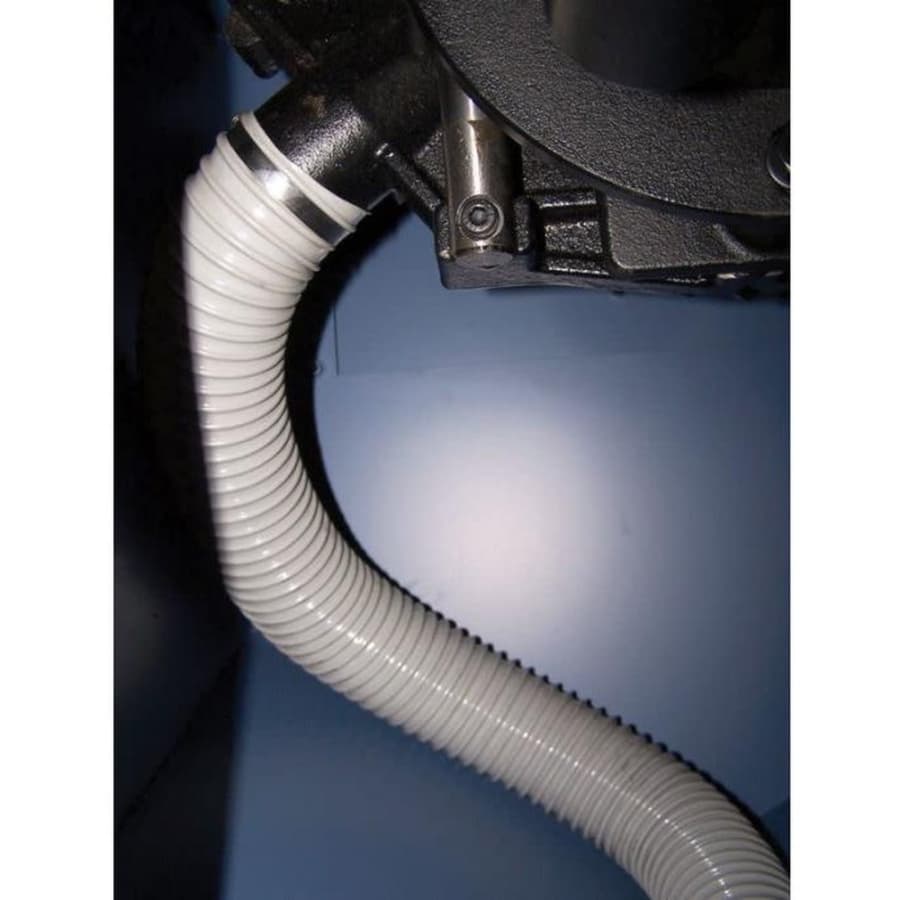

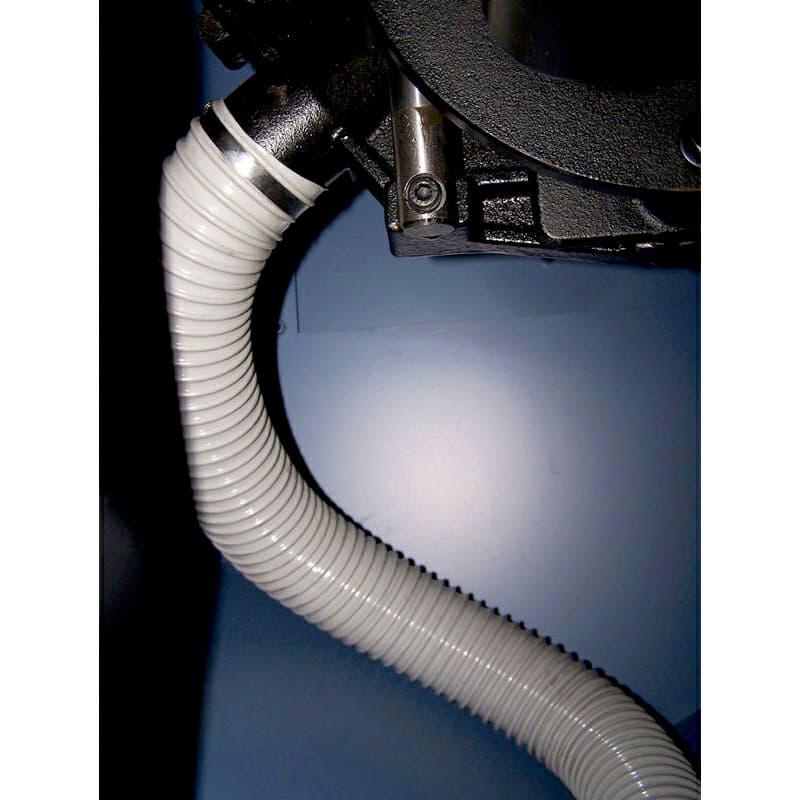

- Fully enclosed cabinet and blade dust shroud for better dust management
- Precision ground 5/8" arbor
- Wide stance trunnion features a left tilt blade
- Poly V-belt drive smoothly transfers power to the blade
- Hydraulic assisted blade lift mechanism for easy movement
- Large chrome hand wheels allow easy adjustments

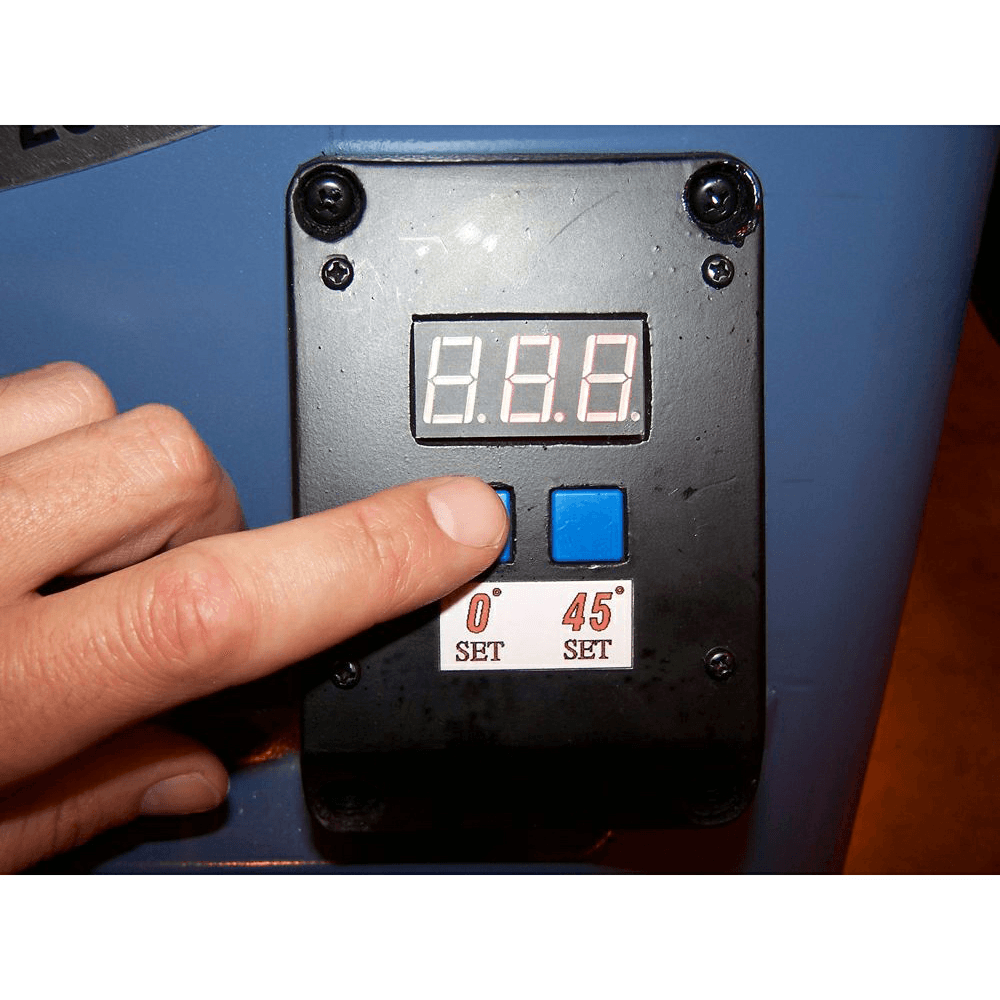

- Includes digital readout of blade tilt

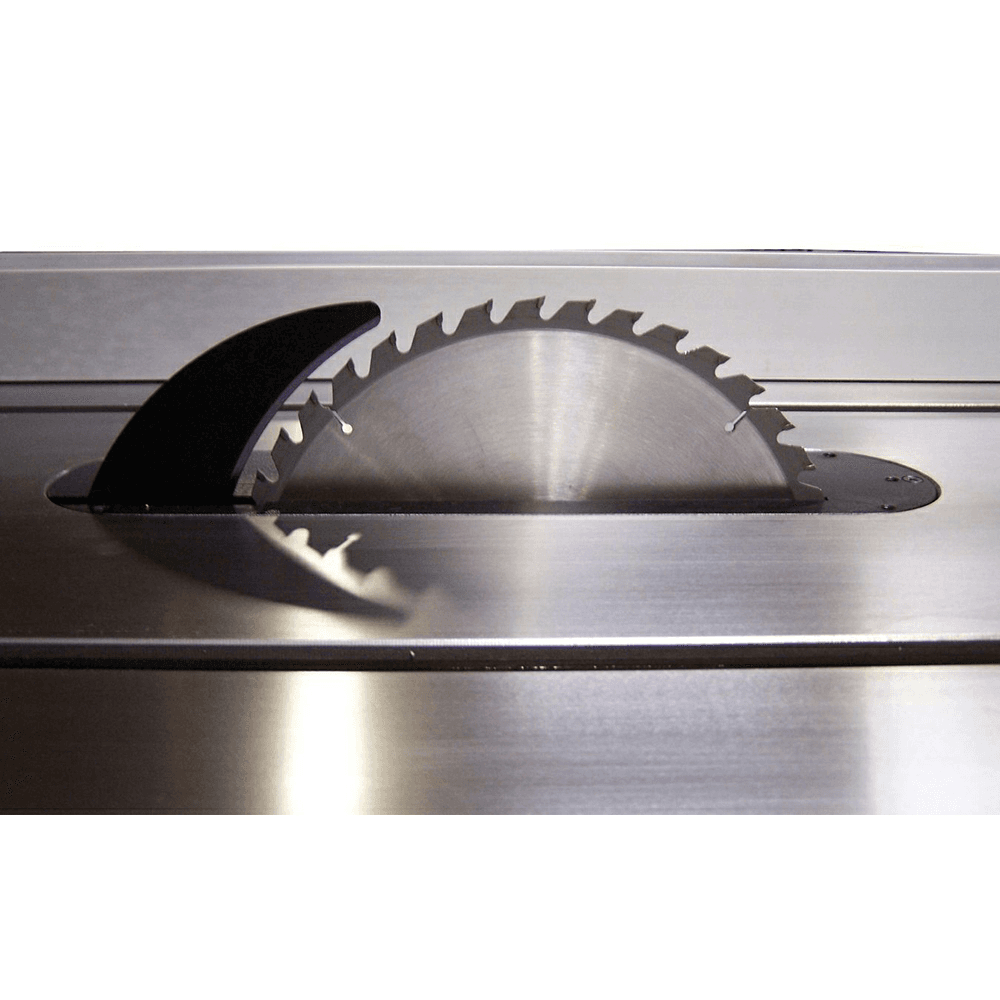

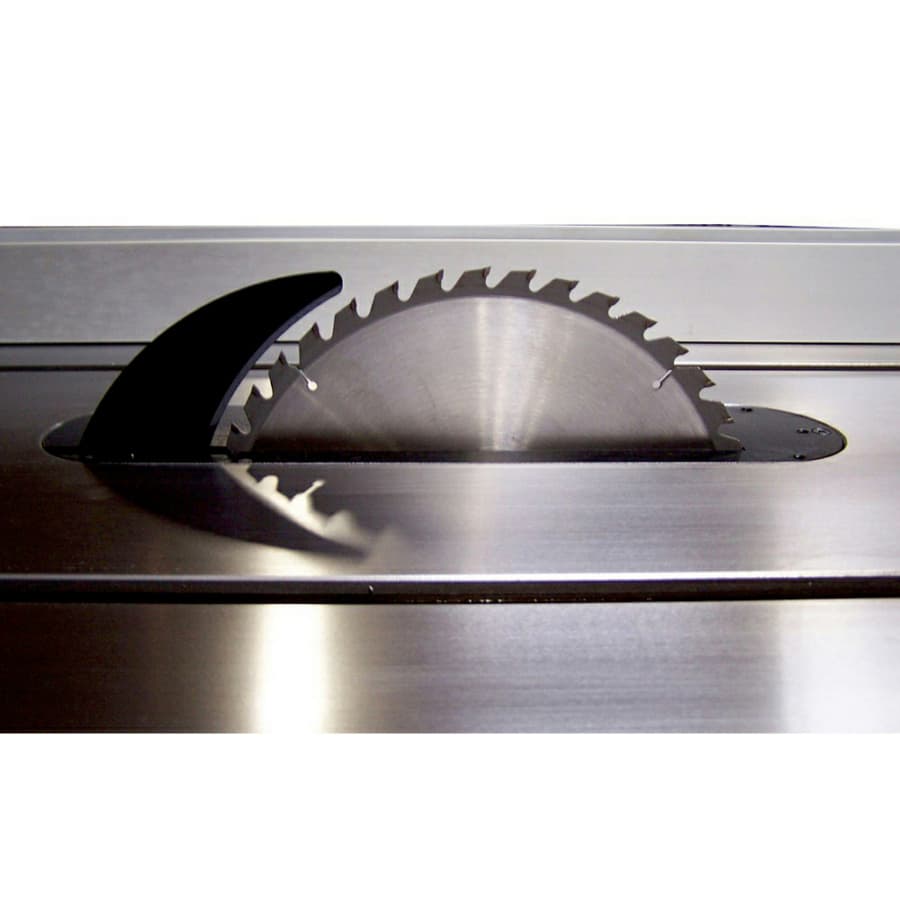

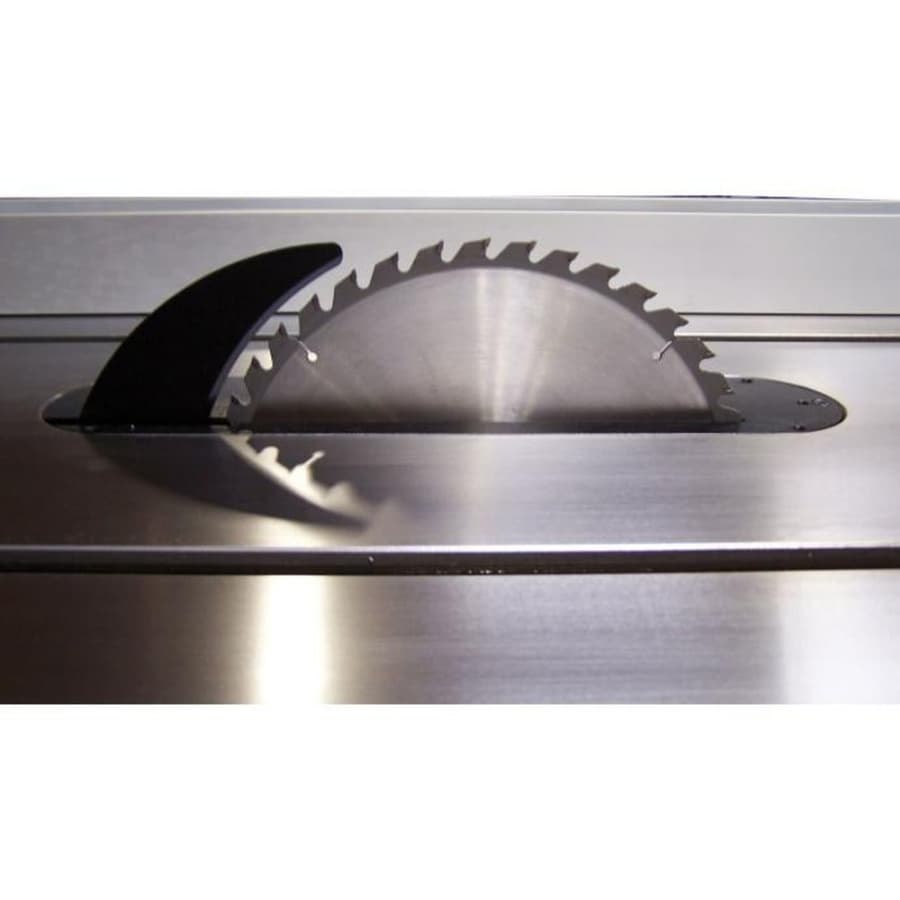

- Riving knife splitter for added safety against kick-back
- Optimus T-square fence available in 36" rip capacity
- 36" rail includes (2) cast iron extension wings

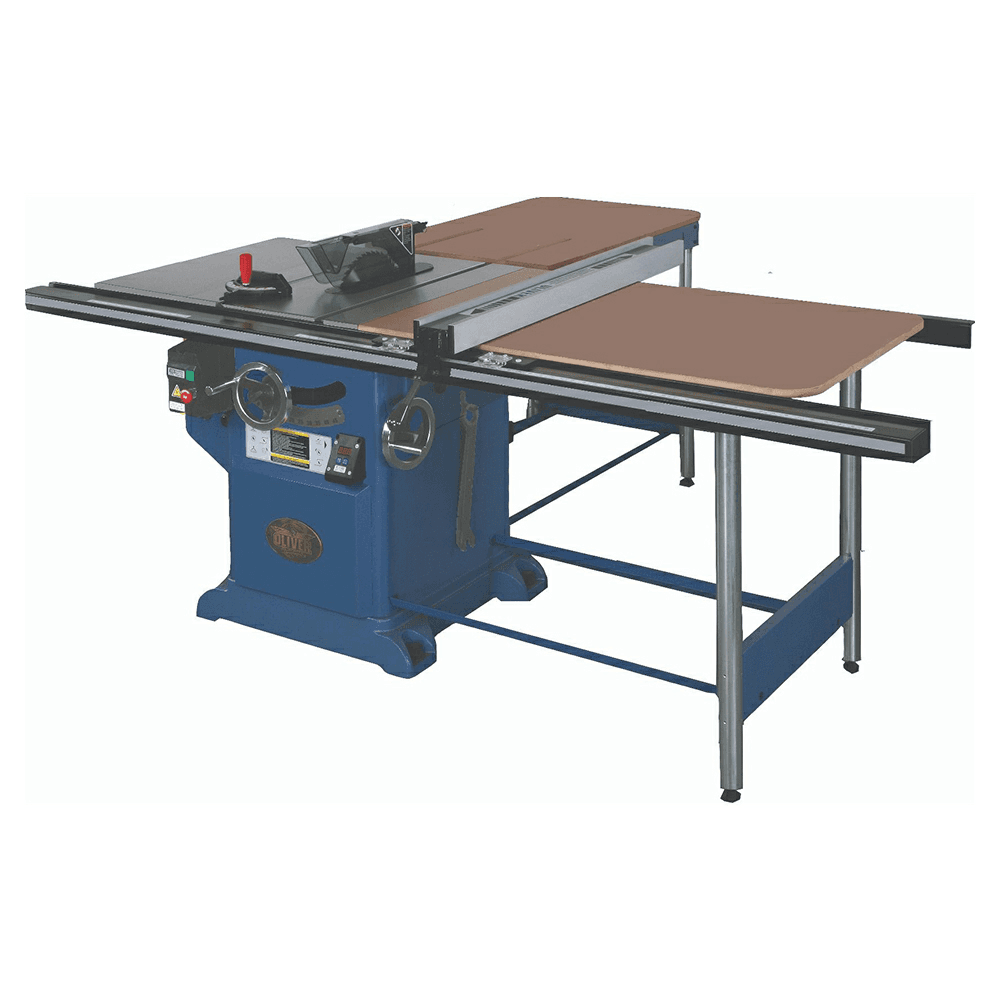

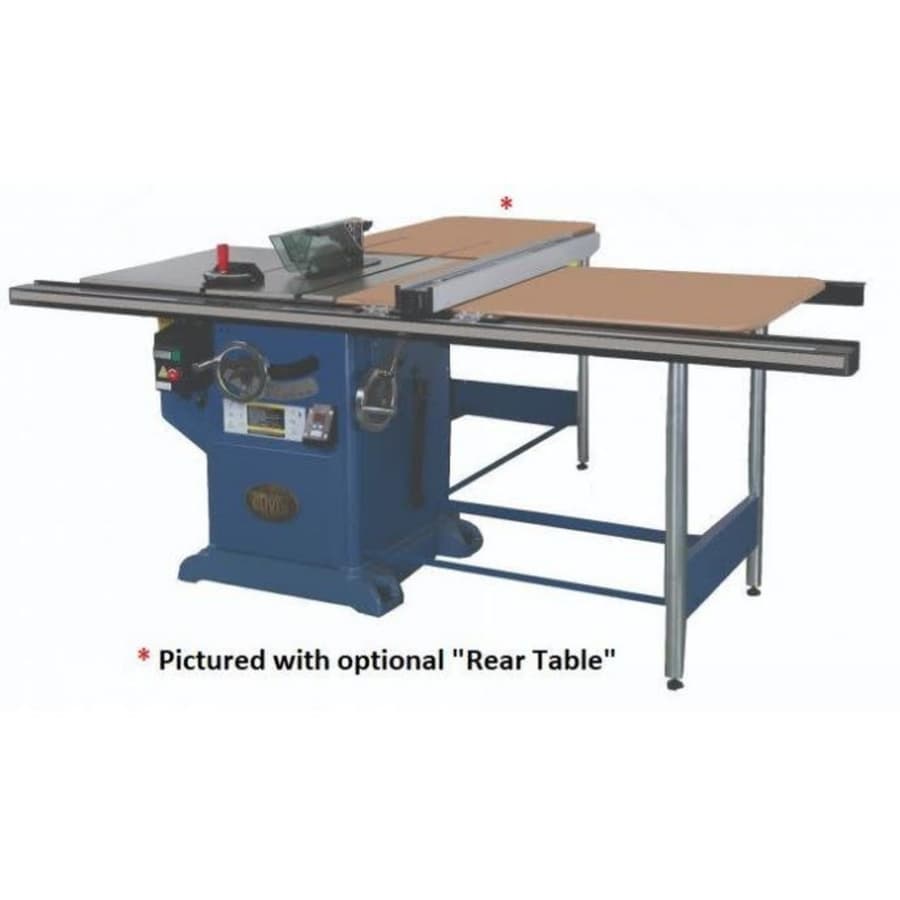

- Optional rear support table available
- Magnetic controls with emergency off switch

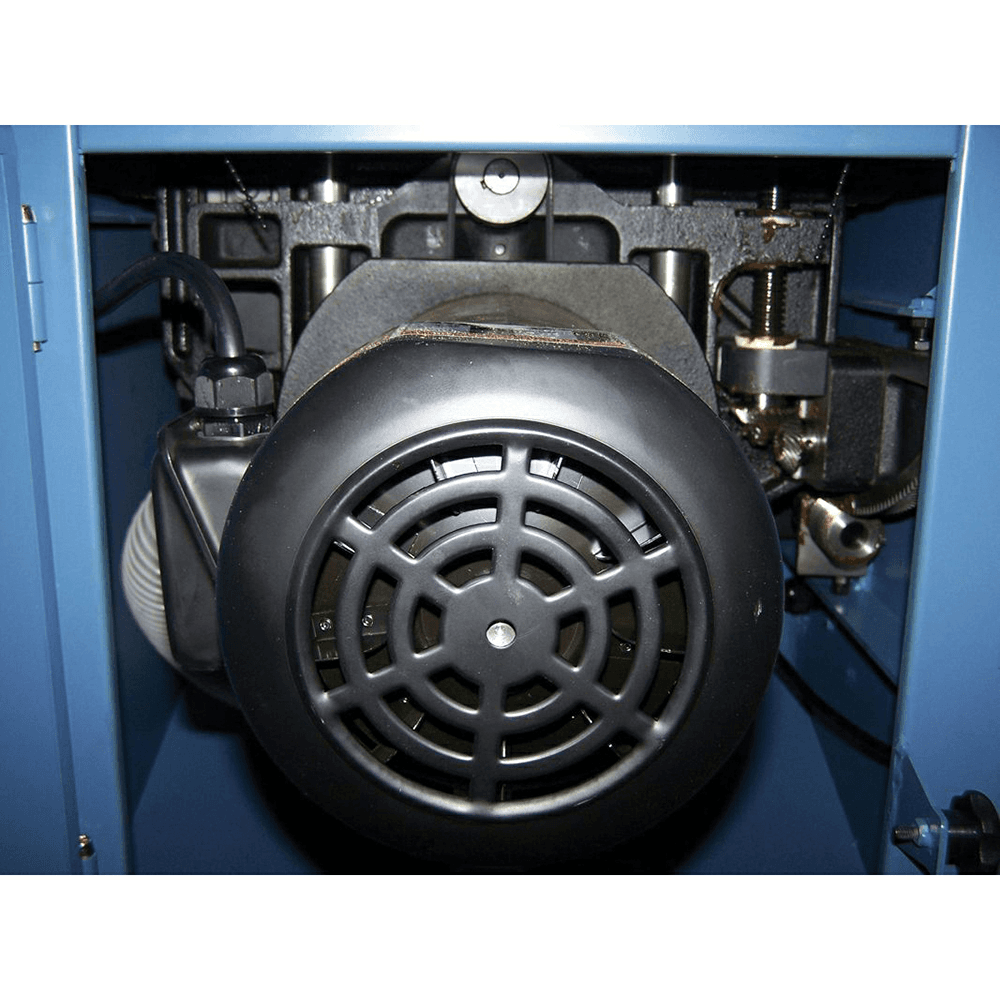

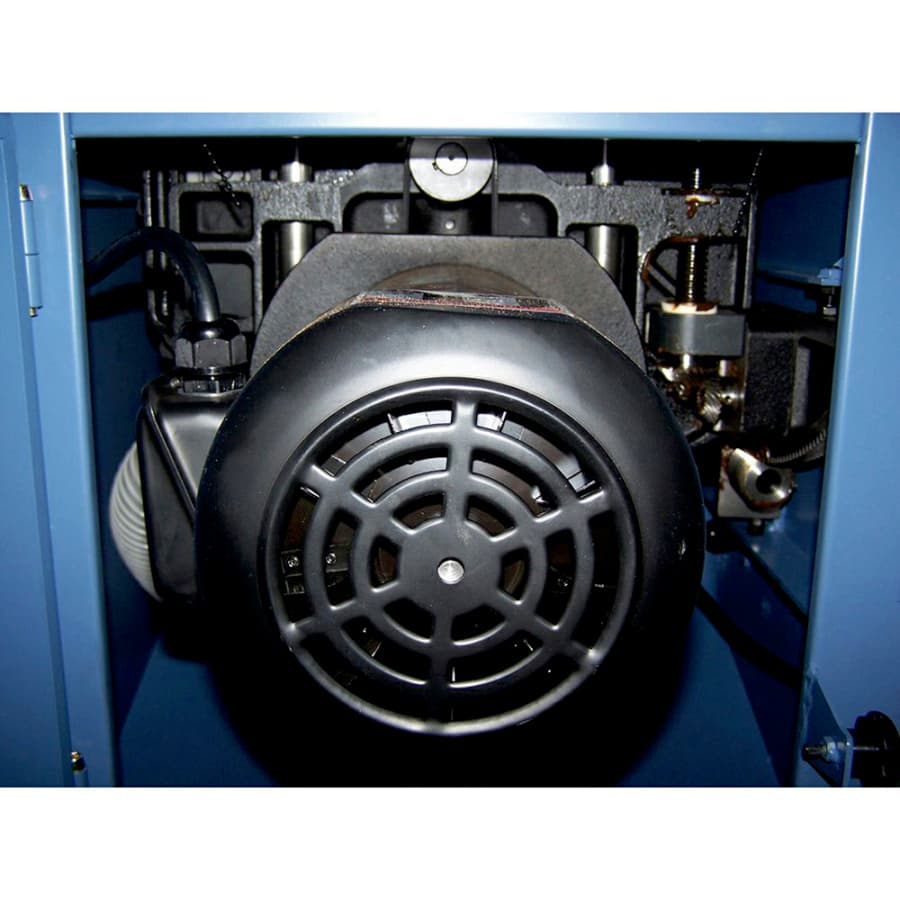

- Powerful TEFC motor available in three-phase

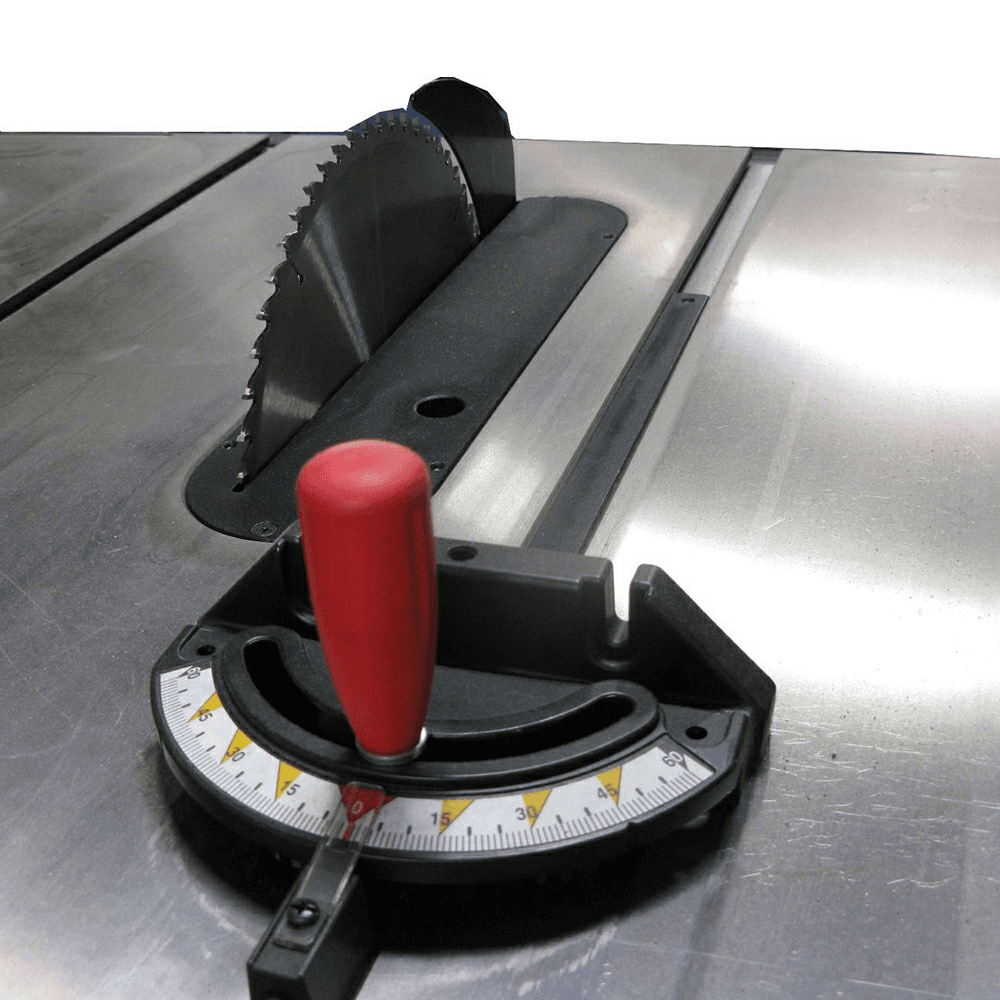

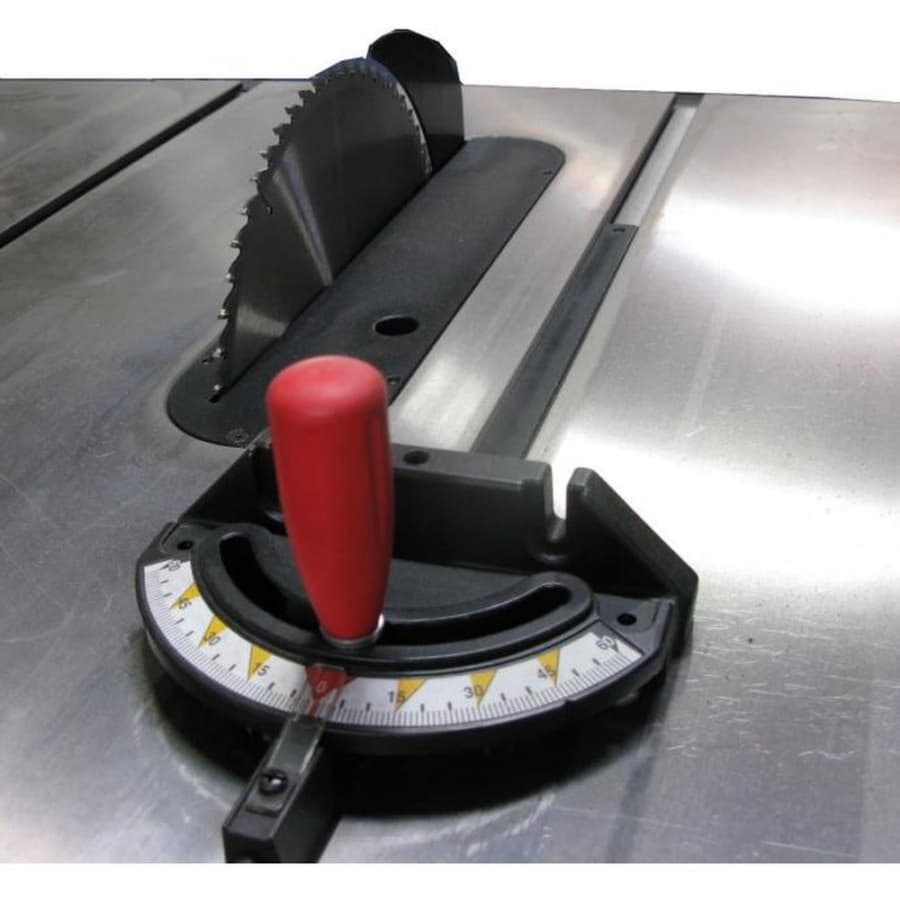

- Miter gauge included
- Blade not included
Application Specifications:
- Blade Diameter: 10"
- Arbor Diameter: 5/8"
- Blade Tilt: Left
- Maximum Depth of Cut at: 90° 3
- Maximum Depth of Cut at: 45° 2-1/4"
- Maximum Width of Dado: 13/16"
- Maximum Cut to Right of Blade: 36"or 52" with side table
- Maximum Cut to Left of Blade: 12"
- Wing Size: 27" x 12"
- Dust Port Diameter: 4"
Drive Package Specifications:
- Motor Horsepower: 5 HP
- Motor Phase: 3
- Motor Voltage: 220V/440V Prewired 220V (15/7.5 Amp)
- Arbor Speed: 3,450 RPM
Dimension Specifications:
- Table Dimensions without Extensions: 27" D x 21-1/4" W
- Table Height: 36"
- Overall Dimensions: 74" L x 32-1/2" W x 40" H
