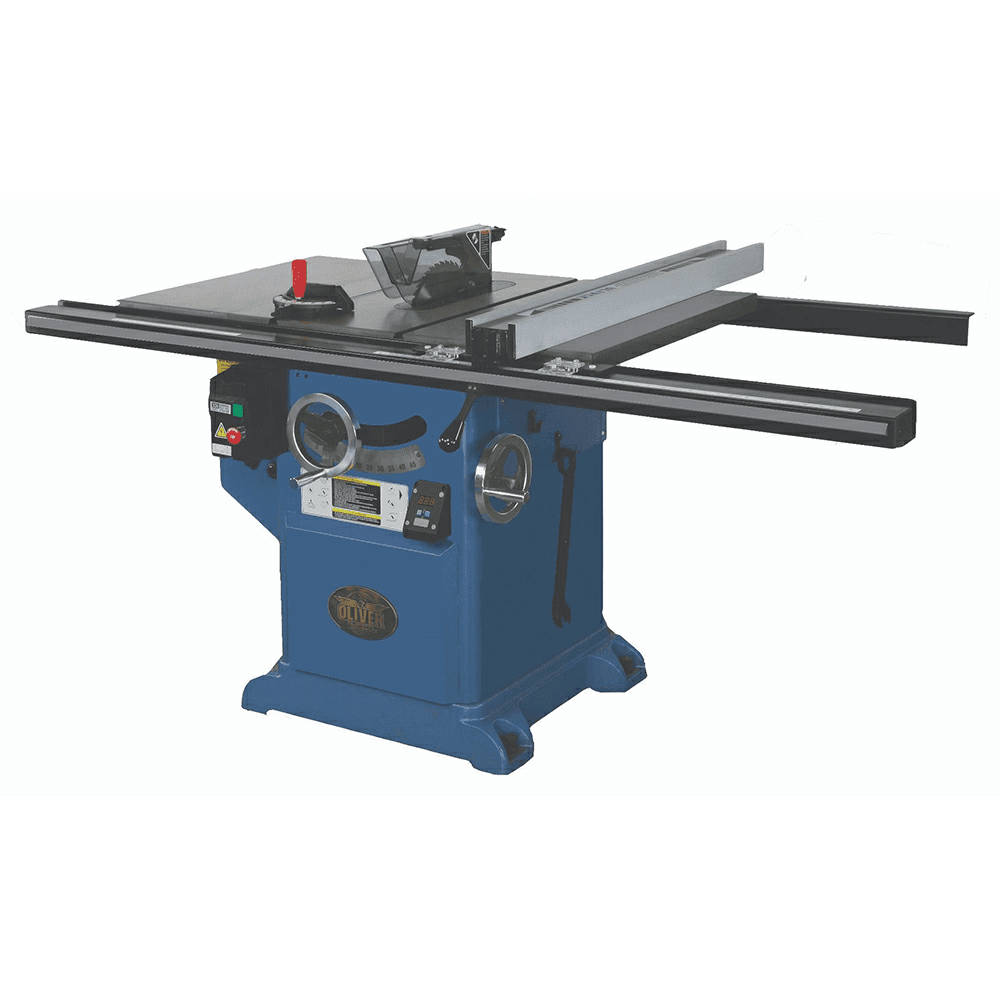

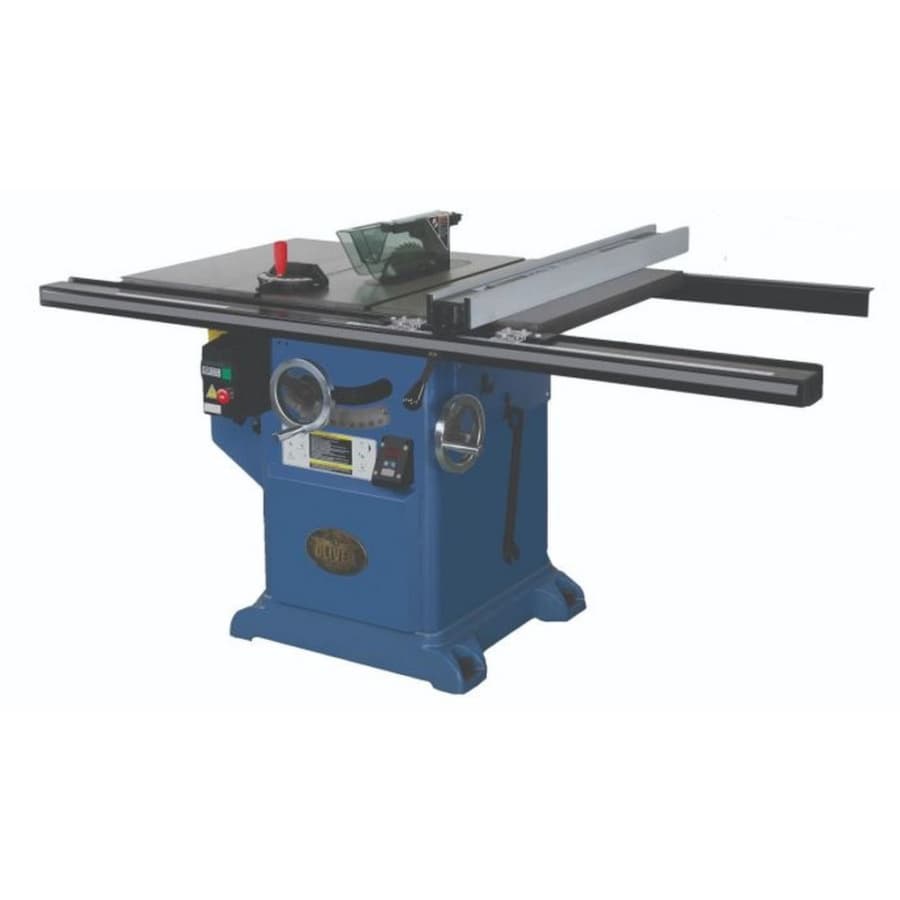

Oliver 12" Heavy Duty Table Saw with 36" Rail, 7.5HP/3 Phase
Item # OLV4045.004
•Mfr # 4045.004
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
Features:
- Large precision ground table provides a stable work surface
- Cast iron base offers a steady platform

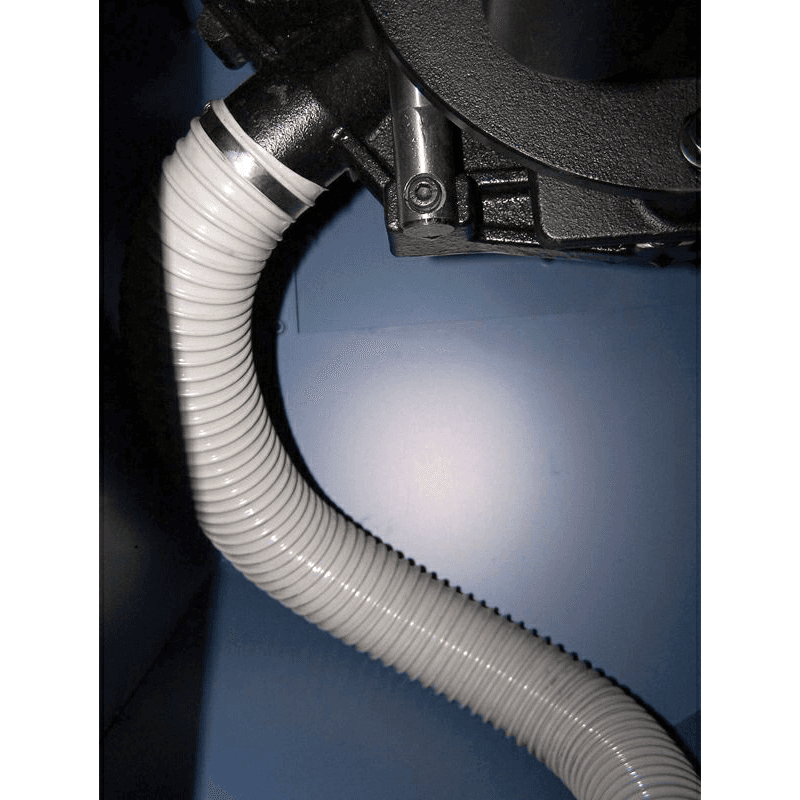

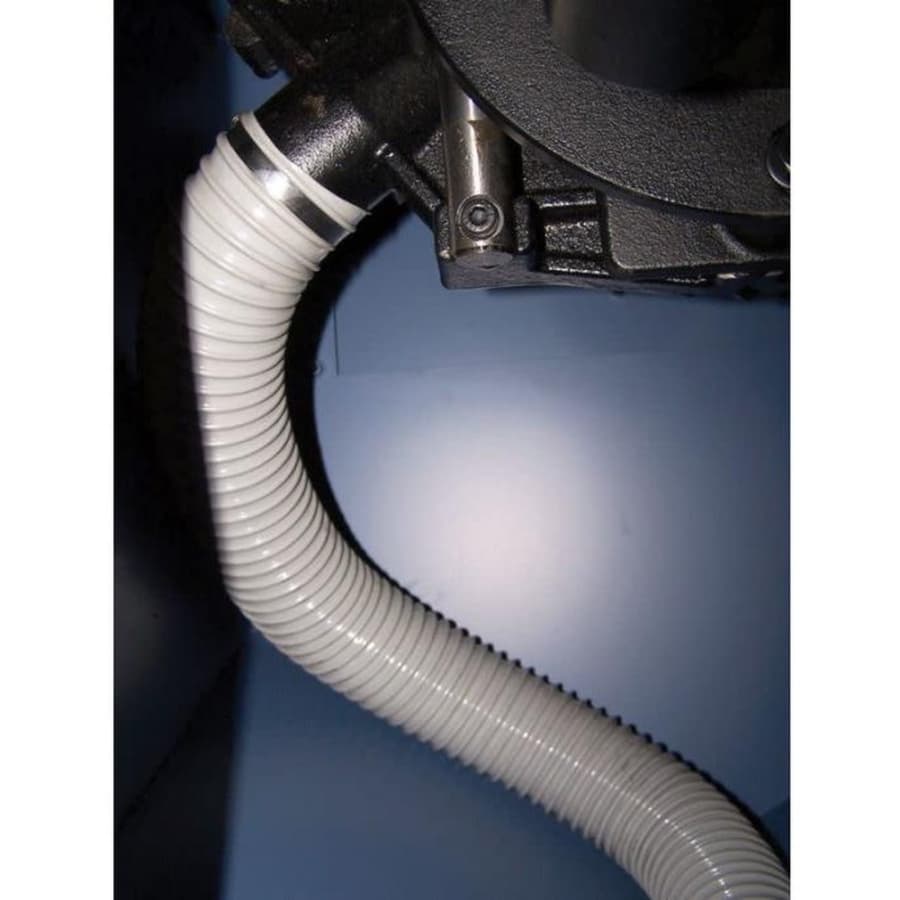

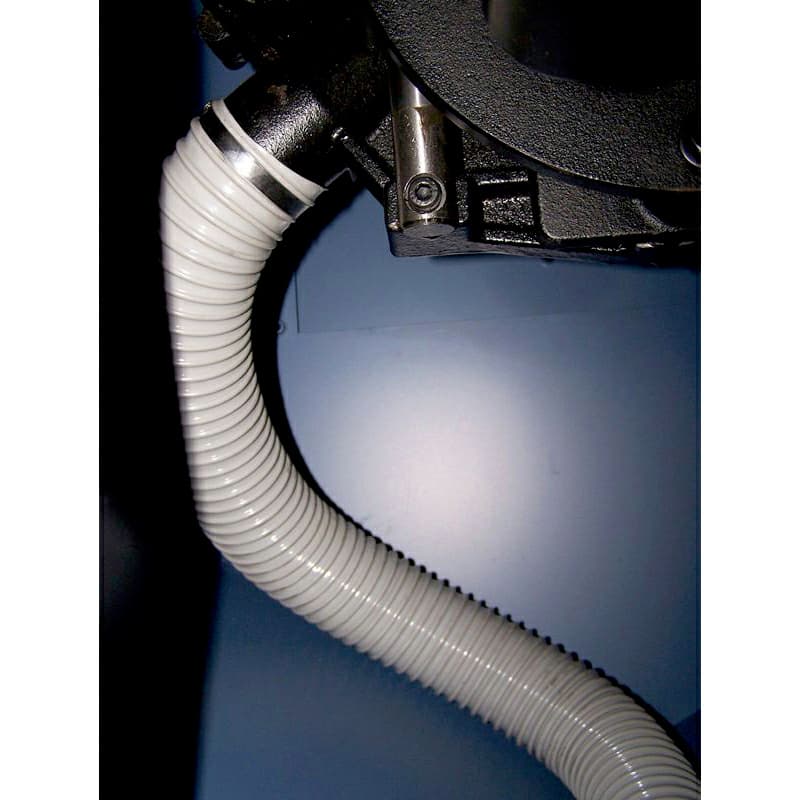

- Fully enclosed cabinet and blade dust shroud for better dust management
- Precision ground 1" arbor
- Wide stance trunnion features a left tilt blade
- Poly V-belt drive smoothly transfers power to the blade
- Hydraulic assisted blade lift mechanism for easy movement
- Large chrome hand wheels allow easy movement./

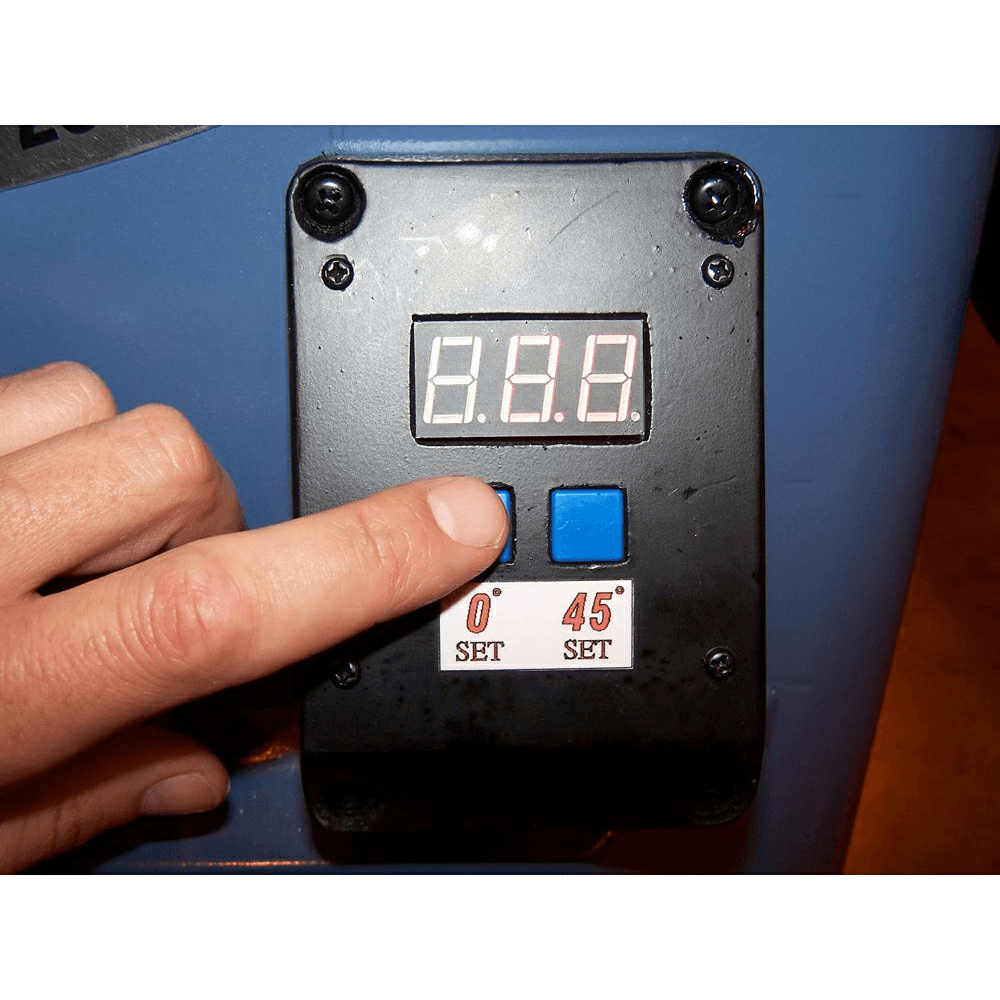

- Includes digital readout of blade tilt

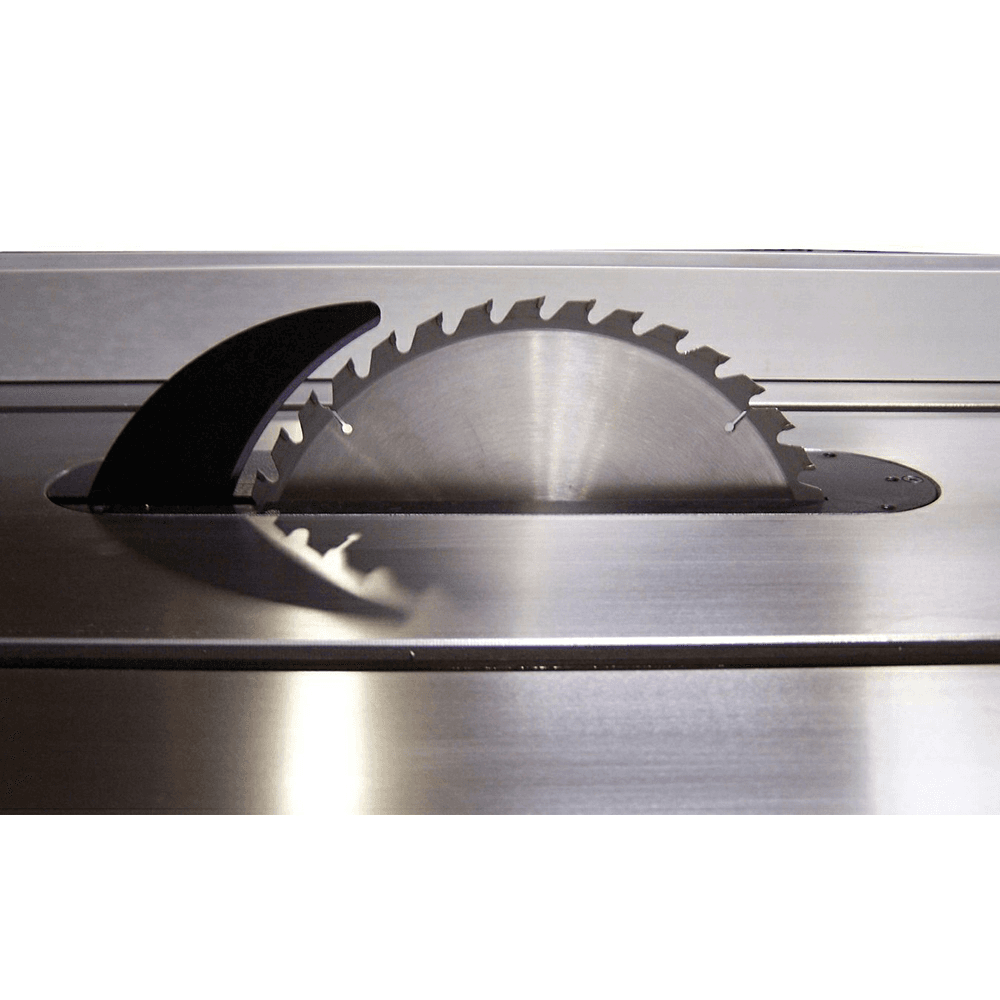

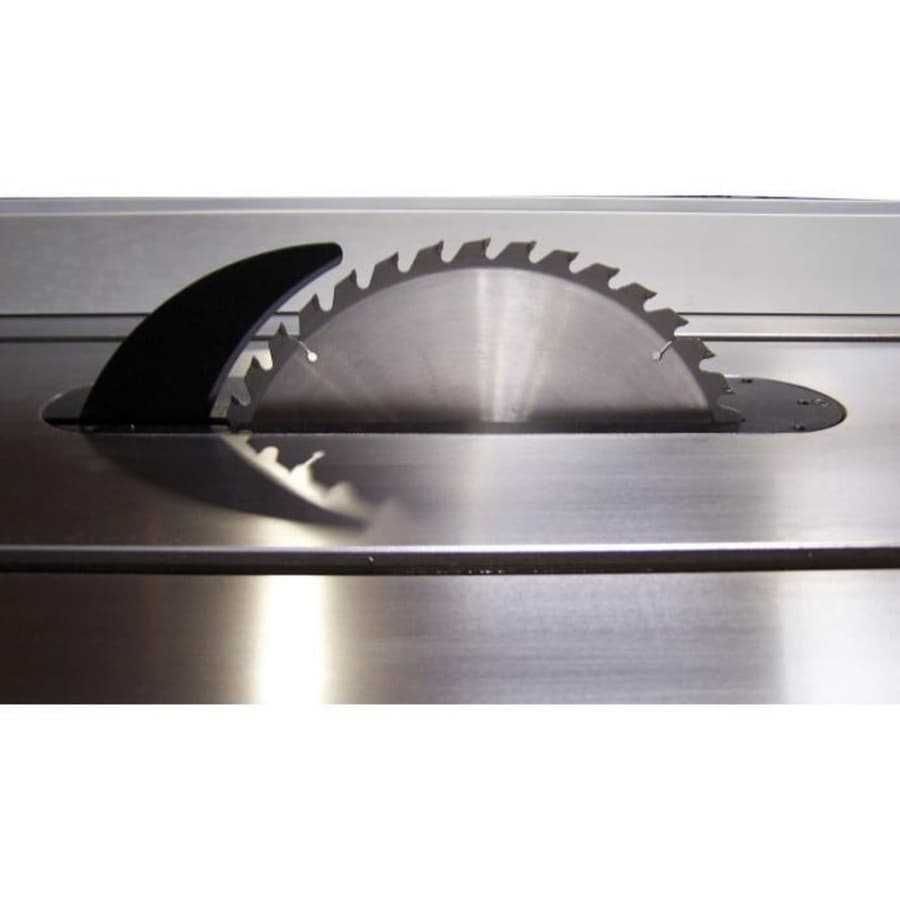

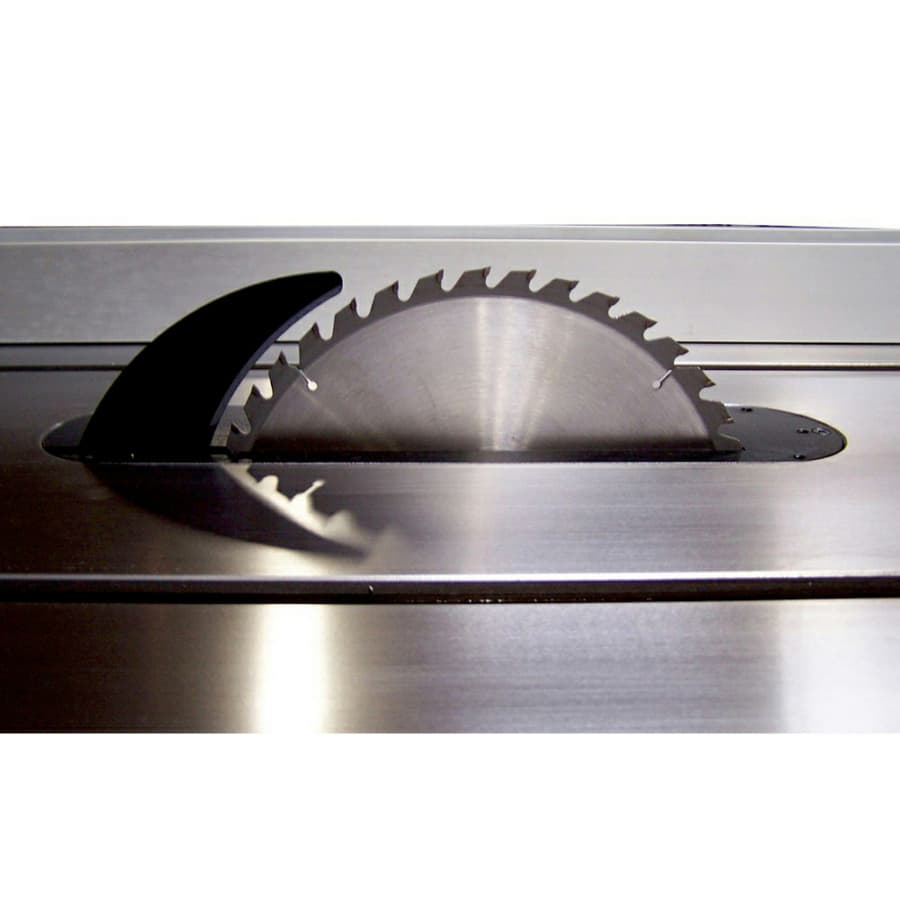

- Riving knife splitter for added safety against kick-back
- Optimus T-square fence available in 36" rip capacity
- 36" rail includes (2) cast iron extension wings

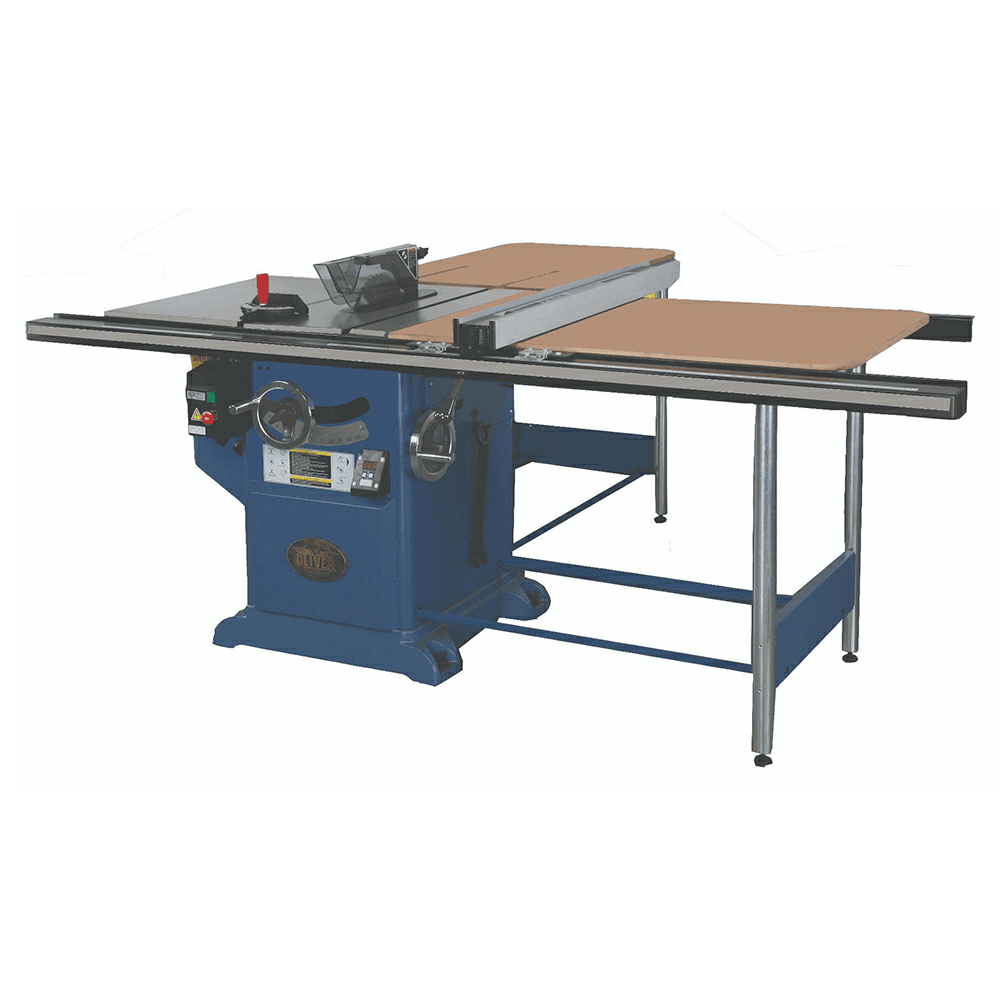

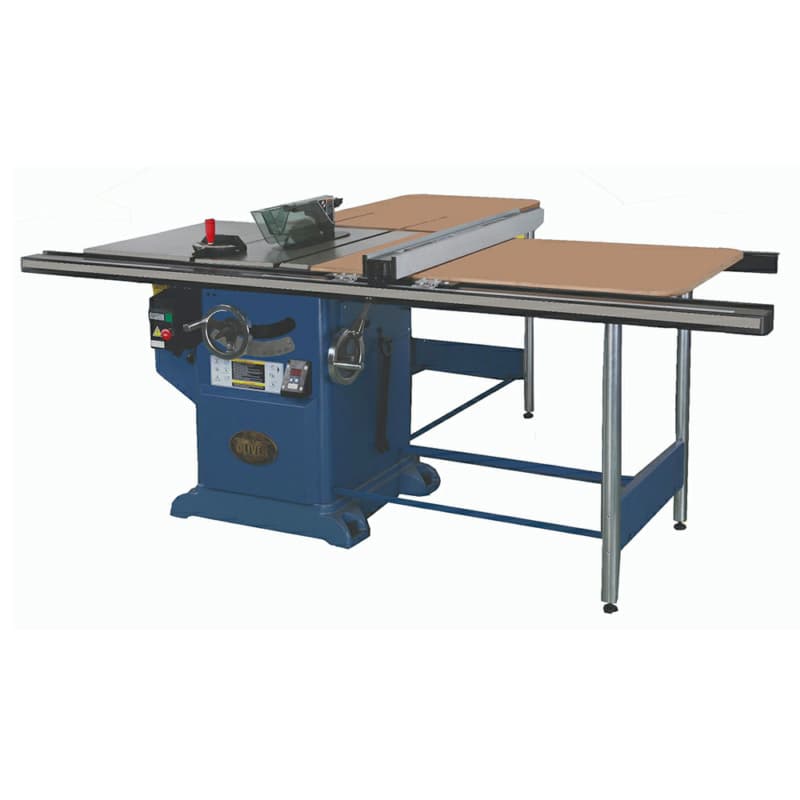

- Optional rear support table available
- Magnetic controls with emergency off switch

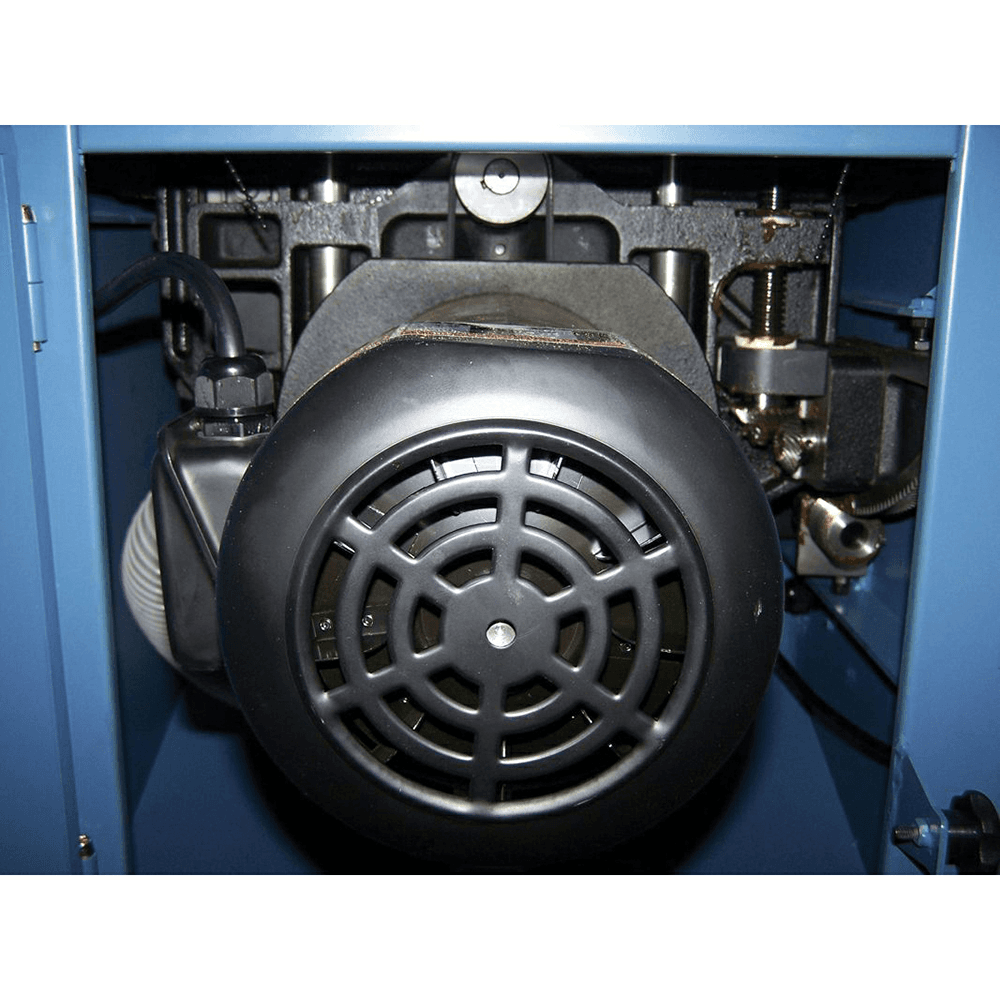

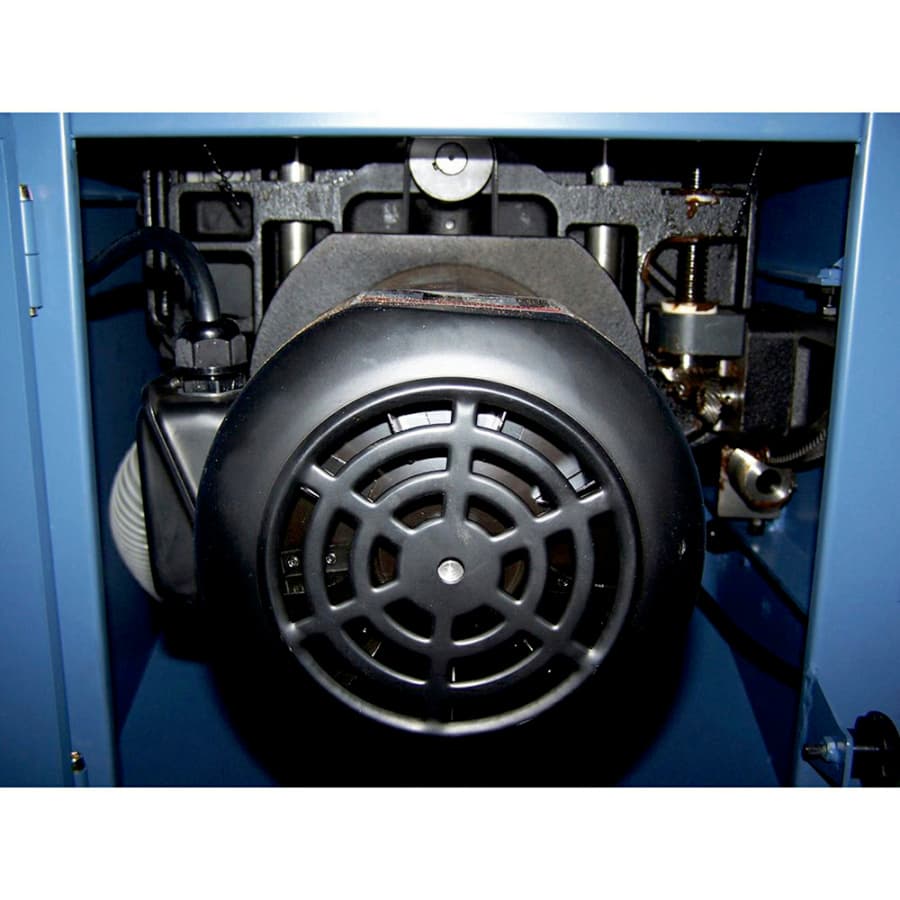

- Powerful TEFC motor available in single-phase

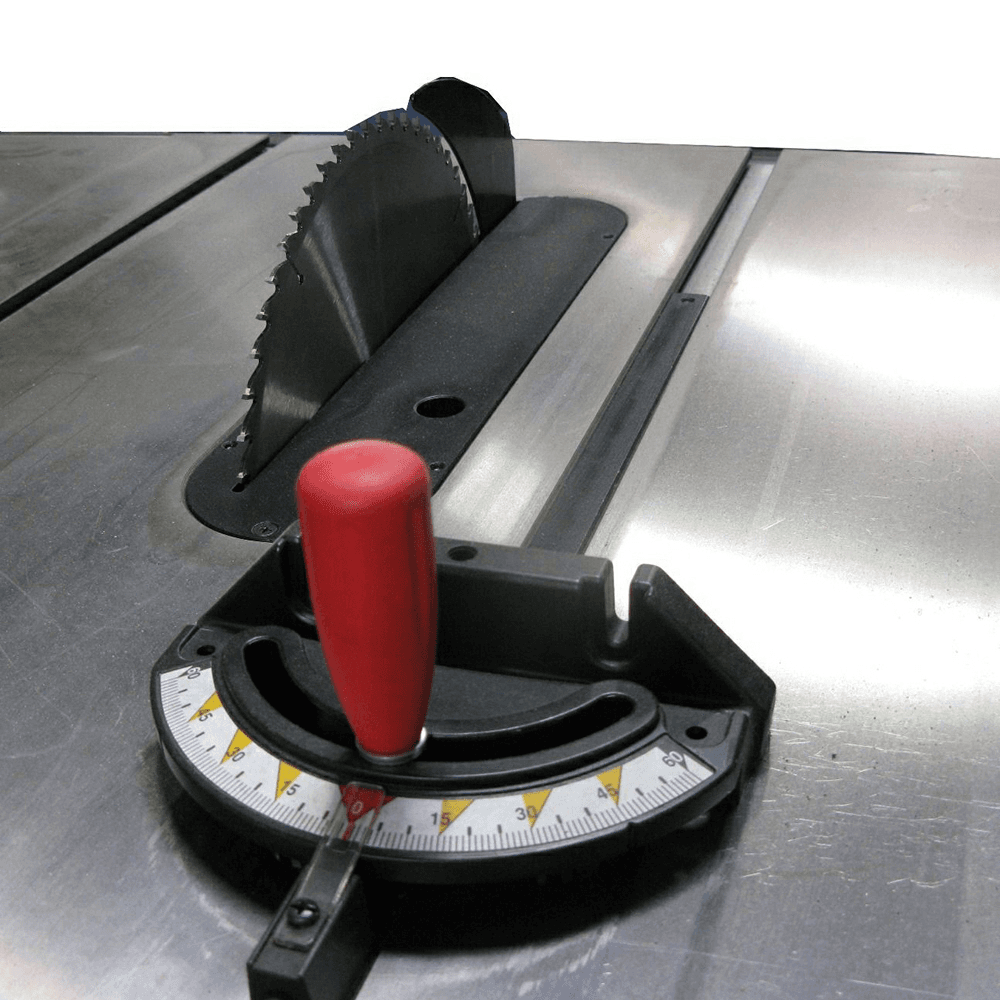

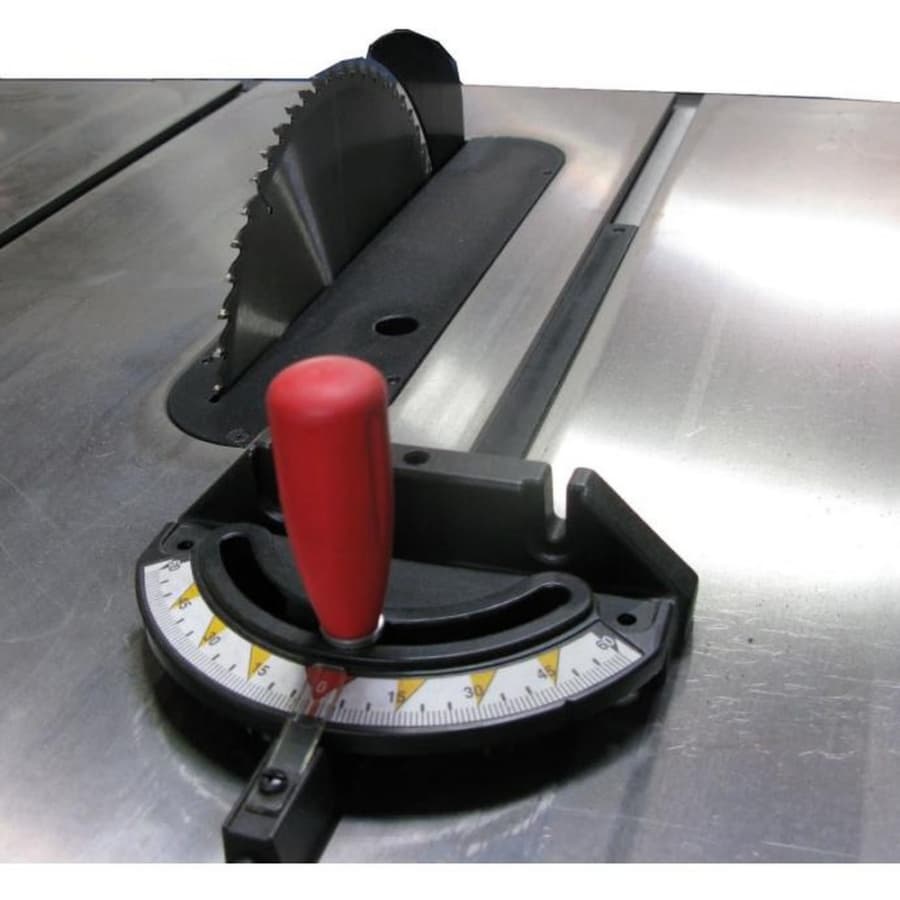

- Miter gauge included
- Blade not included
Application Specifications:
- Blade Diameter: 12"
- Arbor Diameter: 1"
- Blade Tilt: Left
- Maximum Depth of Cut at 90°: 4"
- Maximum Depth of Cut at 45°: 2-2/3"
- Maximum Width of Dado: 13/16"
- Maximum Cut to Right of Blade: 36"
- Maximum Cut to Left of Blade: 12"
- Wing Size: 30-3/4" x 12"
- Dust Port Diameter: 4"
Drive Package Specifications:
- Motor Horsepower: 7.5 HP
- Motor Phase: 3
- Motor Voltage: 220V/440V Prewired 220V (20/10 Amp)
- Arbor Speed: 3,450 RPM
Dimension Specifications:
- Table Dimensions without Extensions: 30-3/4" D x 24" W
- Table Height: 36"
- Overall Dimensions: 75" L x 45" W x 41" H
