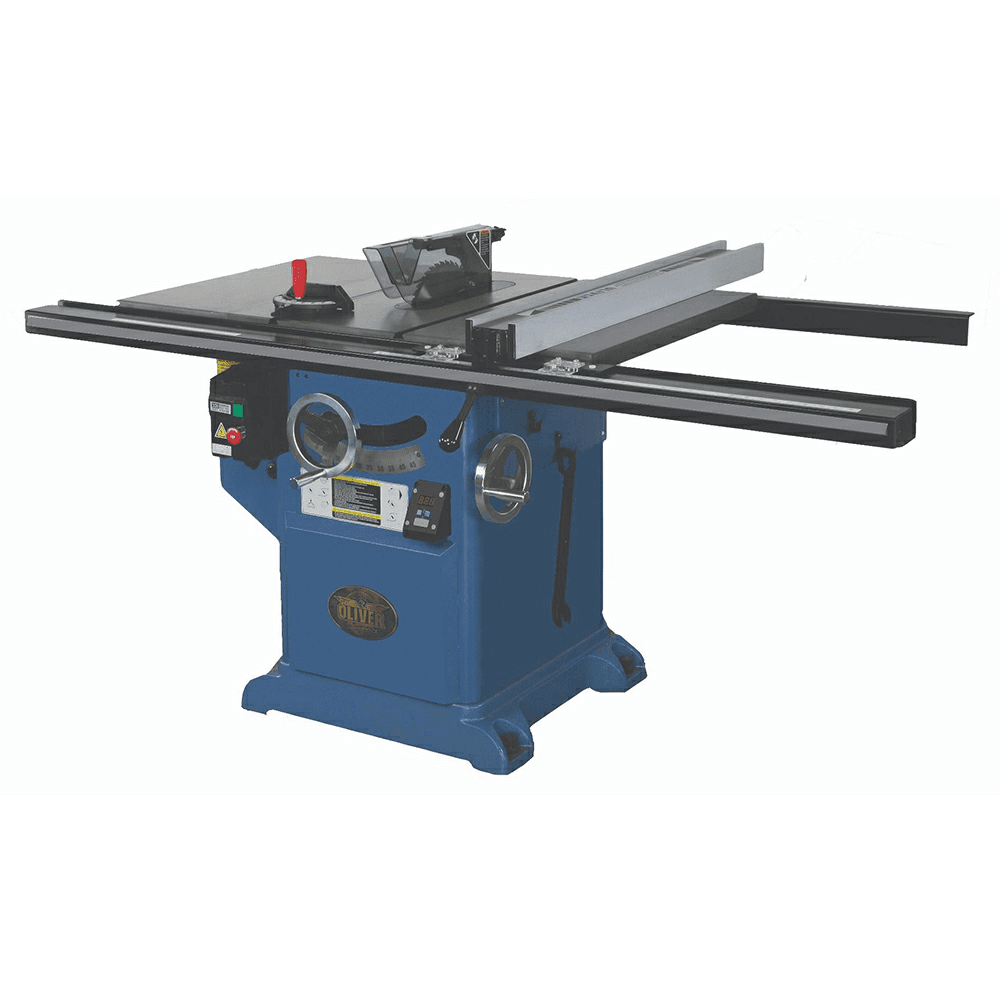

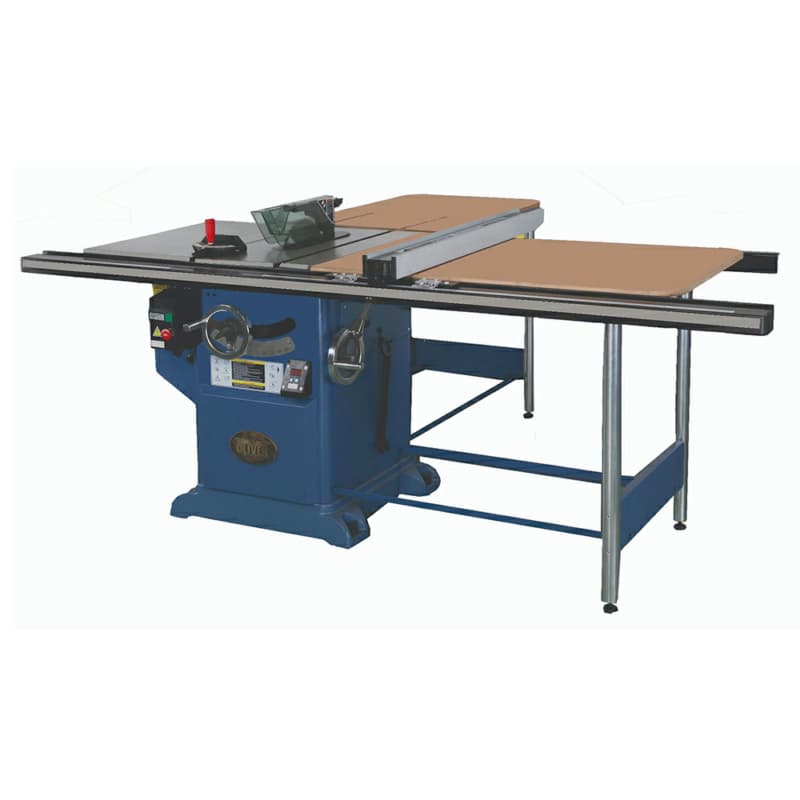

Oliver 12" Heavy Duty Professional Table Saw with Side Table/52" Rail, 7.5HP/3 Phase

Features:

• Large precision ground table provides a stable work surface

• Cast iron base offers a steady platform

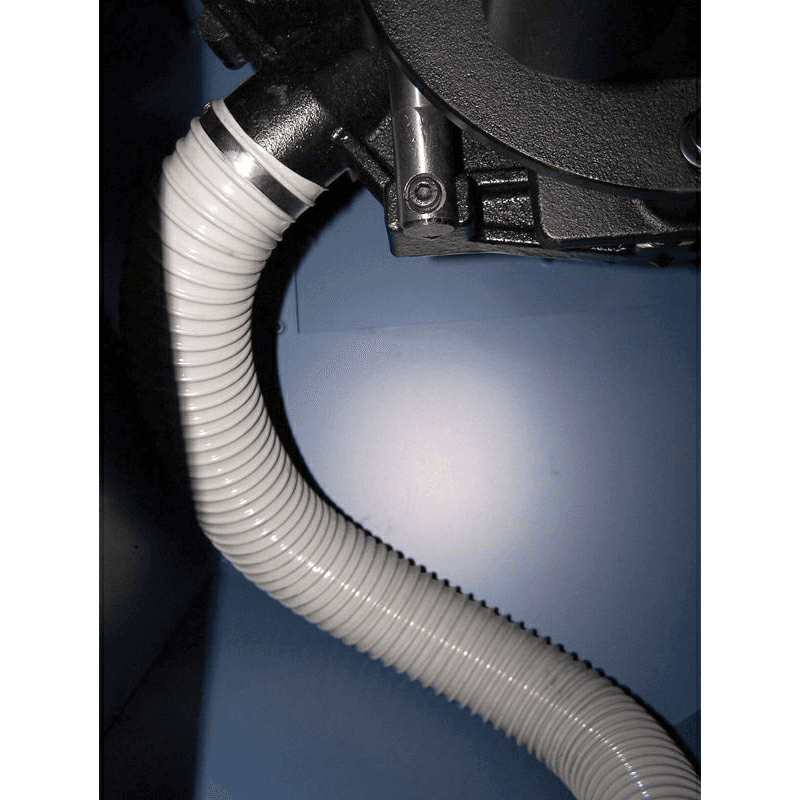

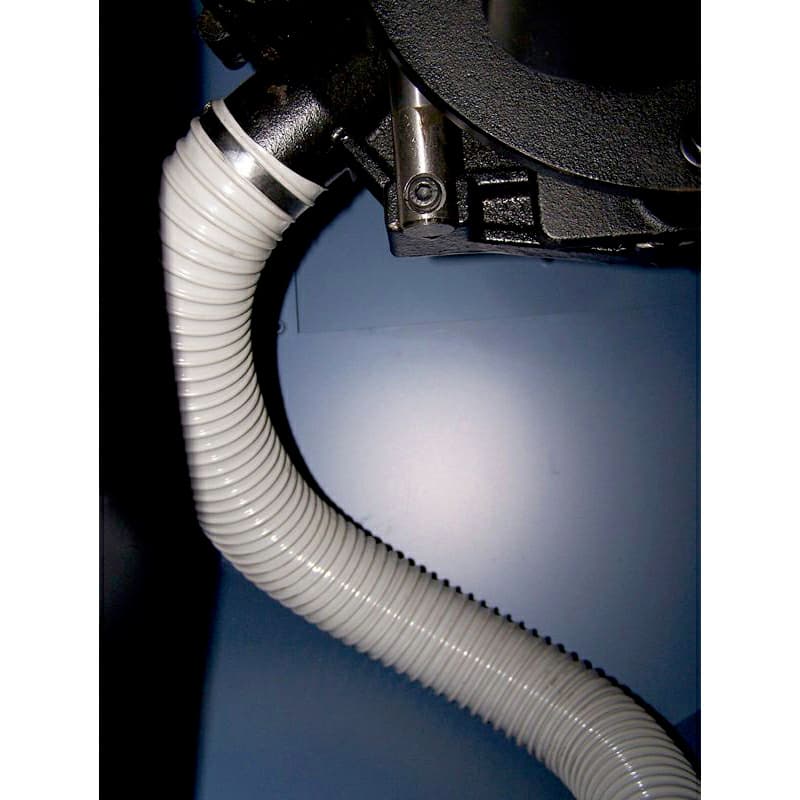

• Fully enclosed cabinet and blade dust shroud for better dust management

• Precision ground 1" arbor

• Wide stance trunnion features a left tilt blade

• Poly V-belt drive smoothly transfers power to the blade

• Hydraulic assisted blade lift mechanism for easy movement

• Large chrome hand wheels allow easy movement./

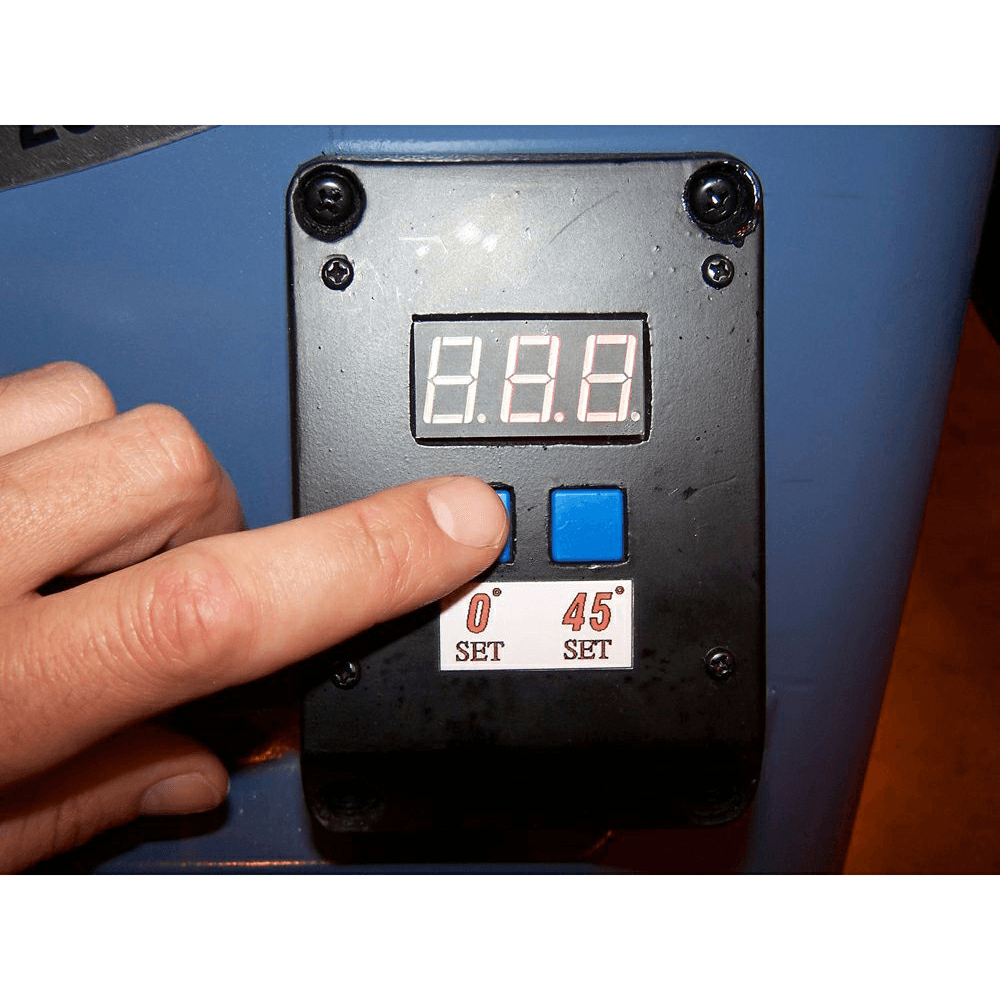

• Includes digital readout of blade tilt

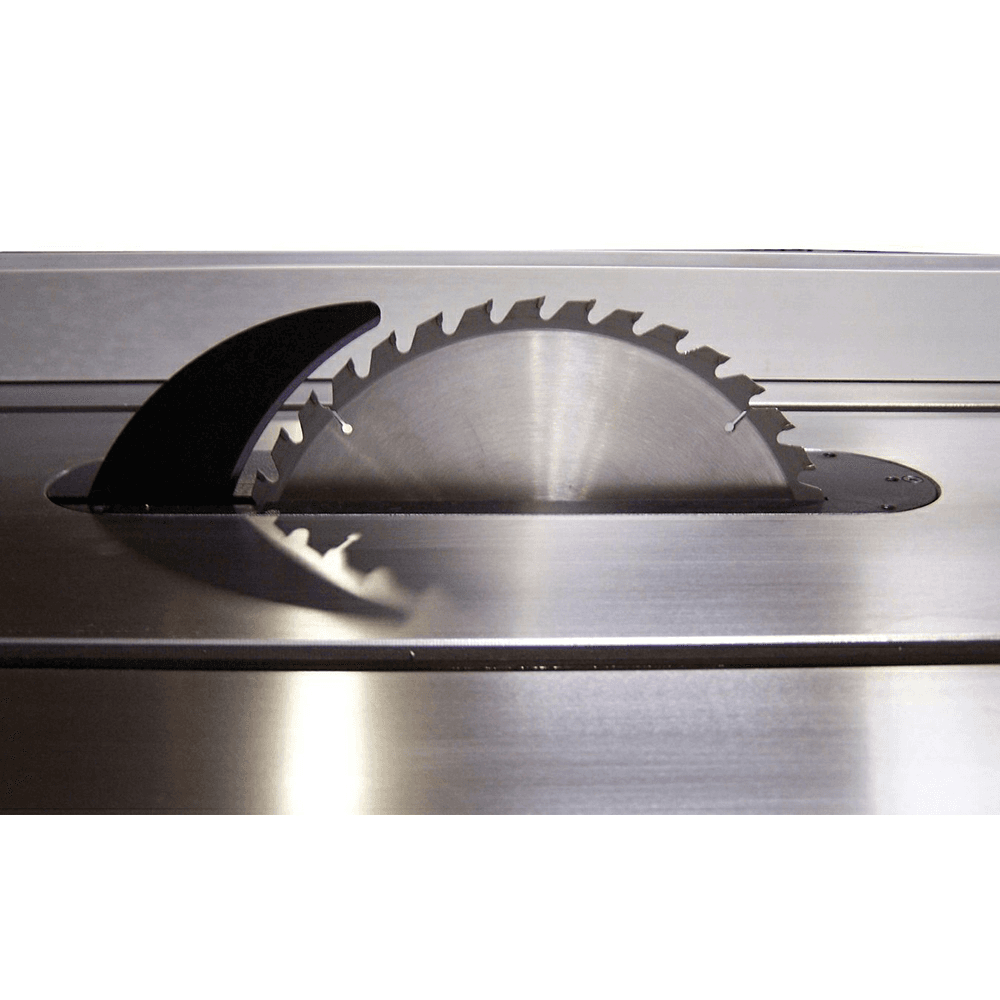

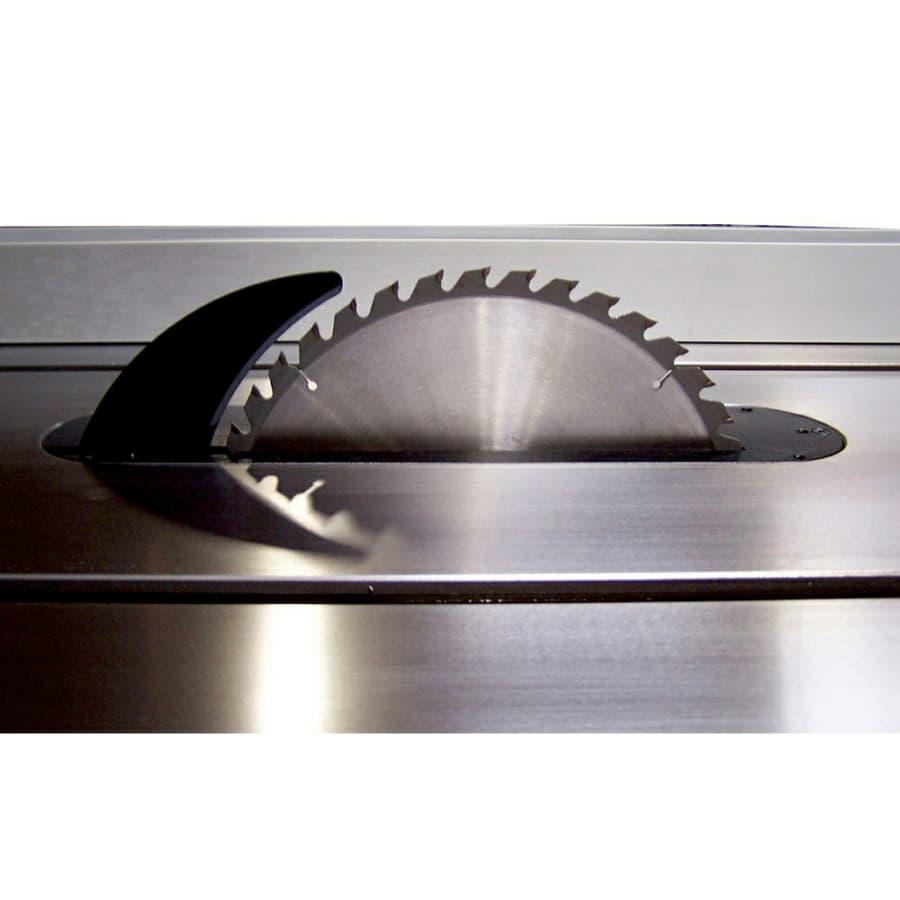

• Riving knife splitter for added safety against kick-back

• Optimus T-square fence available in 52" rip capacity

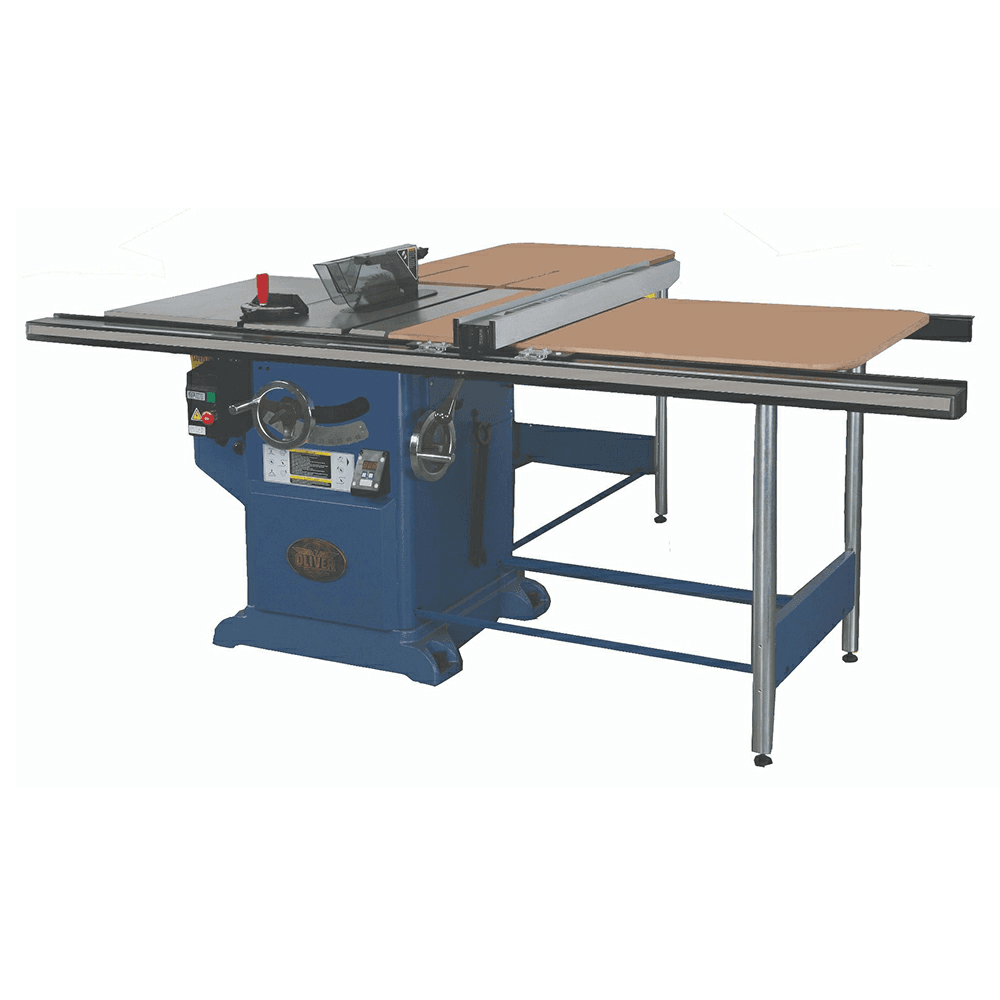

• 52" rail includes wood side table and (1) cast iron extension wing

• Optional rear support table available

• Magnetic controls with emergency off switch

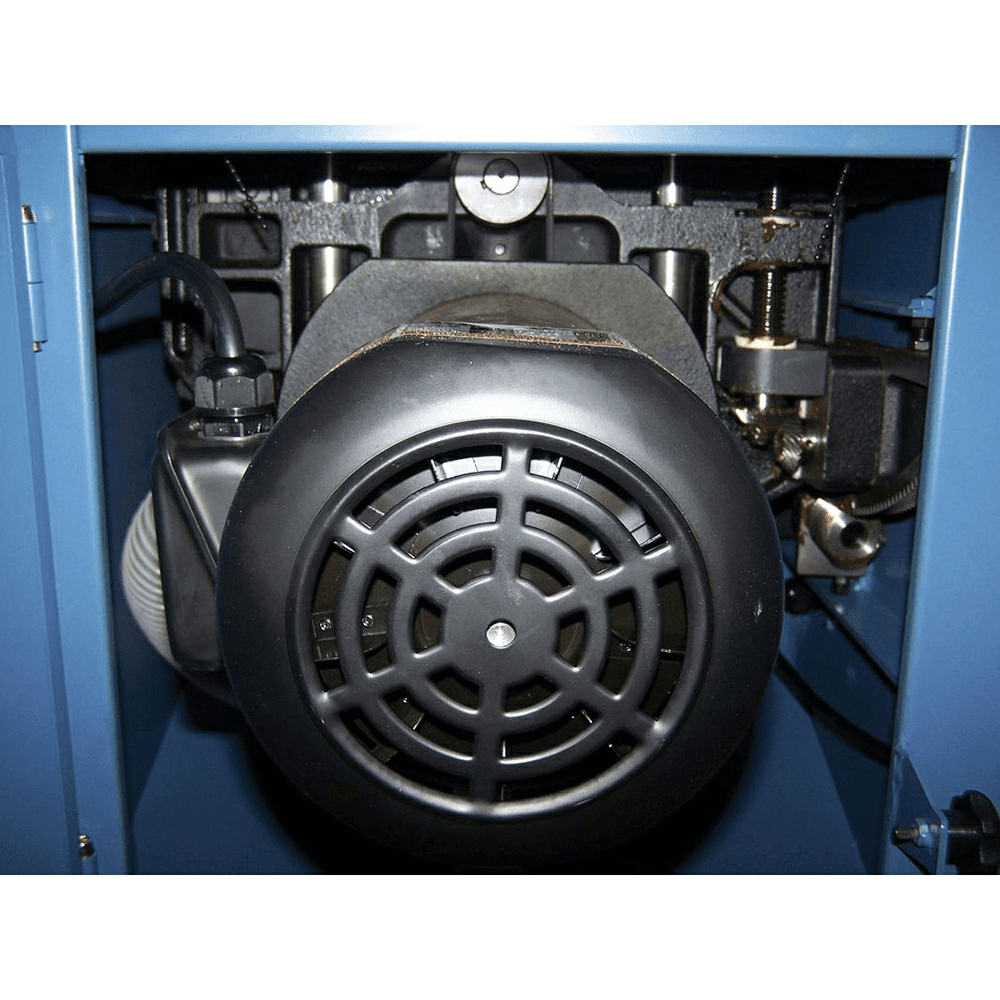

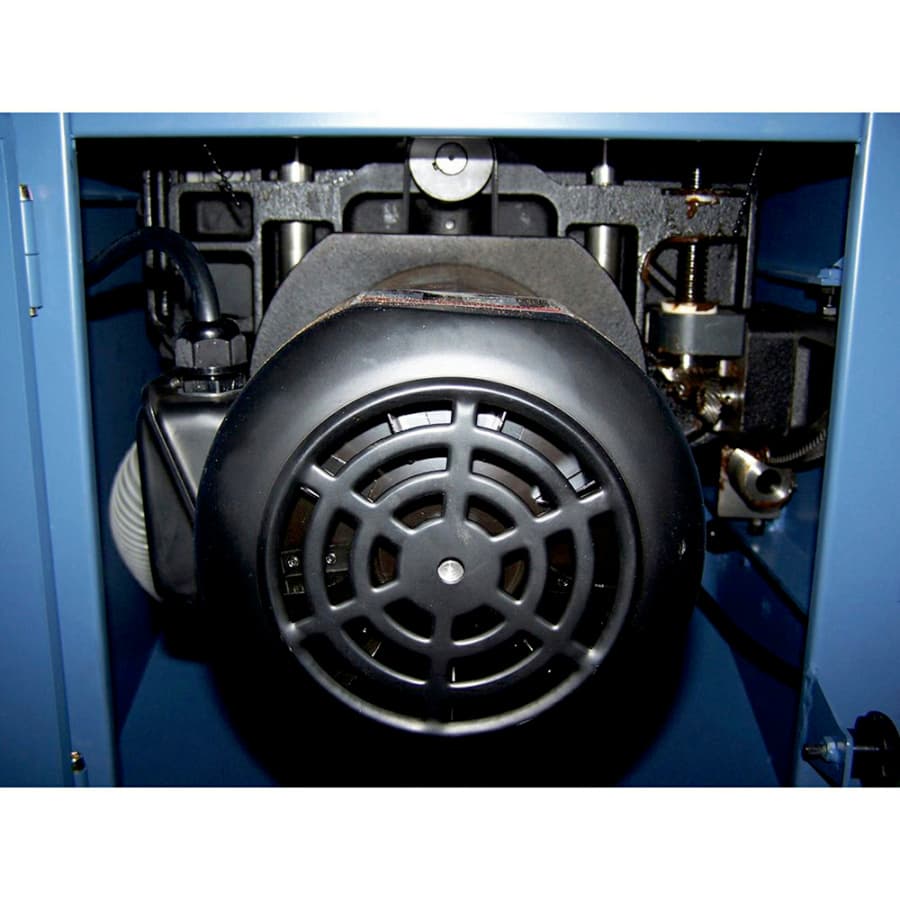

• Powerful TEFC motor available in single-phase

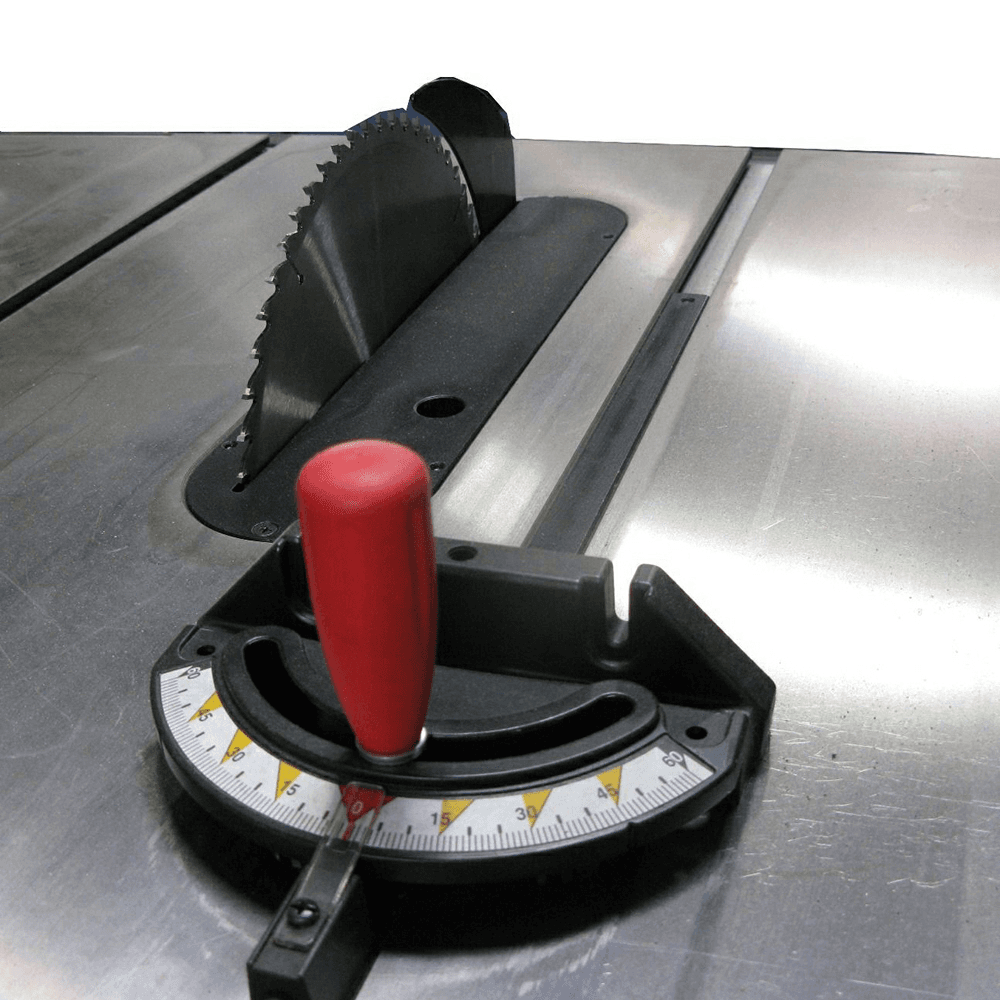

• Miter gauge included

• Blade not included

Application Specifications:

• Blade Diameter: 12"

• Arbor Diameter: 1"

• Blade Tilt: Left

• Maximum Depth of Cut at 90°: 4"

• Maximum Depth of Cut at 45°: 2-2/3"

• Maximum Width of Dado: 13/16"

• Maximum Cut to Right of Blade: 52" with side table

• Maximum Cut to Left of Blade: 12"

• Wing Size: 30-3/4" x 12"

• Dust Port Diameter: 4"

Drive Package Specifications:

• Motor Horsepower: 7.5 HP

• Motor Phase: 3

• Motor Voltage: 220V/440V Prewired 220V (20/10 Amp)

• Arbor Speed: 3,450 RPM

Dimension Specifications:

• Table Dimensions without Extensions: 30-3/4" D x 24" W

• Table Height: 36"

• Overall Dimensions: 75" L x 45" W x 41" H
