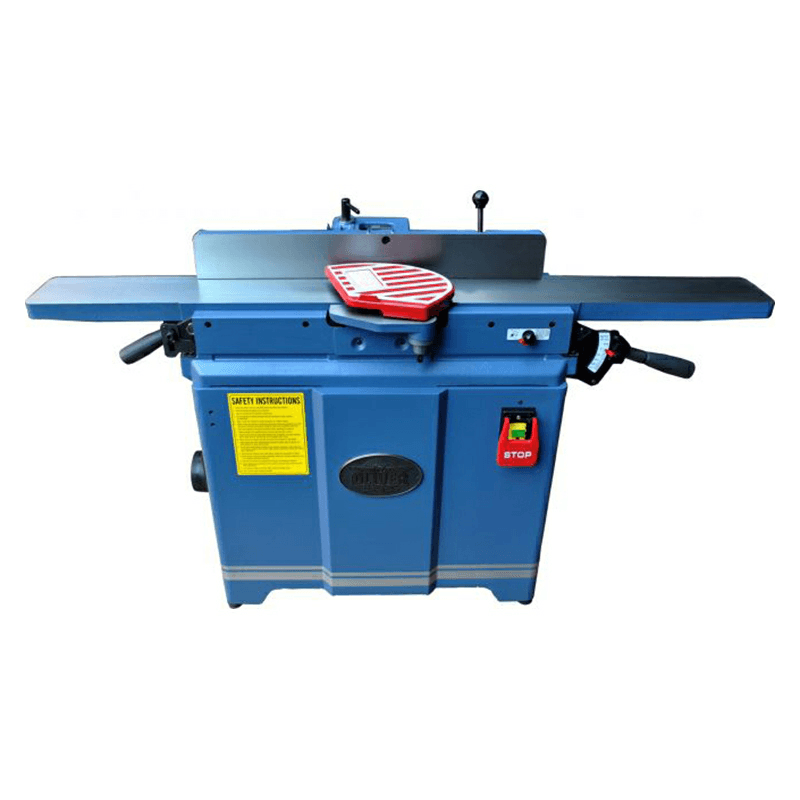

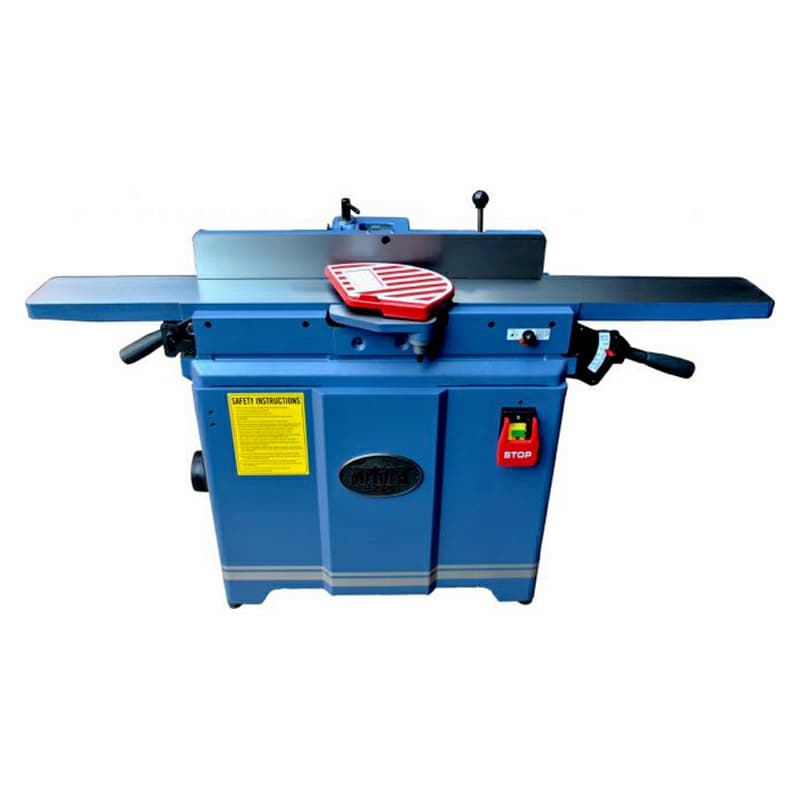

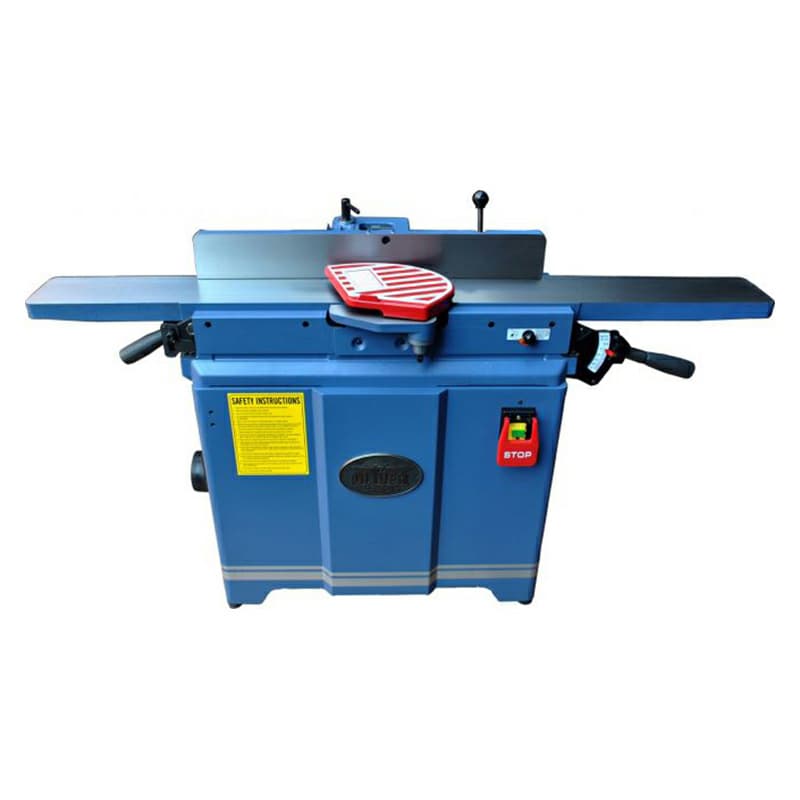

Oliver 6" Parallelogram Jointer with 4 Sided Insert Helical Cutterhead, 1HP/1 Phase

Features:

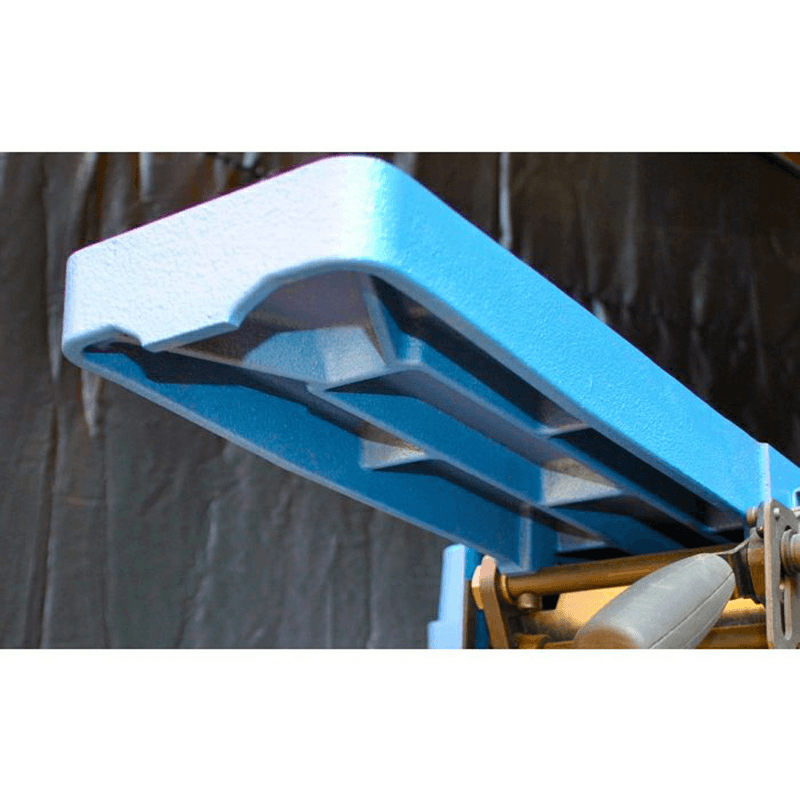

• Extra-long precision ground tables provide a stable work surface
• Parallelogram design provides smooth accurate cuts
• Cast iron frame offers stable table support
• Fully enclosed cabinet with 4" port for superior dust management
• Helical cutter head includes premium carbide inserts
• 4-sided cutting inserts are indexed and easy to replace
• Lever controlled infeed and outfeed table adjustment allows quick set-up

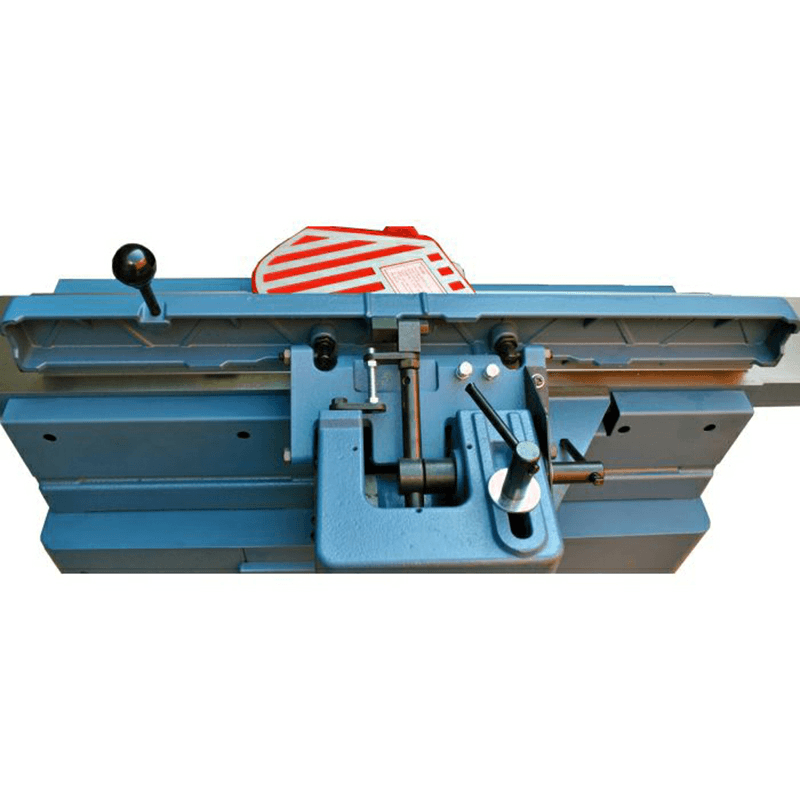

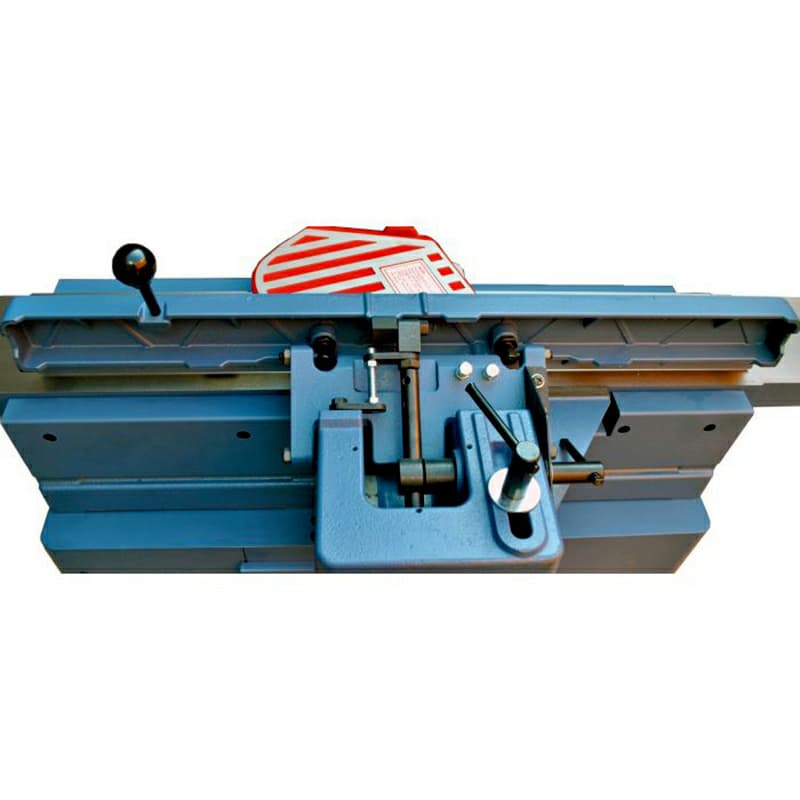

• Long precision ground fence tilts up to 135° with positive stops at 45° and 90°

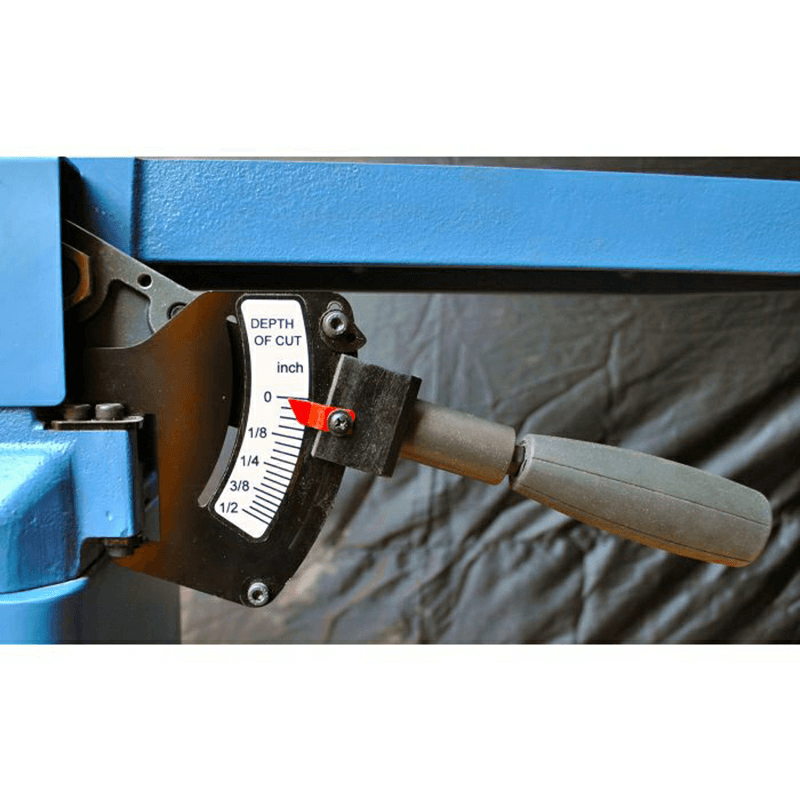

• Easy to read depth of cut gauge

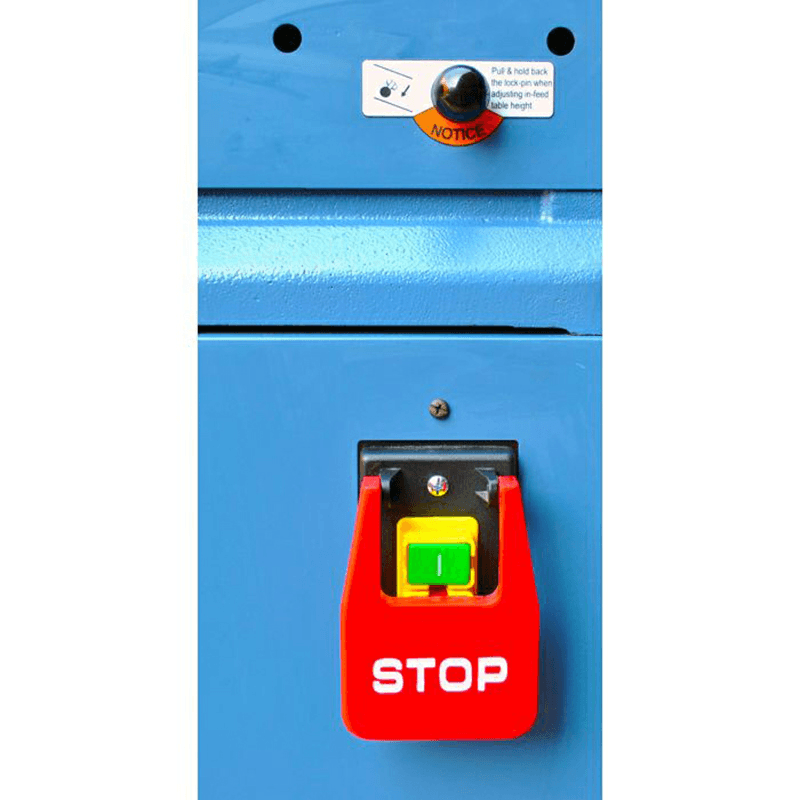

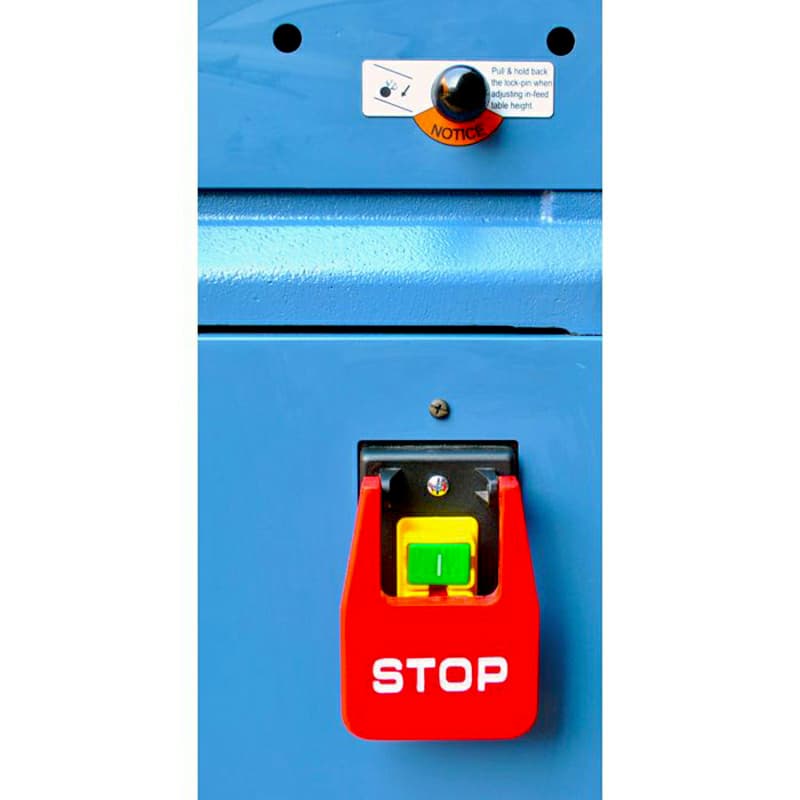

• Large lockable paddle switch for added safety
• Powerful TEFC 1HP single-phase motor
• Ploy V-belt drive efficiently delivers power to the cutter head
• CSA Listed

Application Specifications:

• Infeed Table Travel: 1/2"
• Number of Knives (helical): 28 Inserts
• Maximum Depth of Cut: 1/8"
• Rabbeting Capacity: 1/2"
• Dust Port Diameter: 4"
• Fence Tilts: 45°, 90°, 135°
• Positive Stops: 45° and 90°

Drive Package Specifications:

• Motor Horsepower: 1 HP
• Motor Phase: 1
• Motor Voltage: 115V/230V, Prewired 115V (1Ph, 13/6.5 Amp)
• Cutterhead Speed: 5,500 (RPM)

Dimension Specifications:

• Table Length: 60-3/4"
• Table Width: 5-3/4"
• Table Height: 31-1/2"
• Fence Dimensions: 29"L x 3-3/4"H
