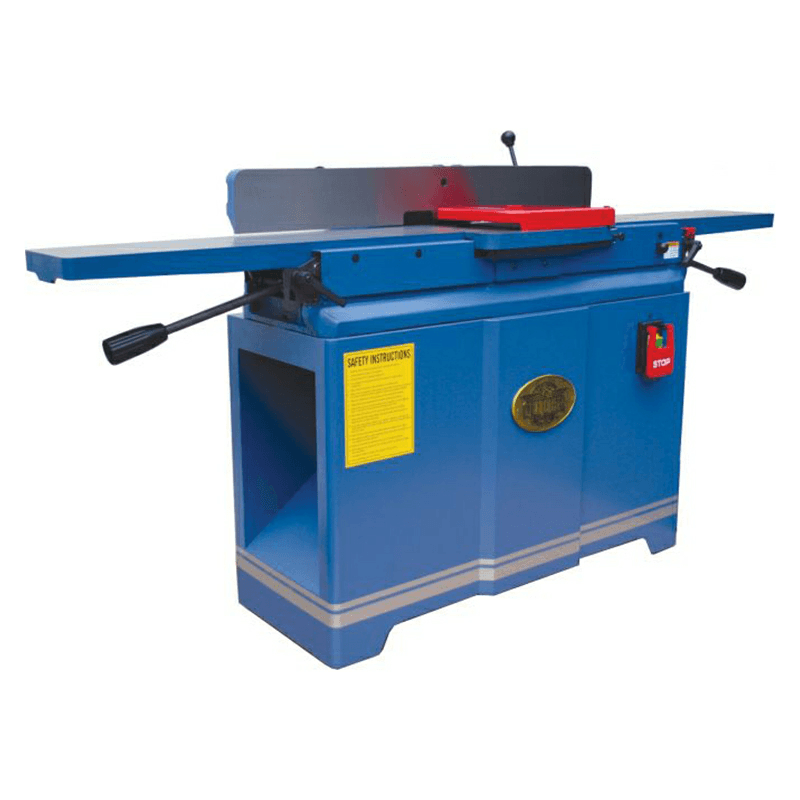

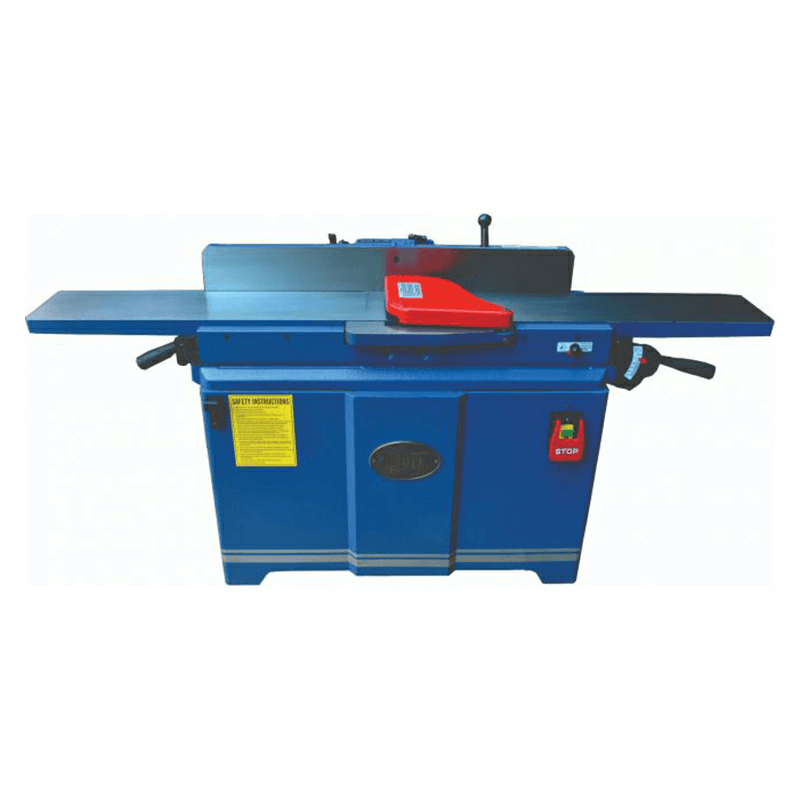

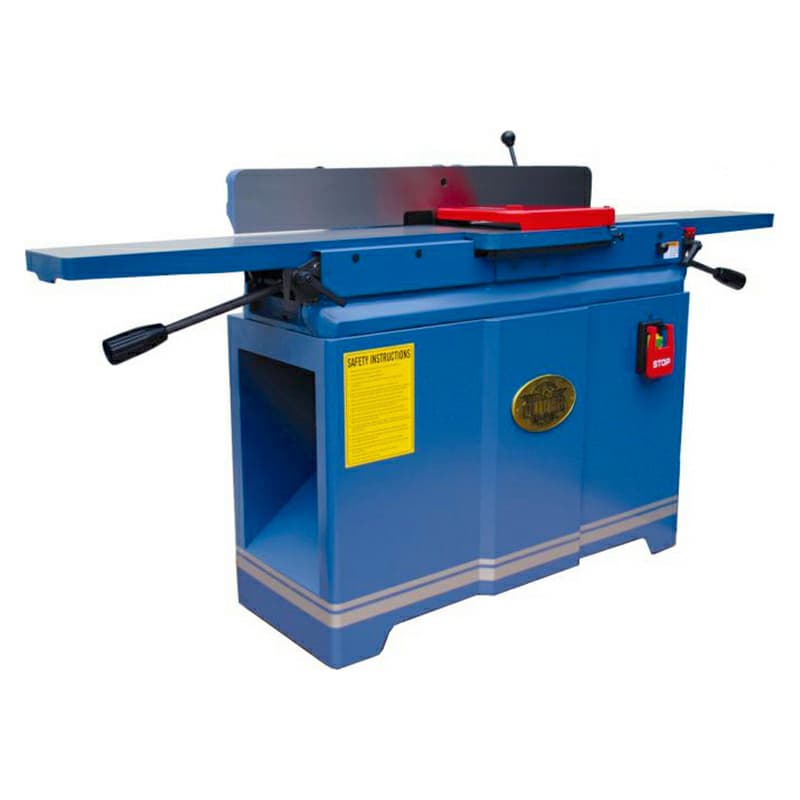

Oliver 8" Parallelogram Jointer with 4 Sided Insert Helical Cutterhead, 2HP/1 Phase

Features:

• Extra-long precision ground tables provide a stable work surface
• Parallelogram design provides smooth accurate cuts
• Cast iron frame offers stable table support
• Fully enclosed cabinet with 4" port for superior dust management
• Built-in mobile base with lockable wheels
• Cabinet includes push pad storage

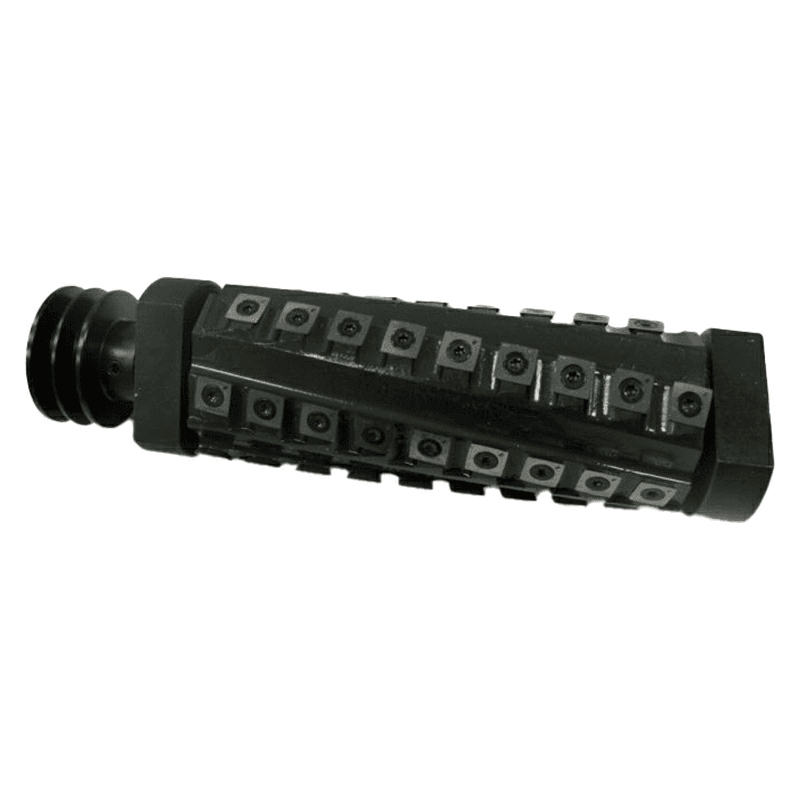

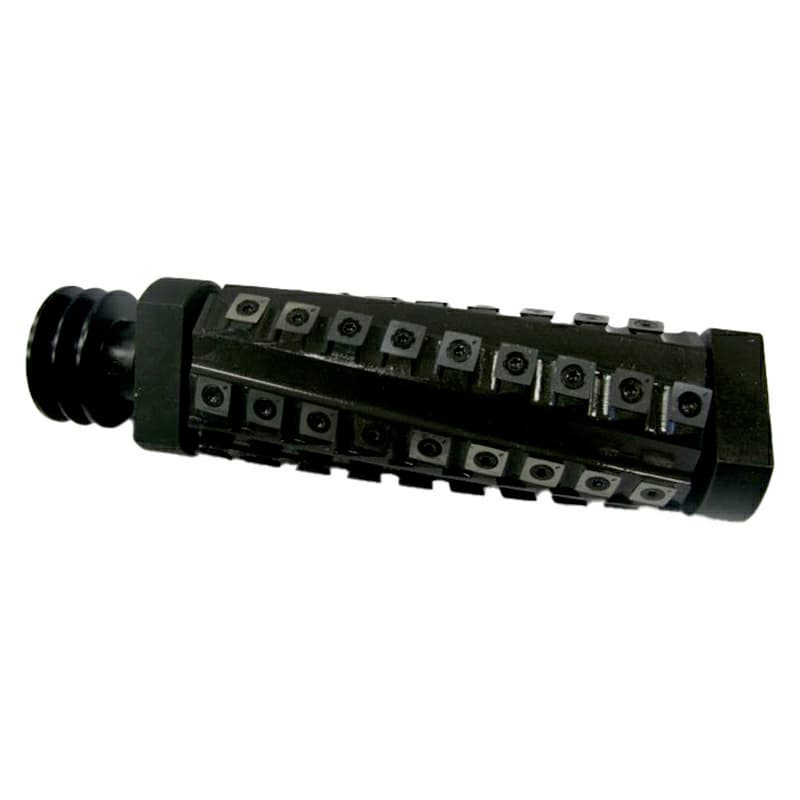

• Helical cutter head includes premium carbide inserts
• 4-sided cutting inserts are indexed and easy to replace
• Lever controlled infeed and outfeed table adjustment allows quick set-up

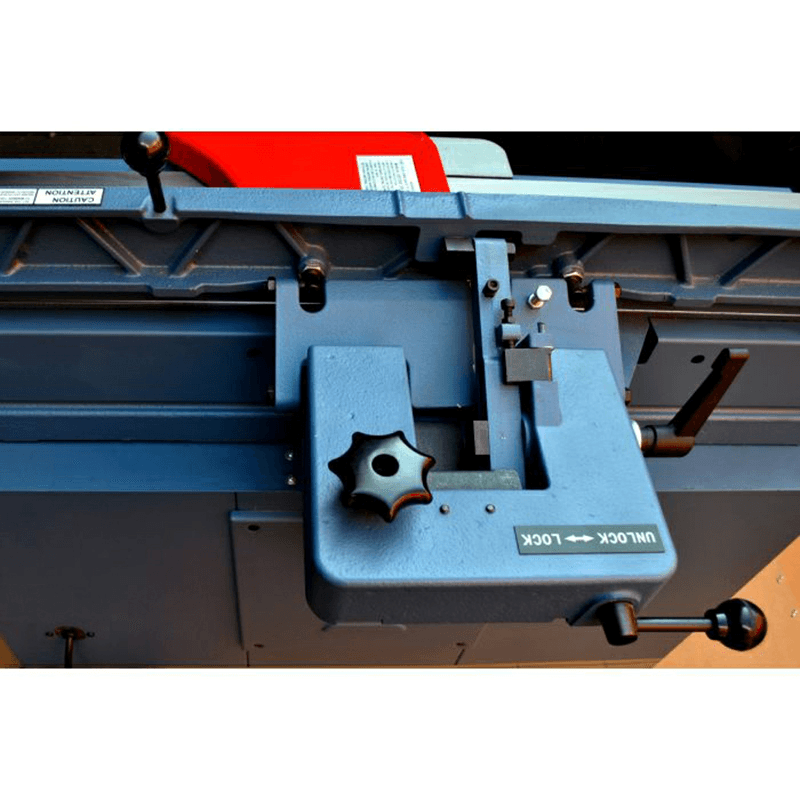

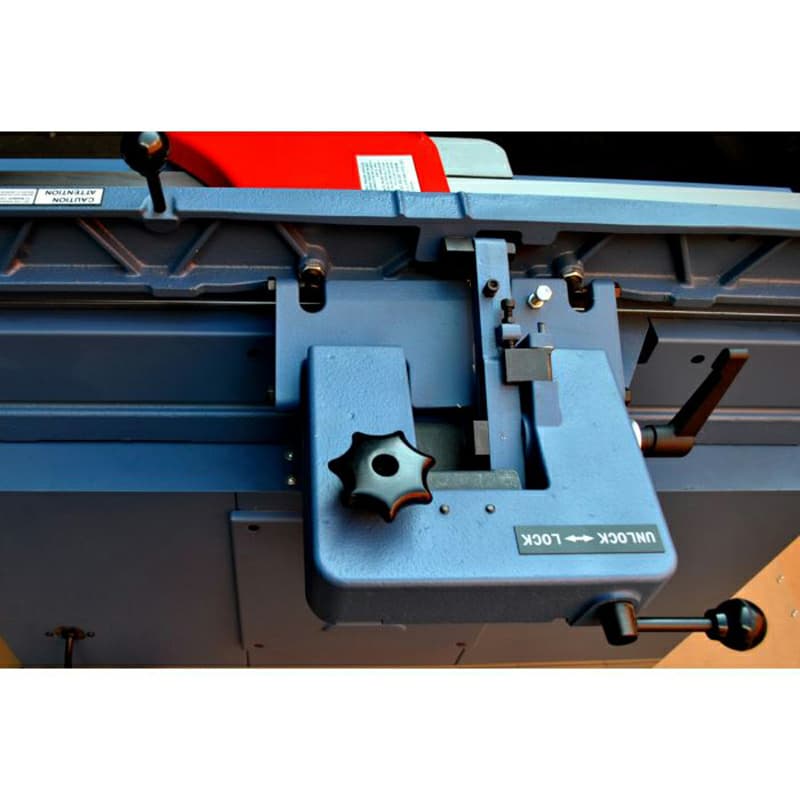

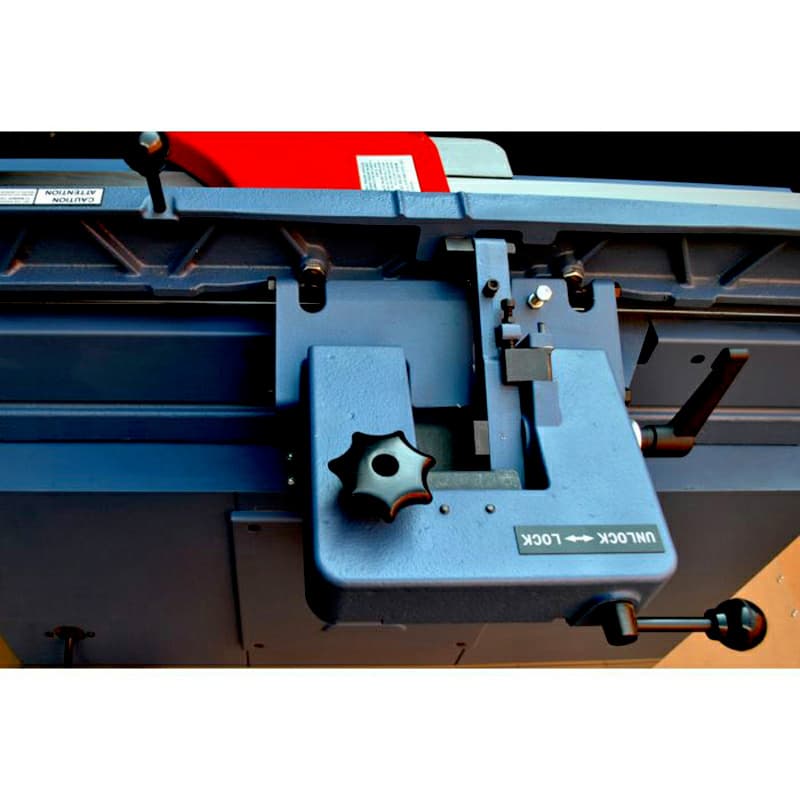

• Long precision ground fence tilts up to 135° with positive stops at 45° and 90°

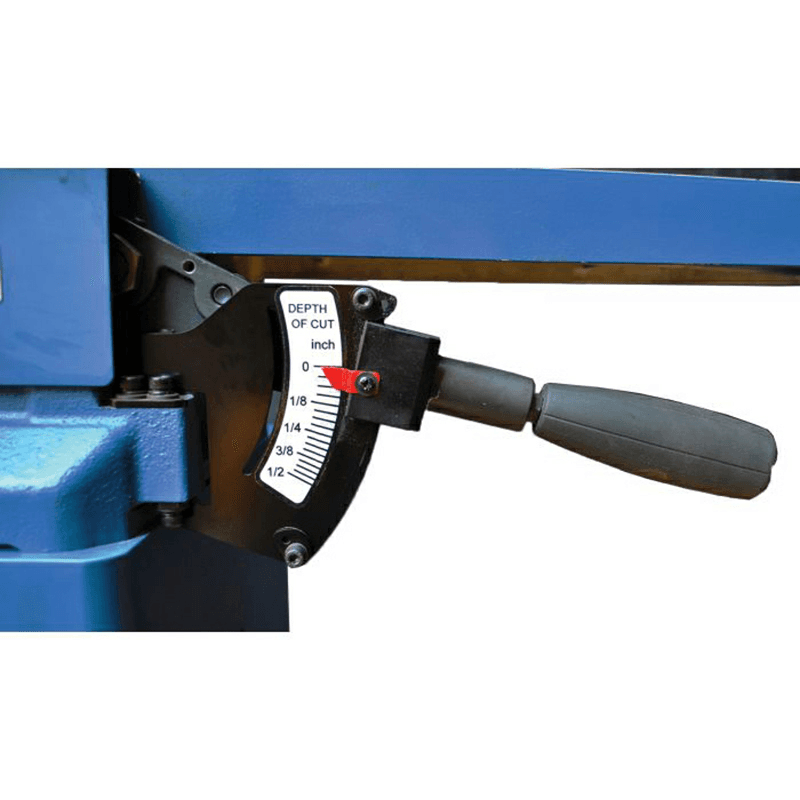

• Easy to read depth of cut gauge

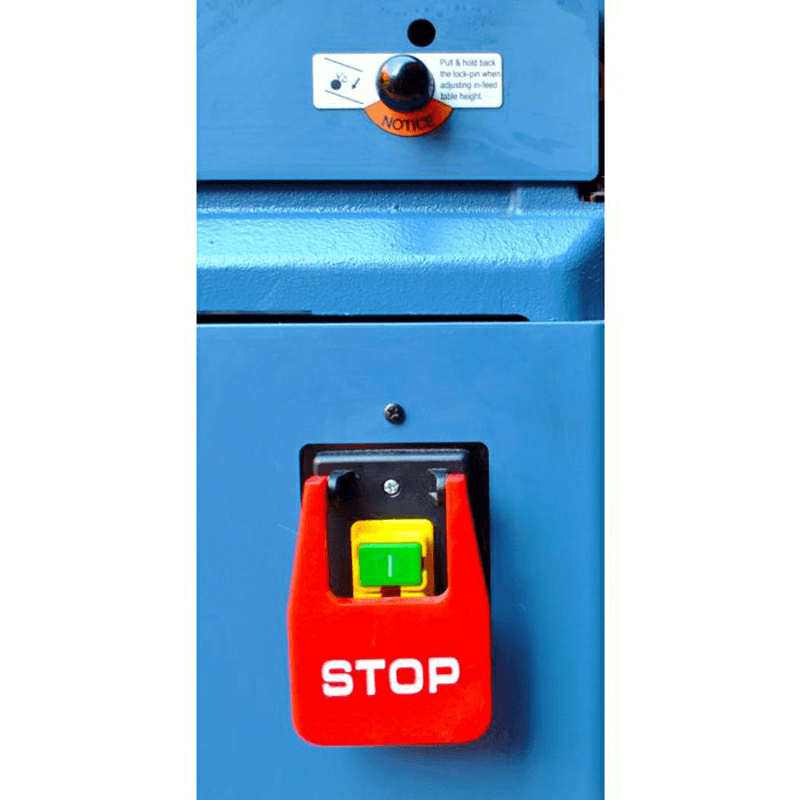

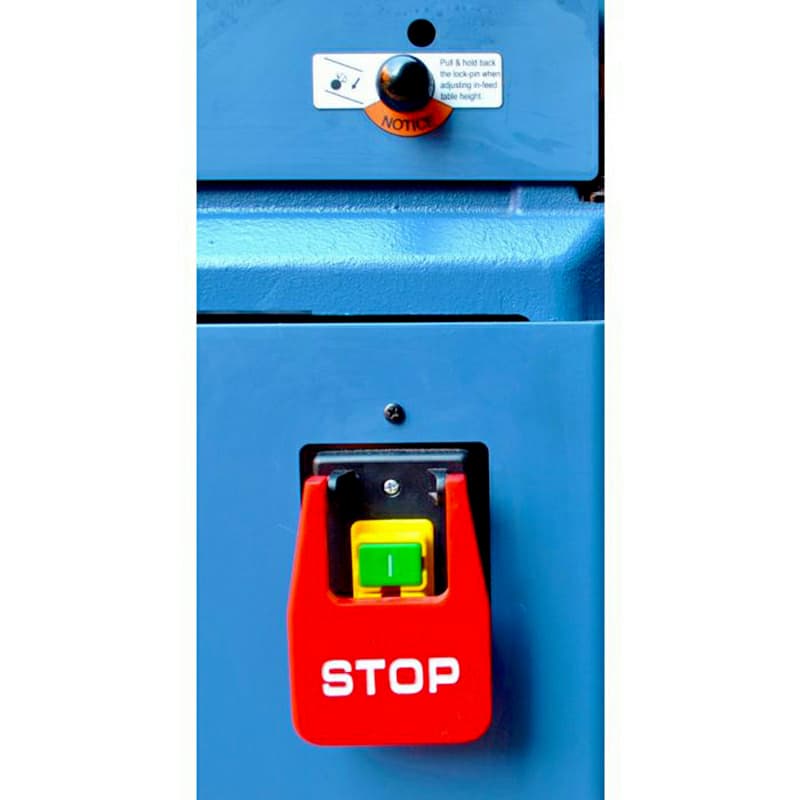

• Large lockable paddle switch for added safety
• Powerful TEFC 2HP single-phase motor
• Ploy V-belt drive efficiently delivers power to the cutter head
• CSA Listed

Application Specifications:

• Infeed Table Travel: 1/2"
• Number of Knives (helical): 36 Inserts
• Maximum Depth of Cut: 1/8"
• Rabbeting Capacity: 1/2"
• Dust Port Diameter: 4"
• Fence Tilts: 90°, 45°, 135°
• Positive Stops: 90° and 45°

Drive Package Specifications:

• Motor Horsepower: 2 HP
• Motor Phase: 1
• Motor Voltage: Only (8 Amp)
• Cutterhead Speed: 5,500 RPM

Dimension Specifications:

• Table Length: 72"
• Table Width: 8"
• Table Height: 31-1/2"
• Fence Dimensions: 38" x 5"
