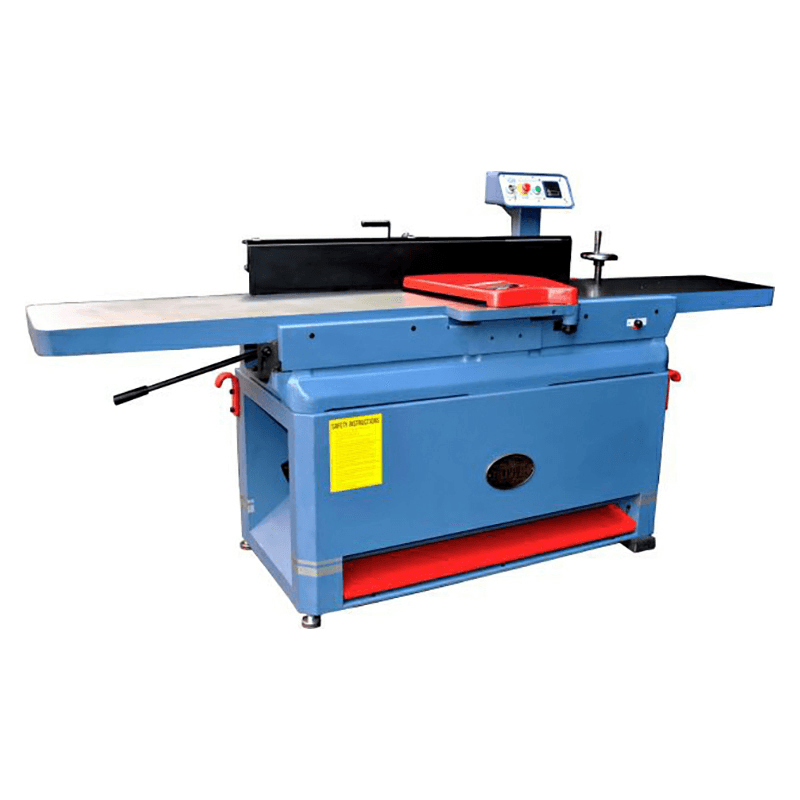

Oliver 12" Parallelogram Jointer with 4-Side Helical Cutterhead/Baldor Motor, 3HP/1 Phase

Features:

• Extra-long precision ground tables provide a stable work surface
• Parallelogram design provides smooth accurate cuts

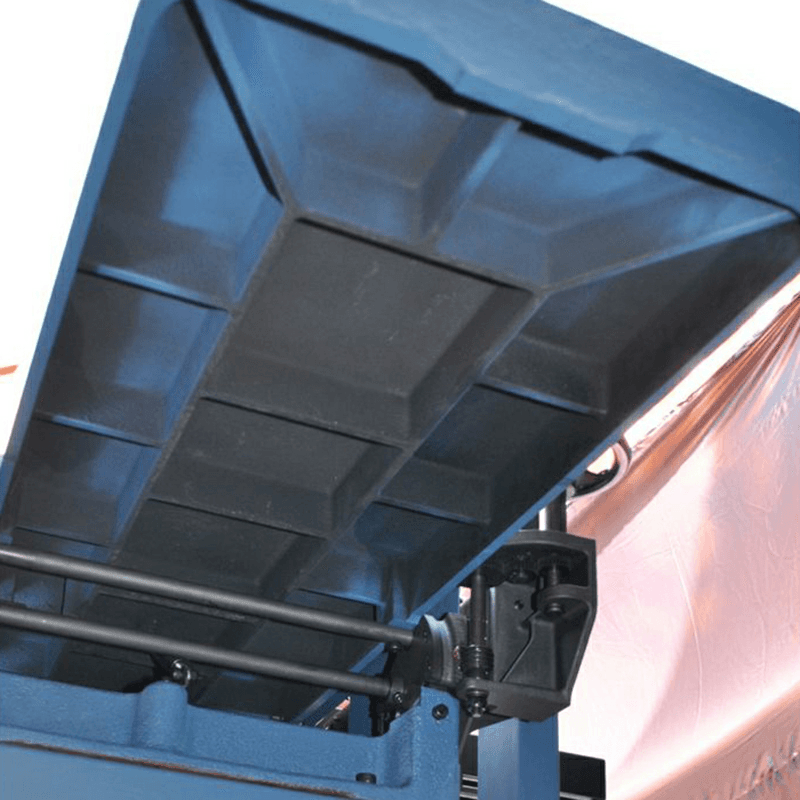

• Massive cast iron frame offers stable table support

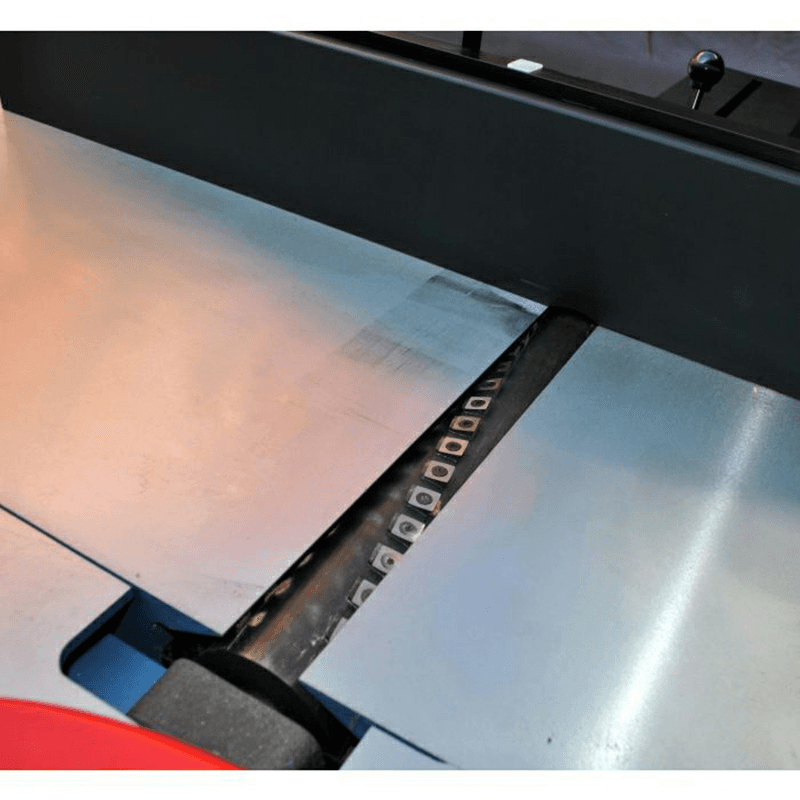

• Helical cutter head includes premium carbide inserts
• 4-sided cutting inserts are indexed and easy to replace

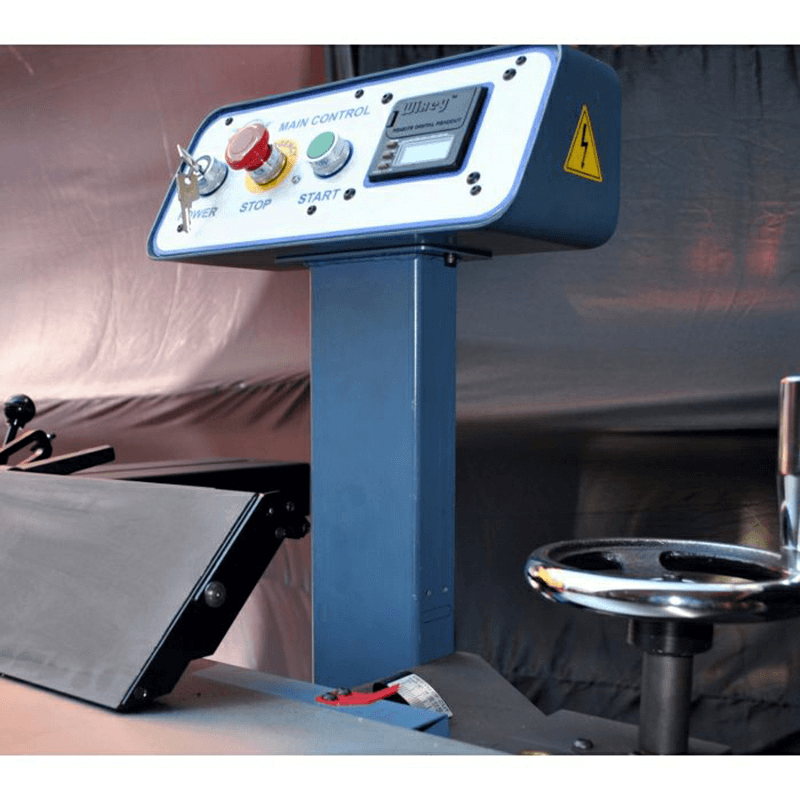

• Wixey DRO shows table infeed table movement for precision cuts
• Pre-drilled bracket for easy (optional) powerfeed mounting
• Foot activated emergency power shutoff
• Lever controlled outfeed table allows easy adjustment

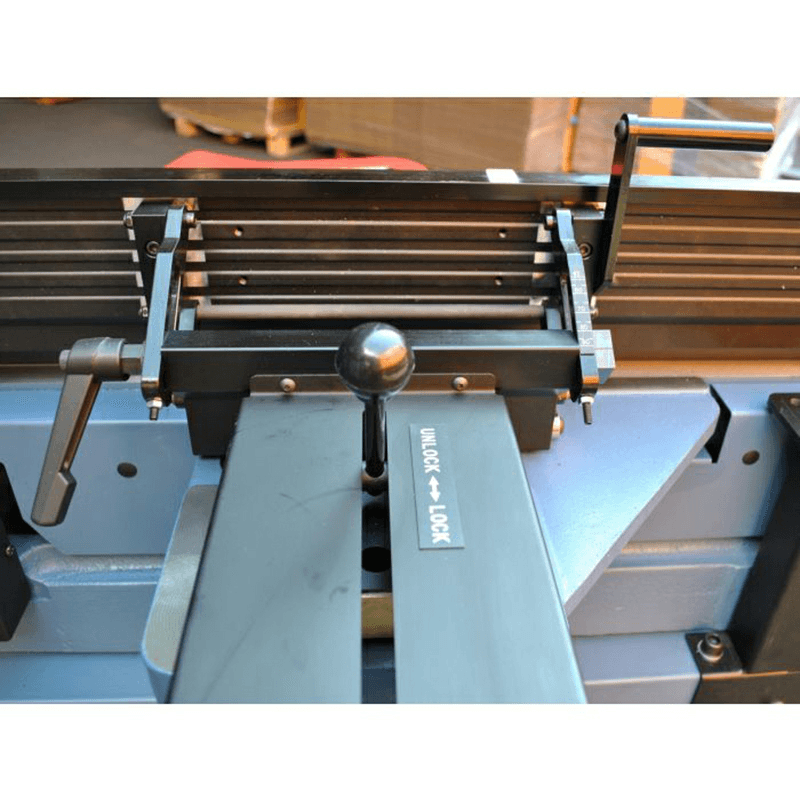

• Long European style aluminum extruded fence features positive stops at 45° and 90°
• Fence features flip down L-shaped attachment for use with thin stock
• Easy to read depth of cut gauge
• Powerful TEFC Baldor motor available in single-phase
• Ploy V-belt drive efficiently delivers power to the cutter head

Application Specifications:

• Infeed Table Travel: 3/4"
• Number of Knives (helical): 56 Inserts
• Maximum Depth of Cut: 1/8"
• Rabbeting Capacity: 3/4"

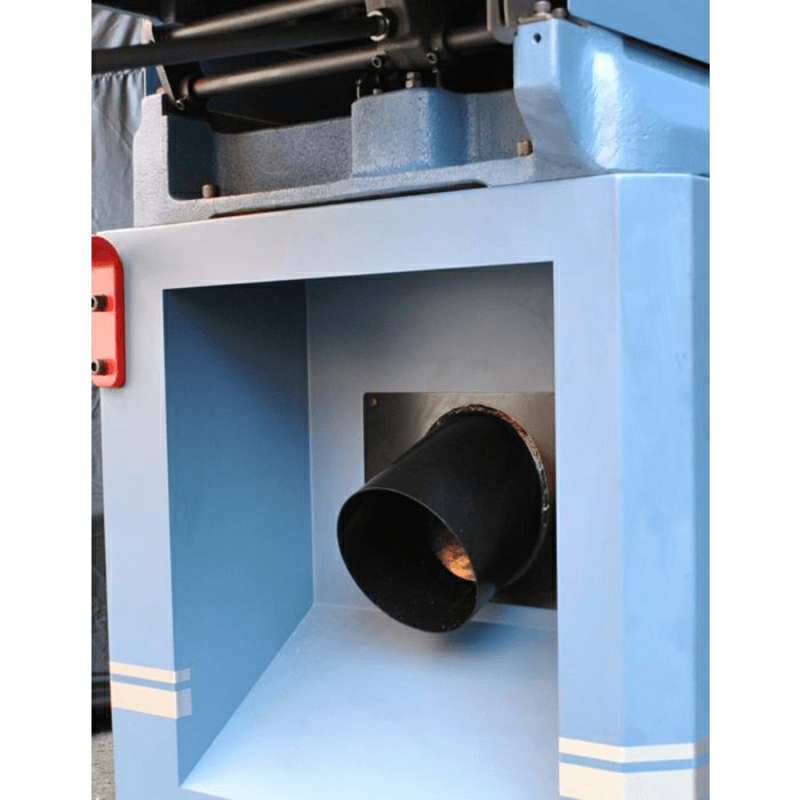

• Dust Port Diameter: 6"
• Fence Tilts: 45°
• Positive Stops: 90° and 45°

Drive Package Specifications:

• Motor Horsepower: 3 HP
• Motor Phase: 1
• Motor Voltage: 230V (14.5 Amp)
• Cutterhead Speed: 5,500 (RPM)

Dimension Specifications:

• Table Length: 88"
• Table Width: 12"
• Table Height: 34-3/4"
• Fence Dimensions: 47" L x 6" W
• Overall Dimension: 88" L x 29" W x 55" H
