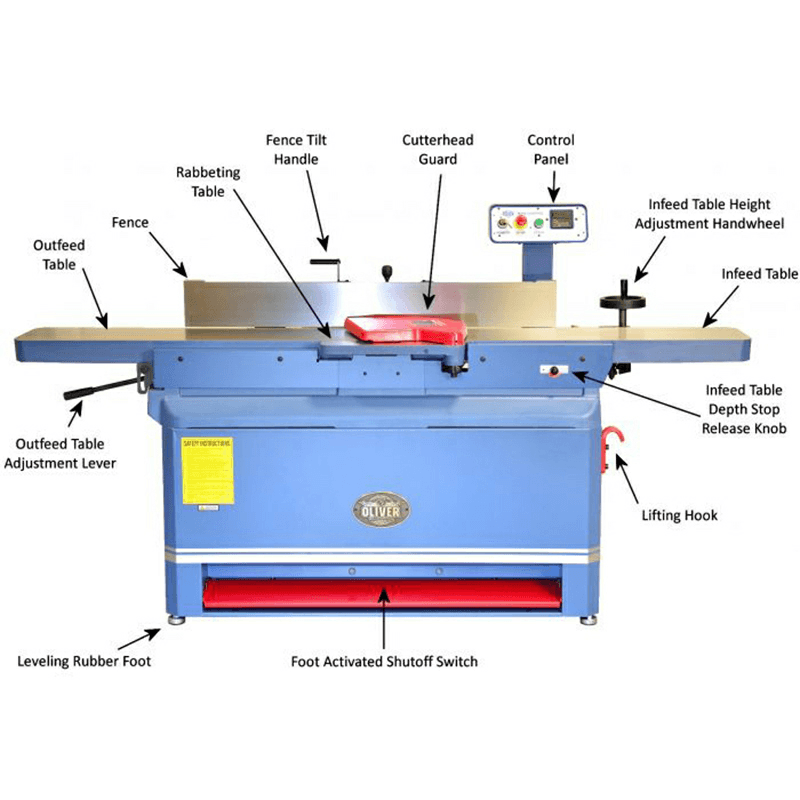

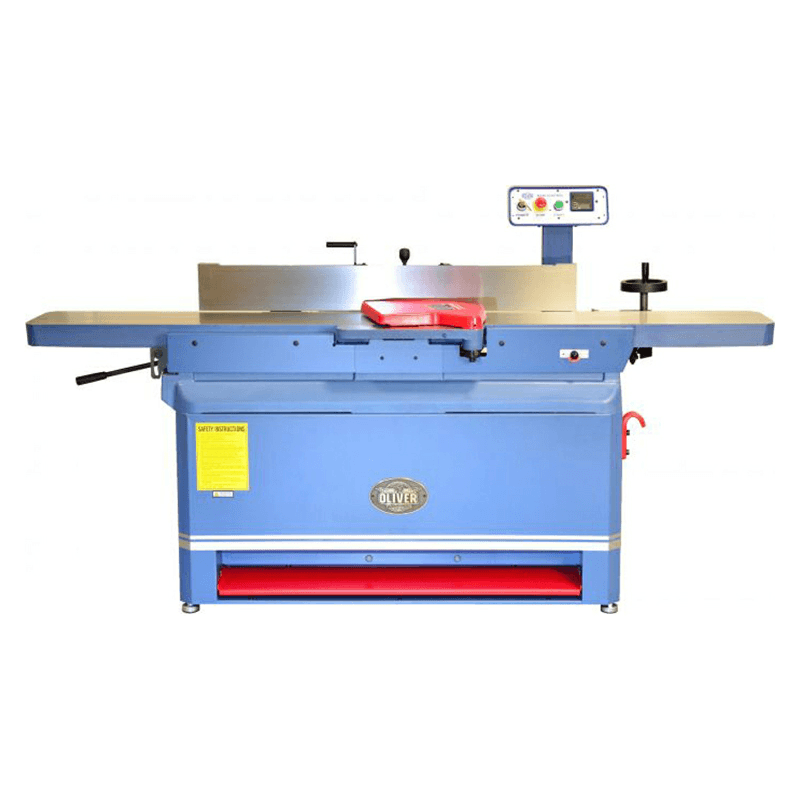

Oliver 16" Parallelogram Jointer with 4-Side Helical Cutterhead/Baldor Motor, 7.5HP/3 Phase

Features:

• Extra-long precision ground tables provide a stable work surface
• Parallelogram design provides smooth accurate cuts

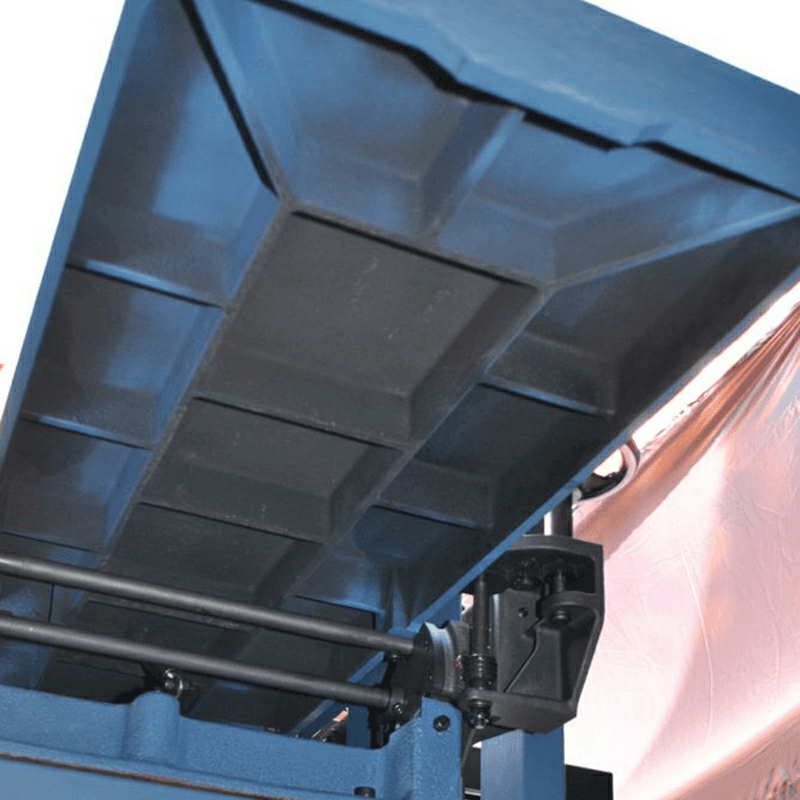

• Massive cast iron frame offers stable table support

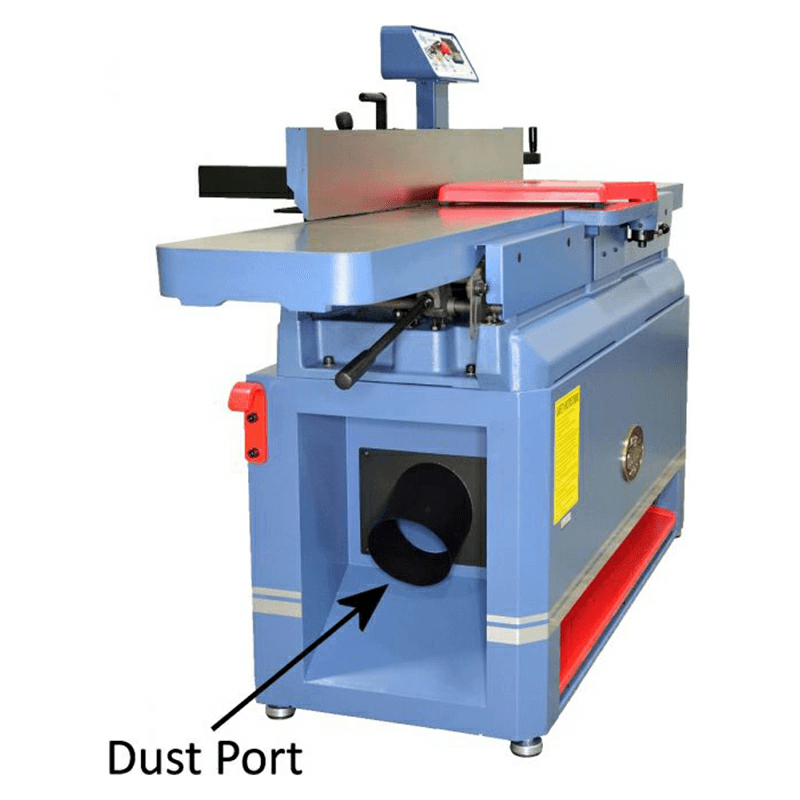

• Fully enclosed cabinet with 6" port for superior dust management
• Helical cutter head includes premium carbide inserts
• 4-sided cutting inserts are indexed and easy to replace
• Elevated control panel with key lock and emergency off switch
• Wixey DRO shows table infeed table movement for precision cuts

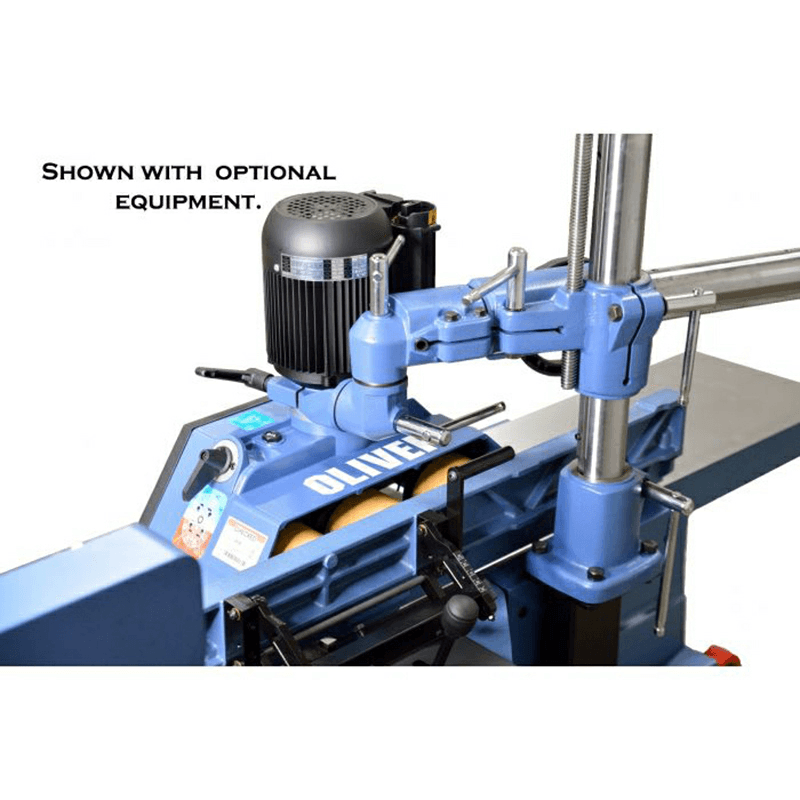

• Pre-drilled bracket for easy (optional) powerfeed mounting
• Foot activated emergency power shutoff

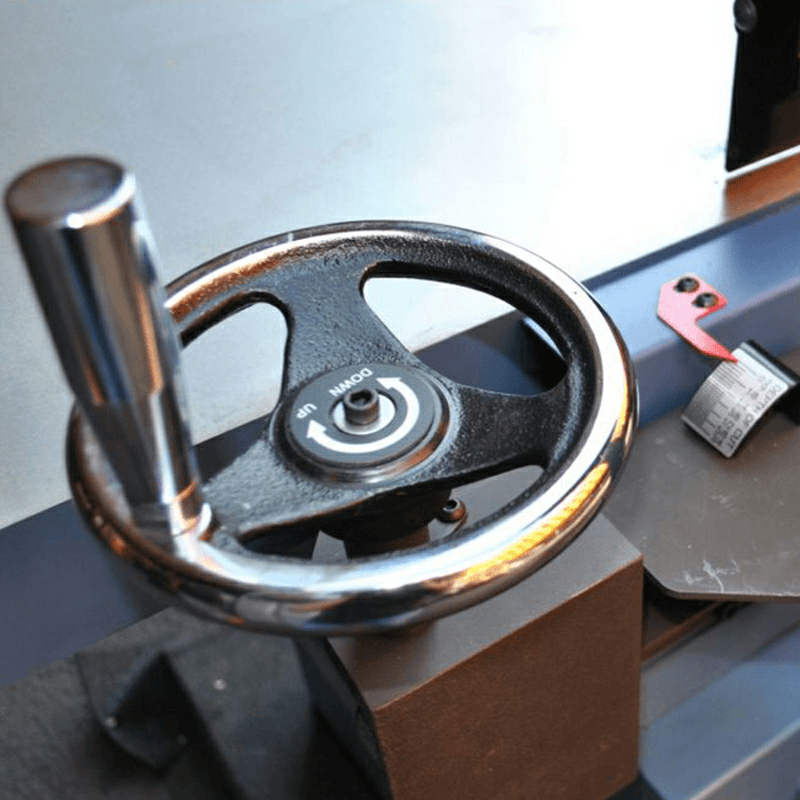

• Handwheel controlled infeed table allows for quick adjustment and auto-lock during operation
• Lever controlled outfeed table allows easy adjustment

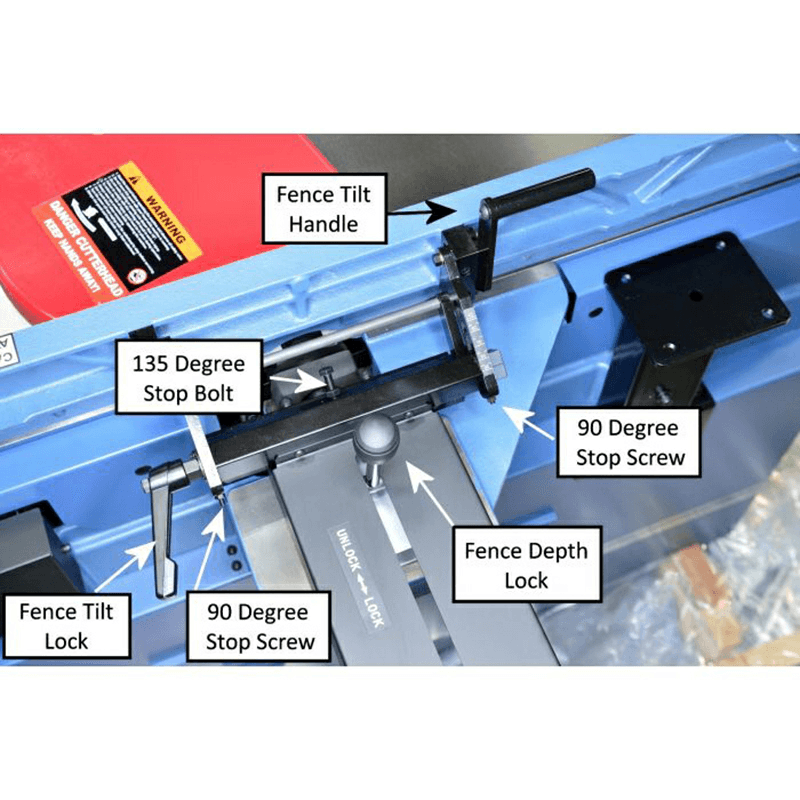

• Long solid cast iron fence features positive stops at 45° and 90°
• Fence features flip down L-shaped attachment for use with thin stock
• Quick slide and lock fence adjustment
• Easy to read depth of cut gauge
• Powerful TEFC Baldor motor available in three-phase
• Ploy V-belt drive efficiently delivers power to the cutter head
• CSA Listed

Application Specifications:

• Infeed Table Travel: 3/4"
• Number of Knives (helical): 76 Inserts
• Maximum Depth of Cut: 1/8"
• Rabbeting Capacity: 3/4"
• Dust Port Diameter: 6"
• Fence Tilts: 45°
• Positive Stops: 90° and 45°

Drive Package Specifications:

• Motor Horsepower: 7.5 HP
• Motor Phase: 3
• Motor Voltage: 230V (19.5 Amp)
• Cutterhead Speed: 5,500 RPM

Dimension Specifications:

• Table Dimensions: 16" x 100"
• Table Height: 34-3/4"
• Fence Dimensions: 47" L x 6" W
• Overall Dimension 100" L x 40" W x 41" H
