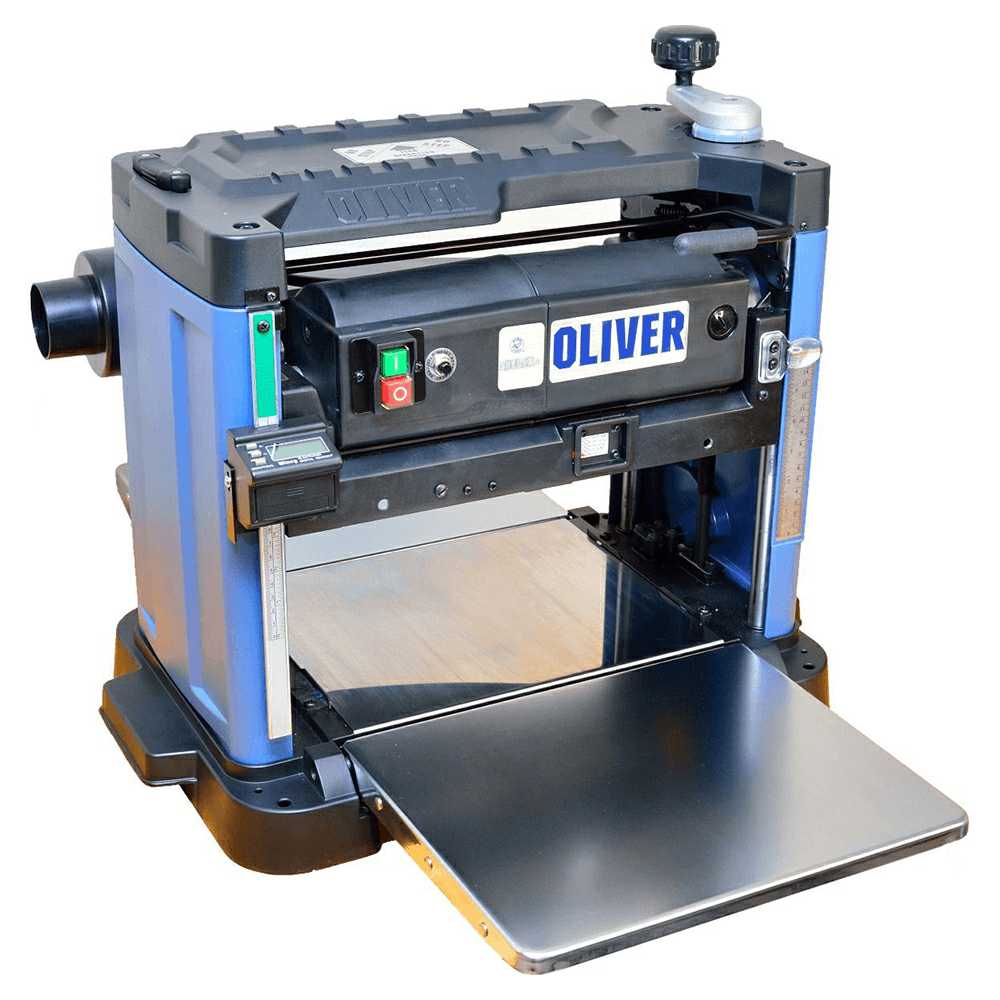

Oliver 121/2" Thickness Planer with BYRD Cutterhead, 2HP/1 Phase

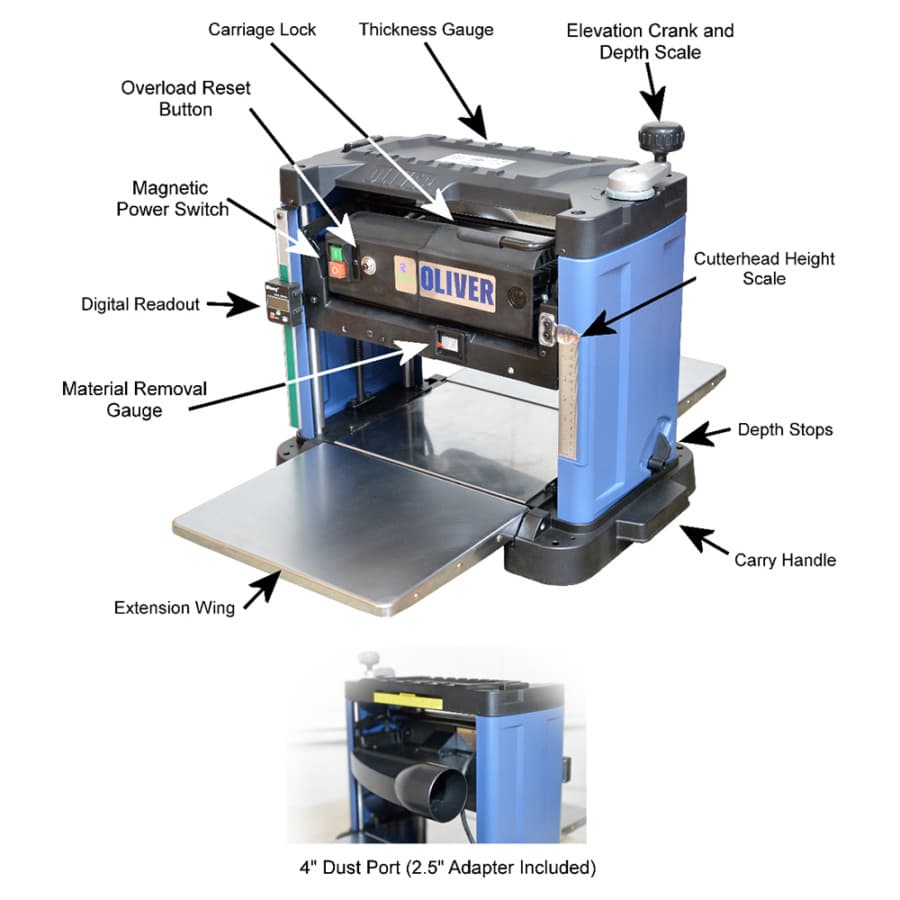

Features:

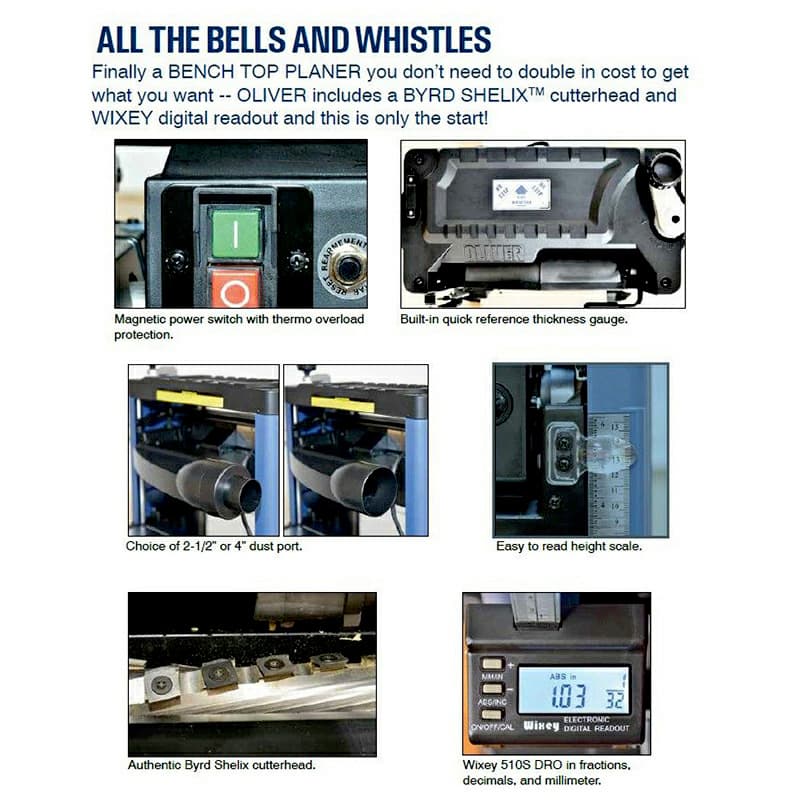

• Authentic BYRD Shelix cutter head provide smooth cuts
• 4-sided carbide inserts are indexed for quick changing

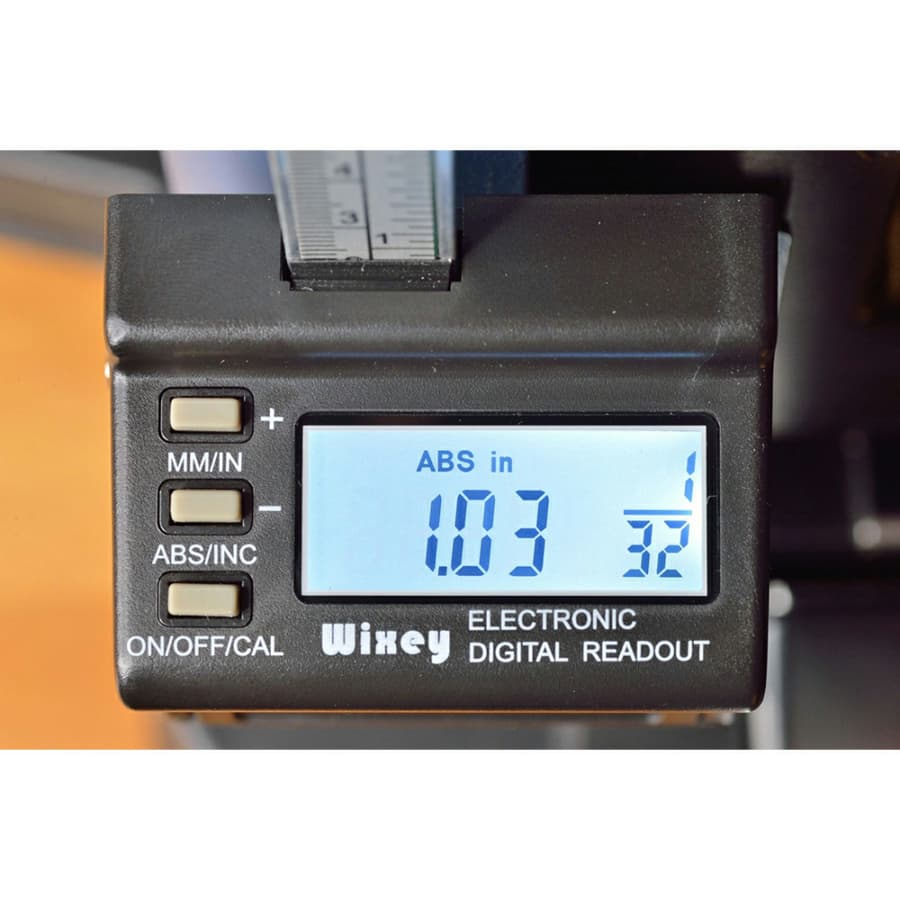

• Wixey WR510S digital readout for quick accurate set-up
• Powerful 2HP 15Amp 115V motor

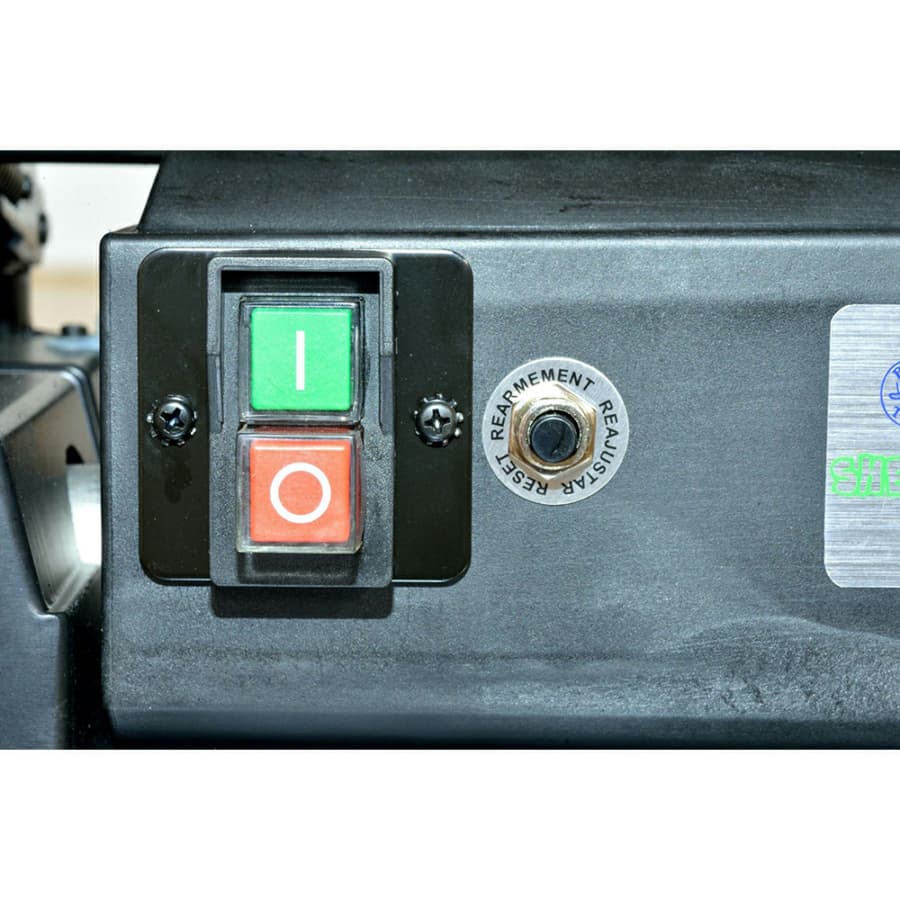

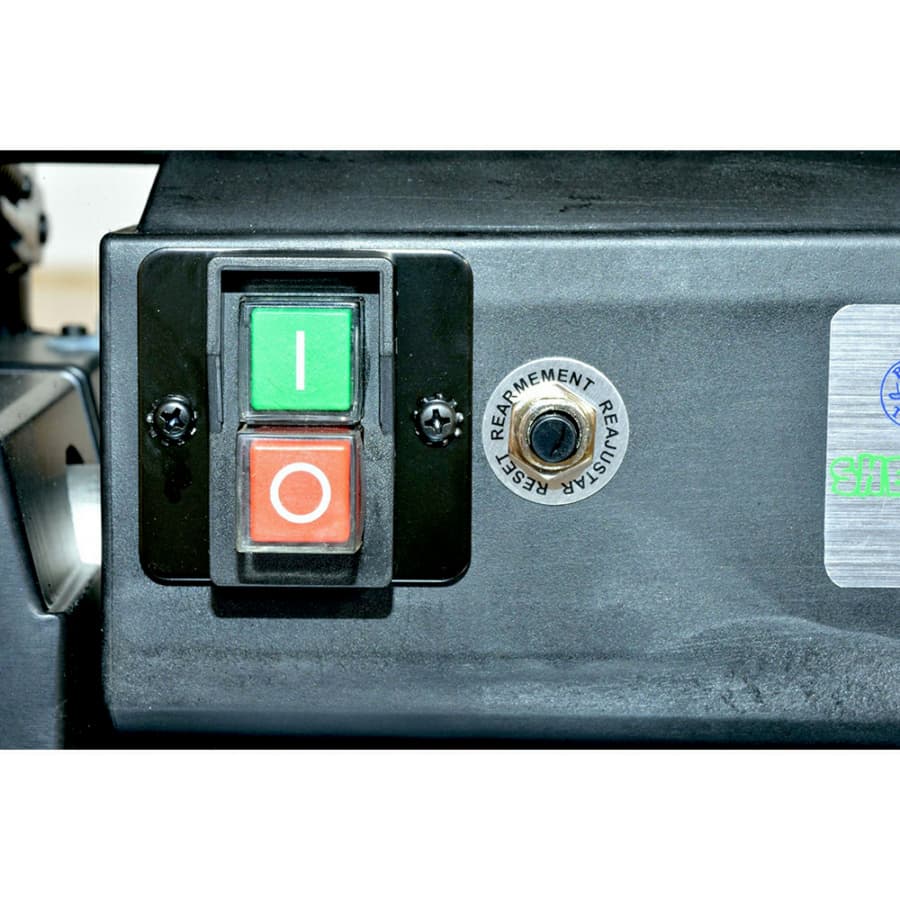

• Magnetic switch features overload protection
• 4-post design ensures cutter head alignment to table

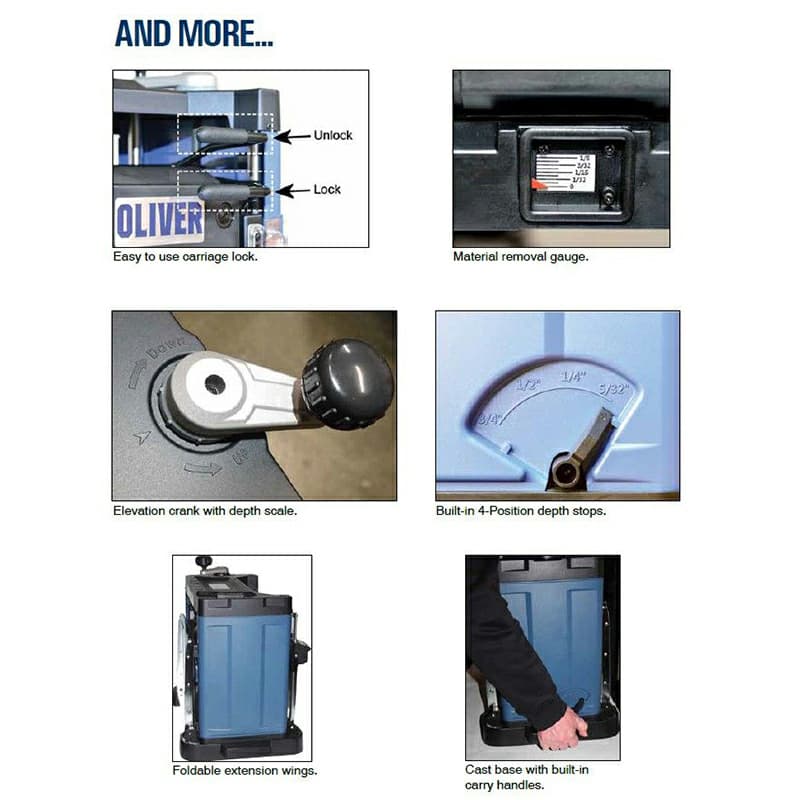

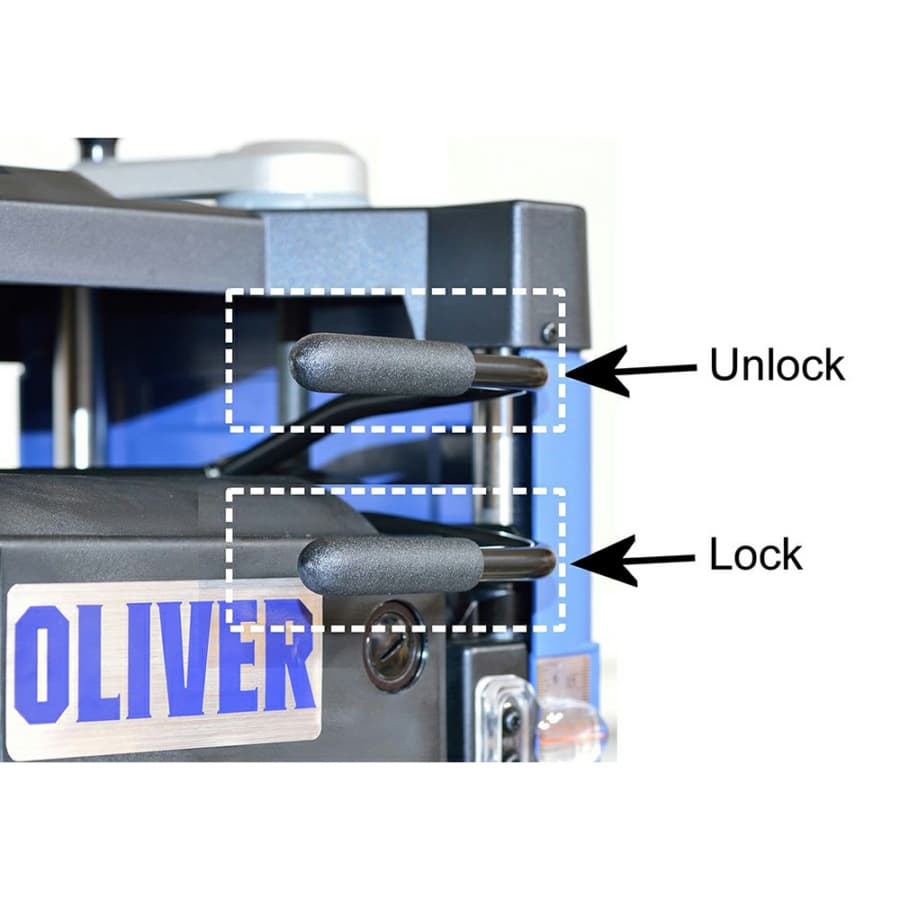

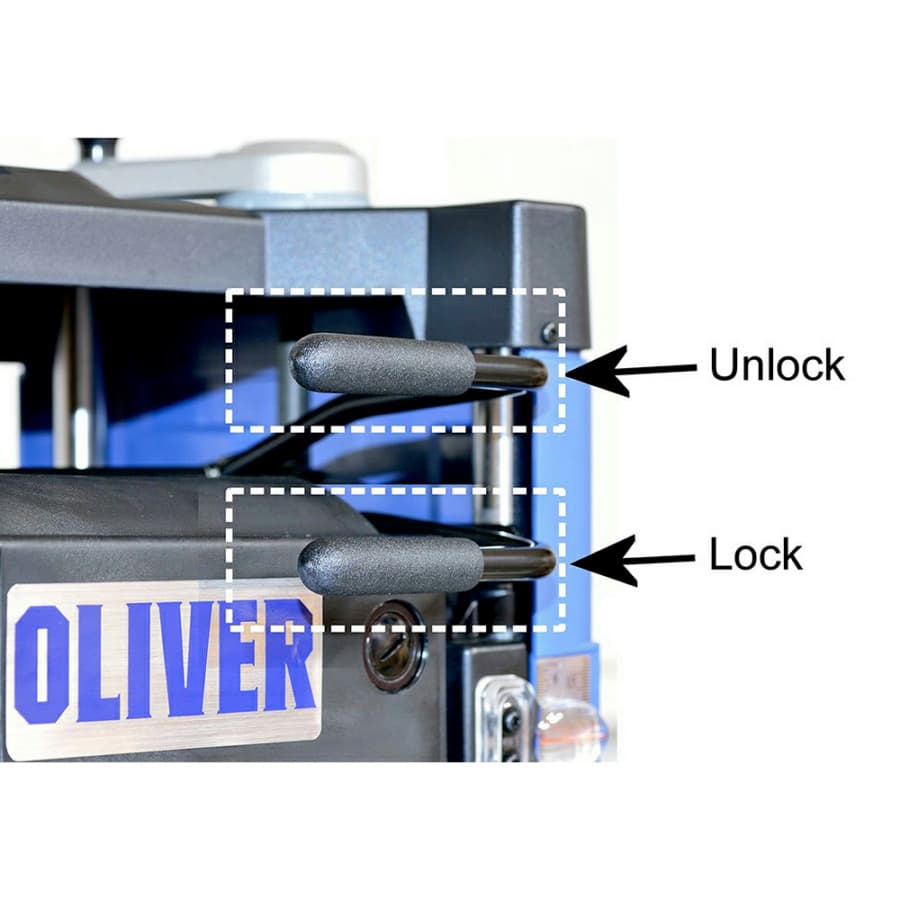

• Built-in carriage lock for stability during operation
• Elevation crank includes an easy to read scale
• On-board adjustment wrench storage
• Top thickness gage allows convenient material check
• 4-depth stops allow easy set-up from 3/4" to 5/32"
• Front material removal gauge allows for quicker set-up
• Fold-up extension wings provide added material support
• Built-in carry handles for easy portability
• Blower assists in chip ejection during operation
• Dust port allows 2-1/2" or 4" hose hook up
• CSA listed

Application Specifications:

• Maximum Stock Width: 12-1/2"
• Maximum Depth of Cut: 5/64" and 3/64"
• Maximum Stock Thickness: 6"
• Minimum Stock Thickness: 5/32"
• Minimum Stock Length: 5"
• Dust Port Diameter: 2.5" or 4"
• Number of Knives Byrd: 36
• Cutterhead Diameter: 1-7/8"

Drive Package Specifications:

• Motor Horsepower: 2 HP
• Motor Phase: 1
• Motor Voltage: 115V (15Amp)
• Feed Speeds: 26 FPM
• Cutterhead Speed: 10,000

Dimension Specifications:

• Table Size: 12-1/2" x 10-5/16"
• Table Size with Extension Wings: 12-1/2" x 33-3/16"
