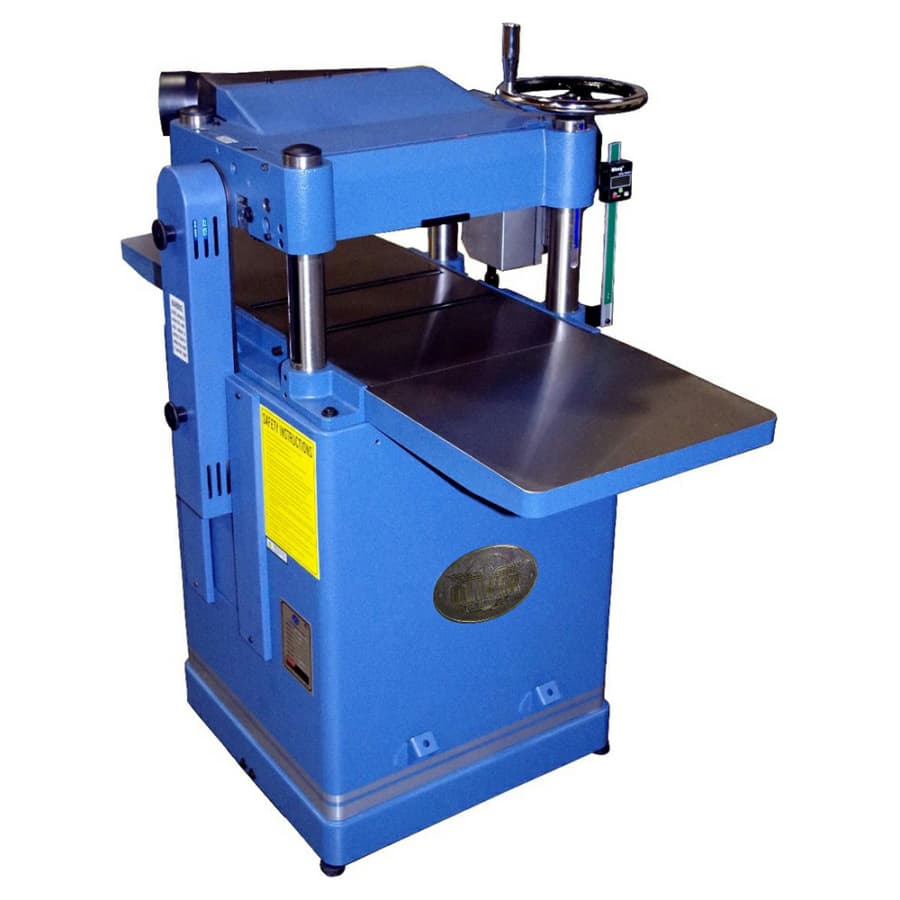

Oliver 15" Planer with Helical Cutterhead, 3HP/1 Phase

Features:

• Unique design allows motor and cutter head to move in unison

• Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping

• Helical cutter head with premium carbide inserts

• 4-sided cutting inserts are indexed and easy to replace

• Heavy cast iron construction including extension wings

• Table and extensions wings are precision ground for smooth stock feeding

• Table is fixed allowing easy use of auxiliary stock support

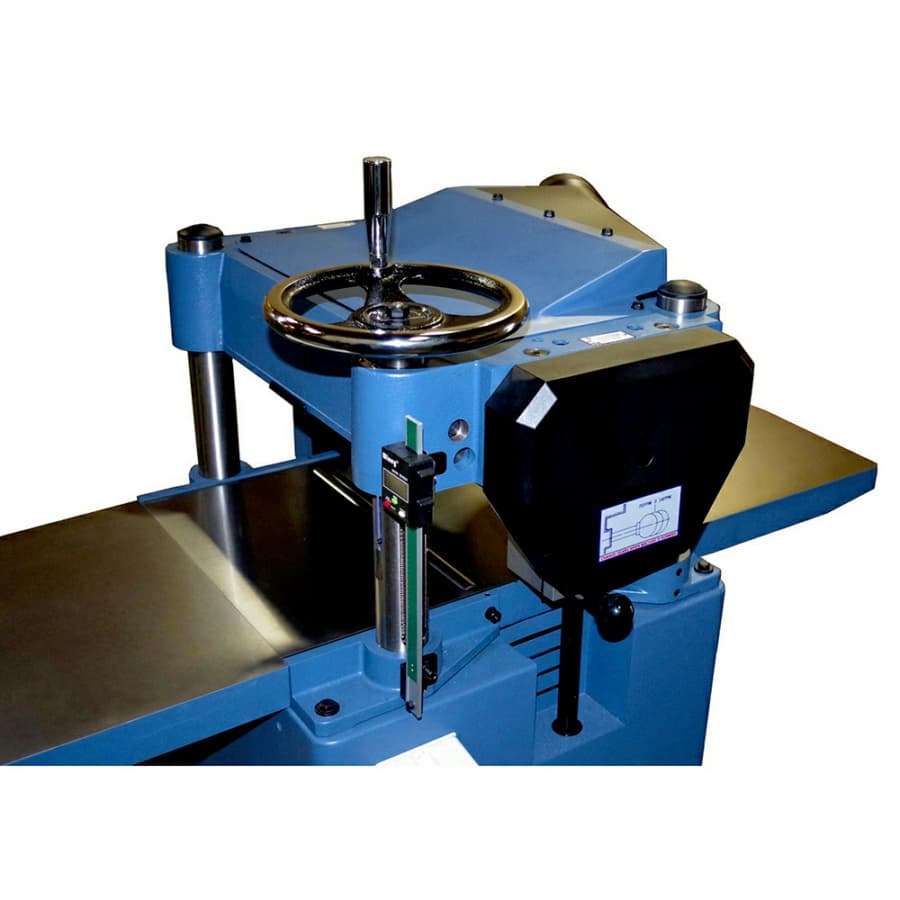

• Wixey digital read out allows precise thickness settings

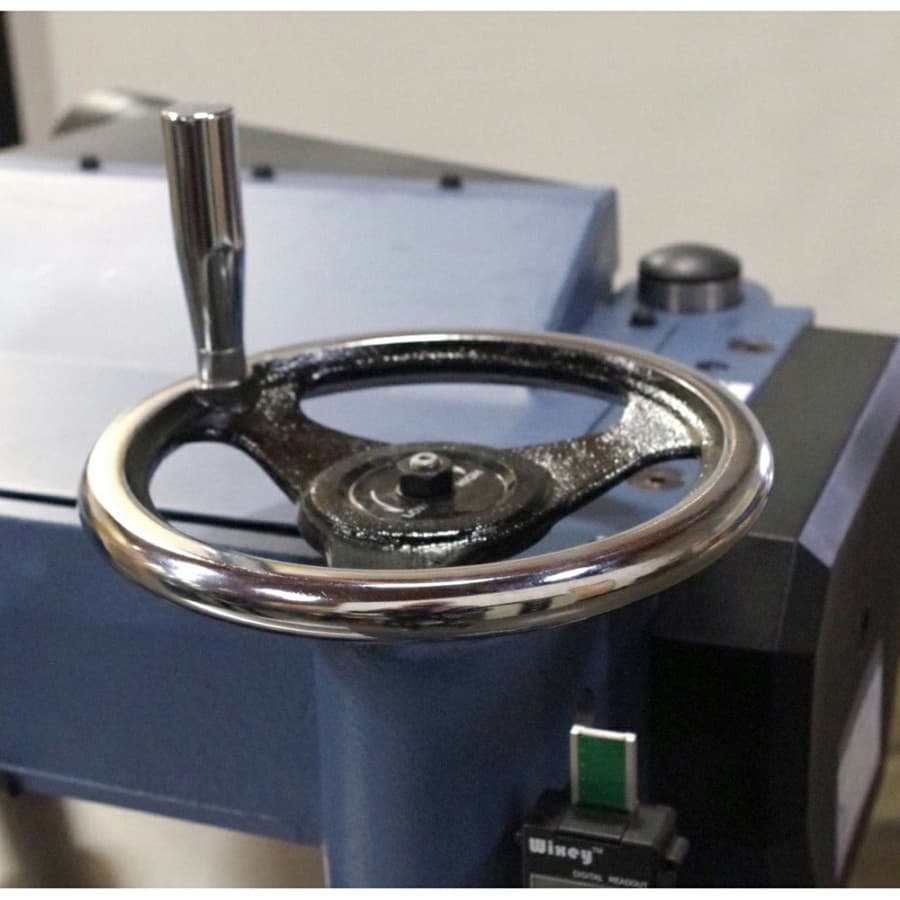

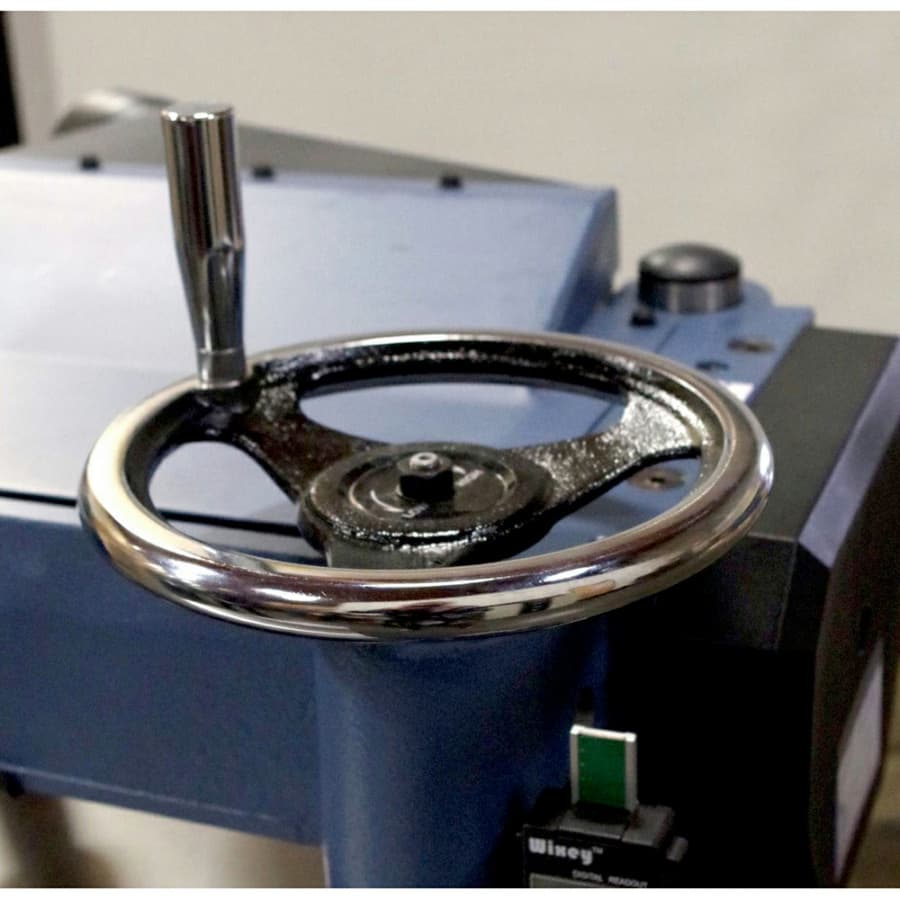

• Large hand wheel and support struts allow easy height adjustment

• Four-post design ensures head alignment regardless of stock thickness

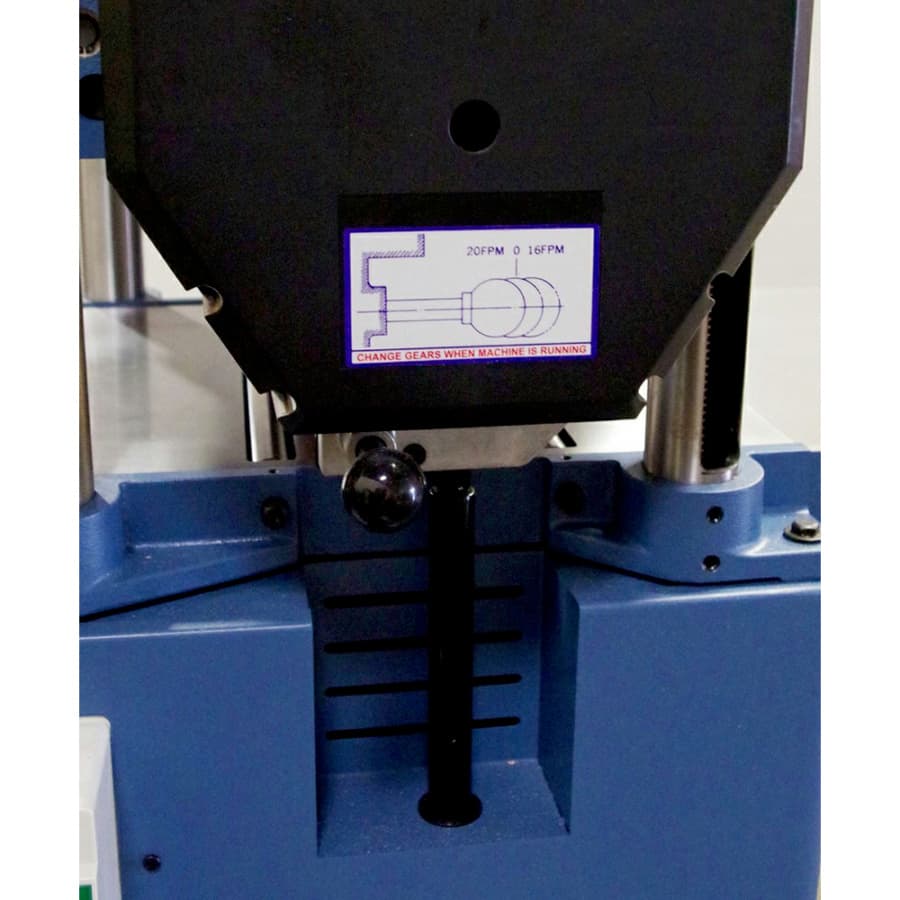

• Two-speed feed gearbox for better cuts

• Oil bath gear lubrication for years of performance

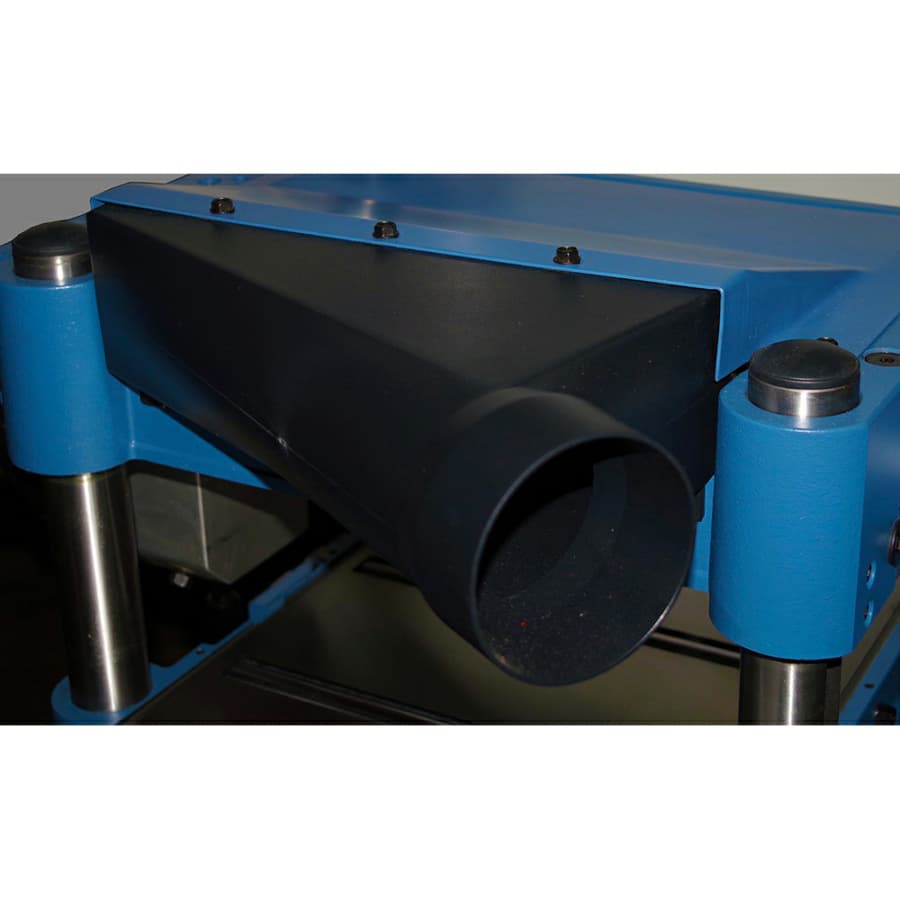

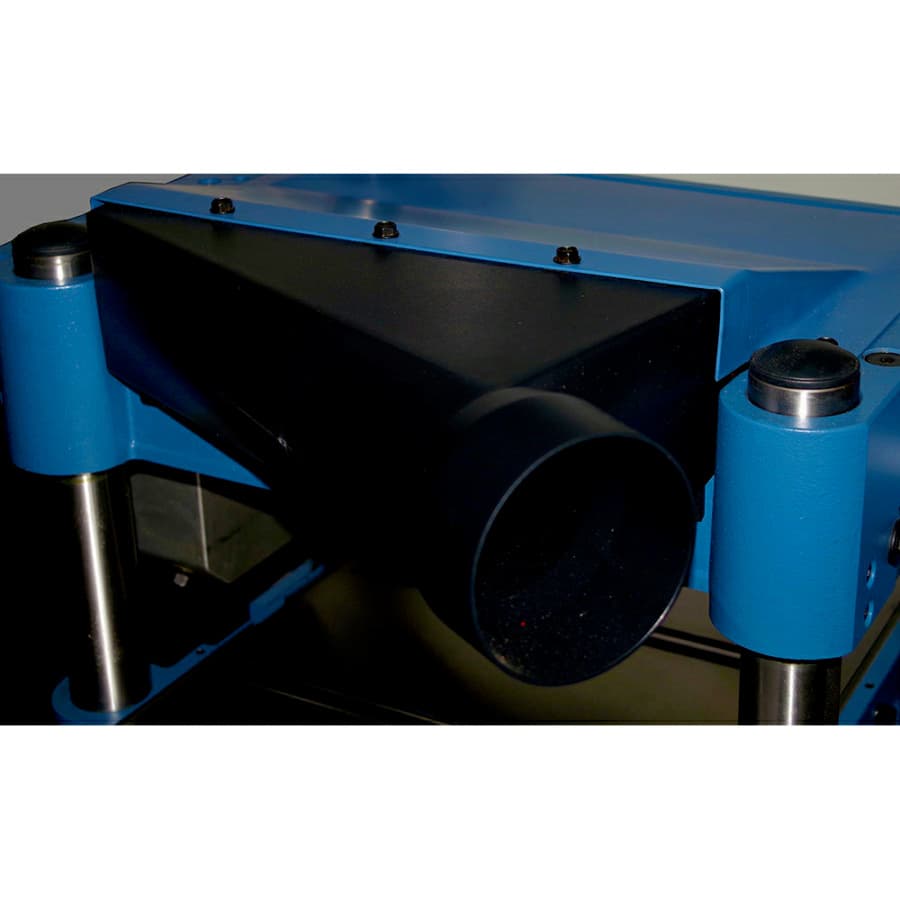

• 4" port allows excellent dust management

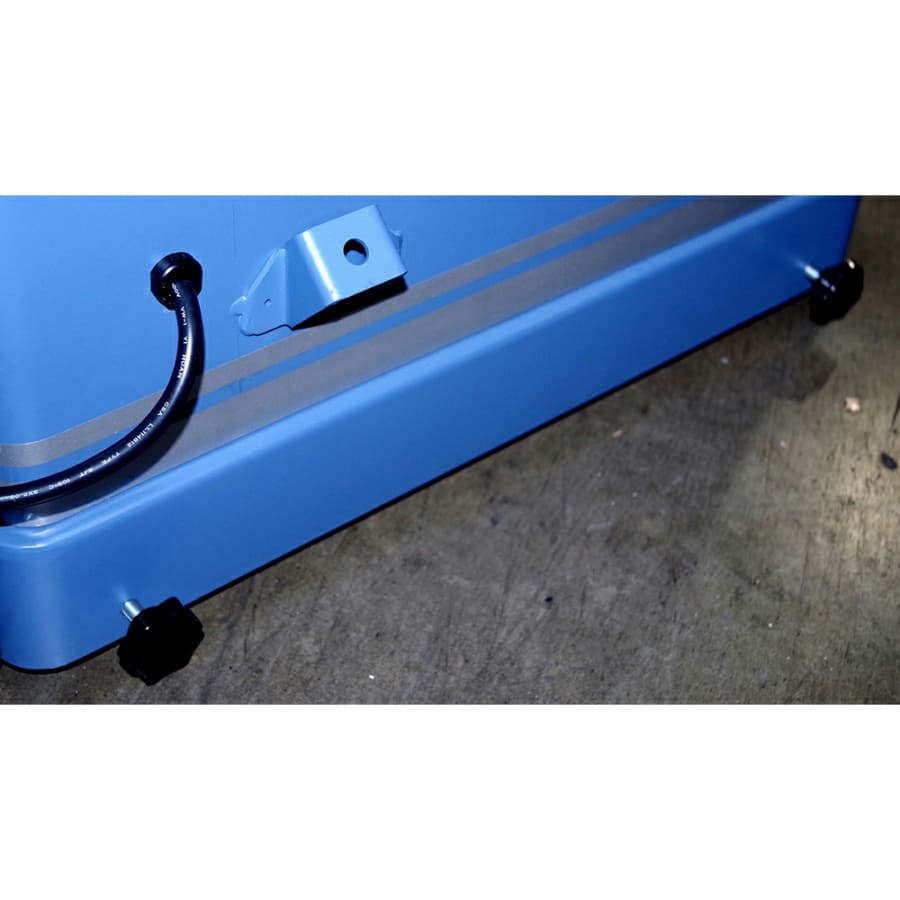

• Built-in mobile base allows easy movement in the shop

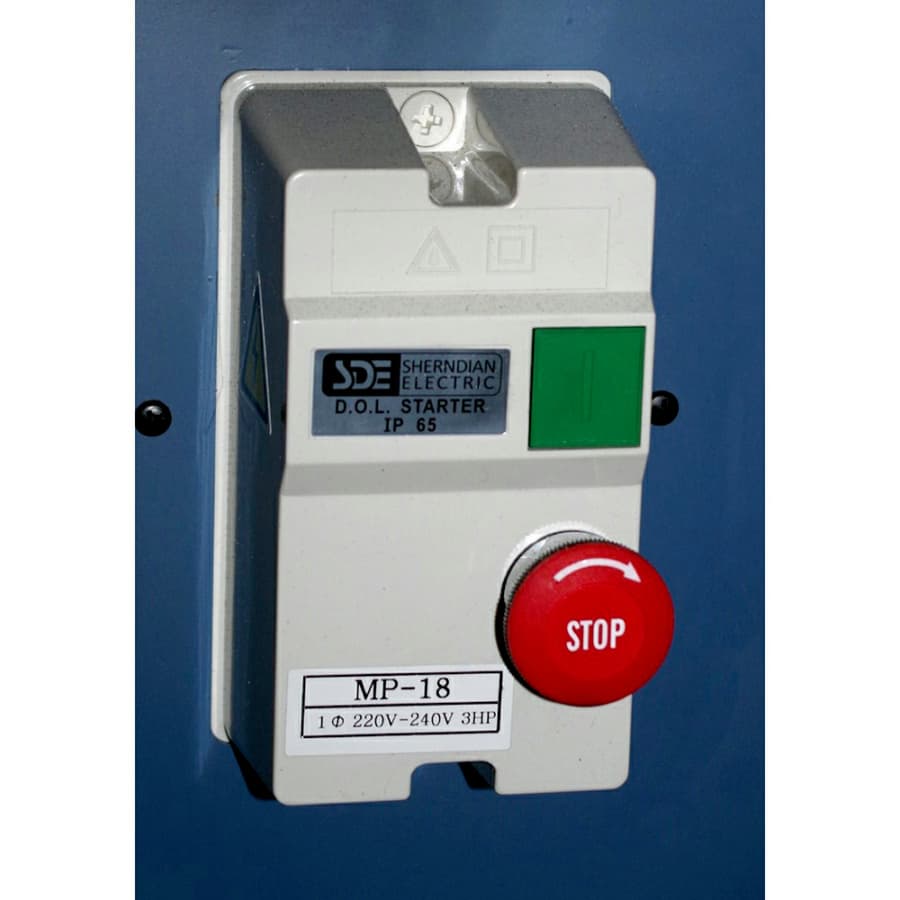

• Magnetic switch for added protection and safety

Application Specifications:

• Maximum Stock Width: 15"

• Maximum Depth of Cut: 1/8"

• Maximum Stock Thickness: 6"

• Minimum Stock Thickness: 3/16"

• Minimum Stock Length: 6"

• Dust Port Diameter: 4"

• Bed Rollers 2, Adjustable

• Cutterhead Diameter: 3"

• Number of Knives: 52

• Table Support: 4-Column

Drive Package Specifications:

• Motor Horsepower: 3 HP

• Motor Phase: 1

• Motor Voltage: 220V Only(12 Amp)

• Feed Speeds: 16/20 FPM

• Cutterhead Speed: 5,000 RPM

Dimension Specifications:

• Table Size: 15" x 19-5/8"

• Table Size with Extension Wings: 15" x 47-5/8"

• Table Height: 30-1/8"

• Overall Dimensions: 28" x 47-1/2" x 52"
