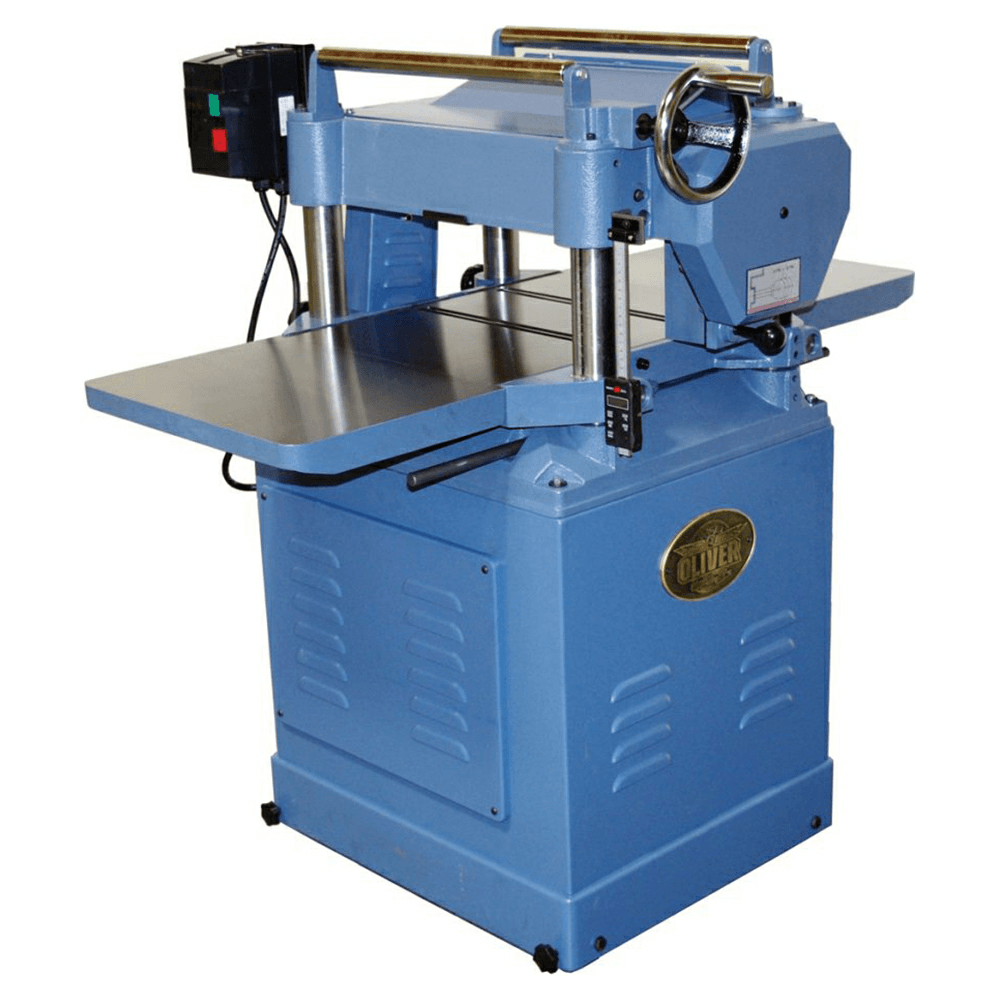

Oliver 16" Planer with Helical Cutterhead, 5HP/1 Phase

Features:

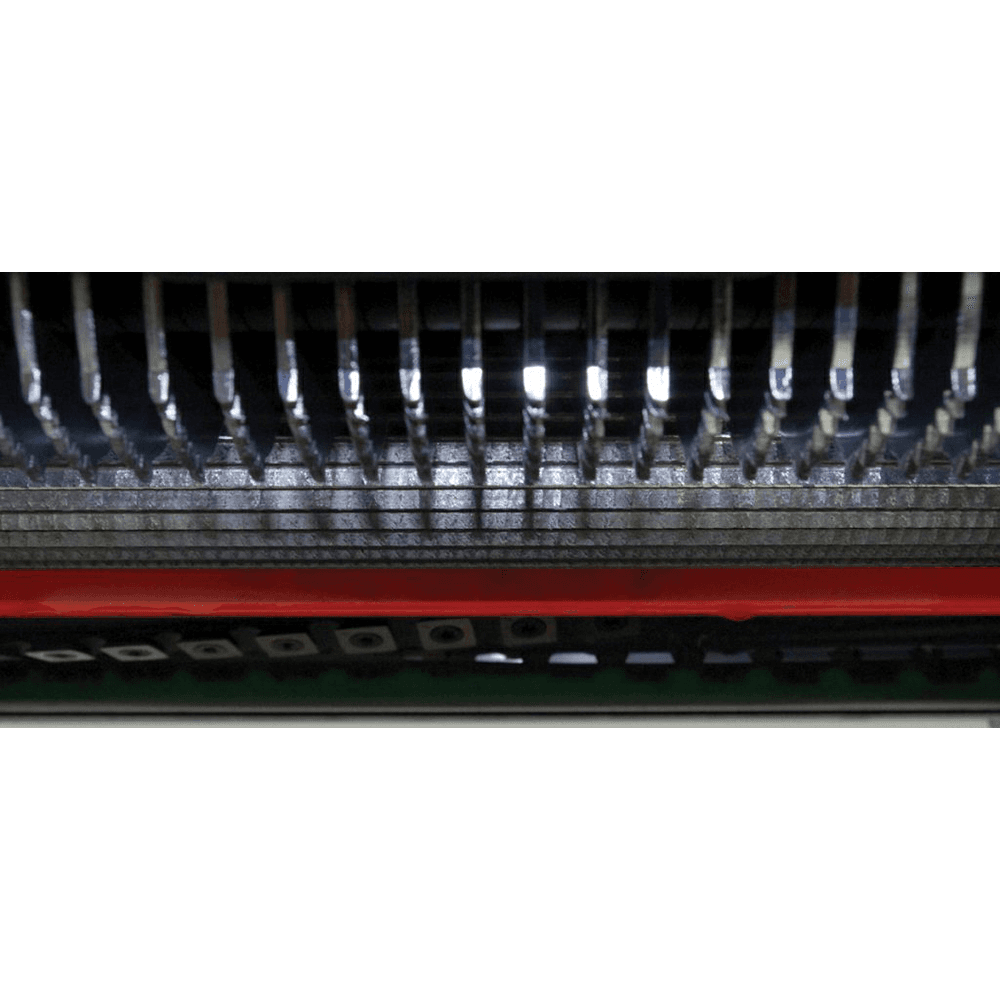

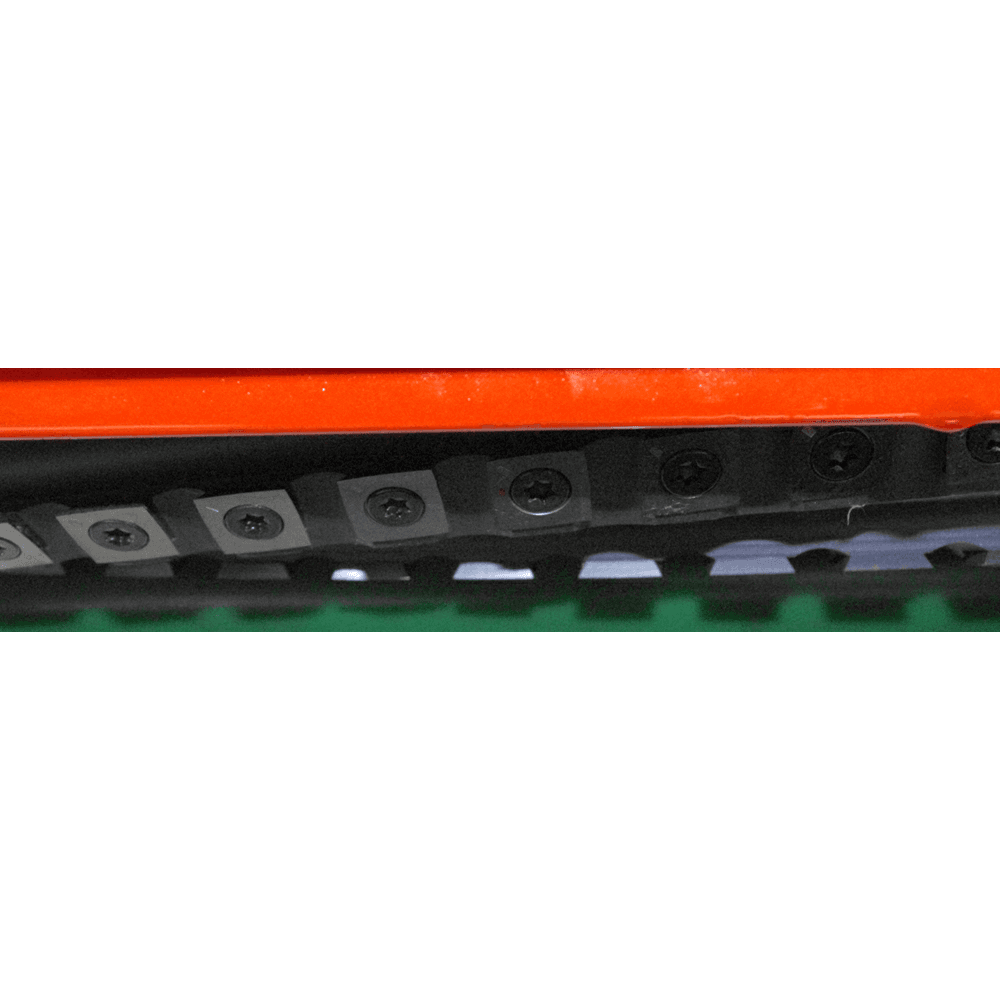

• Helical cutter head includes German-made carbide inserts
• Carbide inserts are indexed for quick changing

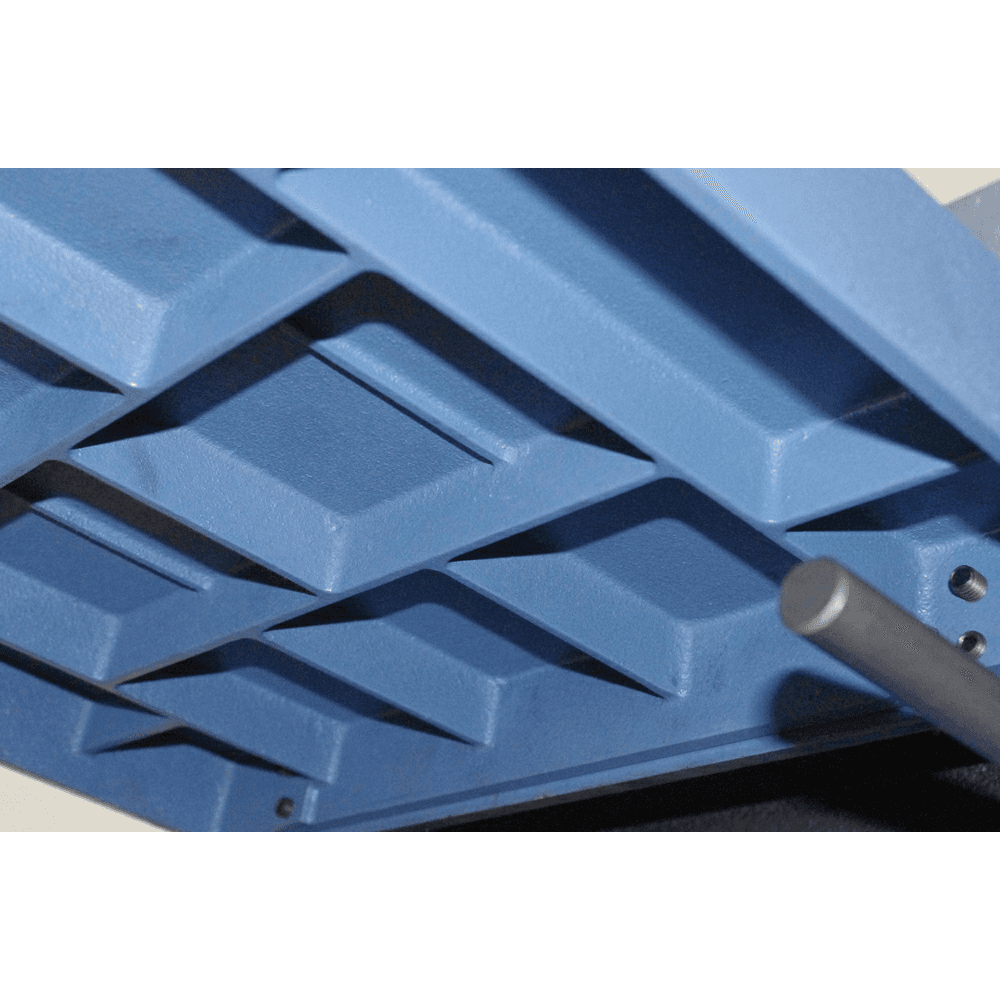

• Heavy cast iron construction, including extension wings, supports even the heaviest stock
• Table and extension wings are precision ground allowing smooth operation
• Top rollers allow for easy return of the stock
• Four-post design ensures table alignment regardless of stock height

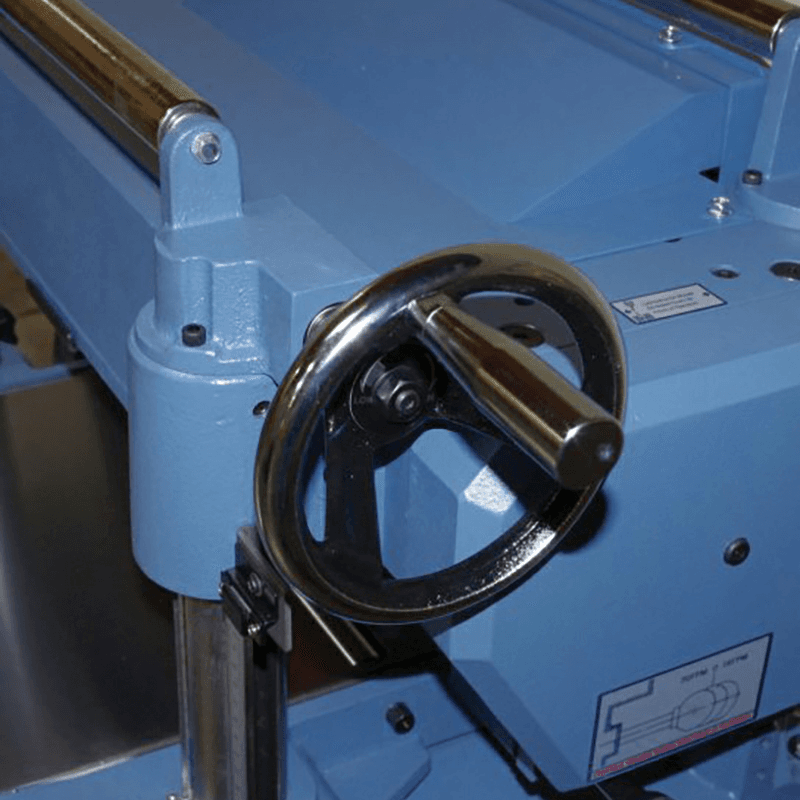

• Large hand wheel allows easy height adjustment
• Serrated steel infeed roller provides smooth feeding
• 2-speed gearbox provides the perfect feed rate
• Polished built-in table roller assists movement of rough stock

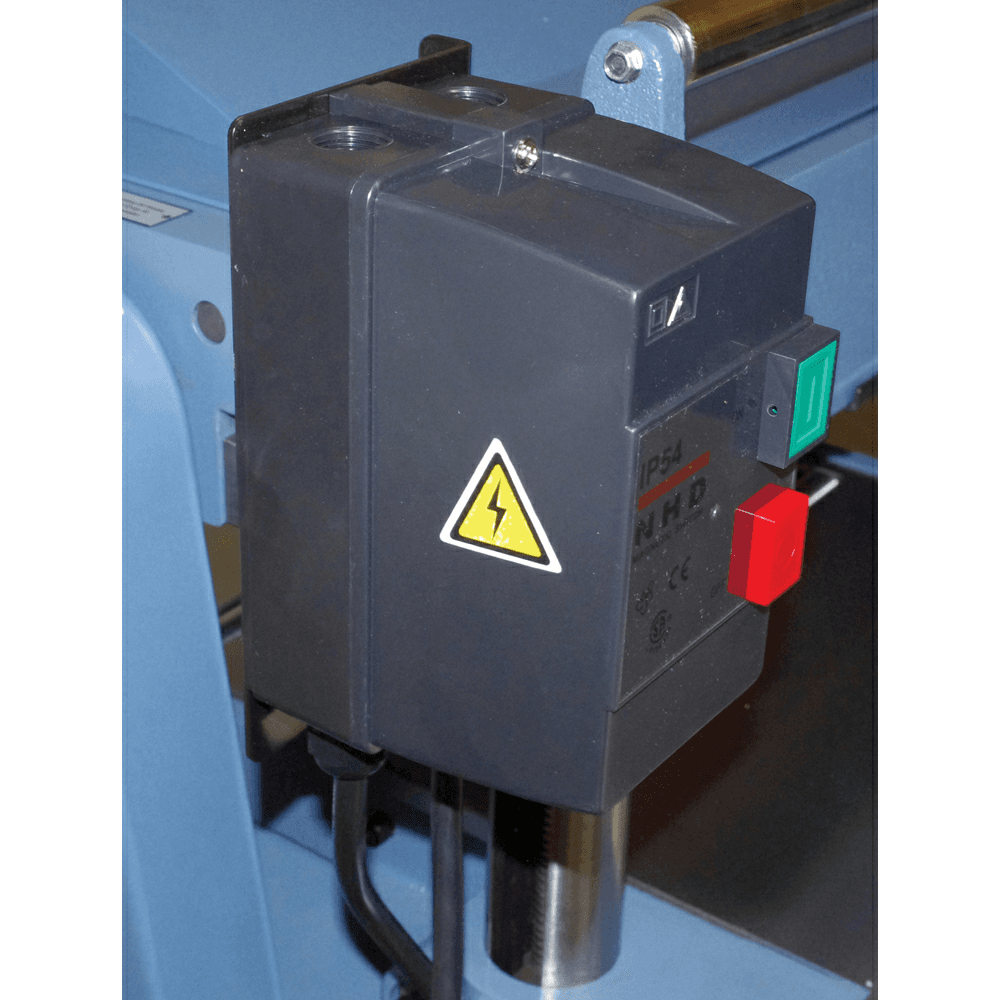

• Magnetic controls for safer operation

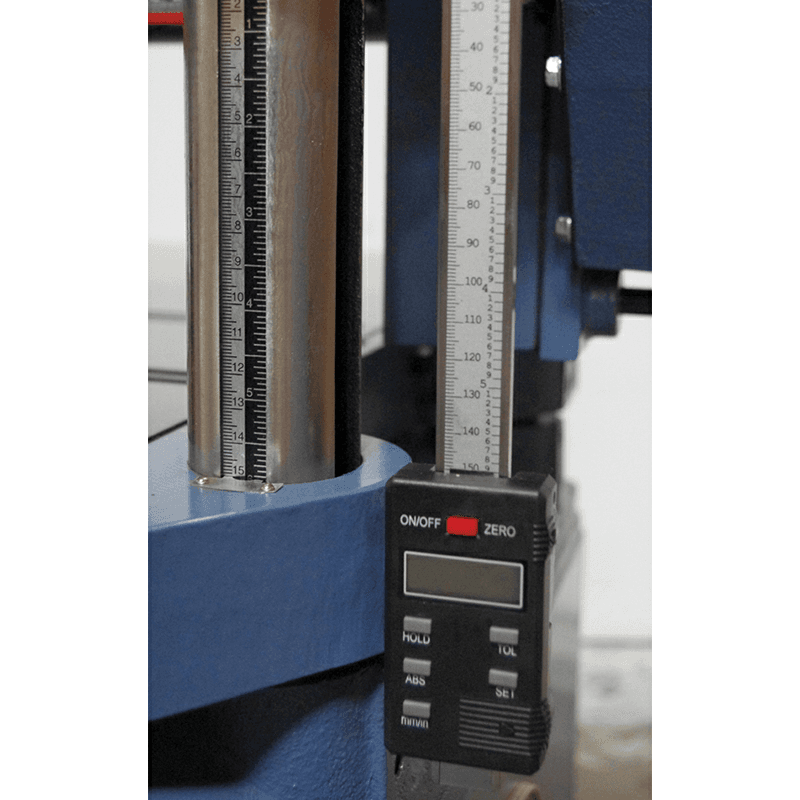

• Wixey digital readout allows precise thickness settings
• Built-in casters with locks for easy mobility
• 4" dust chute easily handles chip removal
• Matched 3 V-belt drive smoothly transfers power to drive train and cutter head
• Powerful TEFC motor is available in single-phase

Application Specifications:

• Maximum Stock Width: 16"
• Maximum Depth of Cut: 1/8"
• Maximum Stock Thickness: 6"
• Minimum Stock Thickness: 3/8"
• Minimum Stock Length: 6"
• Dust Port Diameter: 4"
• Infeed Roller Diameter: 3"
• Bed Rollers: 2 Adjustable
• Cutterhead Diameter: 2-7/8"
• Number of Knives (helical): 90
• Table Support: 4-Column

Drive Package Specifications:

• Motor Horsepower: 5 HP
• Motor Phase: 1
• Motor Voltage: 220V Only(23 Amp)
• Feed Speeds: 16/20 FPM
• Cutterhead Speed: 4,800 RPM

Dimension Specifications:

• Table Length: 16"
• Table Width: 20"
• Table Size with Extension Wings: 16" L x 44" W
• Footprint Base: 24" x 21"
• Footprint with Table: 30" x 44"
