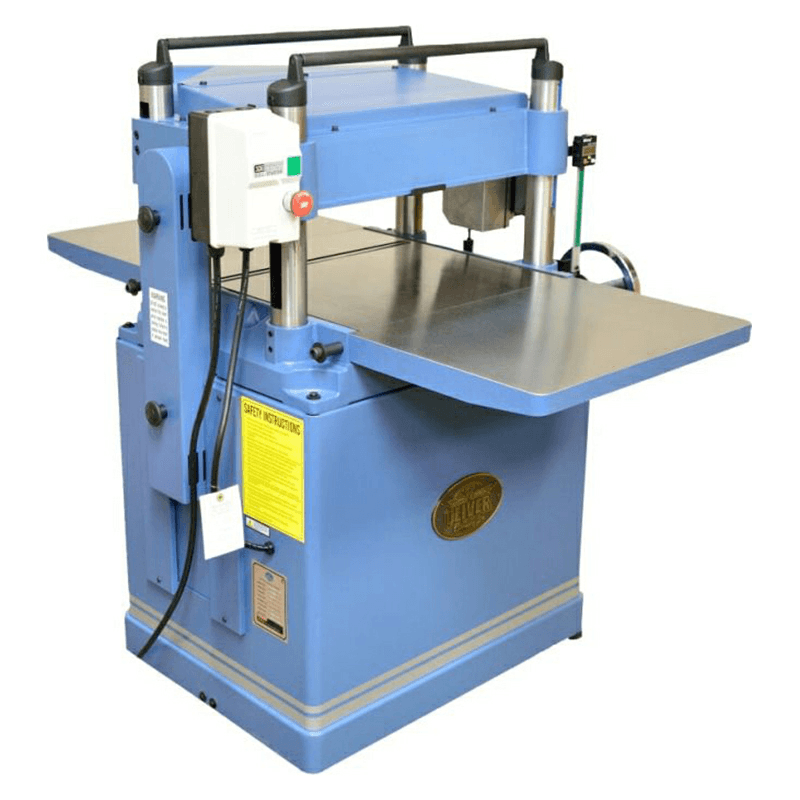

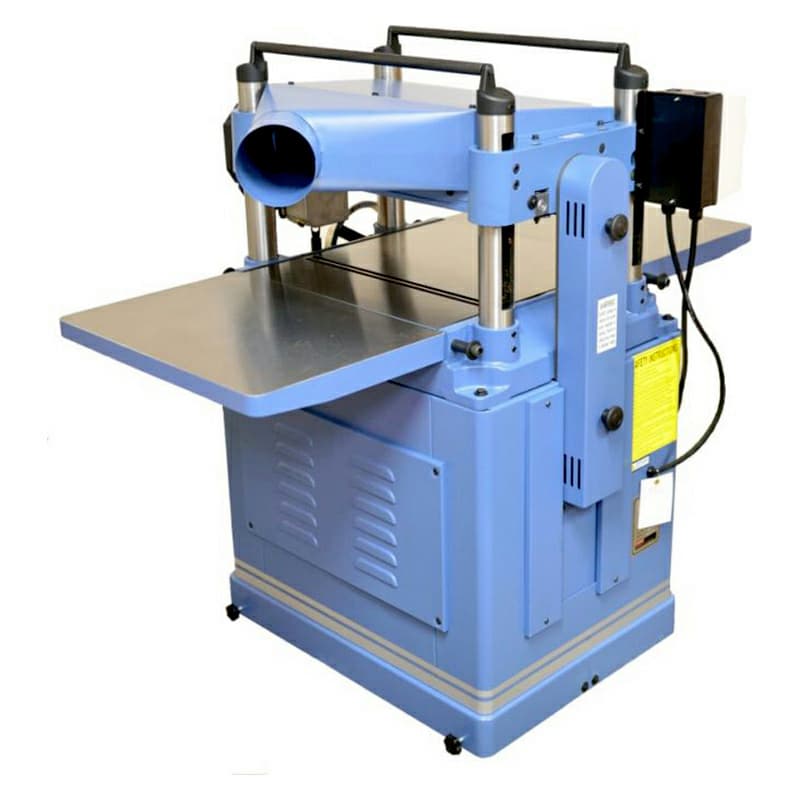

Oliver 20" Planer with Helical Cutterhead, 5HP/1 Phase

Features:

• Unique design allows motor and cutter head to move in unison

• Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping

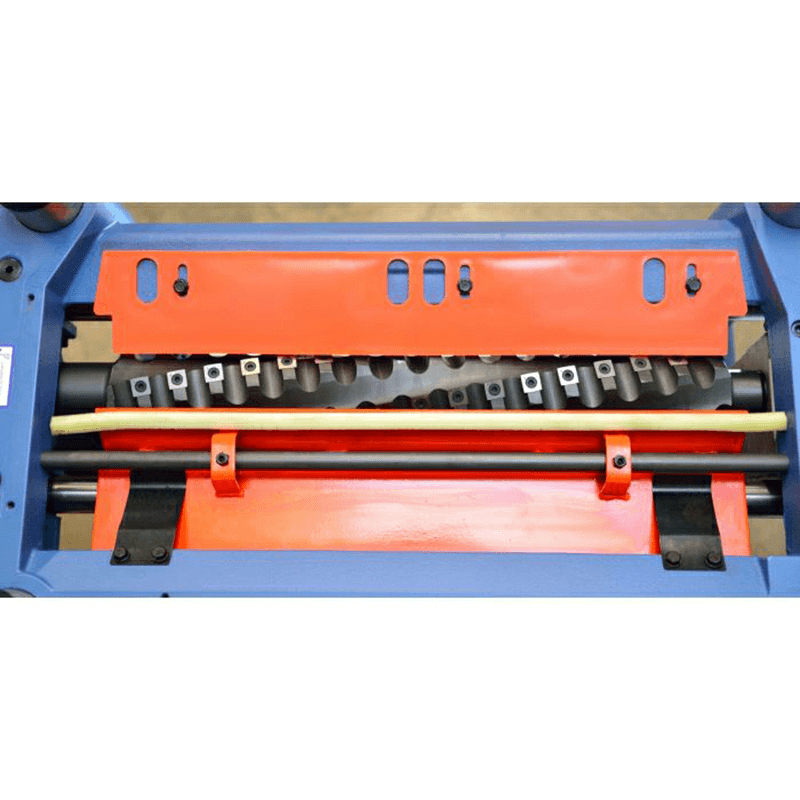

• Helical cutter head with premium carbide inserts

• 4-sided cutting inserts are indexed and easy to replace

• Heavy cast iron construction including extension wings

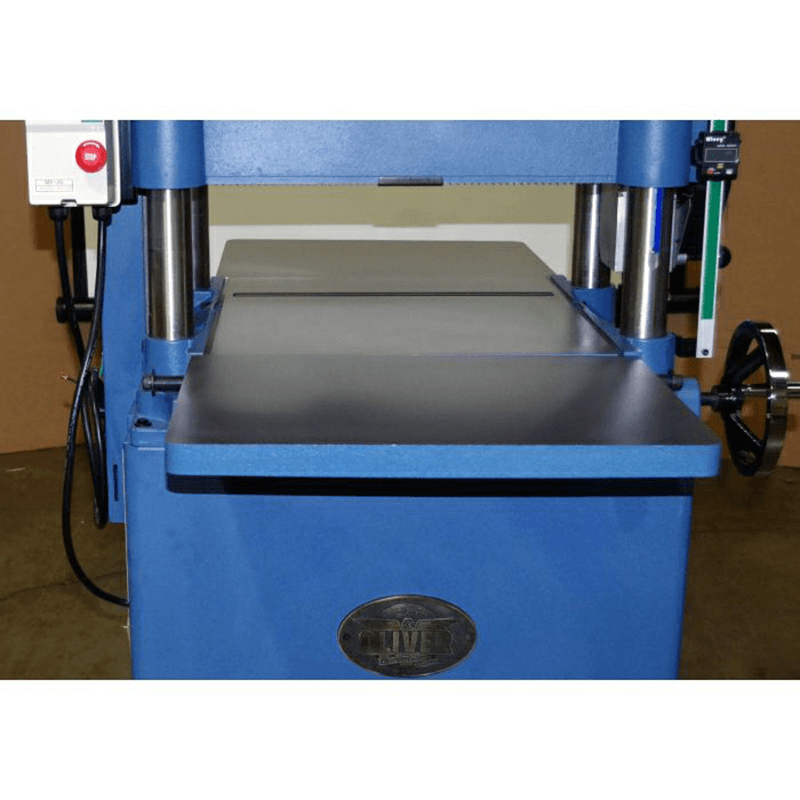

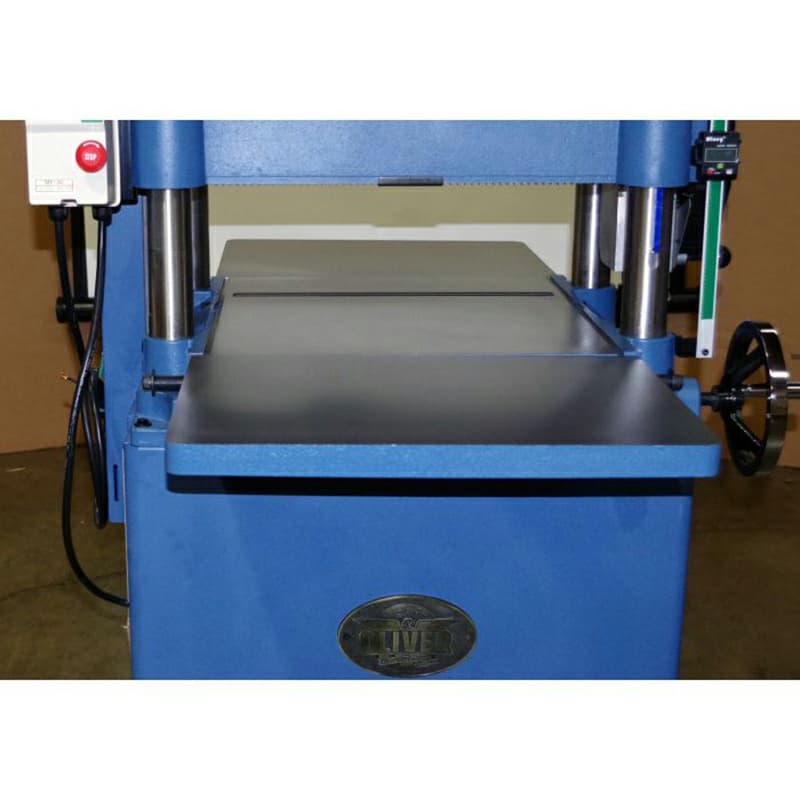

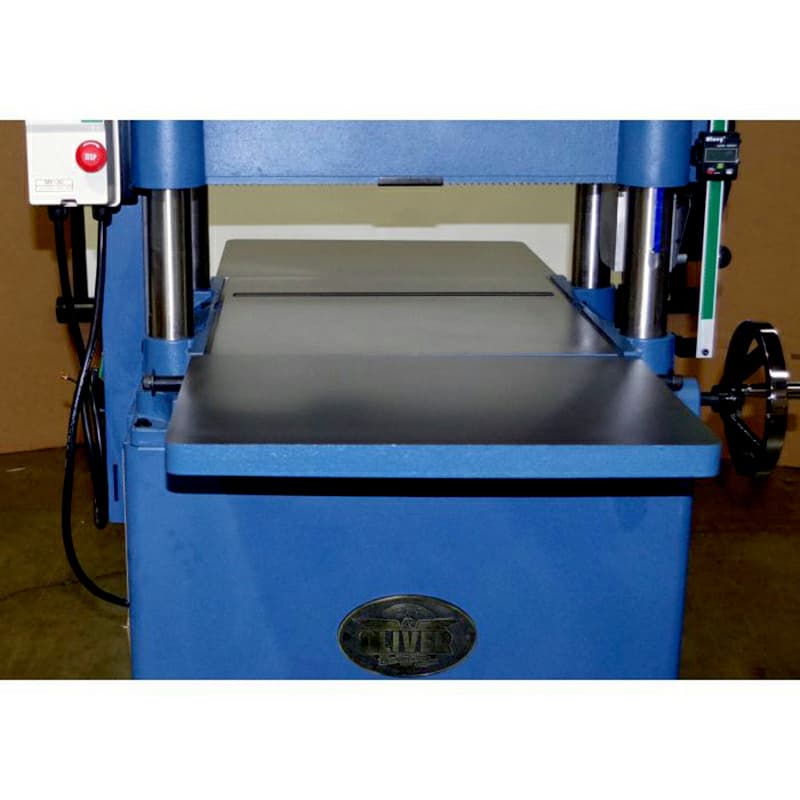

• Table is precision ground for smooth stock feeding

• Table is fixed allowing easy use of auxiliary stock support

• Wixey digital read out allows precise thickness settings

• Large hand wheel and support struts allow easy height adjustment

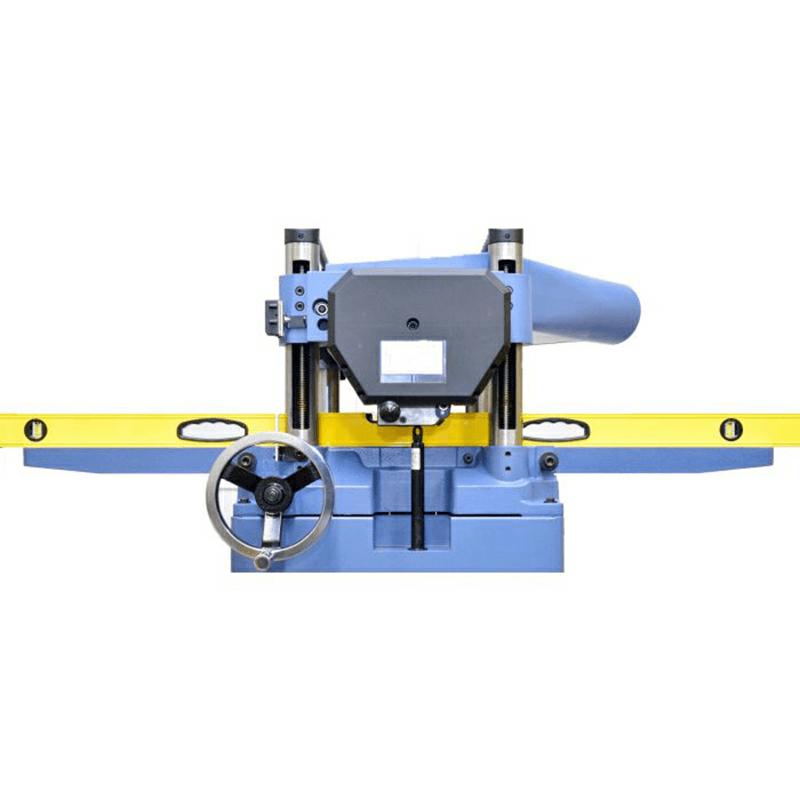

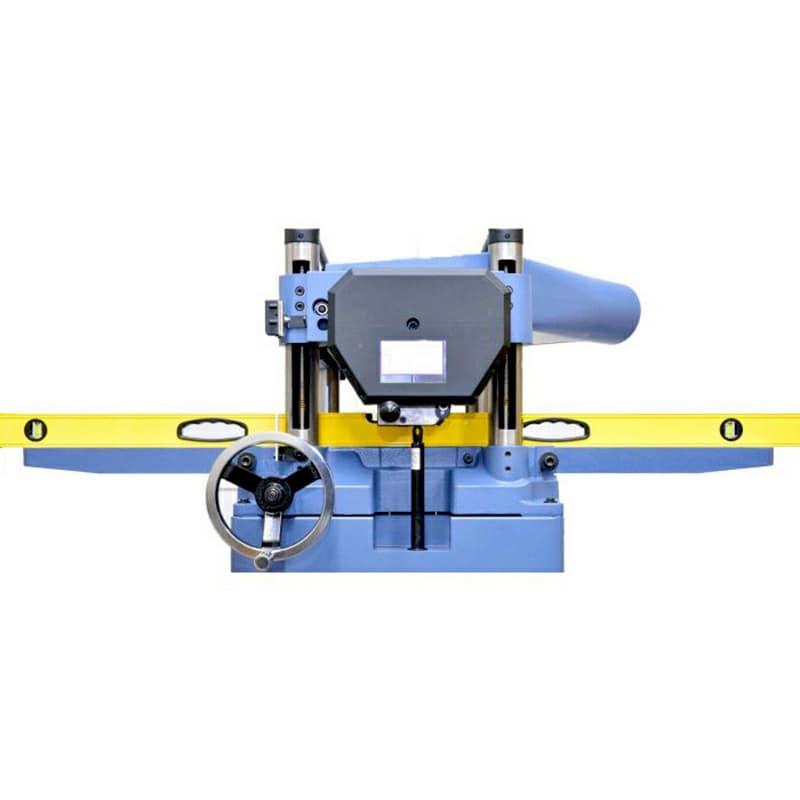

• Four-post design ensures head alignment regardless of stock thickness

• Top mounted roller for easy multiple passes

• Two-speed feed gearbox for better cuts

• Oil bath gear lubrication for years of performance

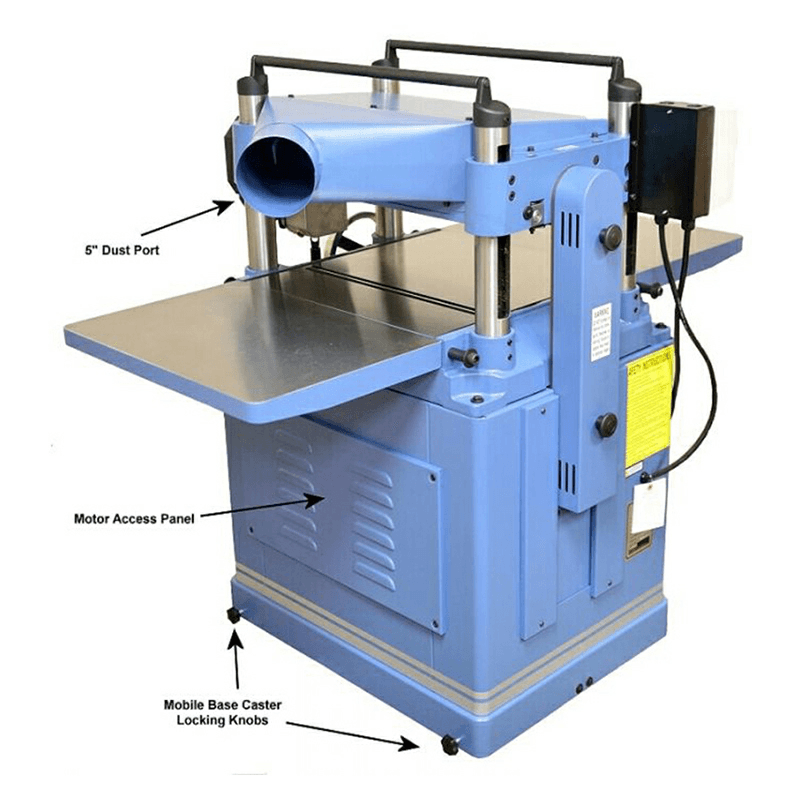

• 5" port allows excellent dust management

• Built-in mobile base allows easy movement in the shop

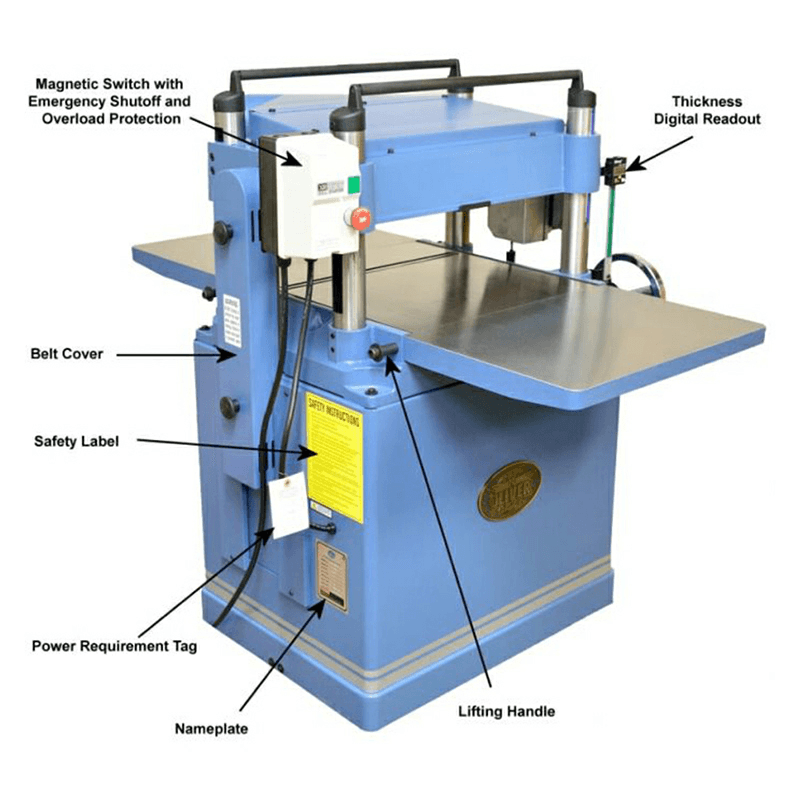

• Magnetic switch for added protection and safety

• CSA listed

Application Specifications:

• Maximum Stock Width: 20"

• Maximum Depth of Cut: 1/8"

• Maximum Stock Thickness: 8"

• Minimum Stock Thickness: 1/4"

• Minimum Stock Length: 7"

• Dust Port Diameter: 5"

• Bed Rollers: 1, Adjustable

• Cutterhead Diameter: 3-1/4"

• Number of Knives: 68

Drive Package Specifications:

• Motor Horsepower: 5 HP

• Motor Phase: 1

• Motor Voltage: 230V (18 Amp)

• Feed Speeds: 16/20

• Cutterhead Speed: 5,000 RPM

Dimension Specifications:

• Table Size: 20" x 21"

• Table Size with Extension Wings: 20" x 51"

• Overall Dimension: 45" x 35" x 43.5"
