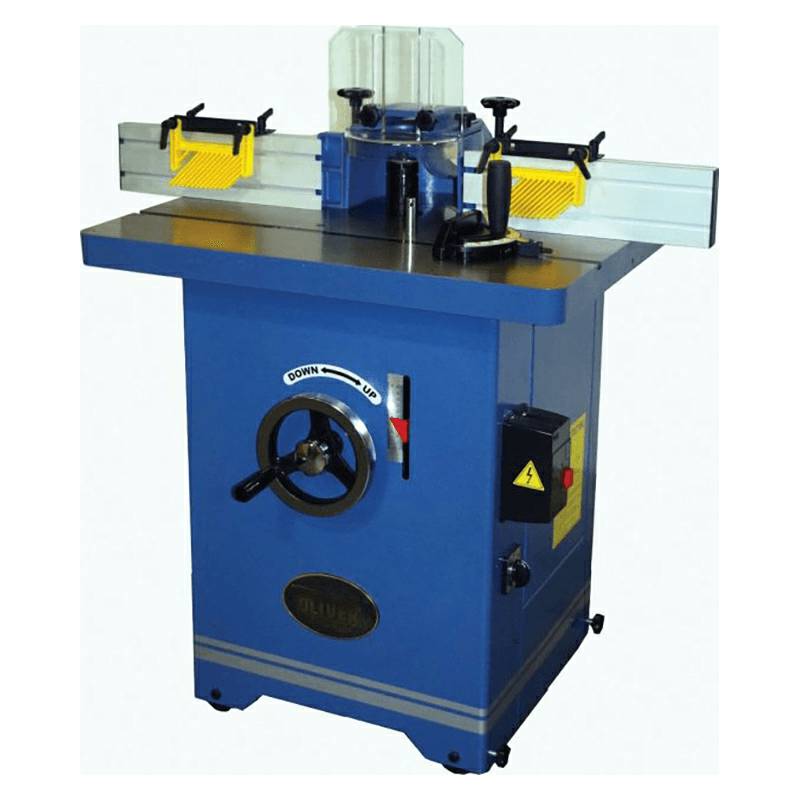

Oliver 1-1/4" Spindle Shaper, 3HP/1 Phase

Features:

• Large cast iron table is precision ground table to provide a solid work surface

• Table features pre-drilled and threaded holes for optional power feeder

• Full cabinet stand includes wheels and locks

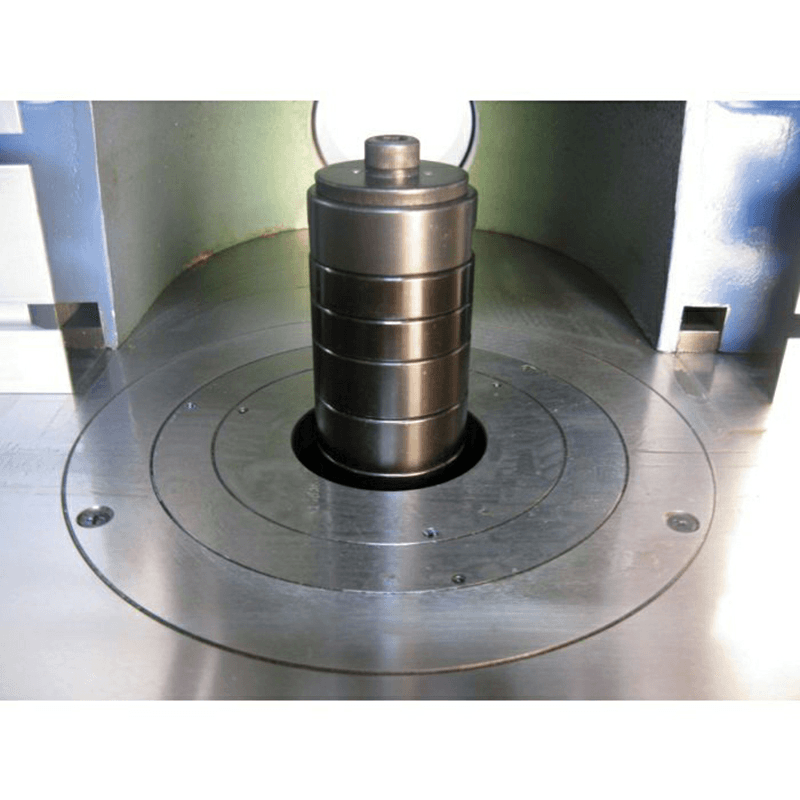

• 1-1/4" interchangeable spindle included, other optional sizes available

• Optional router bit collets available

• Four spindle speeds for versatility

• Belt changes are quick and convenient with unique tensioner

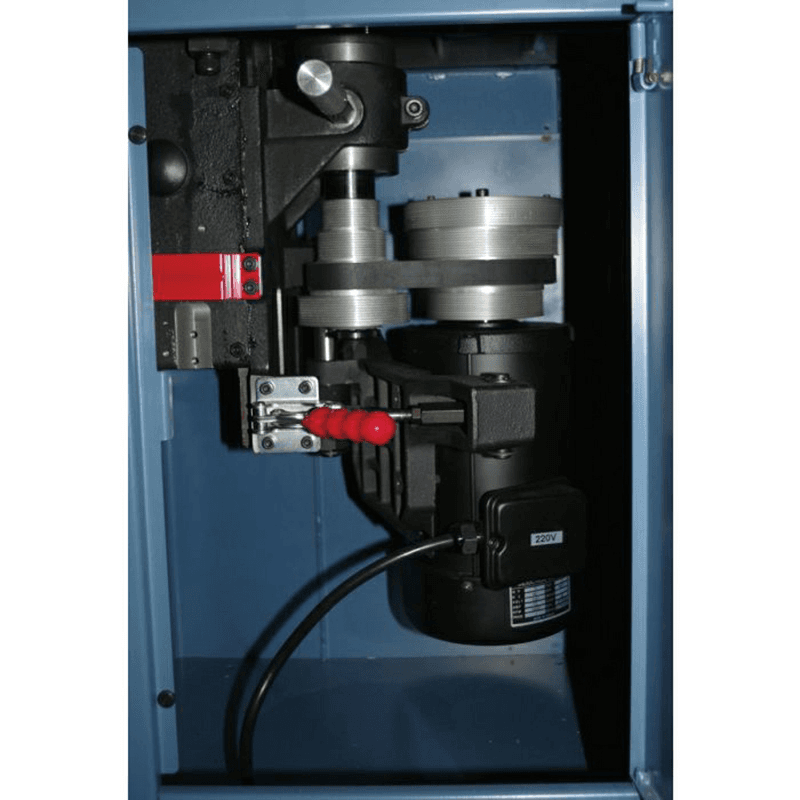

• Poly V-belt drive for smoother operation

• Spindle reverses for more options with each set-up

• Four inches of spindle travel allows more set-up options

• Starting pin for irregular shapes included

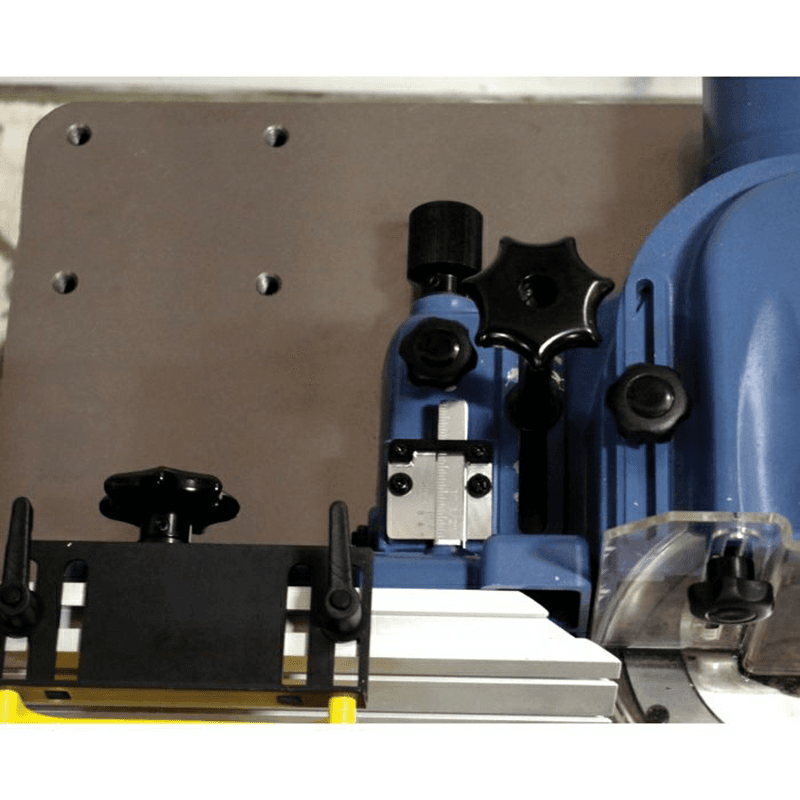

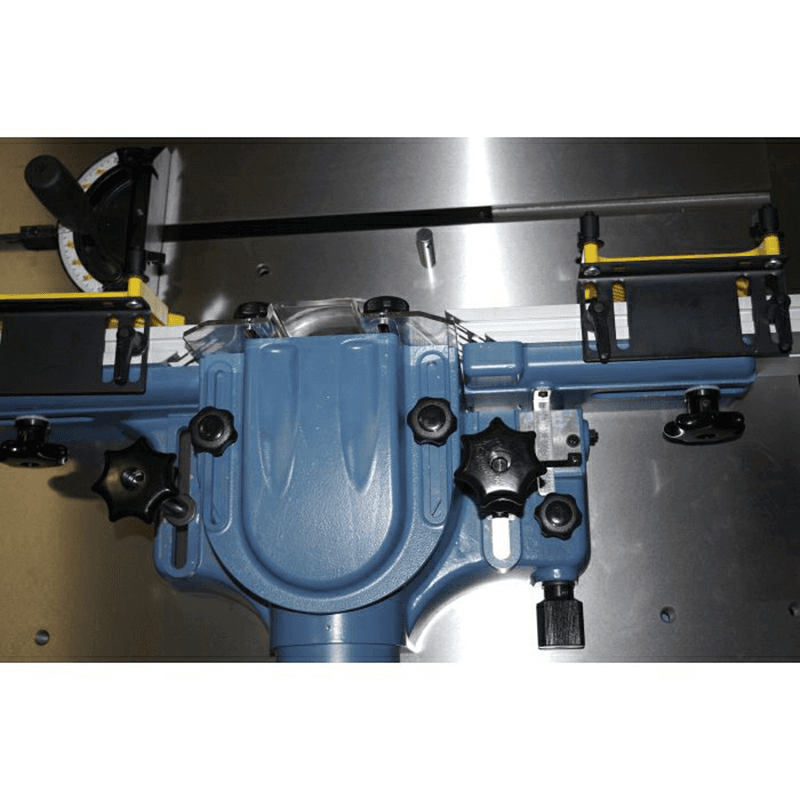

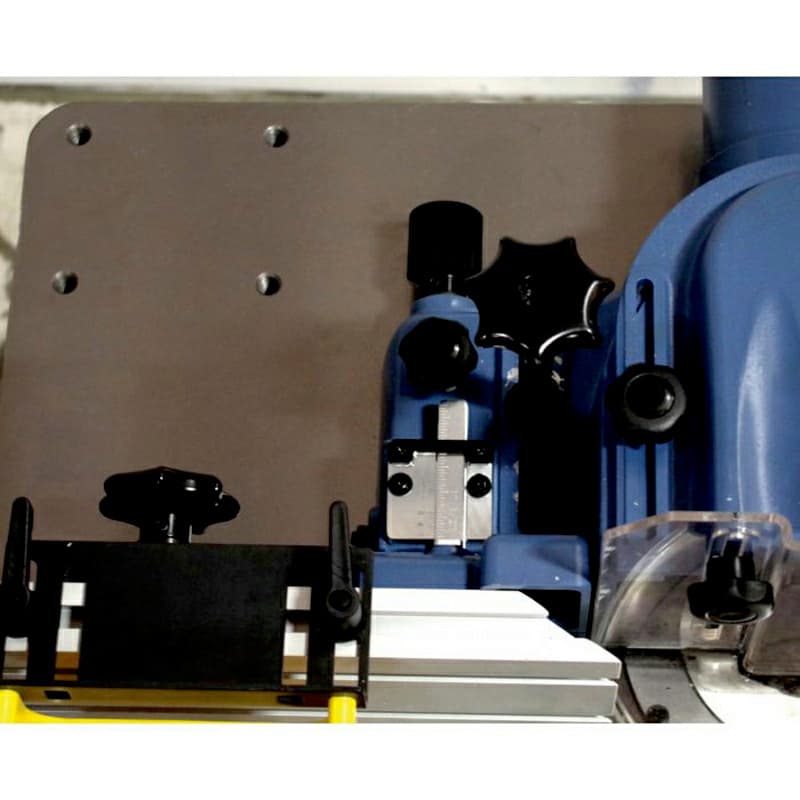

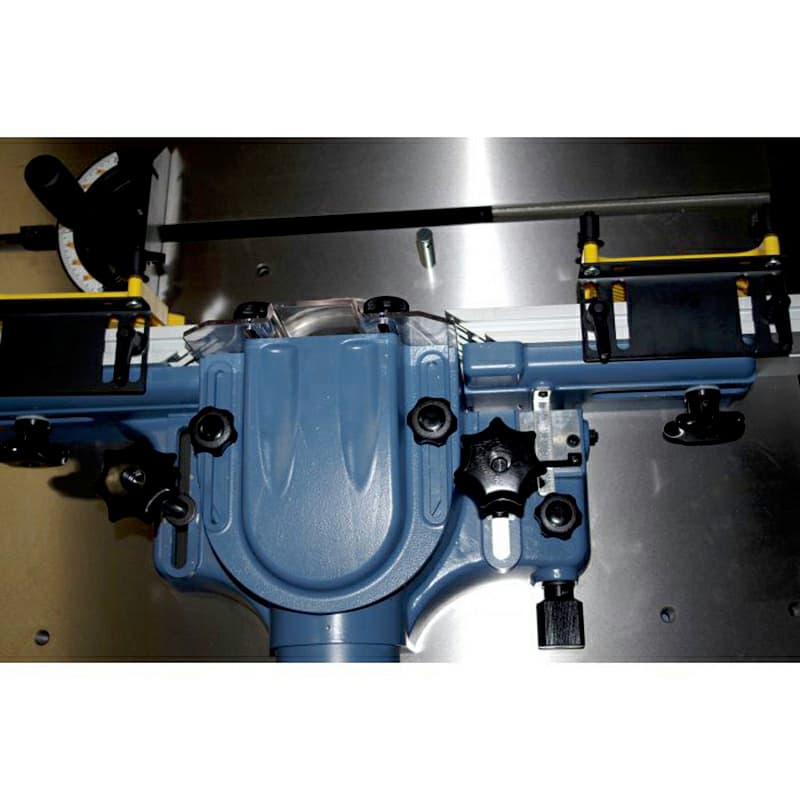

• Fence is independent and includes micro adjustments

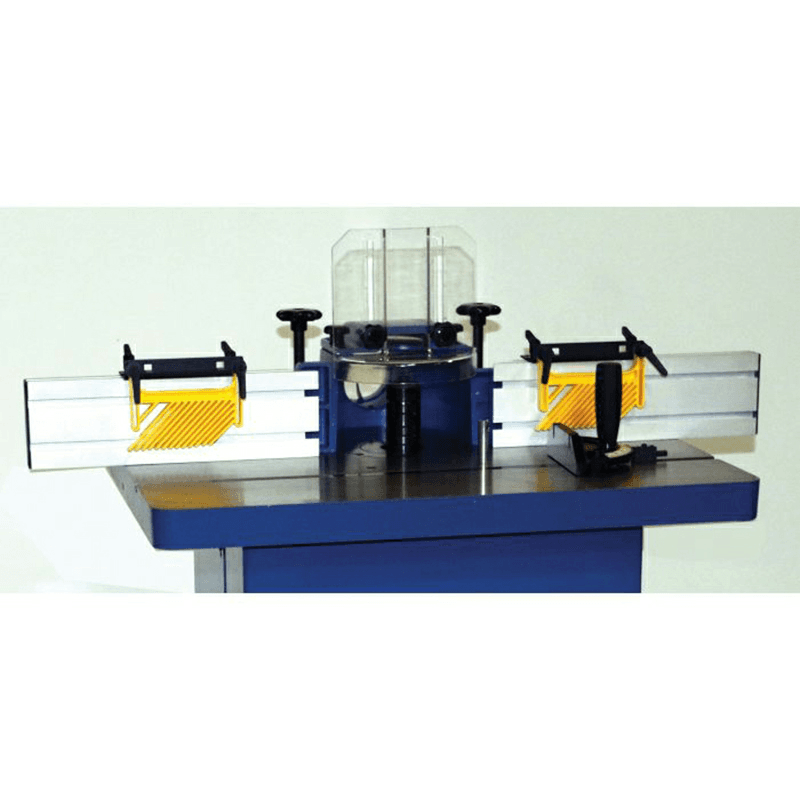

• Adjustable hold downs add to a safer operation

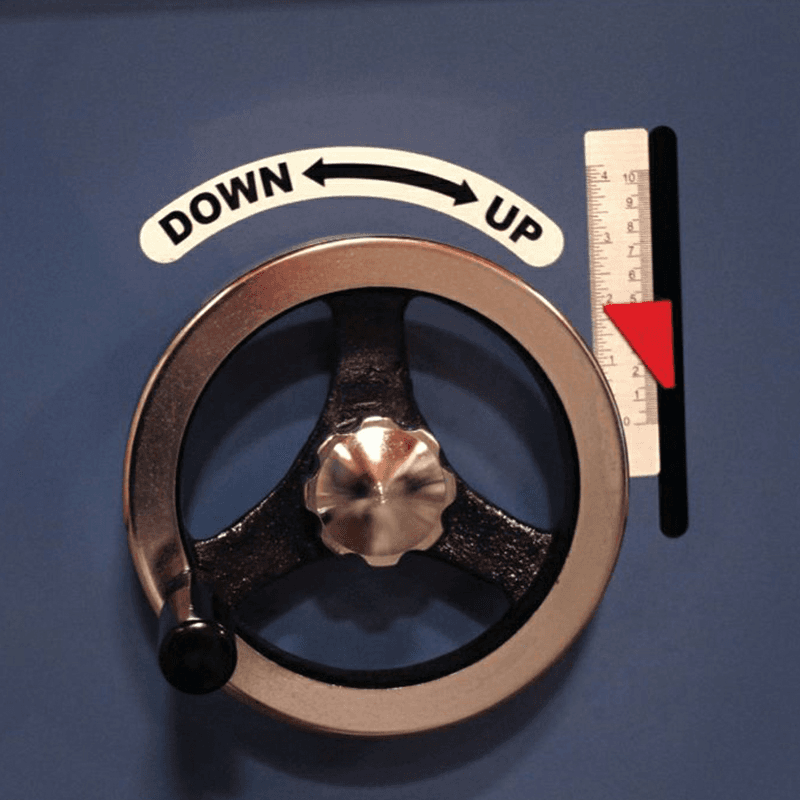

• Extra large handwheel for easy and quick height adjustment

• Miter gauge included

• Magnetic controls for added safety

• Powerful TEFC motor in 3HP to meet your needs. (1Ph Only)

Application Specifications:

• Spindle Diameter: 1-1/4"

• Vertical Spindle Travel: 4"

• Spindle Direction: Reversible

• Under Nut Capacity: 4" with 1-1/4" Spindle

• Table Opening: 6-1/4"

• Large Insert Opening: 4-5/16"

• Small Insert Opening: 2-1/2"

• Dust Port Diameter 4"

Drive Package Specifications:

• Motor Horsepower: 3 HP

• Motor Phase: 1

• Motor Voltage: 220V 1Ph only (8 Amp)

• Spindle Speeds: 4,000, 6,000, 8,000, 10,000 RPM

• Minimum CFM: 800

Dimension Specifications:

• Table Height: 34-3/8"

• Table Size: 32" x 26"

• T-Slot: 3/4" x 3/8"

• Fence Size (2): 4-13/16" x 16"

• Table Dimensions" 40" x 27"
