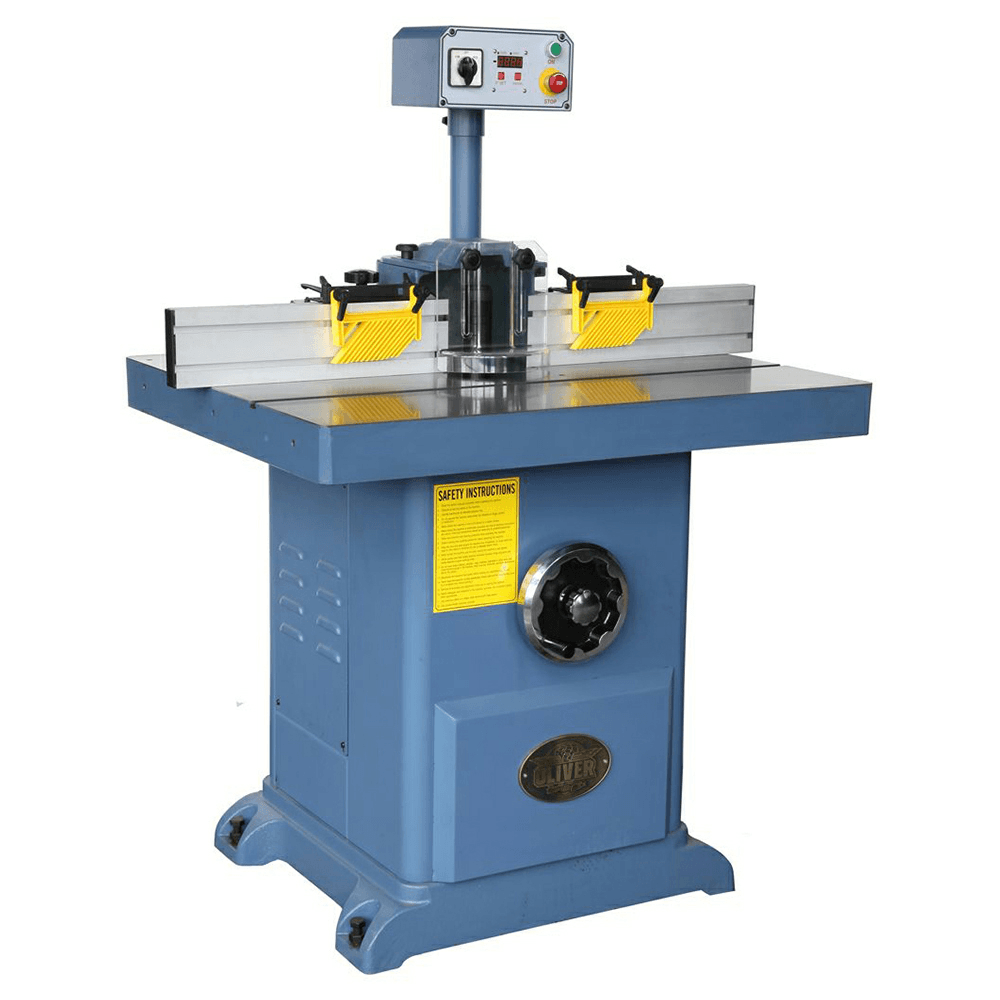

Oliver 1-1/4" Interchangeable Shaper, 5HP/1 Phase/220V
Item # OLV4705.001
•Mfr # 4705.001
Drop Ship Item
This item ships directly from the vendor. Additional freight charges may apply.
This item may incur additional shipping costs and lead times.
Product Details
Features:
- Massive cast iron precision ground table provides a solid work surface
- Table features pre-drilled and threaded holes for power feeder
- Cast iron base provides a steady platform
- Table features pre-drilled and threaded holes for optional power feeder

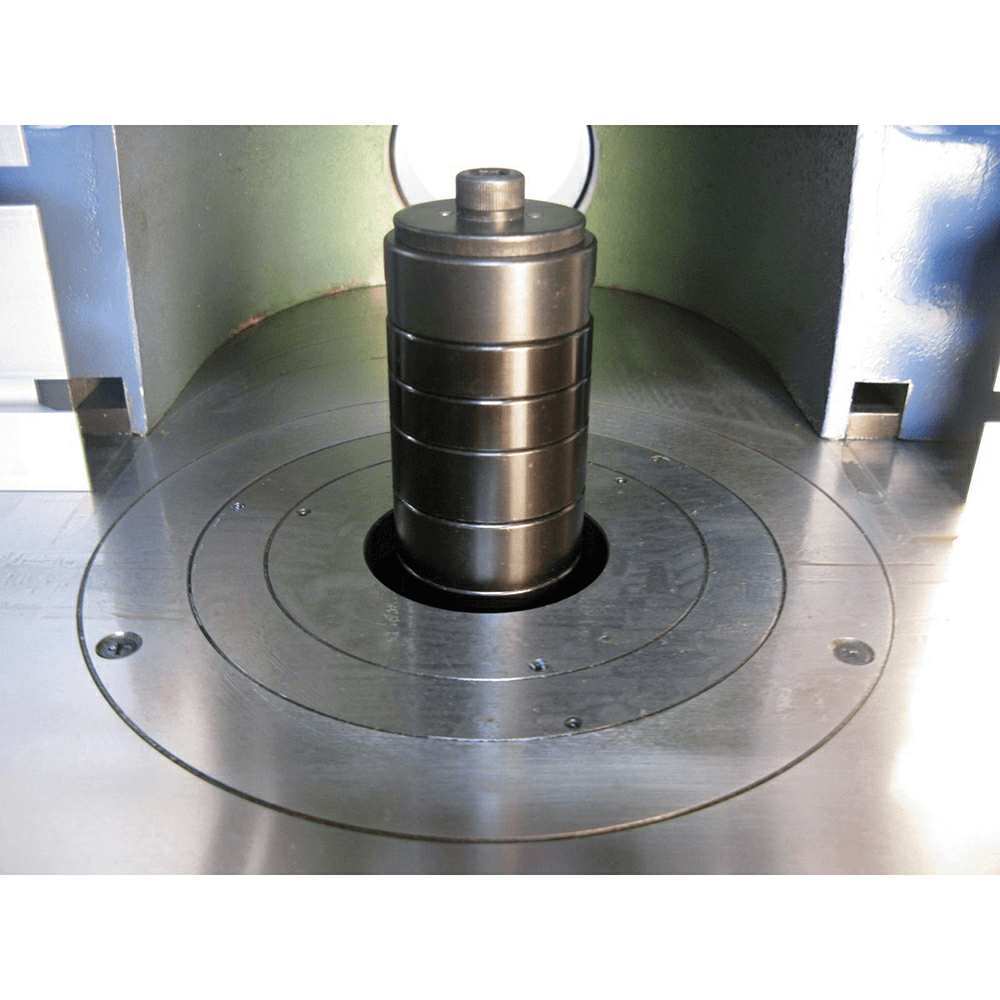

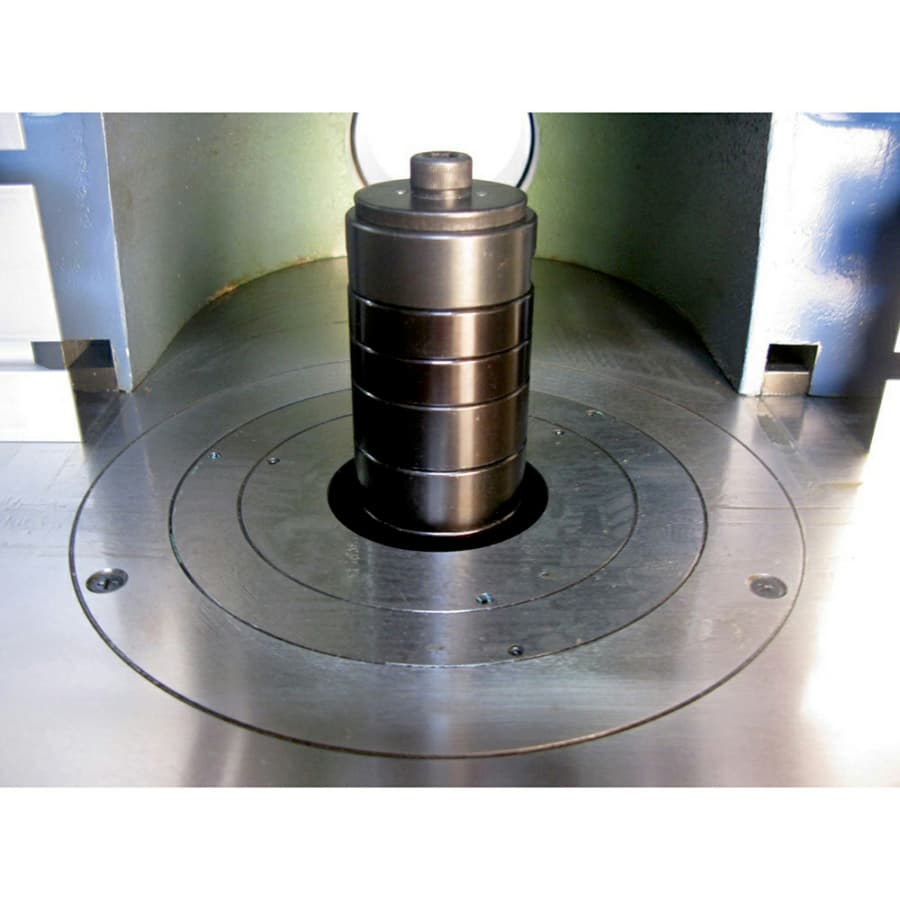

- 3/4" and 1-1/4" interchangeable spindles are included for added versatility
- Three spindle speeds allow more choices to produce a better finish
- Reversing spindle gives more options for each set-up

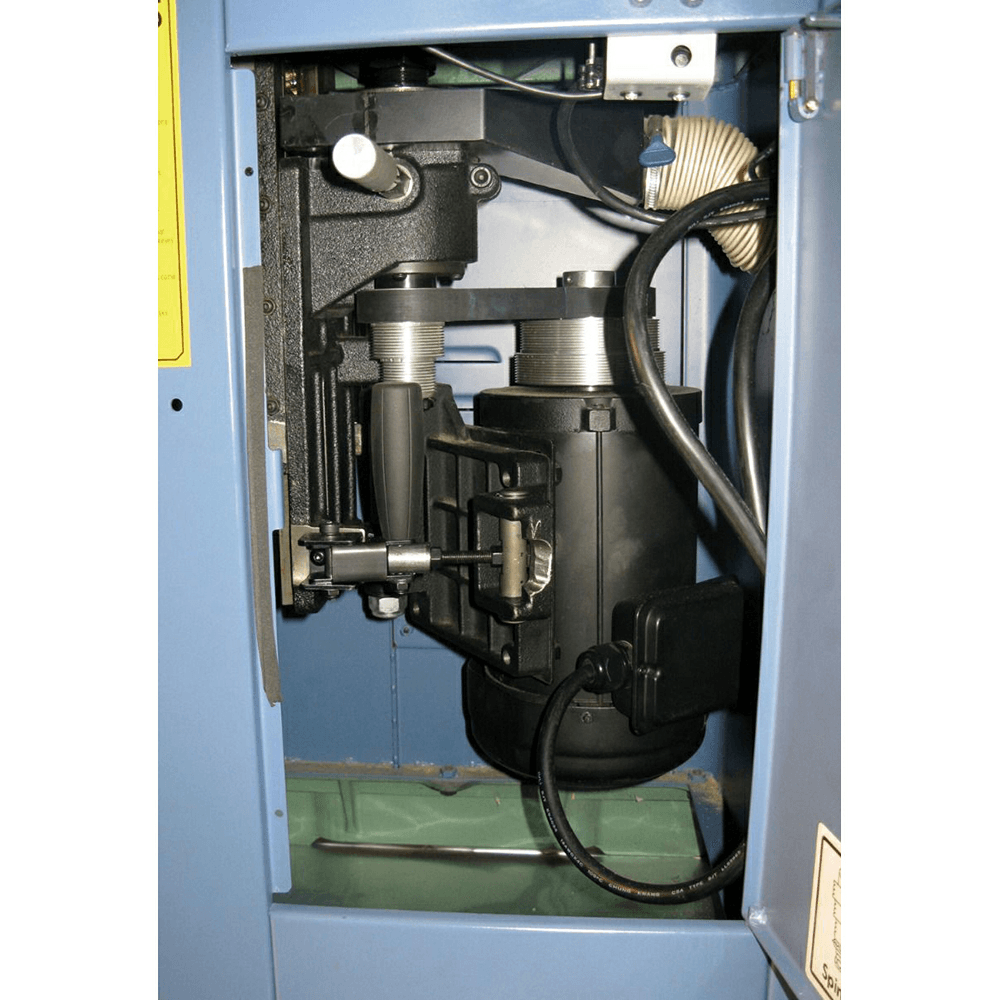

- Innovative dovetail design accurately raises and lowers the spindle

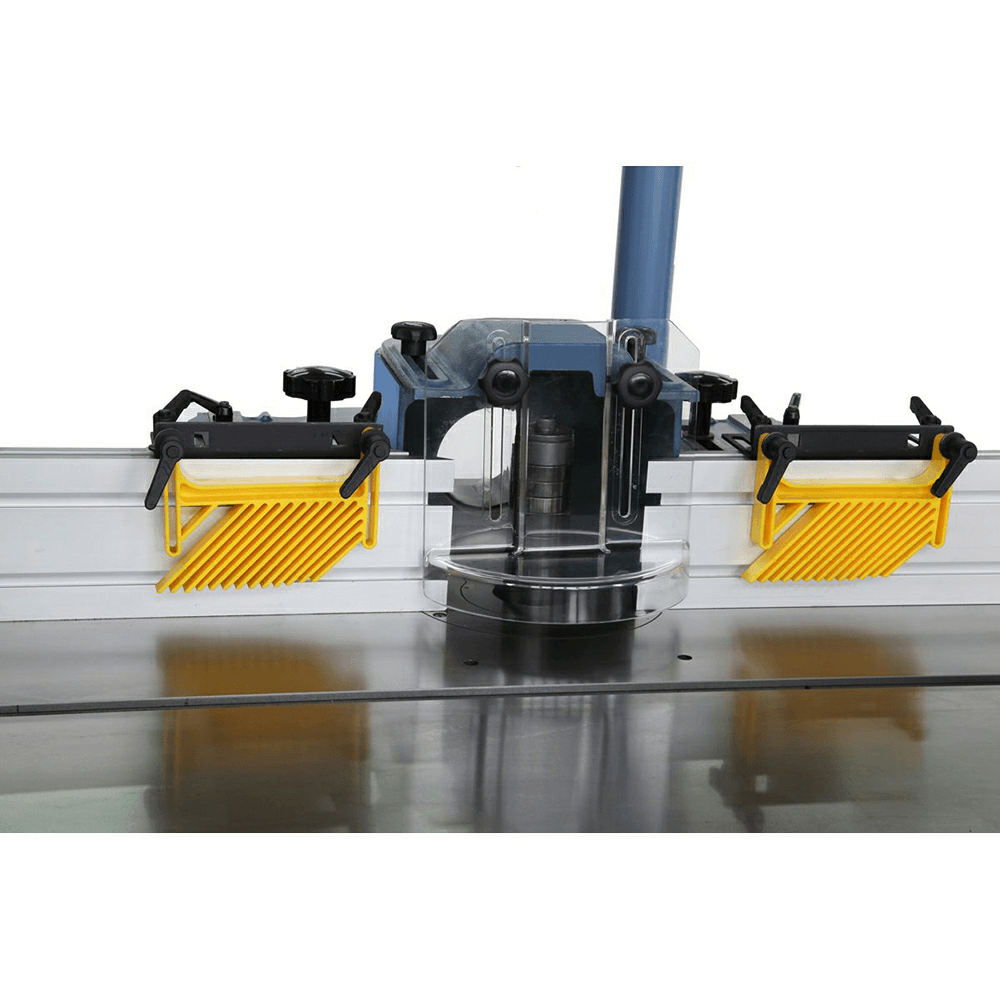

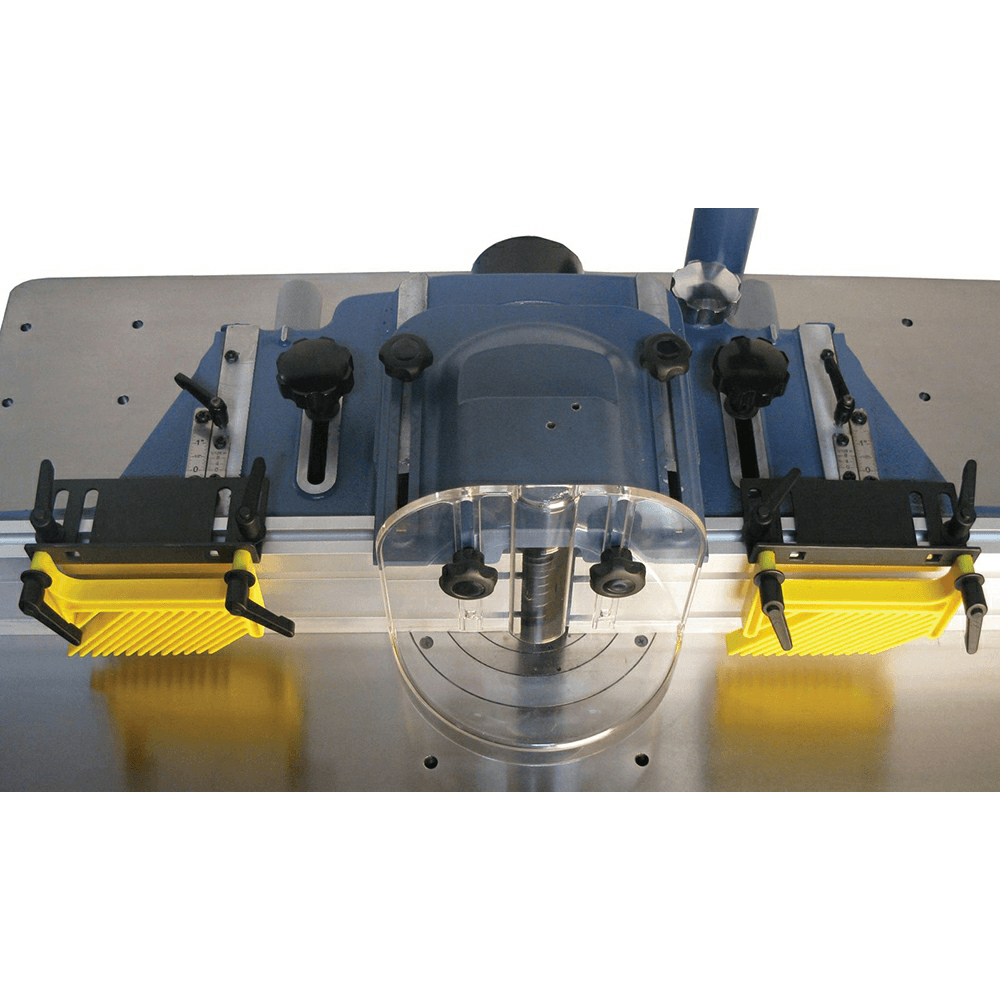

- Fence is independent and features micro adjustments for quick set-up

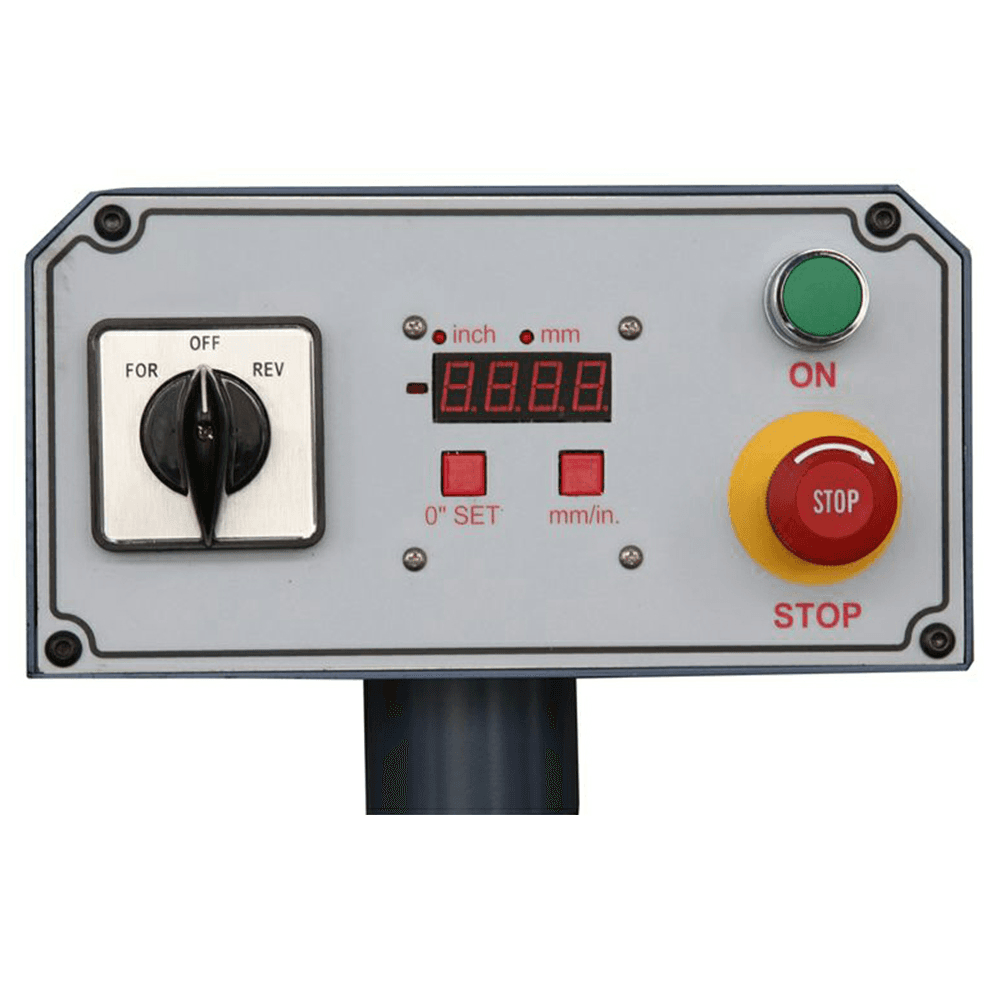

- Top mounted control panel includes a digital readout for spindle height
- Large hand wheel for quick spindle height adjustment
- Miter gauge included
- Magnetic controls with emergency off switch for safer operation
- Powerful TEFC motor available in single-phase
Application Specifications:
- Maximum Tool Diameter: 7" Below Table, 8" Above Table
- Spindle Diameter: 1-1/4" and 3/4" Interchangeable
- Table Height: 36-1/2"
- T-Slot: 3/4" x 3/8"
- Dust Port Diameter: 4"
- Vertical Spindle Travel: 4"
Drive Package Specifications:
- Motor Horsepower: 5 HP
- Motor Voltage: 220V only (18 Amp)
- Minimum CFM: 800 CFM
- Spindle Speeds: 5,000, 7,000, 10,000 RPM
- Spindle Direction: Reversible
Dimension Specifications:
- Table Length: 39"
- Table Width: 31-1/2"
- Footprint: 28-1/2" L x 24-3/4" W
