Oliver 1-1/4" Interchangeable Shaper, 7.5HP/3 Phase/220V

Features:

• Massive cast iron precision ground table provides a solid work surface

• Table features pre-drilled and threaded holes for power feeder

• Cast iron base provides a steady platform

• Table features pre-drilled and threaded holes for optional power feeder

• 3/4" and 1-1/4" interchangeable spindles are included for added versatility

• Three spindle speeds allow more choices to produce a better finish

• Reversing spindle gives more options for each set-up

• Innovative dovetail design accurately raises and lowers the spindle

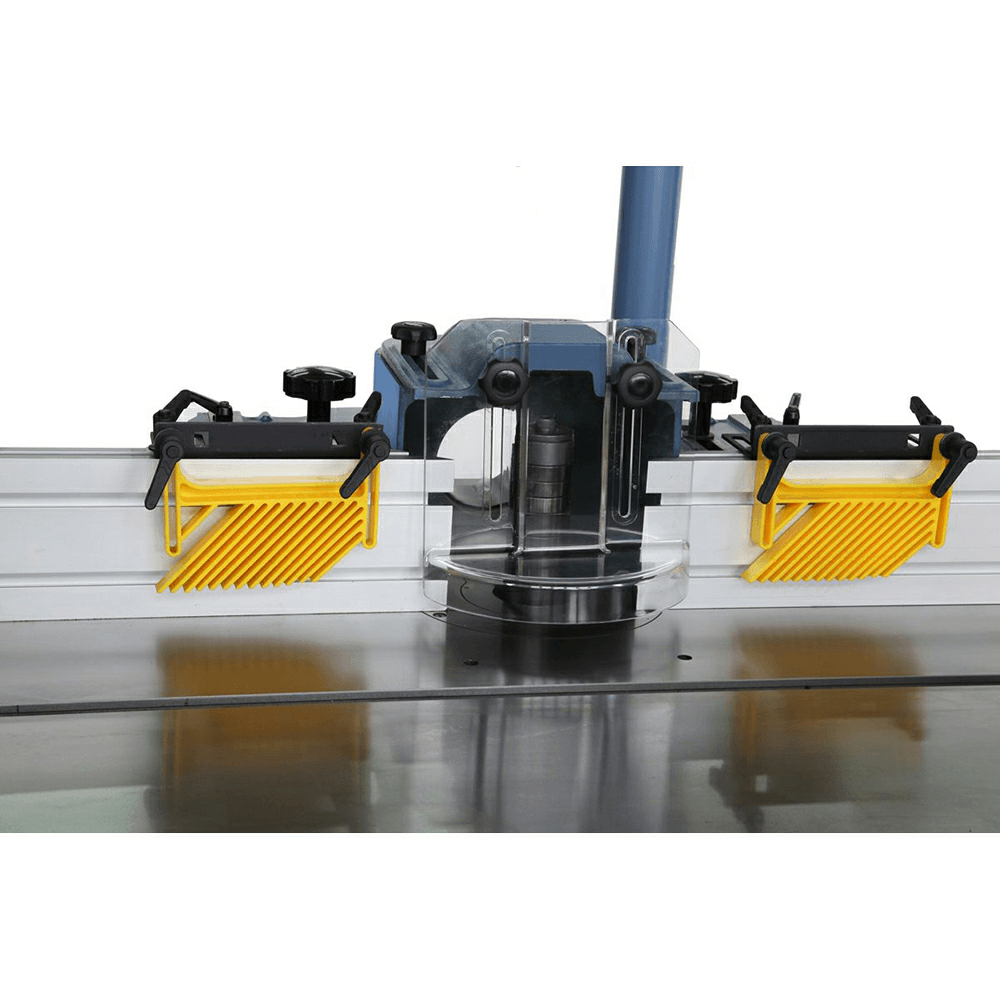

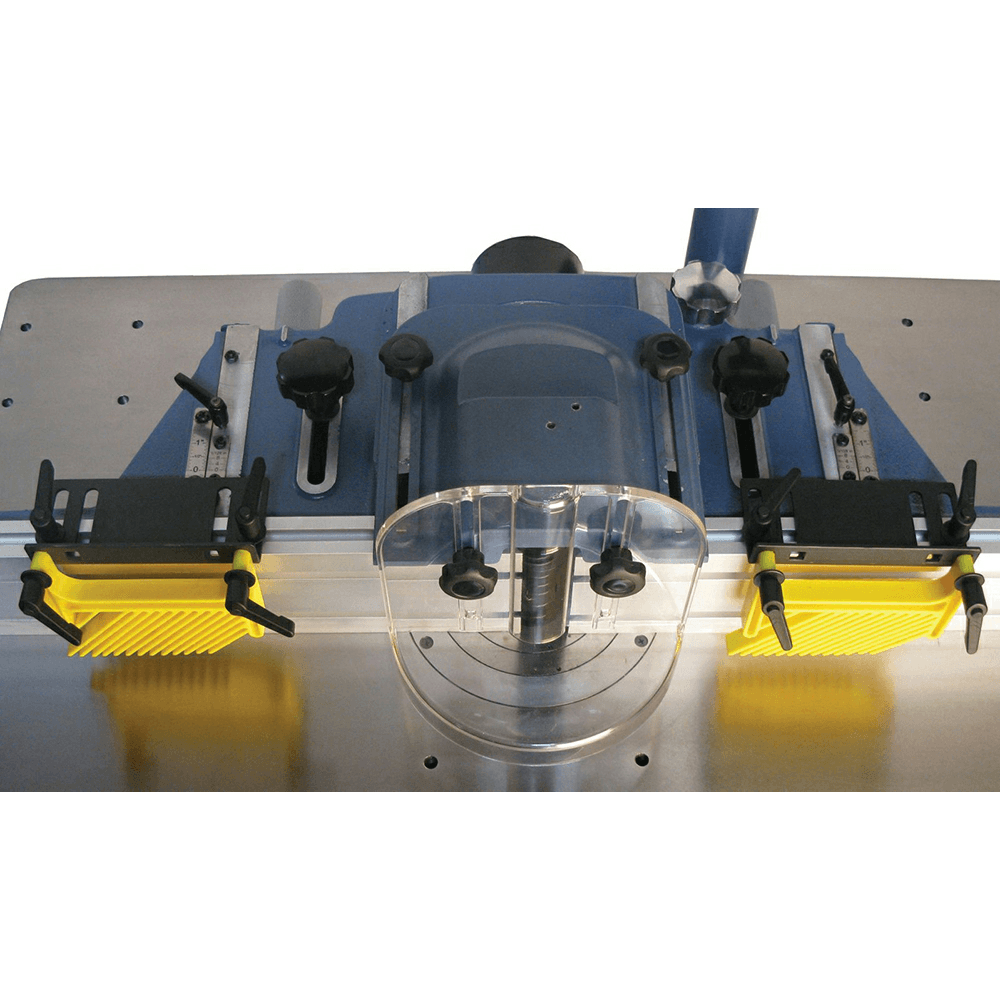

• Fence is independent and features micro adjustments for quick set-up

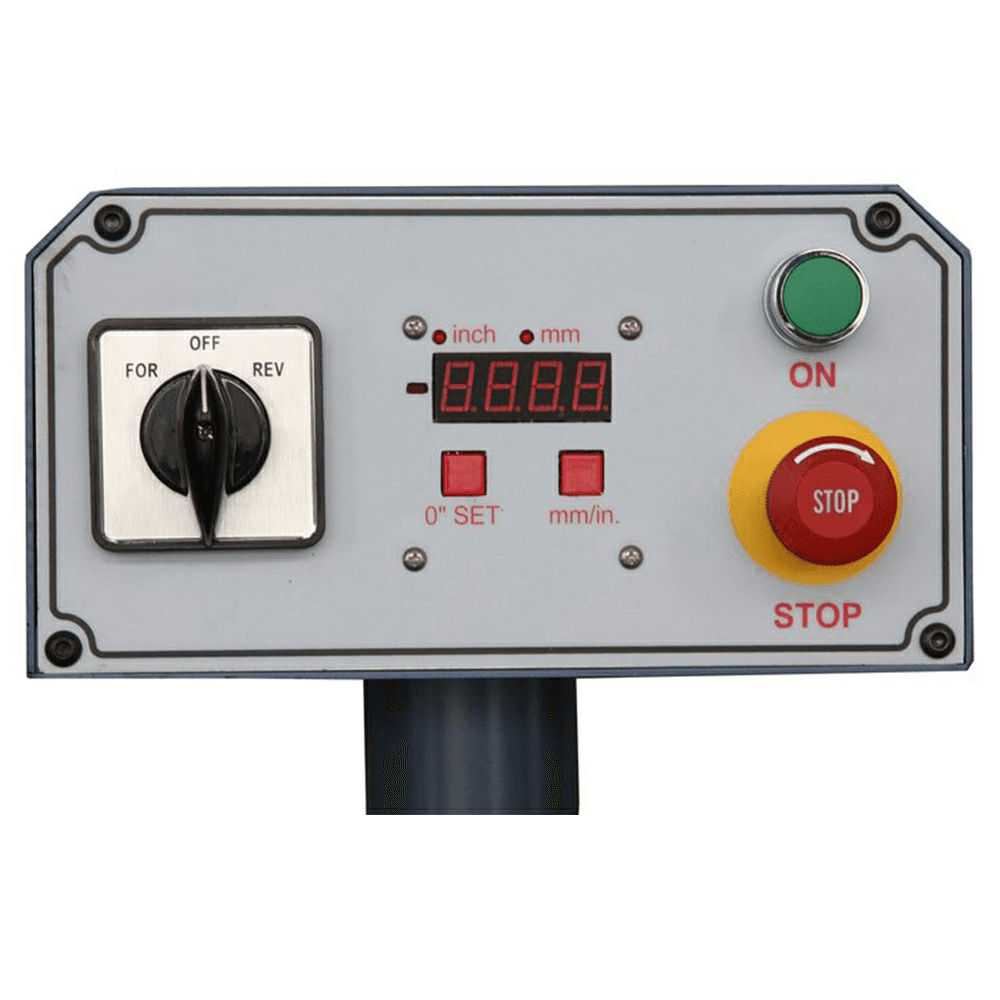

• Top mounted control panel includes a digital readout for spindle height

• Large hand wheel for quick spindle height adjustment

• Miter gauge included

• Magnetic controls with emergency off switch for safer operation

• Powerful TEFC motor available in single-phase

Application Specifications:

• Maximum Tool Diameter: 7" Below Table, 8" Above Table

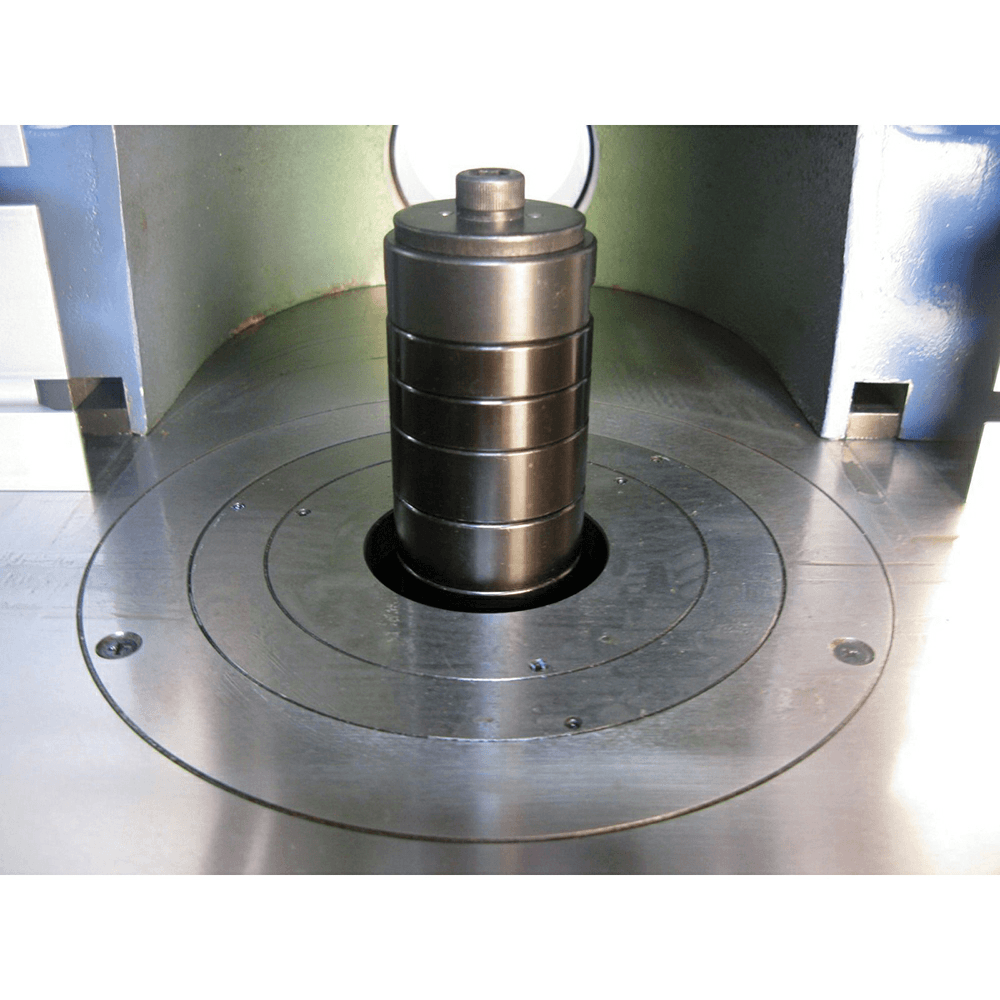

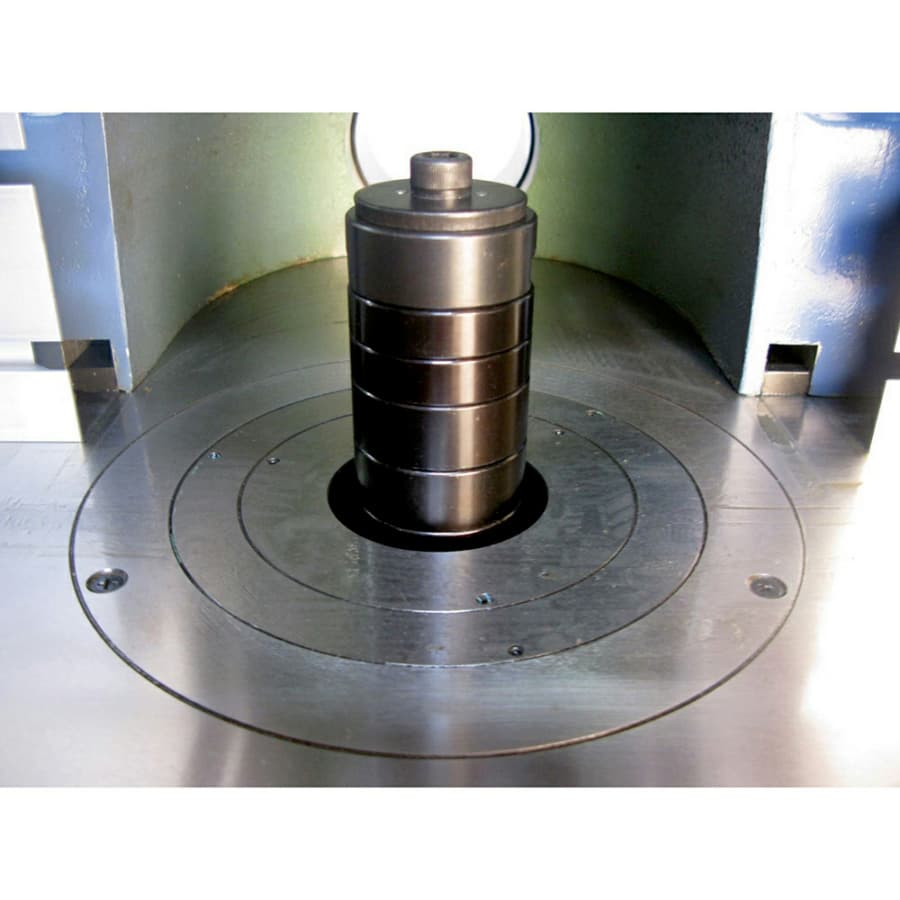

• Spindle Diameter: 1-1/4" and 3/4" Interchangeable

• Table Height: 36-1/2"

• T-Slot: 3/4" x 3/8"

• Dust Port Diameter: 4"

• Vertical Spindle Travel: 4"

Drive Package Specifications:

• Motor Horsepower: 7.5 HP

• Motor Voltage: 220V/440V, Prewired 220V (16.8/8.4 Amp)

• Minimum CFM: 800 CFM

• Spindle Speeds: 5,000, 7,000, 10,000 RPM

• Spindle Direction: Reversible

Dimension Specifications:

• Table Length: 39"

• Table Width: 31-1/2"

• Footprint: 28-1/2" L x 24-3/4" W
