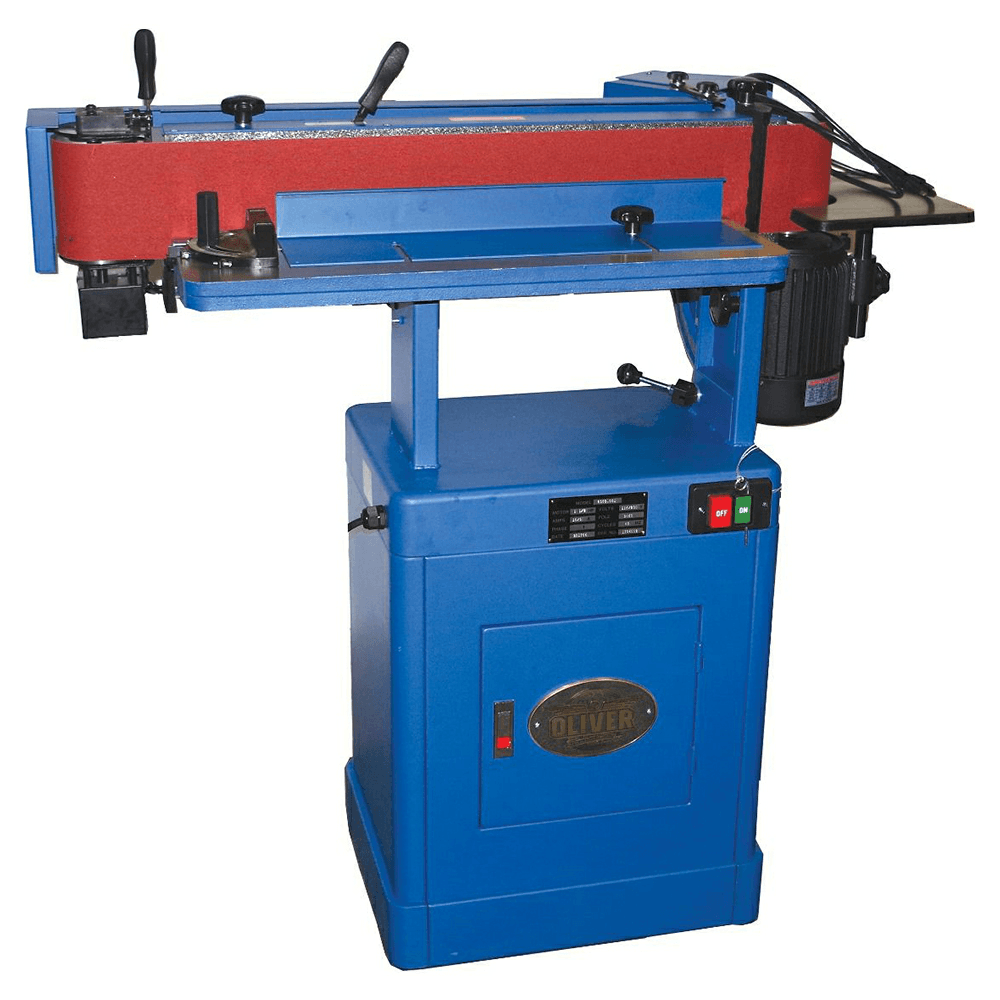

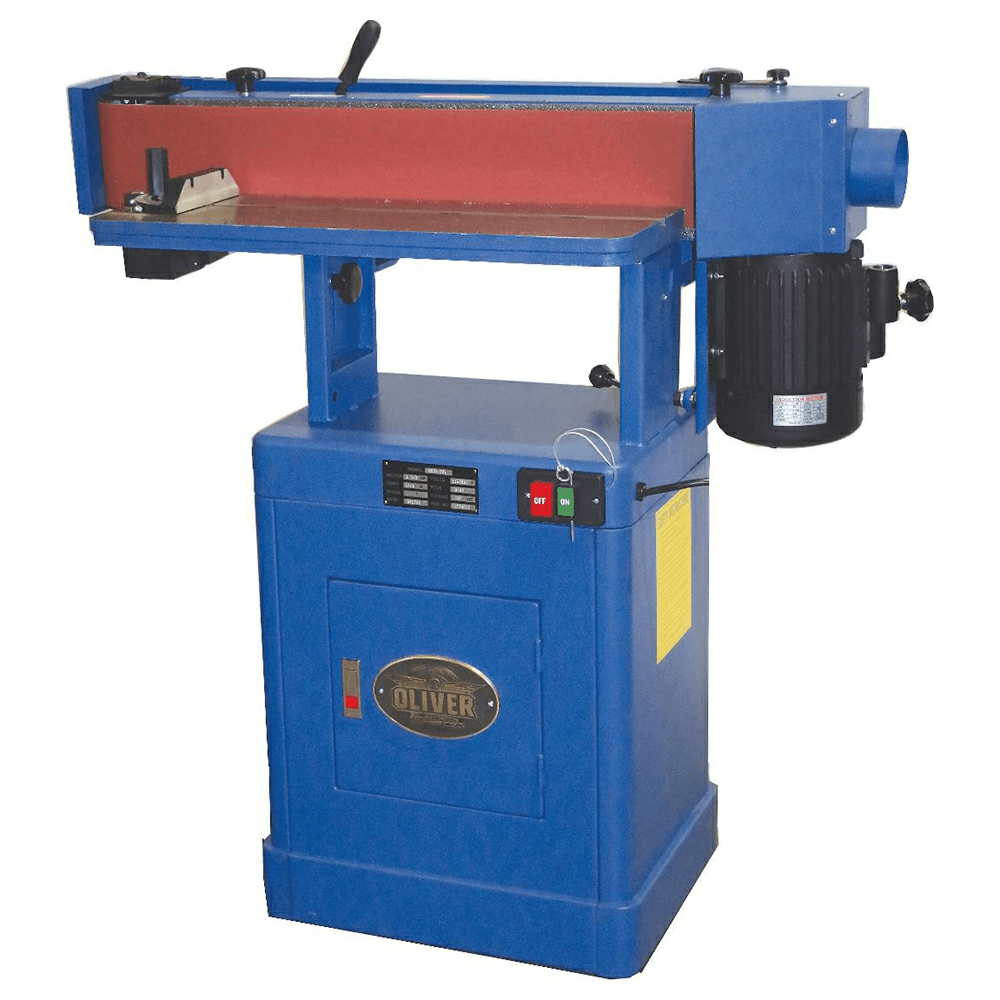

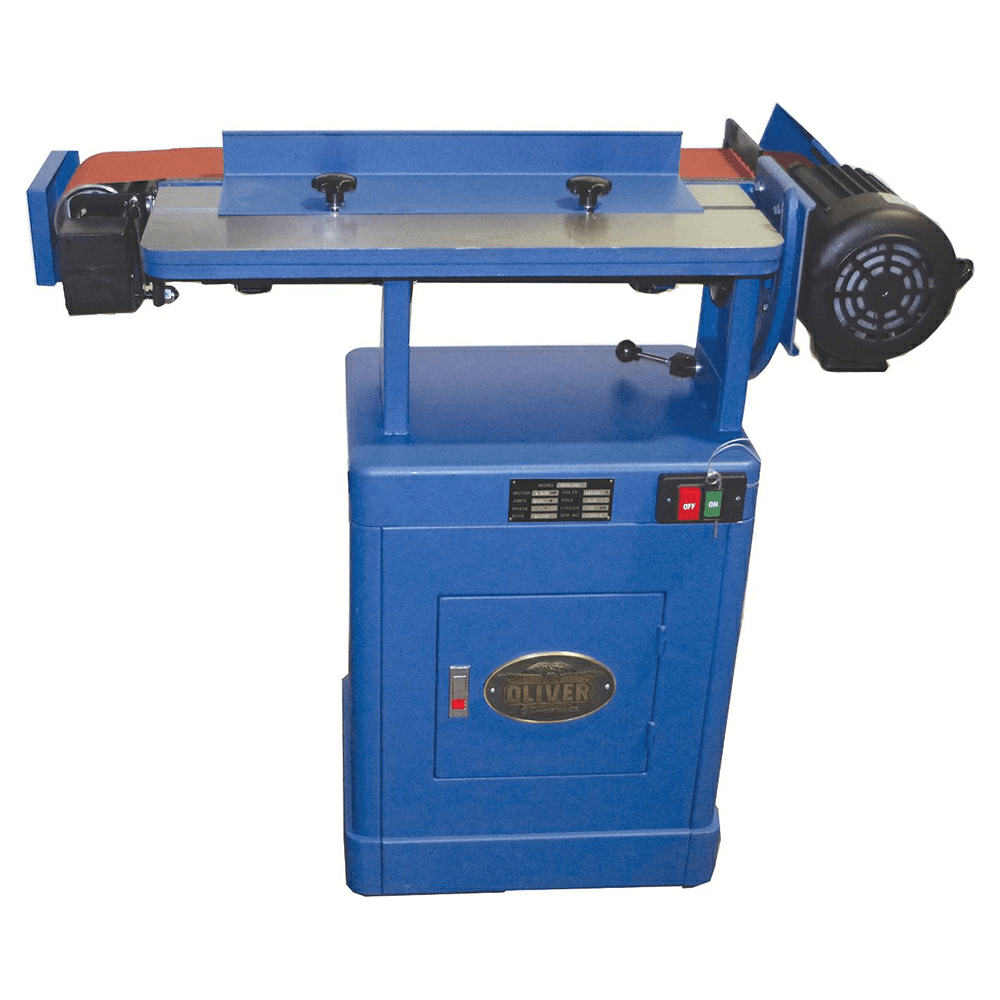

Oliver 6" x 89" Oscillating Edge Sander, 1.5HP/1 Phase/115V

Features:

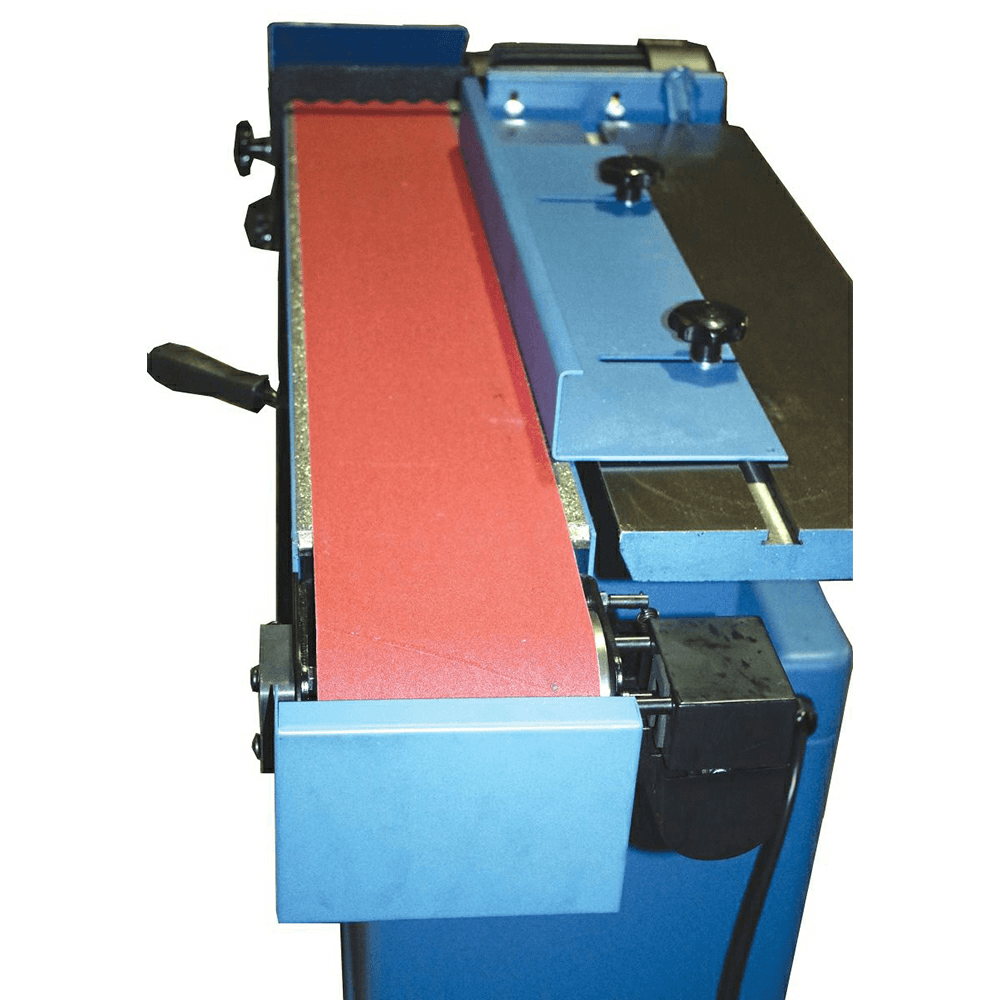

• 6" x 89" belt features oscillation action for a superior finish

• Belt operates at any angle between horizontal and vertical

• Easy belt changing and tracking adjustments

• Steel platen is graphite covered for reduced friction

• Contoured sanding possible with end table in place

• Tables are heavy cast iron and precision ground

• Tables adjust up and down for complete use of belt

• Main table slotted and includes a miter gauge

• Table fence included to assist in operation

• Heavy duty enclosed cabinet features a storage area

• Lockable on/off switch

• Powerful TEFC 1.5 HP single phase motor

Application Specifications:

• Table Material: Cast Iron

• Main Table Size: 10" x 29-1/2"

• End Table Size: 9-3/4" x 11-3/4"

• Main Table Working Height: 38" - 41-1/2"

• End Table Working Height: 37-1/2" - 42"

• Belt Size: 6" x 89"

• Belt Speed: 3,900 FPM

• Oscillation Stroke: 1/2"

• Fence Size: 3" x 23-1/2"

• Dust Port Diameter: 4"

Drive Package Specifications:

• Motor Horsepower: 1.5 HP

• Motor Phase: 1

• Motor Voltage: 115V/230V Prewired 115V with Plug (18/9 Amp)

• Minimum CFM Required: 650 CFM

Dimension Specifications:

• Overall Dimension: 50" x 24" x 49"
