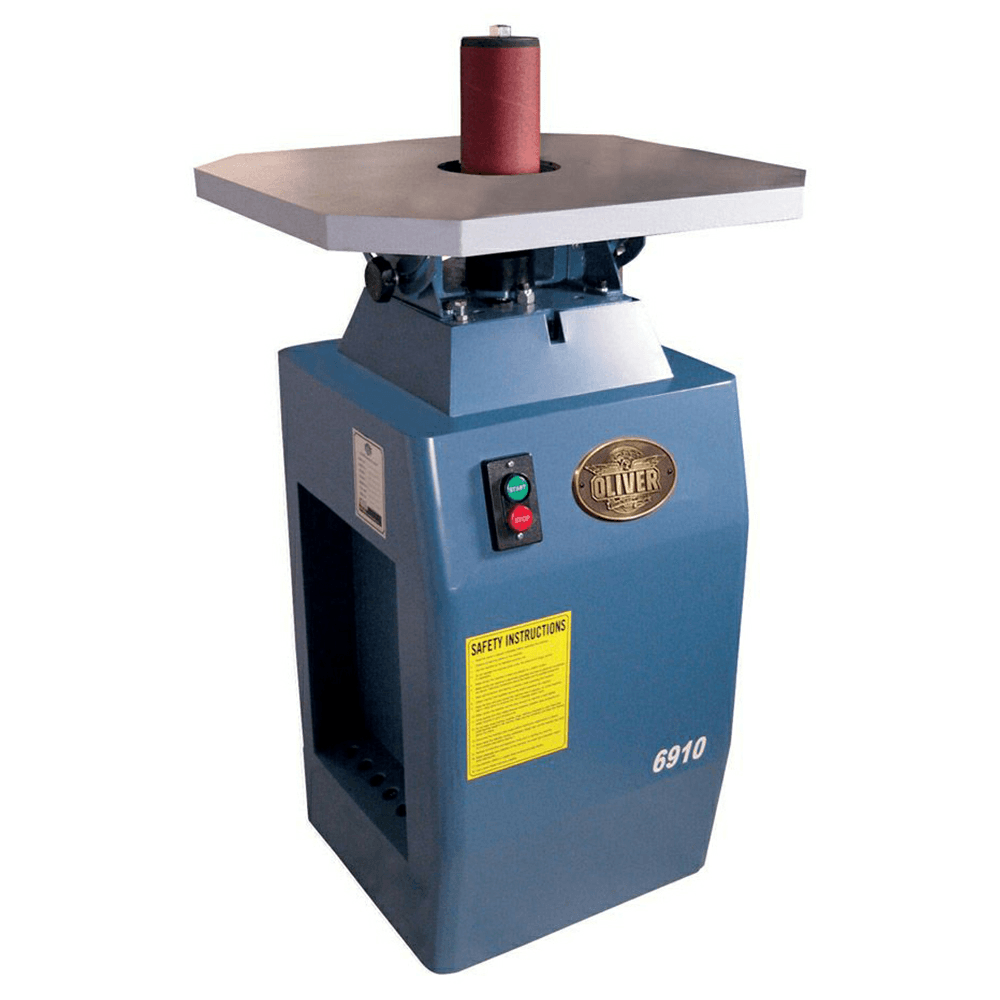

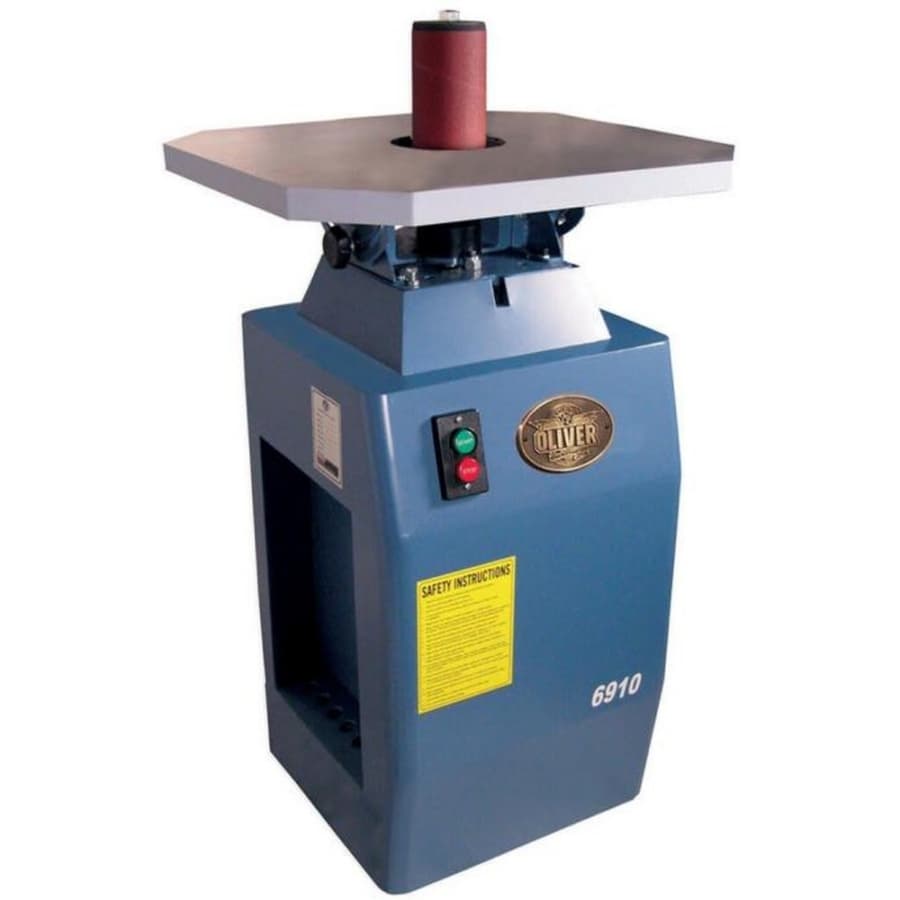

Oliver Oscillating Spindle Sander, 2HP/115V

Features:

• Precision ground table provide a stable work surface

• Table tilts 45 degrees for added versatility

• Unique corner cut table design allows better operator position

• 1-1/2" Spindle oscillation provides greater capacity

• 75-oscillations per minute lowers heat build-up providing a better finish

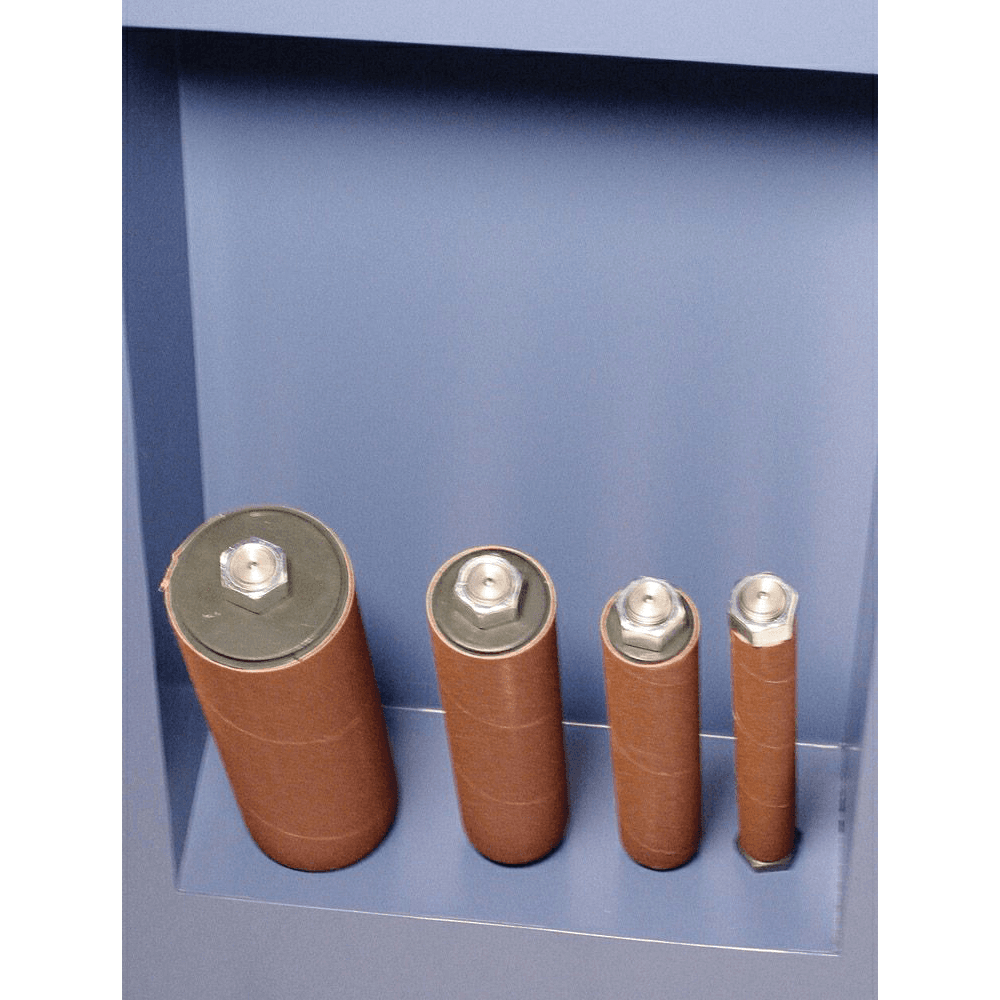

• 10-spindle sizes are included with built-in storage for easy access

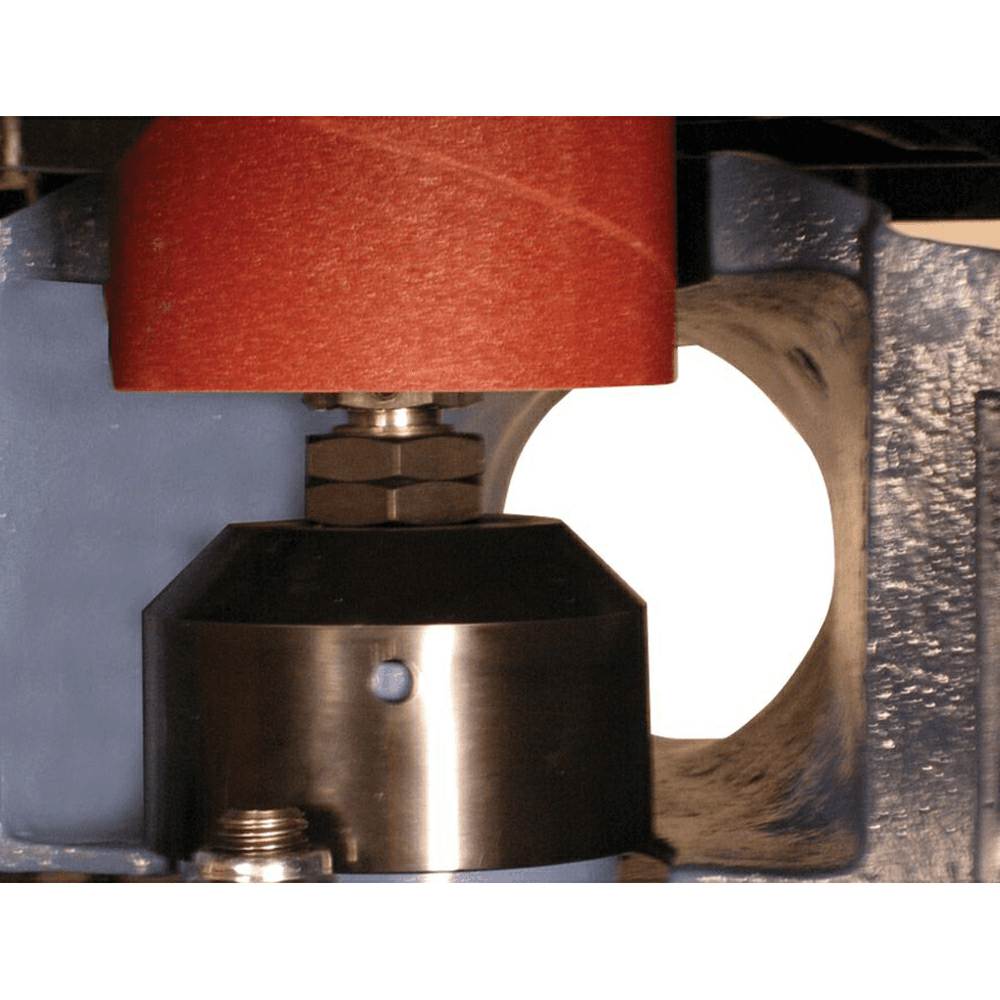

• Spindles are tapered and end-threaded allowing a quick change

• Three table inserts are included to match the spindle choices

• Heavy-gauge steel cabinet is uniquely designed for operator convenience

• Oscillation mechanism runs in an oil bath for long life

• Built-in 4" dust port allows efficient dust management

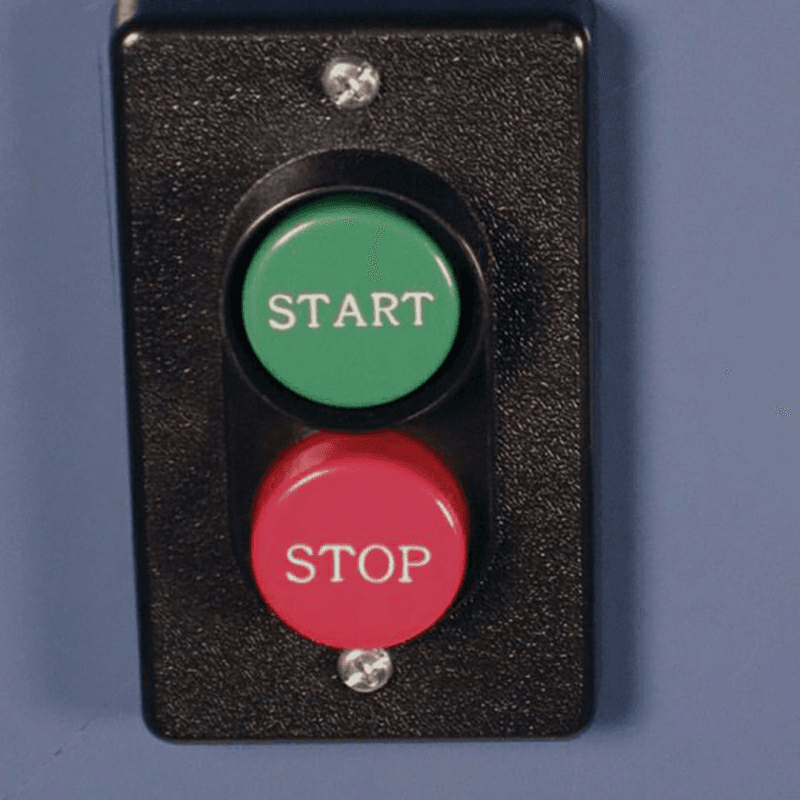

• Industrial push button controls are located for easy use

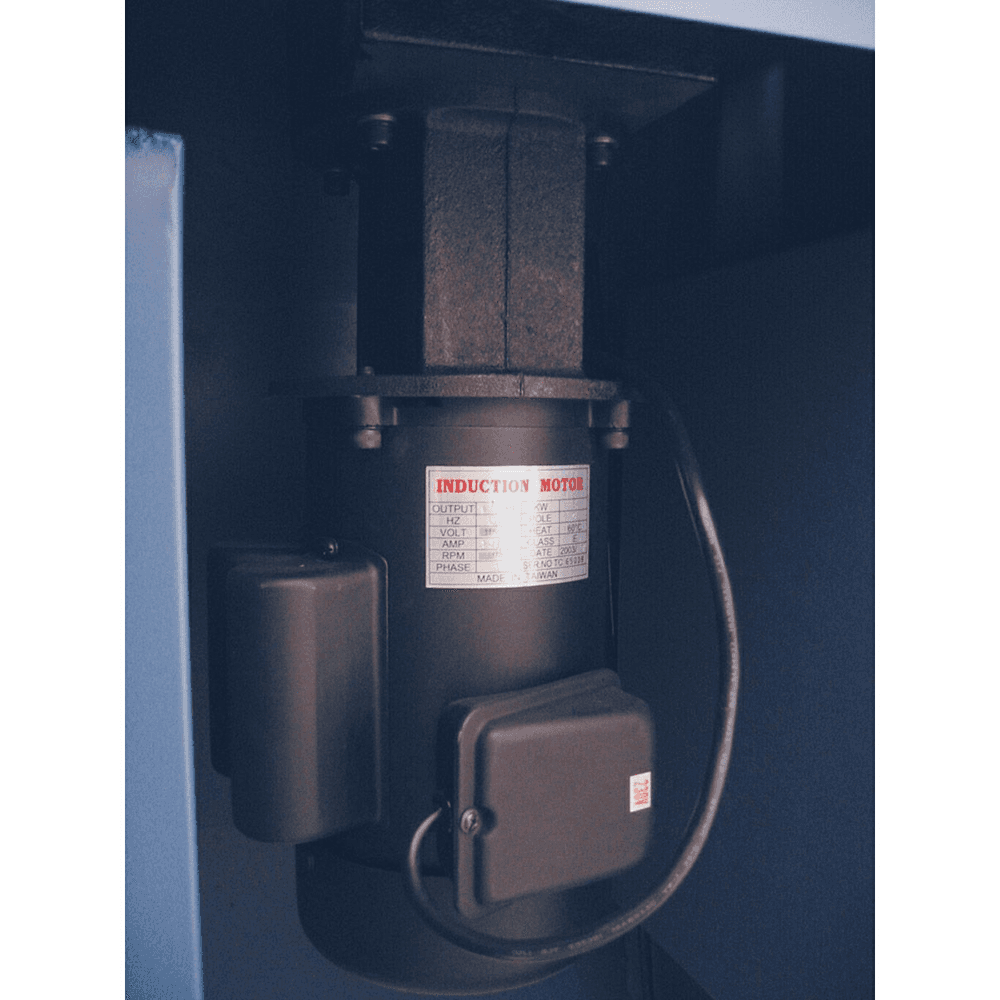

• Powerful TEFC 2 HP single phase motor

Application Specifications:

• Table Material: Cast Iron

• Table Tilt: 0 to 45°

• Table Height: 42-1/2" (Floor to Top)

• Number of Table Inserts: 3

• Spindle Speeds: 1,720 RPM

• Oscillation: 1-1/2" Travel

• Dust Port Diameter: 4"

• Oil: 90 Weight Gear Oil

• Spindle Sizes (dia. x length, in.): 1/4" x 5", 3/8" x 6", 1/2" x 6", 5/8" x 6", 3/4" x 9", 1" x 9", 1-1/2" x 9", 2" x 9", 3" x 9", 4" x 9" (Included)

Drive Package Specifications:

• Motor Horsepower: 2 HP

• Motor Phase: 1

• Motor Voltage: 115V/230V Prewired 115V Plug (6/8 Amp)

Dimension Specifications:

• Table Size: 25-1/4" x 27-1/4"

• Overall Dimension: 25-1/4" x 27-1/4" x 50"

• Footprint: 19-1/2" L x 18-1/2" W
