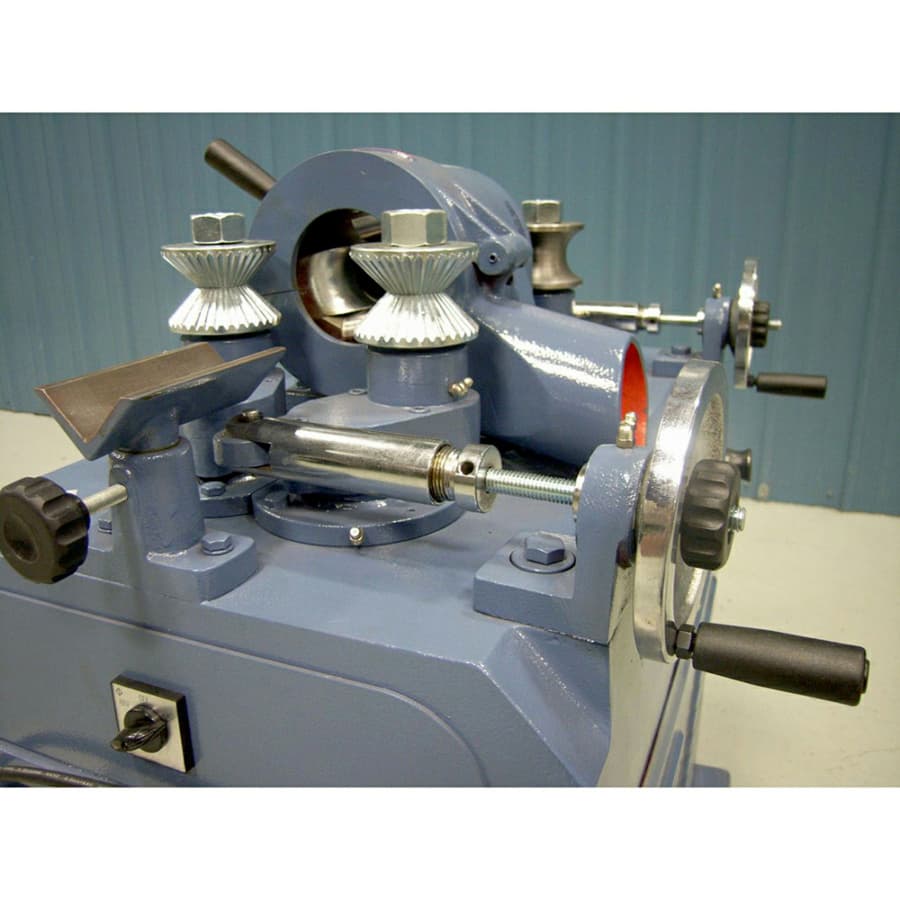

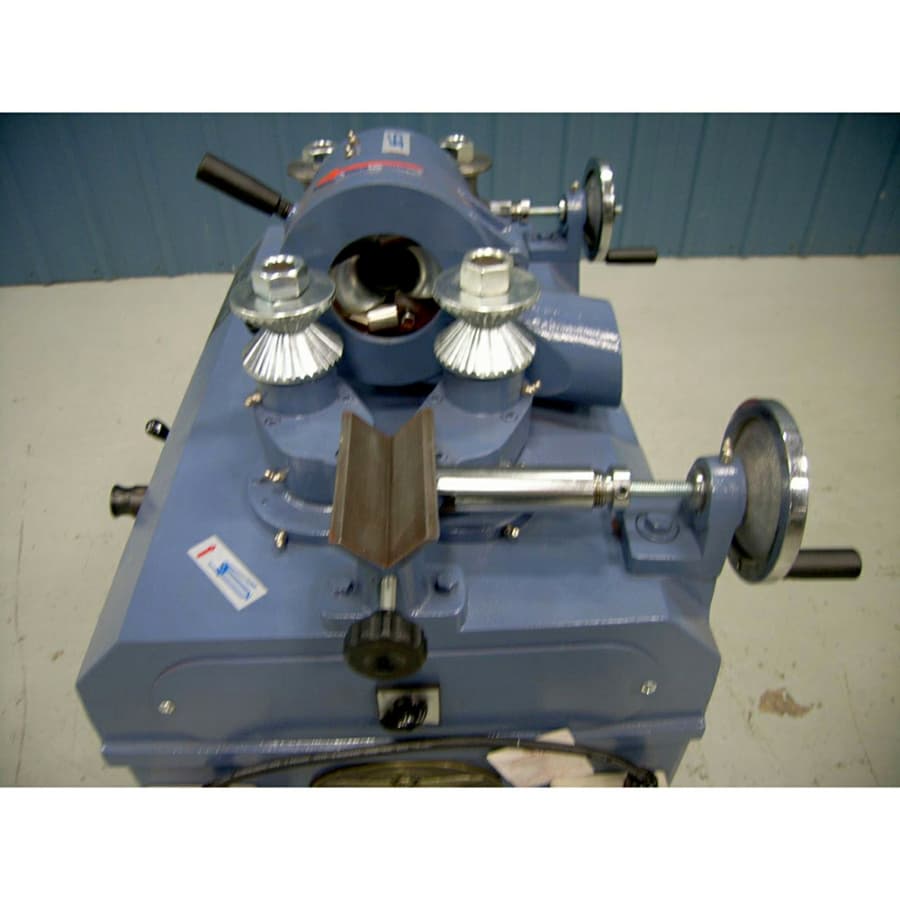

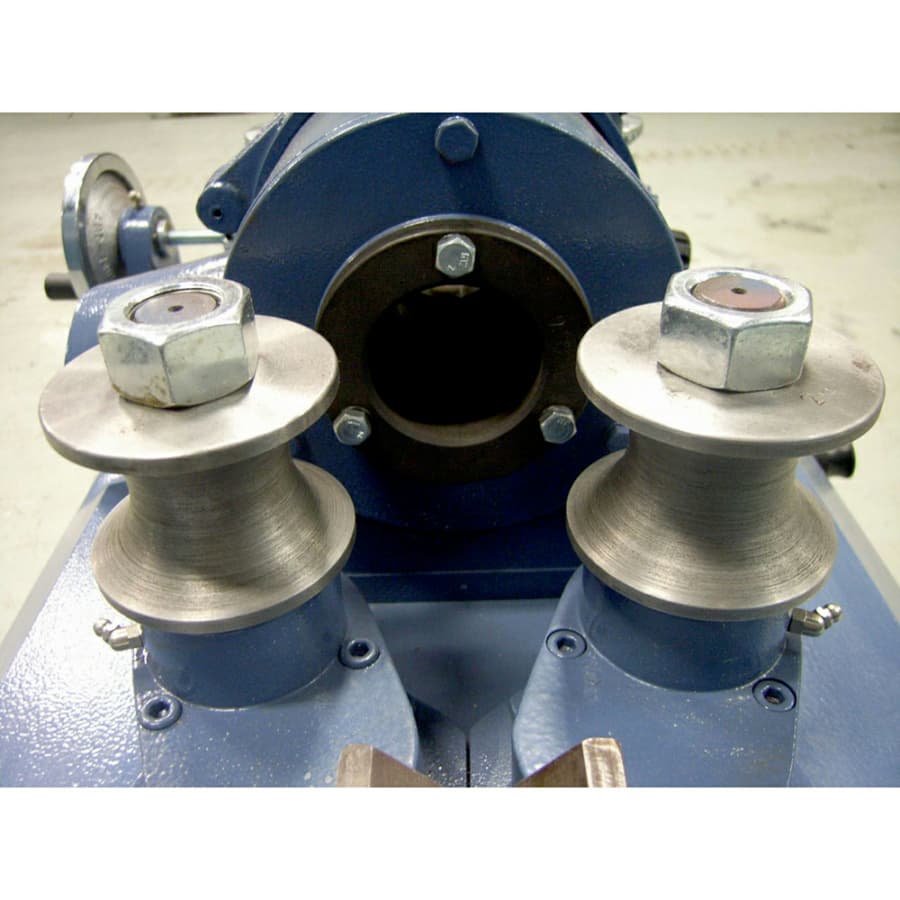

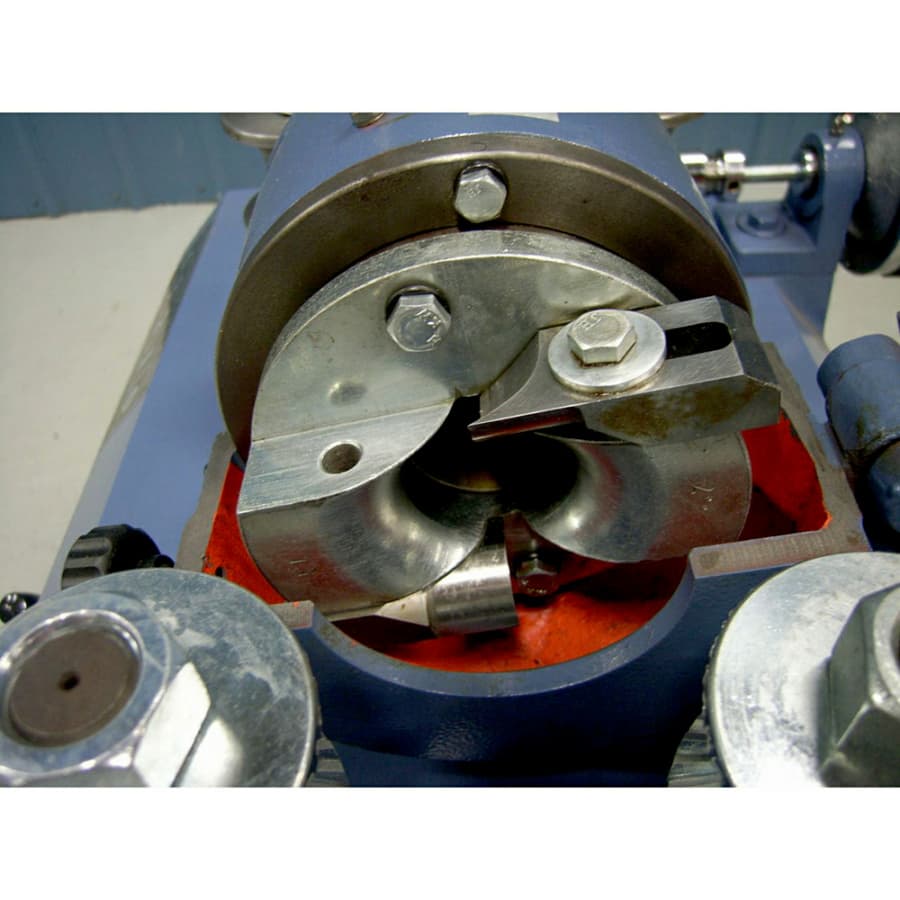

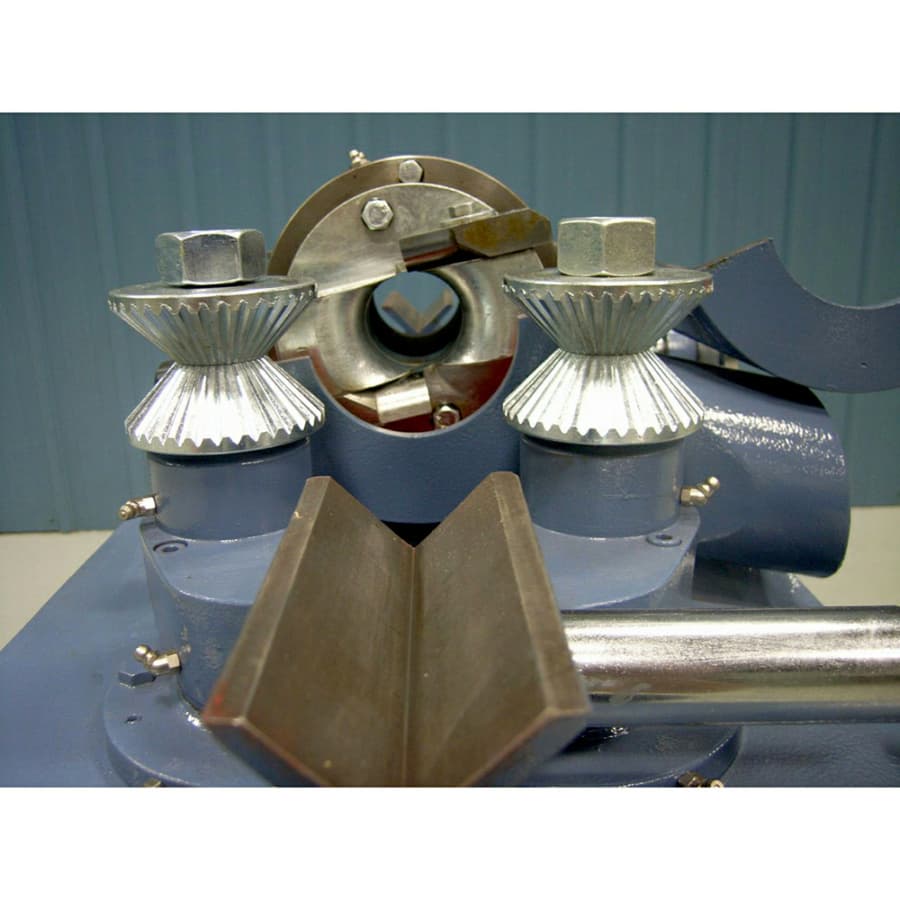

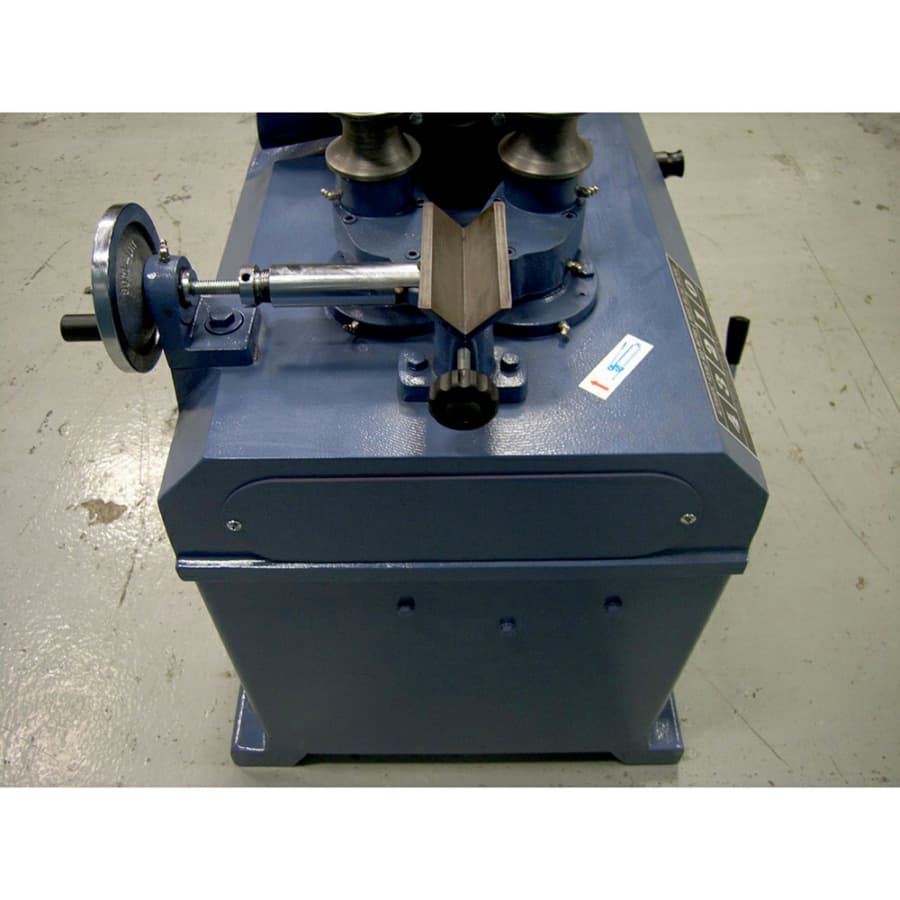

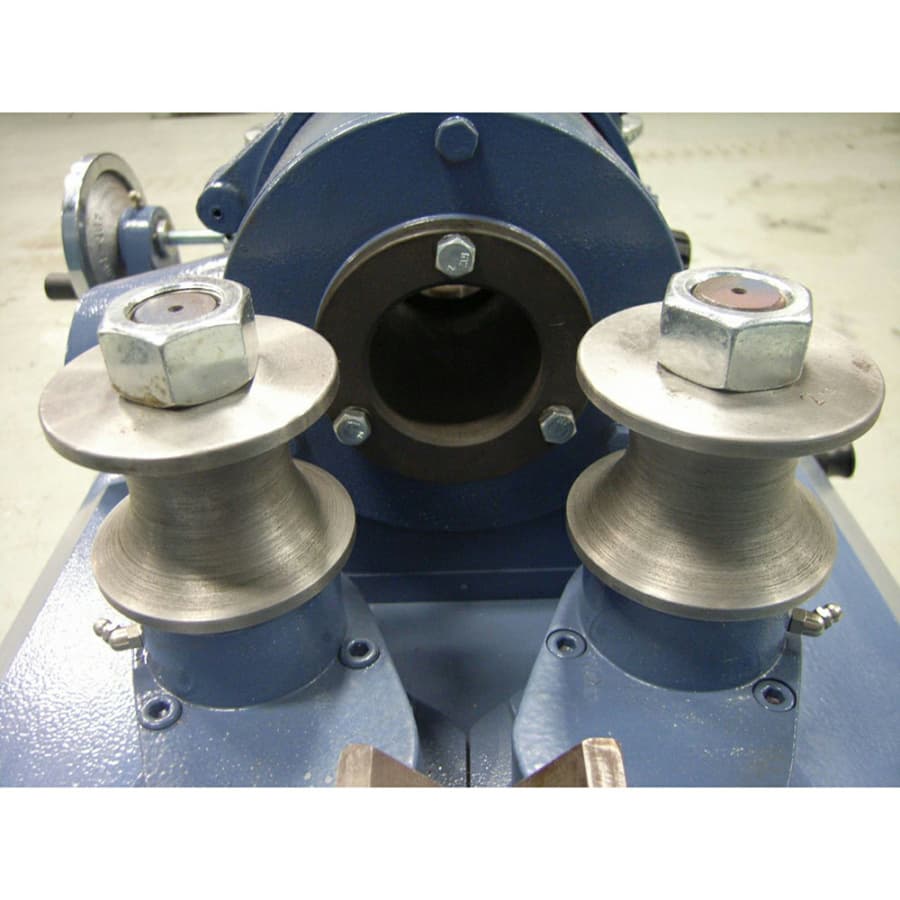

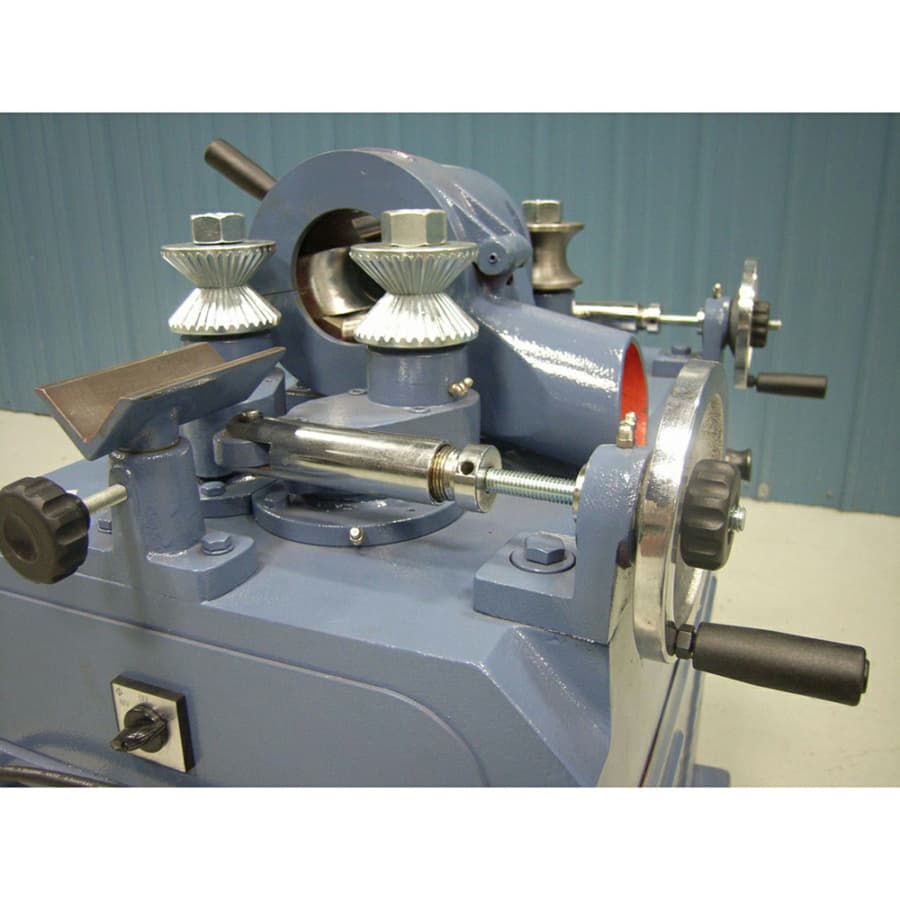

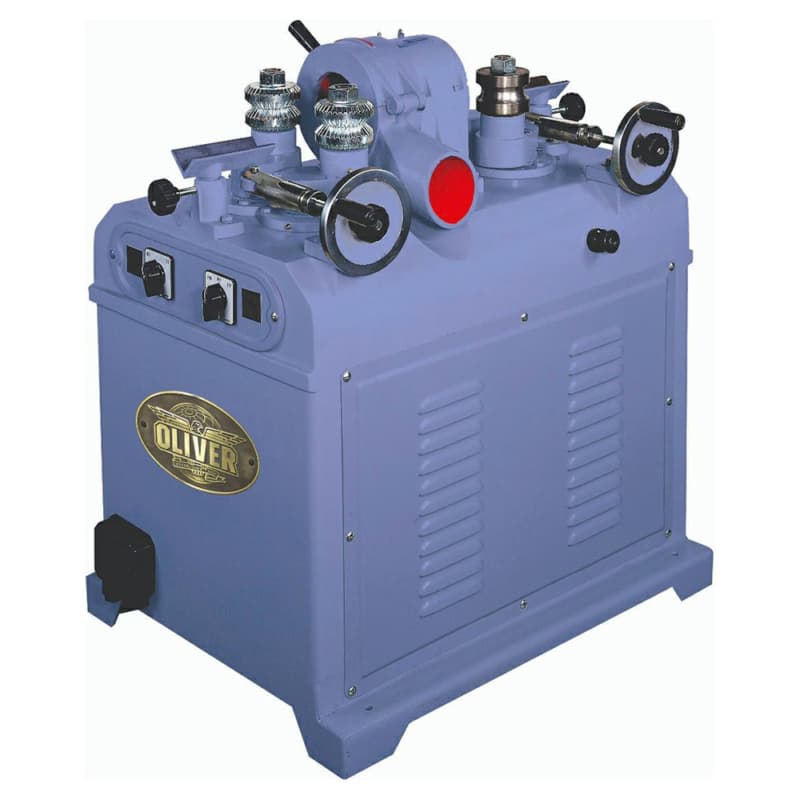

Oliver Round Rod Milling Machine, 5HP/3 Phase

Features:

• Highly efficient design for maximum production

• Independent cutter head and feed motor provide unmatched performance with a maximum feed rate of 52 feet per minute

• 4-feed rates allow greater versatility of material and applications

• Feed can be reversed for quick stock removal in the case of a jam

• Fully guarded hood provides a safe work station

• Wide range of capacity from 3/8" to 2-1/4" with optional cutter sets

• Includes 1" and 2" cutter sets

• Built-in 4" dust port allows efficient dust management

• Magnetic controls for safer operation

• Powerful three phase 5HP TEFC cutter head and 2HP TEFC feed motor

Application Specifications:

• Cutting Capacity: 3/8" - 2-3/8"

• Maximum Material Removal: 3mm

• Cutter Set Included: 1" and 2" only

• Minimum Length of Stock: 12"

Drive Package Specifications:

• Cutterhead Drive Motor: 5 HP

• Motor: 2 HP

• Cutterhead Speed: 3,000 RPM

• Feed Speeds: 20, 30, 43, 53 FPM

• Motor Phase: 3

• Motor Voltage: 220V/440V Prewired 220V (20/10 Amp)

Dimension Specifications:

• Overall Dimension: 36-1/4" x 30" x 39-1/2"
