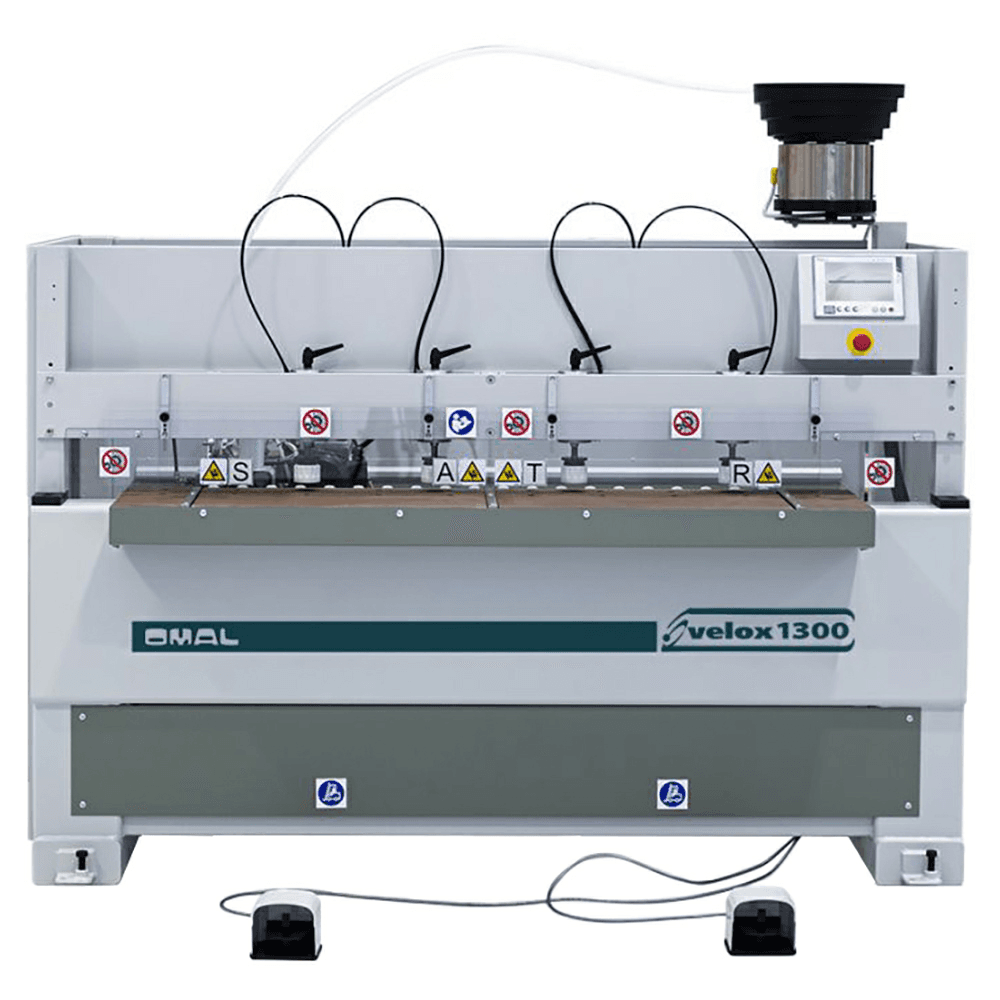

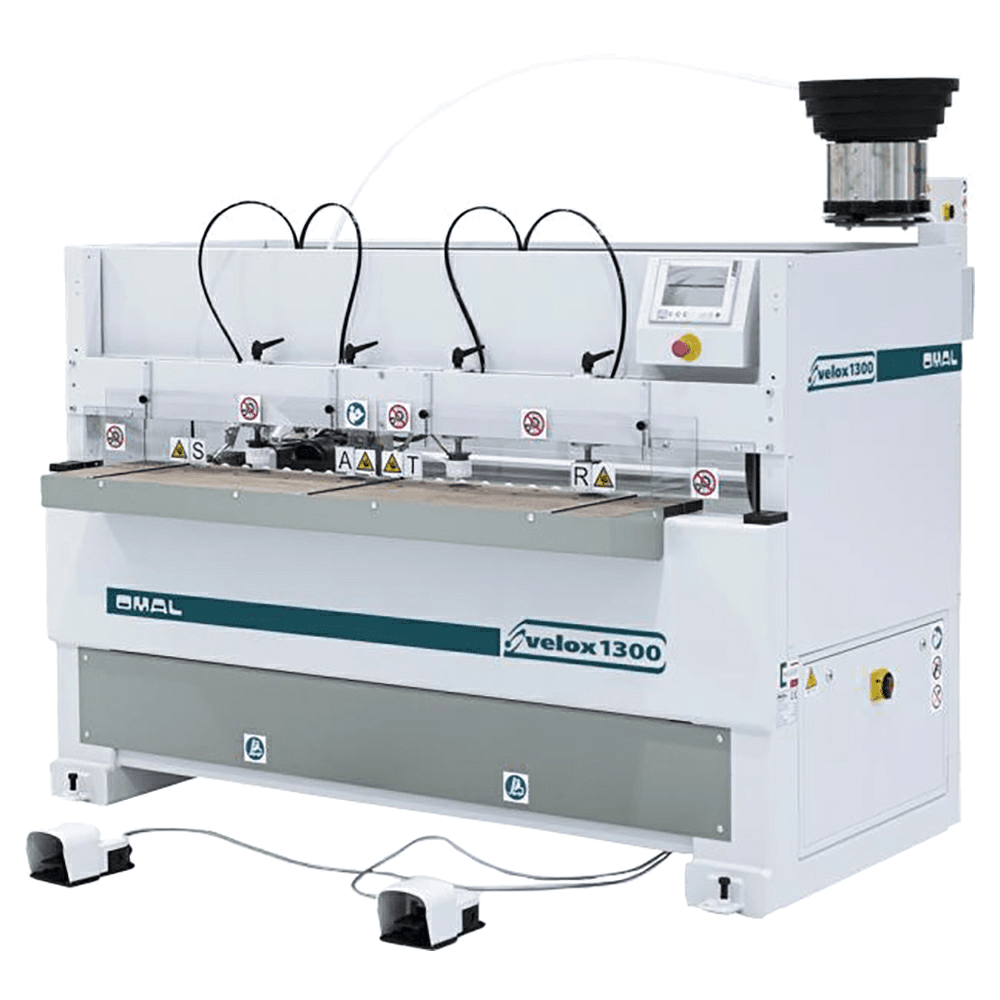

OMAL Velox 1300 Horizontal Bore/Dowel Machine
This item may incur additional shipping costs and lead times.
Product Details
Base Design and Construction
OMAL machines are built for maximum durability. The frame is constructed with 10mm thick tubular steel which is internally welded and gusseted every 400mm for strength and rigidity. It is then heat treated and cooled slowly to make a stress-free, reliable machine.
Machine Operation

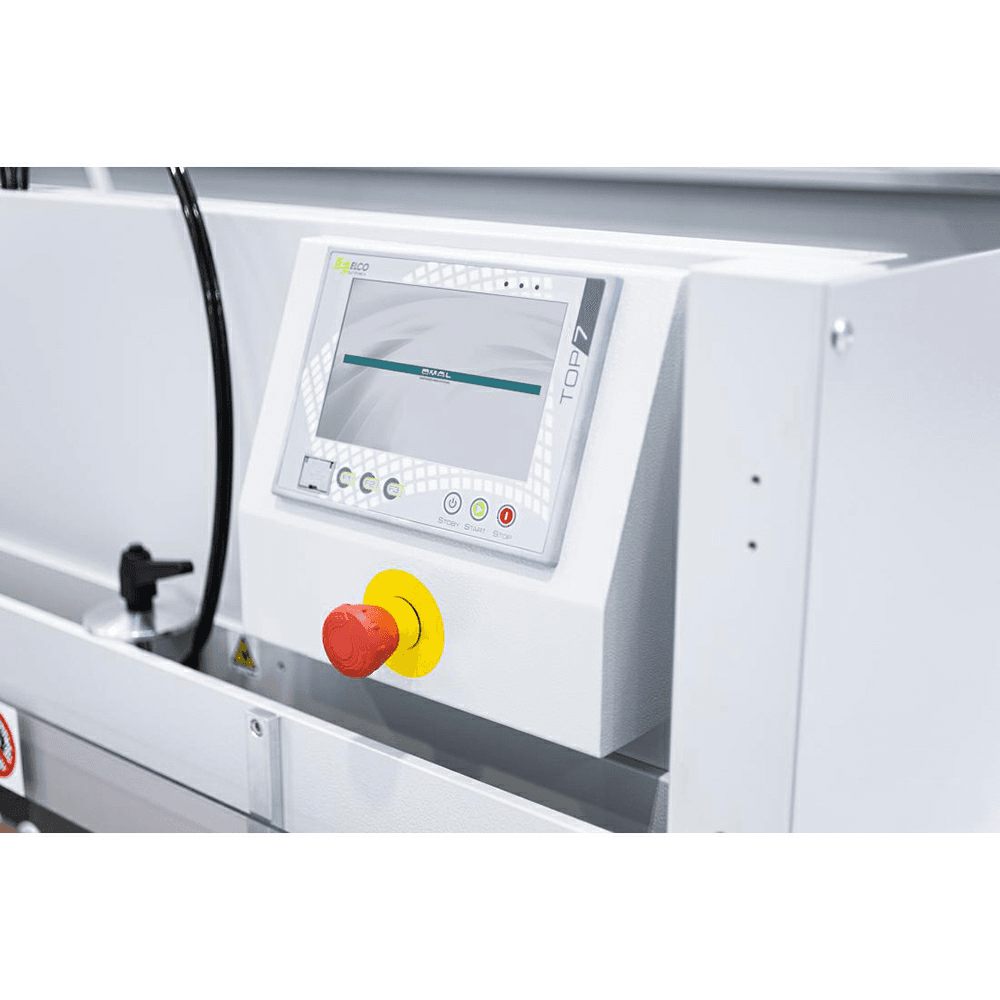

ELCO Top 7 Touchscreen Interface
The Velox machine is equipped with a touchscreen HMI and user friendly software. Programmable dowel layout is managed by the editor software included on the HMI. Programs can be written parametrically and are generated using graphical icons (drill, glue, dowel check boxes). The selection of the offset of tools for inserting and for operations on different left and right hand references is automatic.
The machine is programmable in the X axis and equipped with precision brushless motor, ball nut and ball screw for quick positioning. The movement of the carriage is on linear rails with square guides.
The software has a list manager that allows different parts to be run in each field and to control the production sequence. Lists can be saved for future reference plus the machine can be controlled by bar code list and/or program names.
The Velox 1300 is manufactured by OMAL under contract for SCM Group North America.
Machine Configuration
Drill-Glue-Dowel Reference:

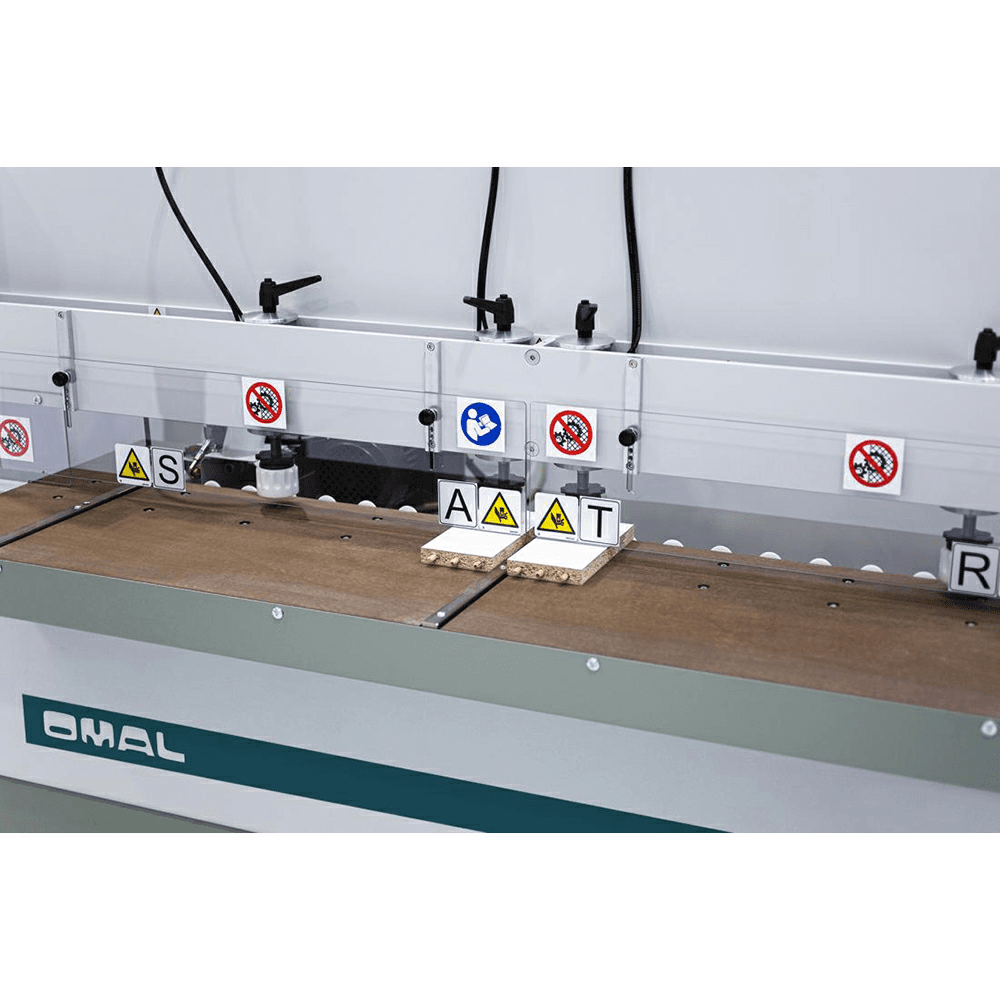

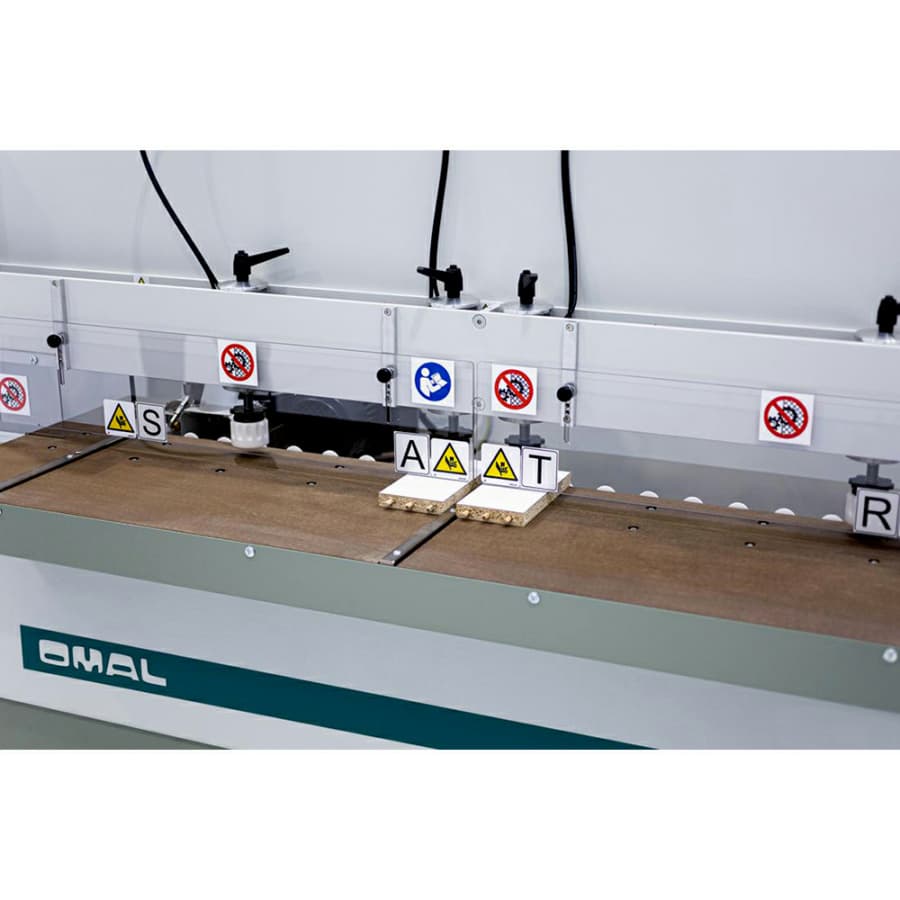

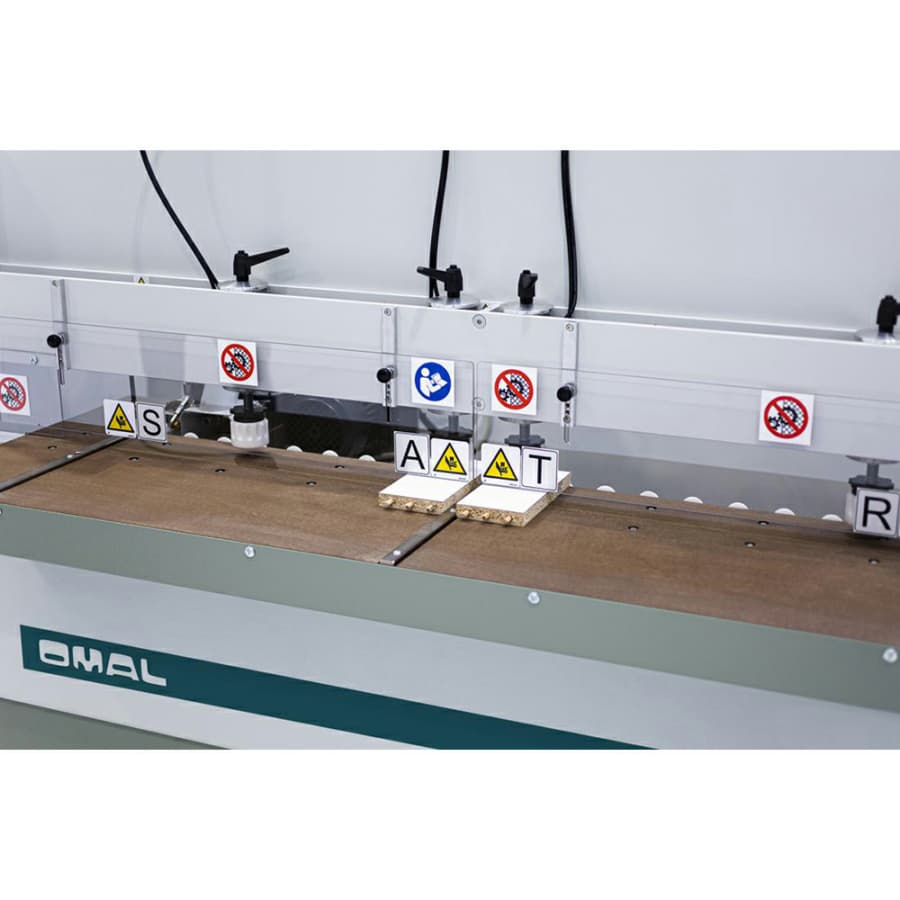

The Velox 1300 Horizontal Bore, Glue, and Dowel machine is a numerically controlled machine to drill, glue and insert dowels on horizontal pieces with four loading zones.
Cycle time of approximately ONE second for each bore, glue, and dowel insertion when holes are on 64 mm intervals
The high pressure glue injection system insures a no-drip glue or water delivery system with electronic precision metering.
Z-Axis Adjustment for Varying Thicknesses
The machine is equipped standard with a single drill and piggyback glue and dowel insertion unit with standard set up for 8mm dowels. The selection of the loading zone (left, left center, right center, or right) is executed by CNC. When needed, the Z axis adjustment includes a digital readout for a precise, quick changeover between material thickness.

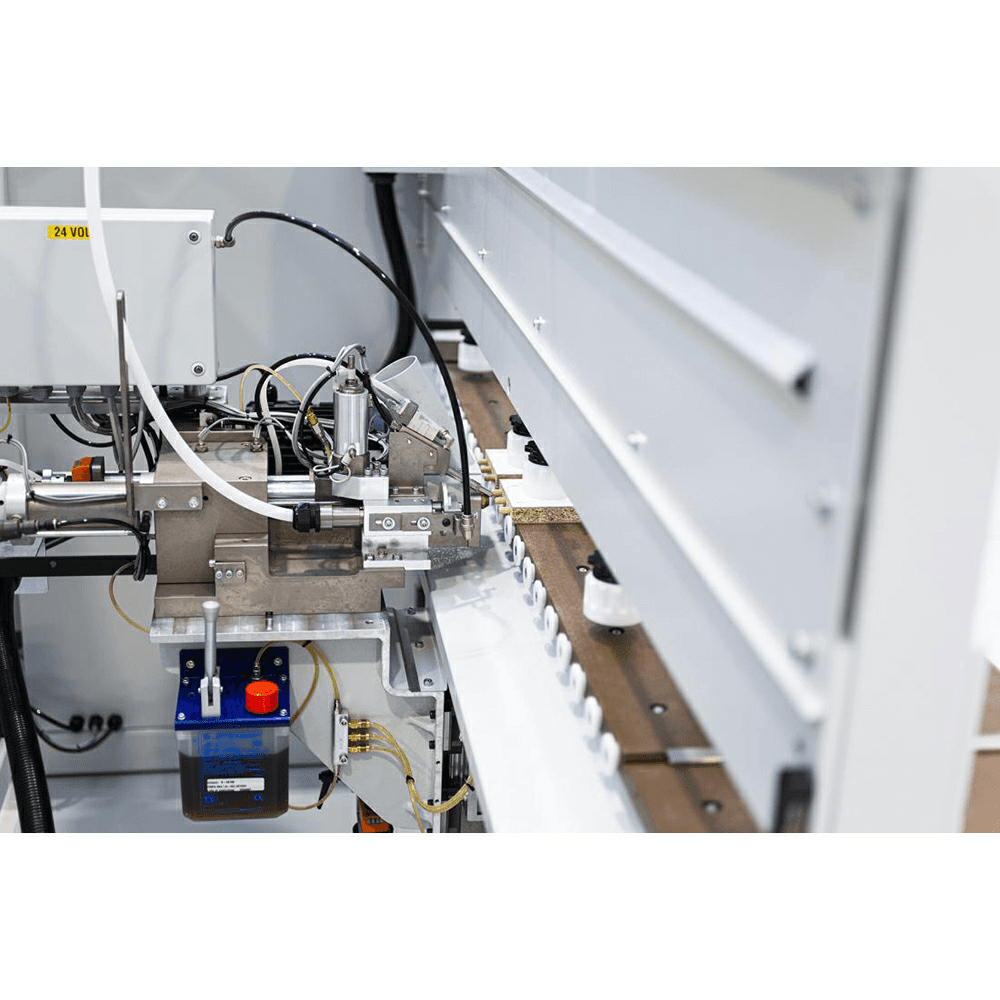

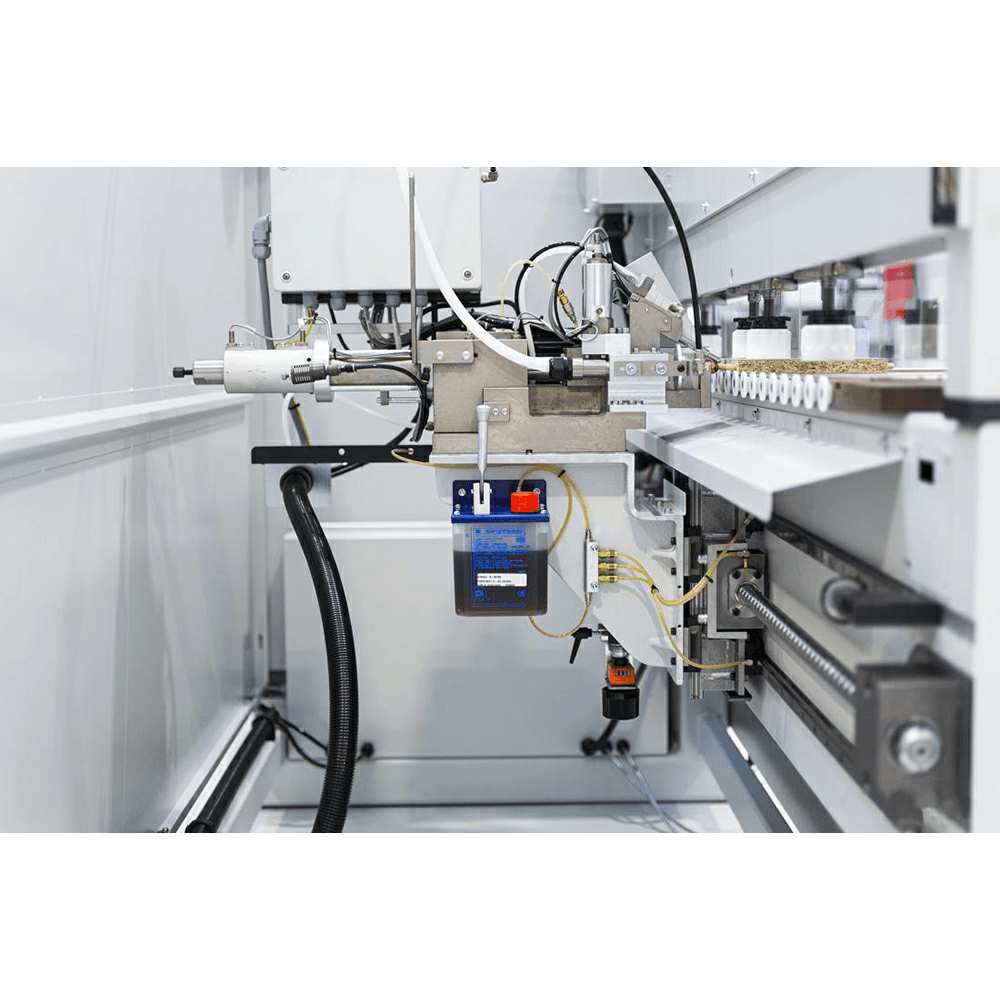

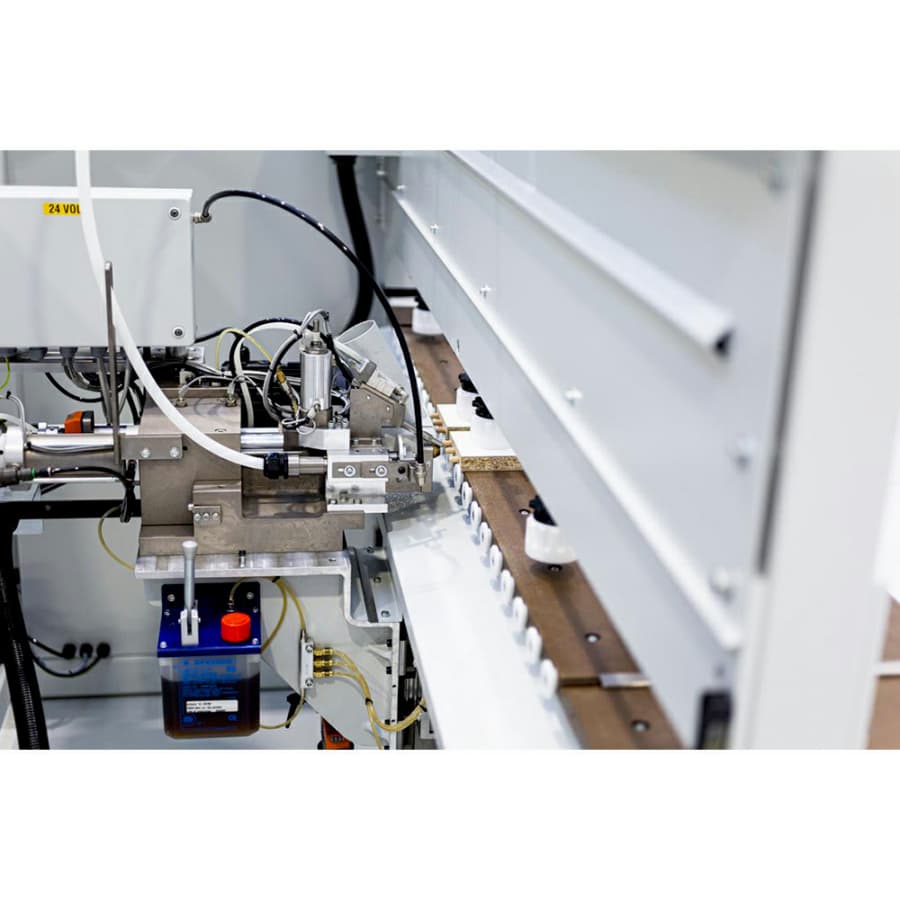

Glue and Dowel Injection Unit

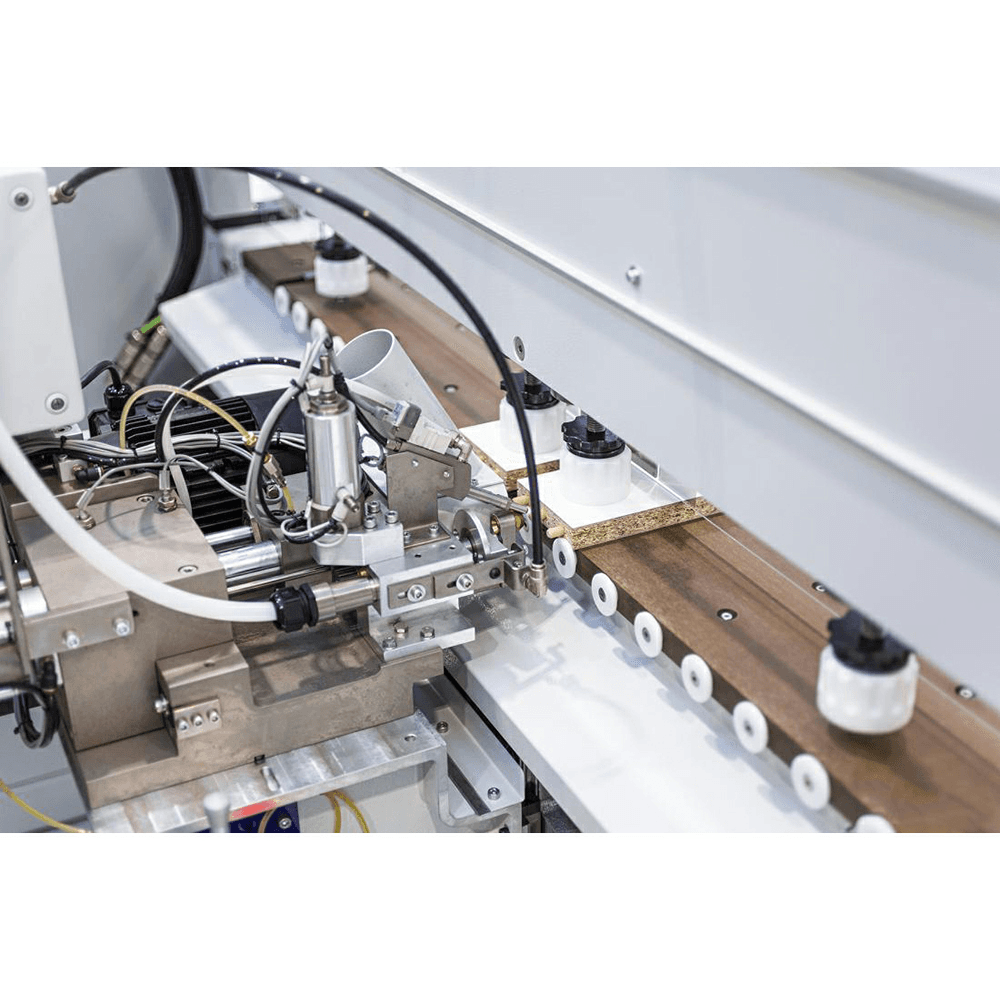

The dowel insertion revolver holds a dowel while a dowel is inserted plus checks via fiber optic sensor to see if next dowel is present to prevent misfeeds. The OMAL "Sure Shot" revolver system guarantees a dowel is inserted every time
The machine is equipped standard with a single drill and piggyback glue and dowel insertion unit.
Machine Specifications:
Drilling Units:
- Number of Drilling Units: 1
- Drill Motor kw/Hp: 0.55 kw/ 0.75 HP
- Drills Rotation Speed: 6000 RPM
- Max Depth of Holes: 30mm (1.18")
- Max Diameter of Drill: 10mm (3/8")
Dowel Insertion Unit:
- Number of Dowel Insertion Unit: 1
- Standard Dowel Dimension (other dimensions on request): 8mm x 35mm
- Maximum Dowel Length: 40mm
- Maximum Dowel Projection: 20mm
- 2 position revolver for dowel
- Fiber optic sensor for dowel presence
- The drill and dowel inserter are 64mm on-center
Dowel Vibrator Bowl:
- Capacity: 2000 dowels
Gluing and Cleaning Unit:
- Capacity of Glue Tank: 8 Liters
- Capacity of Cleaning Tank: 8 Liters
- Maximum Glue Viscosity: 900 cps
- NC control of glue amount
- Injector unit with inductive sensor to verify glue is shot
- Injector with double, reinforced seals to ensure no nozzle leakage
Technical Data:
X axis, CNC with ball screw
- Installed Torque: 2.4 Nm
- Working Area: 1300mm (50")
- Carriage Travel Speed: 50m/min (163.5 ft/min)
Depth Y Axis (manual setting)
- Working Stroke: 30mm (1.18")
Thickness "Z" axis (manual setting):
- Working Stroke: 40mm (1.57")
General Information:
- Vertical Clamps: 4 (standard)
- Voltage: 220V/60Hz/3 Ph
- Control Voltage: 24 VDC
- Air Pressure: 6 BAR (101 psi)
- Net Weight: 950 kg (2090 lbs.)
Parametric Laser
The laser will measure the part and populate the program list for the part width. The parametric program will calculate all the dowel locations for the part based on bracketing width and 32mm multiple from front edge. The operator just has to load the machine
Note: The pictures and/or illustrations included in this quotation are for descriptive purposes and intended to aid in understanding certain features of the machine. Some depictions may not reflect the exact construction and may include options that are not part of this offer. In all cases, the written text supersedes any graphic representation
