SCM Nova S 520T 20.5" Tersa Planer 11HP, 230V 3 Phase
This item may incur additional shipping costs and lead times.
Product Details

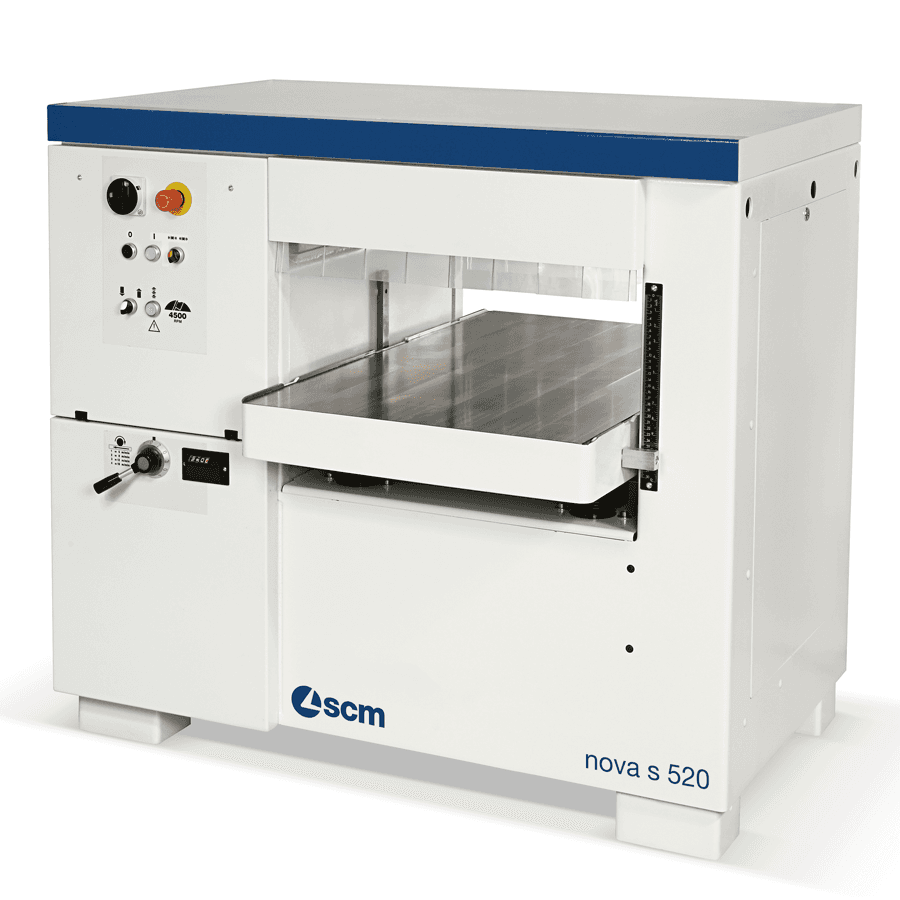

NOVA S 520 T
20” Tersa planer
The Nova S 520 T is a heavy duty, 20” planer designed to meet the needs of the most demanding environments. It features a monoblock base, work table with support rollers, and a Tersa cutterhead.
Monoblock Base
Monoblock technology is used in the design and fabrication of this base. The solid, welded
base undergoes a treatment call normalization which stabilizes the metal and assures exact
tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This
design is vastly superior to frames that are bolted together and have no true reference point.

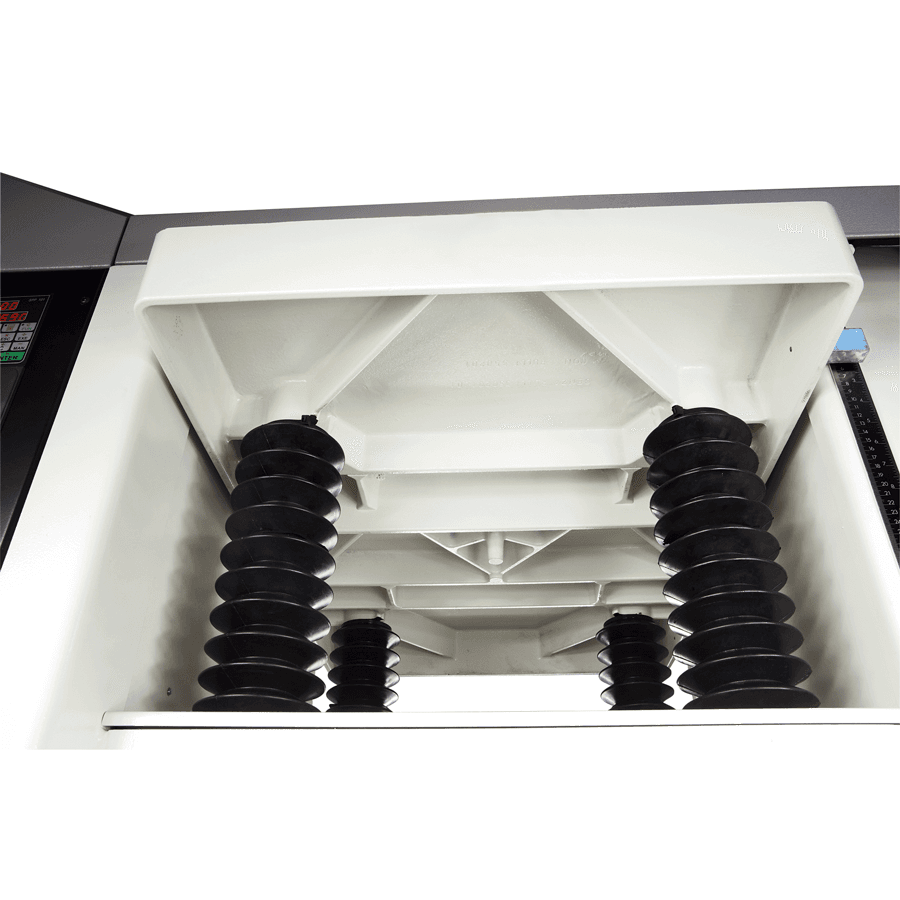

Table Lifting System
All SCM planers use four jack screws with acme style threads and dust covers for
maximum table support. In addition to providing a stable lifting system which eliminates
sniping, the acme threads greatly increase the longevity of what is normally the most
common wear item on planers. Through a patented design, there is a special bushing
between the drive chain, and sprocket which doesn’t allow any pressure from the chain
to reach the jack screw, thus pushing the machine’s longevity to the extreme.
Work Table Support Rollers
Used when planing raw, uneven lumber, this feature allows irregular material to be
planed that would not feed on a standard table. When the material has been planned
flat on one side, the rollers can be lowered to allow a clean pass on the other side.

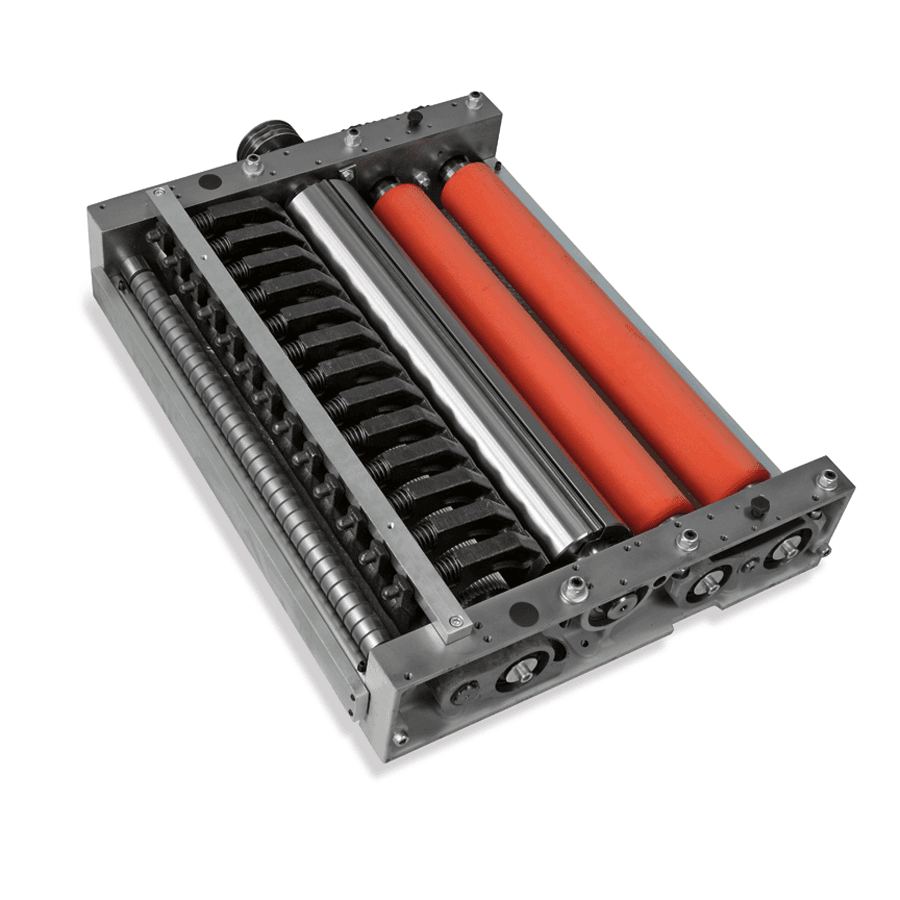

Planer Head Assembly
The SCM feed system includes a powered sectional steel infeed roller and powered
rubber outfeed rollers. This combination helps ensure feeding of parts with variations up
to 6mm in thickness. Anti-kickback fingers and a sectional chip breaker are also part of
the feed section and provide both safety and a quality finish.

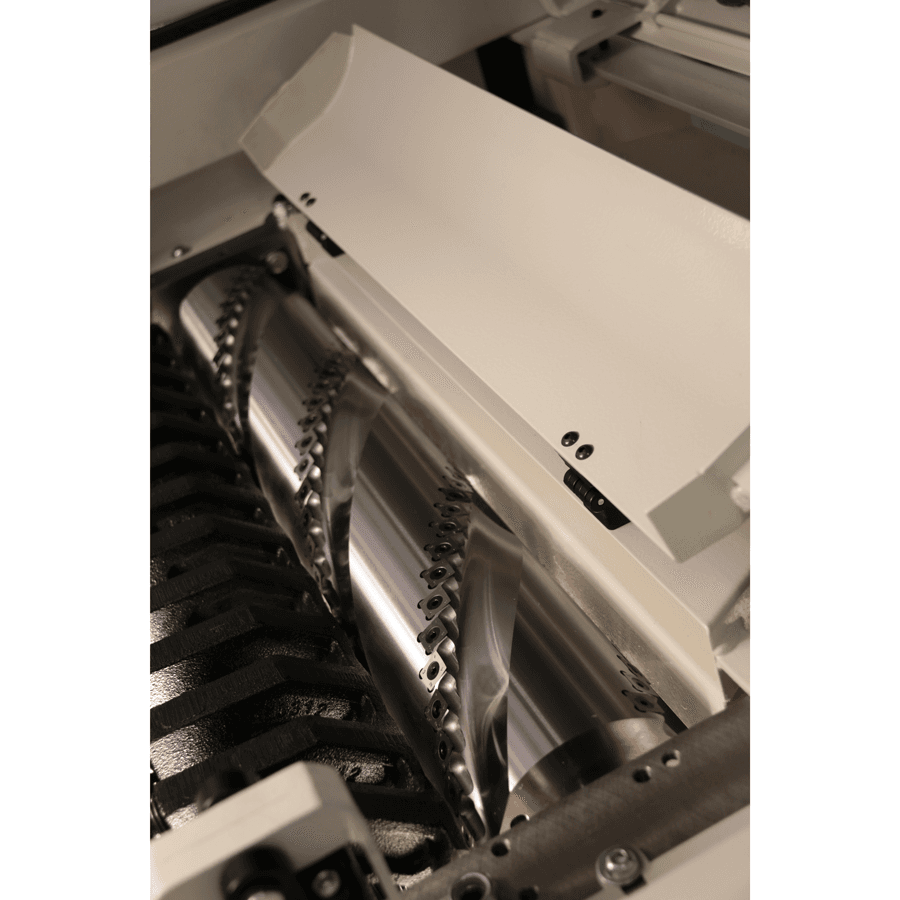

Tersa Cutterhead
SCM “T” models include the quick change knife heads by "Tersa". This cutterhead
eliminates the necessity of gauging the knives each time to ensure proper setting
position. The Tersa knives automatically reference into position when the head is turned
on. Removal of the knives is as simple as tapping down the wedge blocks and sliding
out the knives. Since the knives are two-sided, they can be flipped over, reinserted, and
used again.
Standard Equipment
• Tersa 4 knife, insert cutterhead
• Electric powered movement feed table raise and lower
• Steel, sectioned infeed and one rubber outfeed roller
• 4 speed feed system
• Interchangeable Rollers
• Powered bearing-assisted feed rollers
• Mechanical readout of working thickness
• Magnetic starter with overload protection
• Table lifting by four high precision jack screws
• Adjustable bed rollers in feed table
• Course and fine thickness adjustment
• Tool set
• Dust hood
Technical Specifications:
Motor Horsepower: 11 HP (3-Phase)
Working Width: 520mm (20”)
Working Height: 3.5 – 300mm (9/64” – 11.8”)
Max. Depth of Cut: 8mm (5/16")
Minimum Length of Stock: 220mm (8.66”)
Cutter Head Diameter: 120mm (4 3/4")
RPM: 4500
No. of knives: 4
Knife Dimensions: 520mm x 30mm x 3mm
Table Size: 530 x 900mm (20.87” x 35.4”)
Feed Speeds: 5,8,12,18 m/min (20,33,43,56 fpm)
Infeed Roller: Steel sectional, power driven
Outfeed Roller: Rubber, power driven
Dust Hood Diameter: 150mm
Overall Dimensions: (L,W,H) 43" x 40" x 44”
Electrical Requirements: 230 volt
Dust Extraction: 980 cfm
Includes:
R1.00.86 Nova S 520 Usa/Canada version
93.07.35 230 Volt
93.15.01 Frequency 60Hz
57.01.38 Worktable with 2 idle rollers
57.01.39 1st infeed sectioned steel feed roller
57.01.40 “TERSA” cutterblock with throwaway knives
08.06.36 Seaworthy packing
Specifications
| Box Quantity | 1 |
| Cutter Head Diameter | 4-3/4" |
| Motor Voltage | |
| Height | |
| Power | |
| Horsepower | 11 HP |
| Phase | 3 |
| Length | 43" |
| Drive Motor | |
| Voltage | 230V |
| Width | 40" |
| Cutter Head Type | Straight Knife |
| Motor Phase | |
| Product Type | Planer |
| Cutting Width | |
| Infeed Roller Diameter (In.) | |
| Cutter Block Diameter | |
| Speed | |
| Recommended Circuit Size (Amps.) | |
| Maximum Depth of Cut (In.) | |
| Number of Rollers | |
| Maximum Planing Width (In.) | |
| Motor Voltage (V.) | |
| Column Diameter (In.) | |
| Cuts Per Minute | |
| Reversible | |
| Maximum Full Width Depth of Cut (In.) | |
| Motor Current (Amps) | |
| Movement - Horizontal (In.) | |
| Wiring Remarks | |
| Prewired Voltage (V.) | |
| Feed Rate | |
| Table Height from Floor (In.) | |
| Outfeed Table Length (In.) | |
| Table Size (L x W) (In.) | |
| Dust Collection Minimum CFM Required (CFM) | |
| Distance Between Rollers - Center to Center (In.) | |
| Number of Speeds | |
| Knife Size (L x W x T) | |
| Table Size with Extensions (L x W) (In.) | |
| Number of Knives | |
| Segmented Infeed Roller Diameter (In.) | |
| Maximum Height of Rollers Parallel to Tabletop (In.) | |
| Bed Rollers Adjustable from Front | |
| Digital Readout | |
| Type of Cutterhead | |
| Style (Type) | |
| Range of Speeds | |
| Outfeed Roller Diameter (In.) | |
| Maximum Planing Thickness (In.) | |
| Table Support | |
| Motor Power | |
| Movement - Vertical (In.) | |
| Minimum Planing Length (In.) | |
| Cutter Block Speed | |
| Dust Port Outside Diameter (In.) | |
| Warranty | |
| Planing Height | |
| Planing Width | |
| Chip Removal | |
| Extraction Connection |
