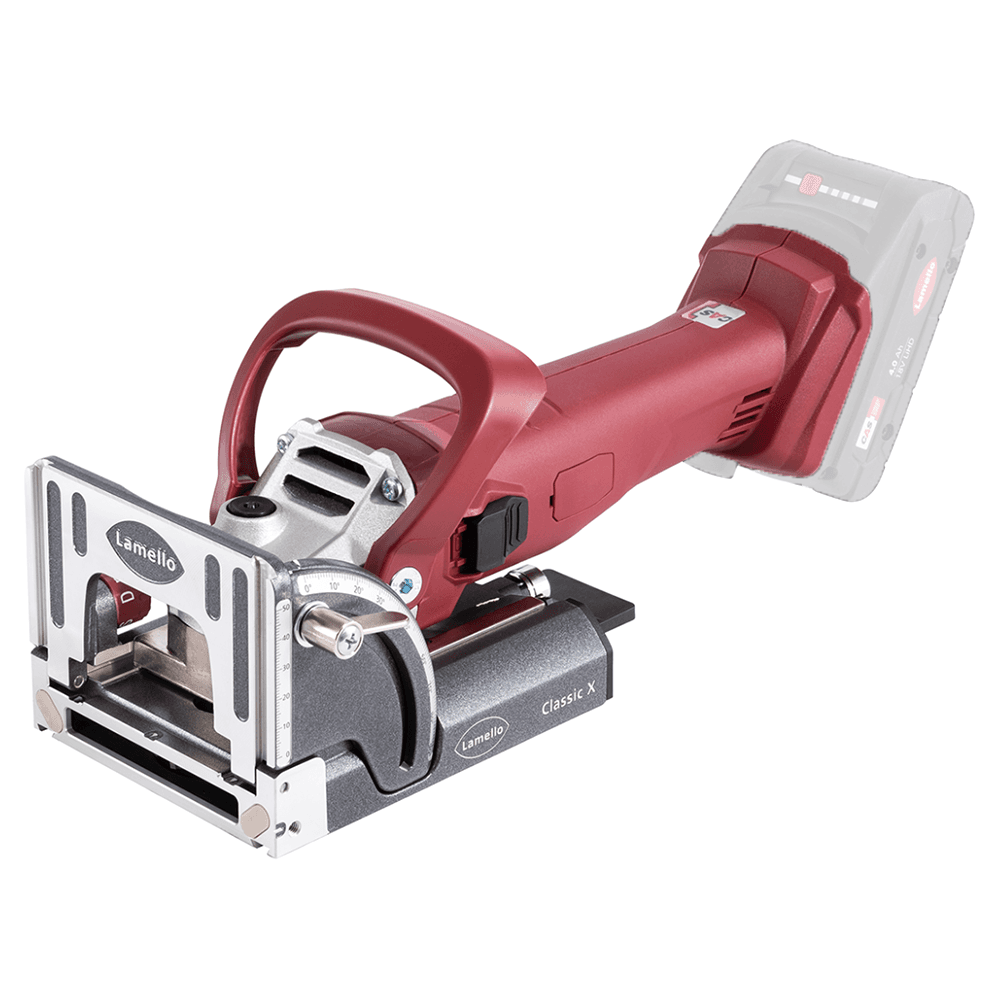

Classic X Cordless Biscuit Joiner with Systainer, Tool Only

Classic X is the original biscuit joiner from the inventor of the Lamello system for cutting the 4mm groove. The proven and well-designed Classic X is fast and versatile in its use and the basis for the wide range of connectors with fixed, self-clamping and detachable solutions. Precision in every component leads to perfect accuracy of the workpieces, and the battery drive means even more flexible application. The multifunctional stop square allows perfect mitres by applying on the exterior surface and stabilises the machine in vertical position.

Features/Benefits:
• Base plate with improved visibility of the angle scale and the height setting
• The base plate, swiveling front stop, and stop square are now flush on both sides for efficient positioning on the work piece
• Precision-machined guide and application surfaces for perfect fit of the work pieces
• Slim but powerful 780 W motor
• Multifunctional stop square for vertical stability as well as perfect miters due to the application on the outer surface for 22.5 and 45? angles
• 18V voltage
• 6'040 min speed
• Carbide-tipped cutter 100mm x 4mm x 22mm cutter
• Z6 teeth (3+3 alternating teeth)
• 20mm maximum cutting depth

Applications:
• The highly efficient, simple and accurate joining system for panels
• Thin work pieces measuring 8 or 10 mm may be joined at any angle
• Fixed connections of wood and panels as well as composite materials such as solid surfaces using biscuits of various sizes, the clamping element or the plastic element for solid surfaces
• Detachable connections using the Clamex S connector
• Self-clamping connections with the E20-L and E20-H elements
• Further use to cut grooves and expansion gaps as well as to mill out resin pockets

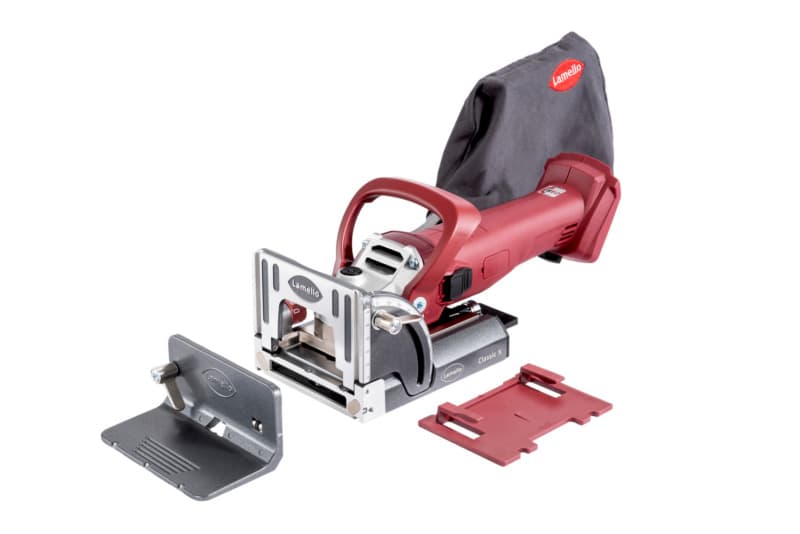

Included:
• Classic X cordless, No Battery or Charger
• Carbide tipped cutter
• Suction stub 36mm
• Stop square
• Spacer 4mm
• Tool set
• Dust bag
