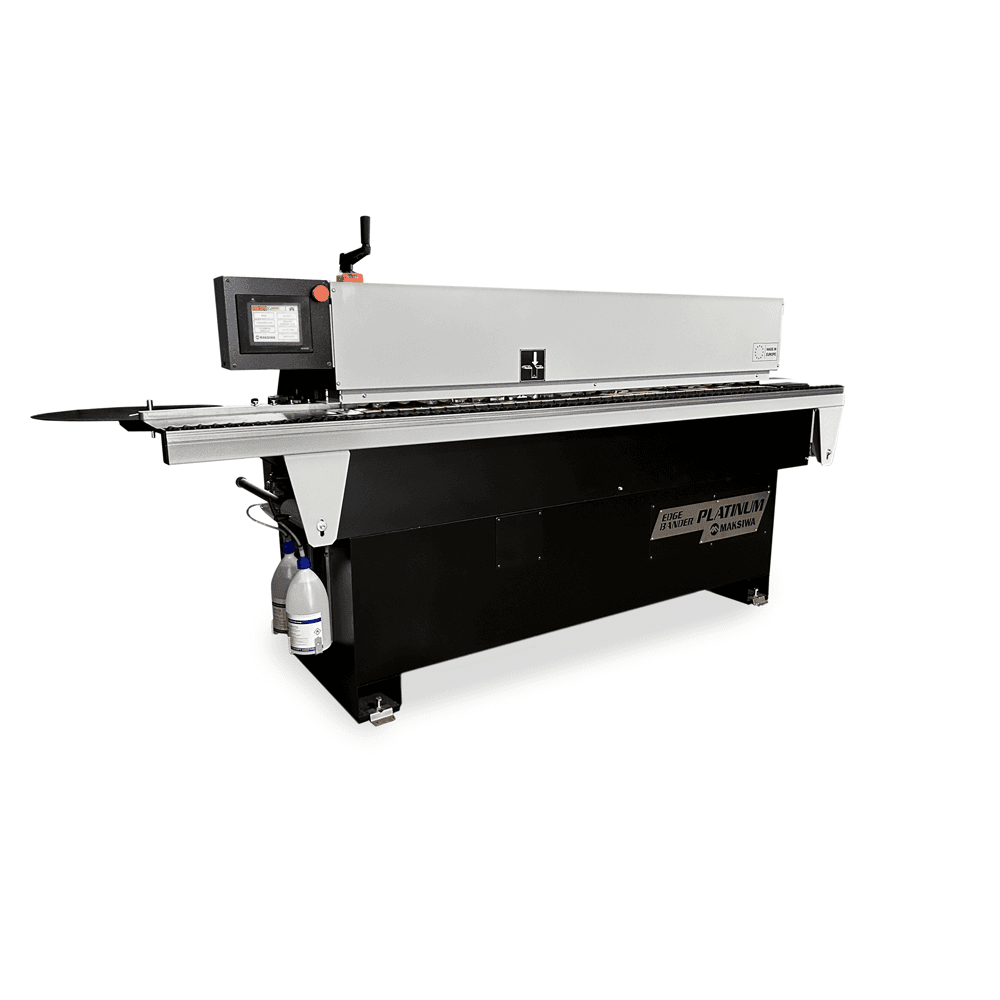

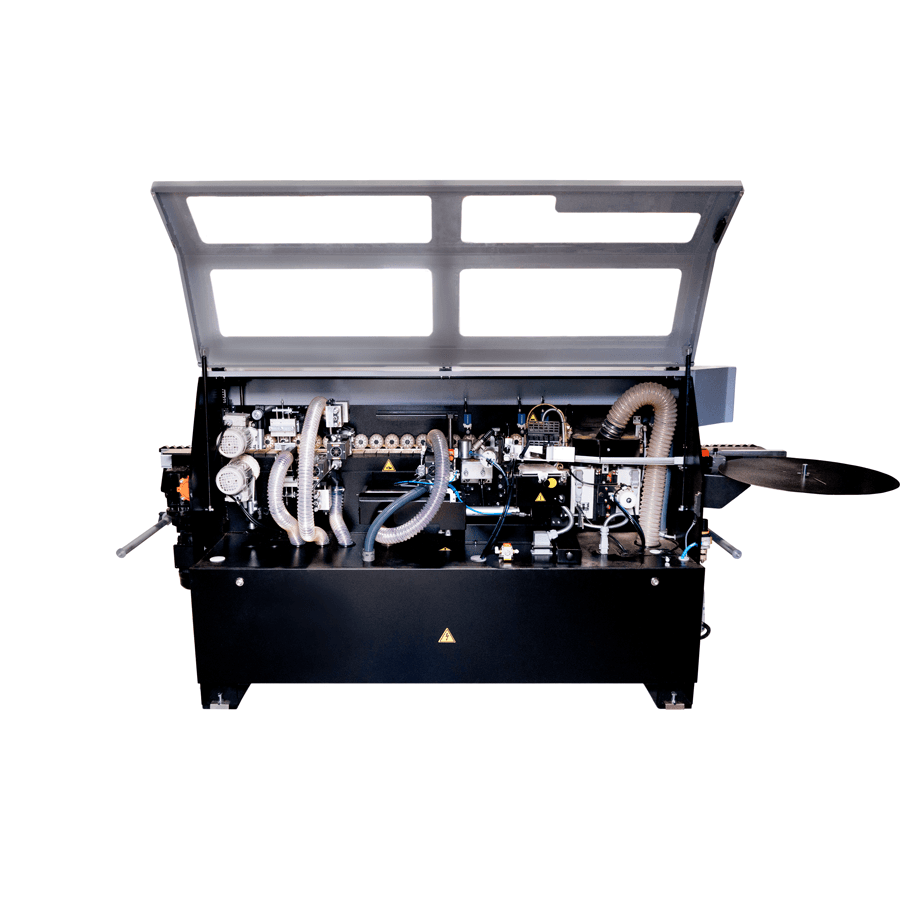

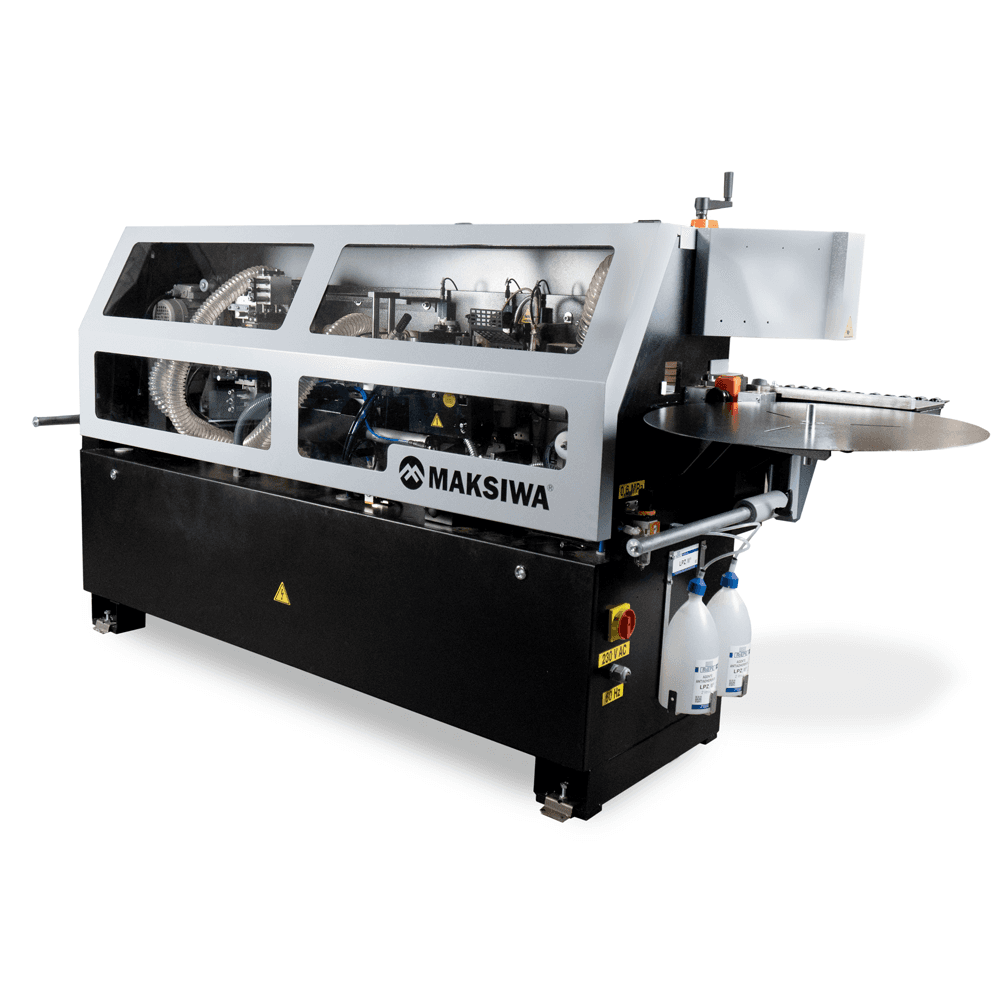

Maksiwa CBC.P Platinum Edgebander
This item may incur additional shipping costs and lead times.
Product Details
The Maksiwa CBC.P Platinum Automatic Edgebander, is an industrial grade, heavy duty machine that provides high performance and quality finish without compromising space in your shop. With its affordable price, this machine is now within reach of more woodworkers than ever before. Equipped with pre-milling, vertical rounding, glue scraper unit, buffing unit, top and bottom trimming, XMELT glue pot system (works with EVA and PUR Adhesives + easy drainage system), C.A.S.S cleaning agent spraying system, edge tape 0.4-3mm, panel thickness 10-50mm, 9HP 1PH 220V. Full PCL Touch Screen Control Panel with user friendly set-up and maintenance makes the CBC.P the perfect addition to the demanding woodworker looking to improve their craft
Pre-milling & Vertical Rounding in a small footprint

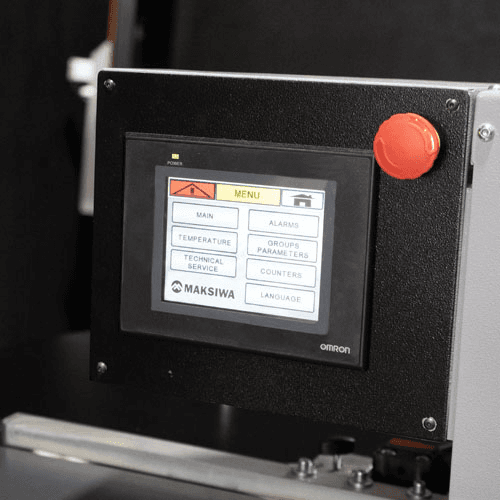

• PLC controlled by TFT touch screen
• Edge Tape: 0.4-3mm
• Panel Thickness: 10-50mm
• 9HP 1 Phase 220V 60Hz

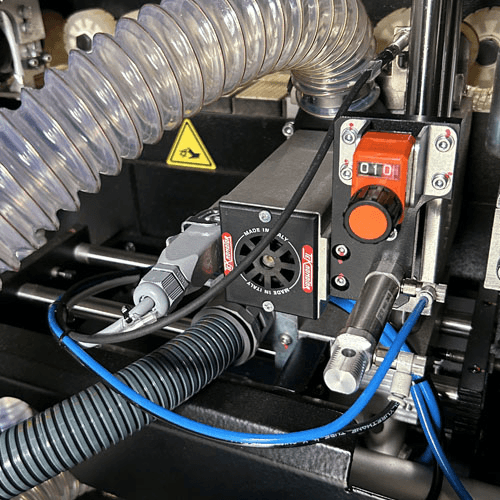

• Vertical Rounding Unit

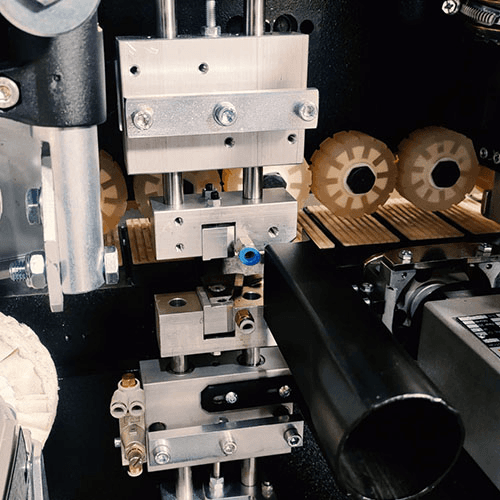

• Glue Scraper Unit

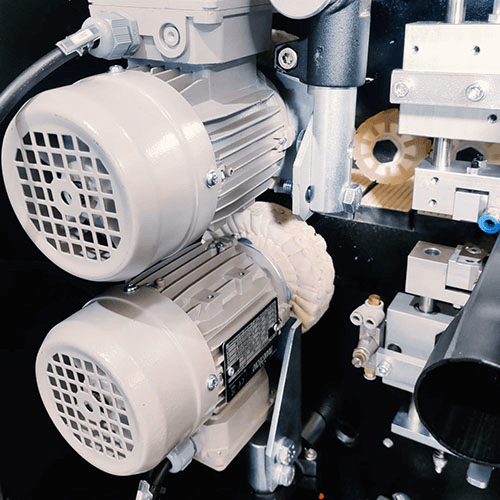

• Buffing Unit 14.000 RPM

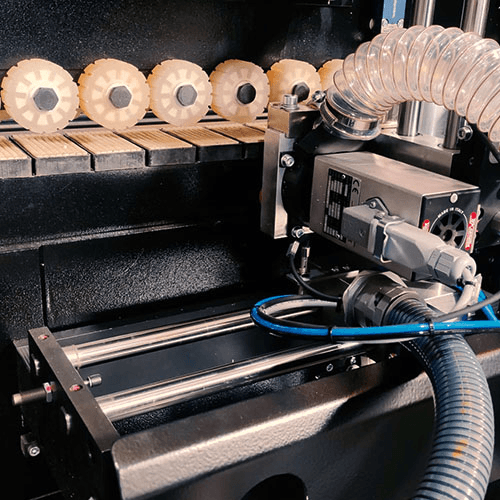

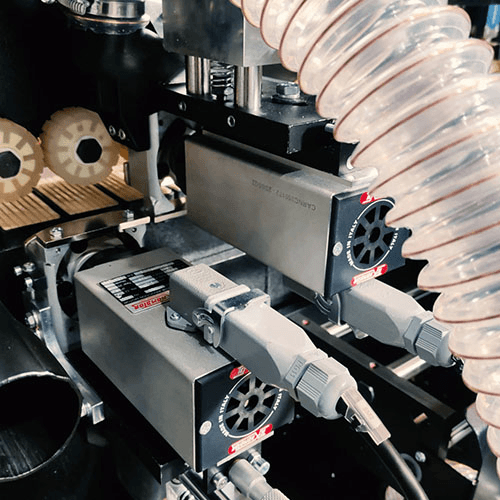

• End Trimming HF Motor
• Top and Bottom Trimming 2 HF Motors 12.000 RPM

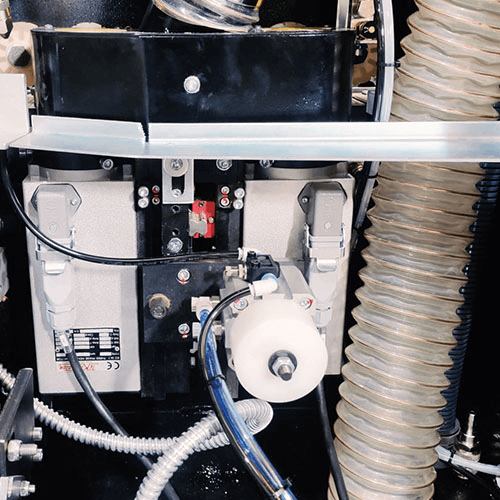

• Pre-milling Unit 2 HF Motors with Diamond Cutters
• XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)

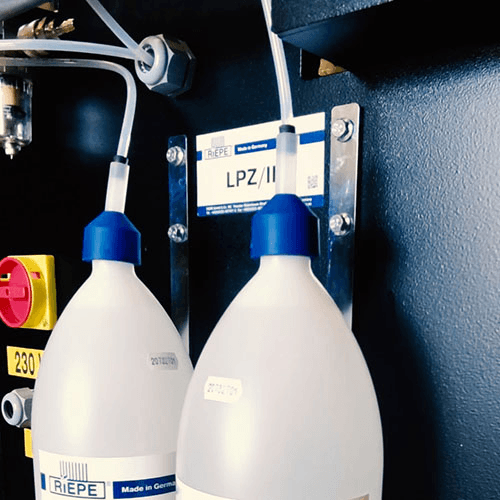

• C.A.S.S - Cleaning Agent Spraying System
• Stand-by mode: Only one click to re-start production.
• Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated
• Centralized Dust Collector with automatic ON/OFF
• 12 mm Thickness Solid Oxycut monoblock structure and industrial drag chain to handle large workloads

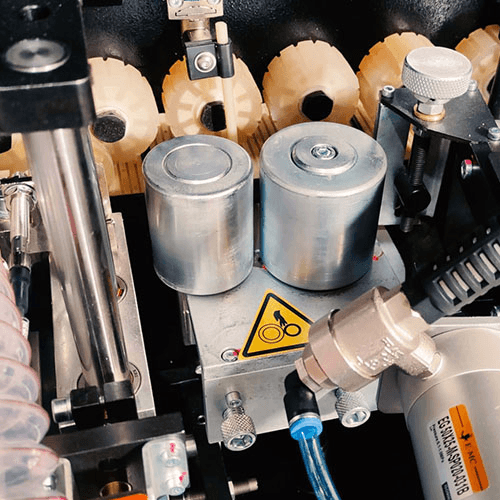

• Spring Loaded Pressure Unit with (2) Pressure Rollers
• Reinforced Pressure Beam with (2) Prismatic guides or maximum guiding accuracy
• Conveyor Chain Feed System for optimum results. Feed speed of 23 FPM
• HF motors controlled by independent electronic converters
• Gross Weight 920 kg / 2029 Lbs
• Compact Design (mm/ft) 2839 x 864 x1232mm/112 x 34 x 49 inches
• Melamine/PVC/ABS/PP/Solid Wood Strip
Specifications
Automatic Feeding speed: 23 ft/min (7 m/min)
Panel thickness Min/Max: 13/32” - 1 31/32” (10 - 50 mm)
Max Pre-milling Height: 1” (30 mm)
Edgebanding thickness: 0.4-3mm
Glue Pot Capacity: 2.6lbs (1.5 kg)
Max Edgebanding Height: 2" (51 mm)
Minimum panel width: 3" (75 mm)
Minimum panel length: 7 7/8" (200 mm)
Extendable Panel Support Rail Length: 102" (2607 mm)
Extension table Max Width: 54" (1371 mm)
Size of Dust Collector Ports: 6" (150mm)
Minimum Dust Collection Requirements: 1236 CFM (2100 m3/h)
Air Pressure Requirement: 13.4 SCFM @ 87PSI (0.6 Mpa)
Edgebanding coil Support Diameter: 59" (1498 mm)
Recommend Glue Temperature Range: 356°F - 410°F (180°C - 210°C)
Max. machine dimensions (LxWxH): 112”x 34”x 49” (2839 x 864 x 1232 mm)
Glue Type: High Temp.Granulated Hot-Melt EVA / PUR
Electrical Information: 1 Phase 220V 30 Amps 60Hz
Sound Rating: 80 dB
Technical Info
Glue: Granulated
Glue Temperature: 180° to 210° C
Workarea: 98”
Motor: 1 Phase 220V 60Hz 30A
Power: 3.3 Kw
Tape Thickness: 0.4 – 3mm
Max Tape Width: 3"
Feeder Speed: 23ft/min
NOTE: Please refer to the PDF under Additional Resources for important information regarding the glues used with this machine
