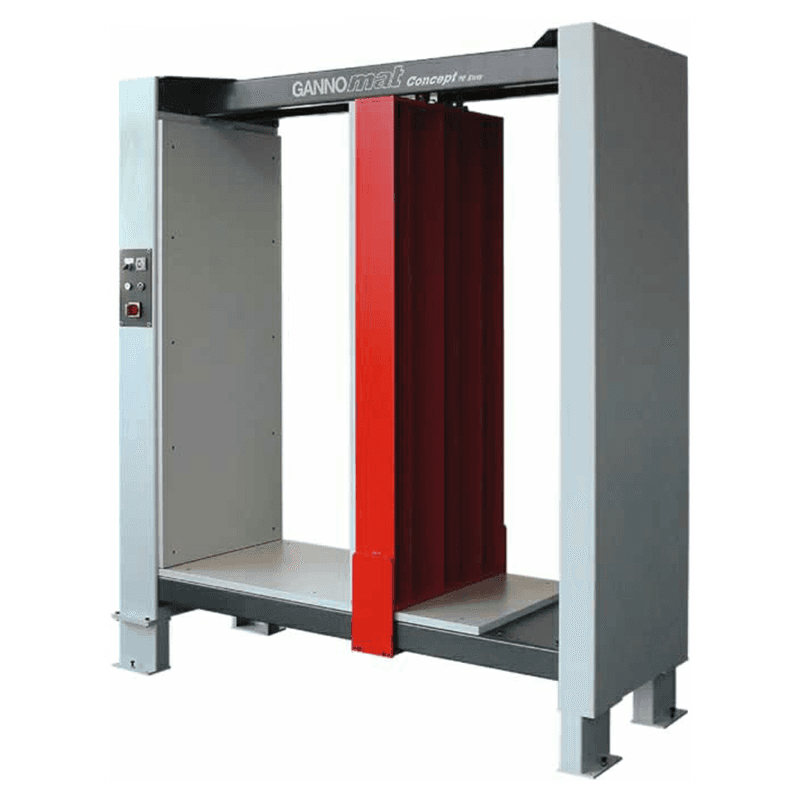

Concept Easy 170 Solid Platen Case Clamp

Standard Machine Equipped With:

• Sturdy stress-free steel frame construction
• Steel bar side pressure beam construction with solid platen surface
• Continuous left-side counter pressure surface and solid floor
• Motorized adjustment of the pressure beam by precision trapezoidal-threaded spindles (for optimal lead and concentric accuracy), heavy duty machine nut with integral grease reservoir
• Selector knob for variable pressing force anywhere between 300kg - 2200kg
• Pressing force of the pressure beam is digitally regulated by frequency changer for wear-free torque transfer
• Travel/pressing velocity is 5mm-10mm-25mm/second by selector knob
• Simple operation by directional push buttons
• Adjustable clamping cycle time 0-30 minutes (programmable to seconds or hours), with automatic opening

Working dimensions:

• Working/loading height (without legs) 200mm (7-7/8")
• Length - Minimum 150mm (5-29/32"), Maximum 1300mm (51-3/16")
• Height - Minimum 150mm (5-29/32"), Maximum 1700mm (66-59/64")
• Depth - 700mm (27-35/64")

Power Requirements:

• UL listed electrical components, Standard voltage 220v, 3 phase, 60 Hz
• Wye power not delta
• All case clamps require 220V 3-phase wye power with ground
• All three phase must measure the same Voltage from A, B or C phase to neutral (120V, 277V) and between phases at either 208V, 220V or 480V
• Akins machinery division of wurth baer supply recommends that a licensed electrician for your jurisdiction measure the power in your facility with proper equipment to assure that the connection provides wye power
• If wye power is not available a delta to Wye isolation transformer must be procured and properly installed prior to providing power to the gannomat machine
• Connection of any of the listed gannomat
• Machines to a delta or open delta power sources
• Viods factory and OEM component warranties
• Isolation transformer is needed with Delta (AKA: "high leg") power

Accessories:

• Set of machine legs for working height 300mm/400mm/500mm/600mm/700mm (0750-0820)
• Pair of top clamping cylinders for easy 170 (0750-TC170)
