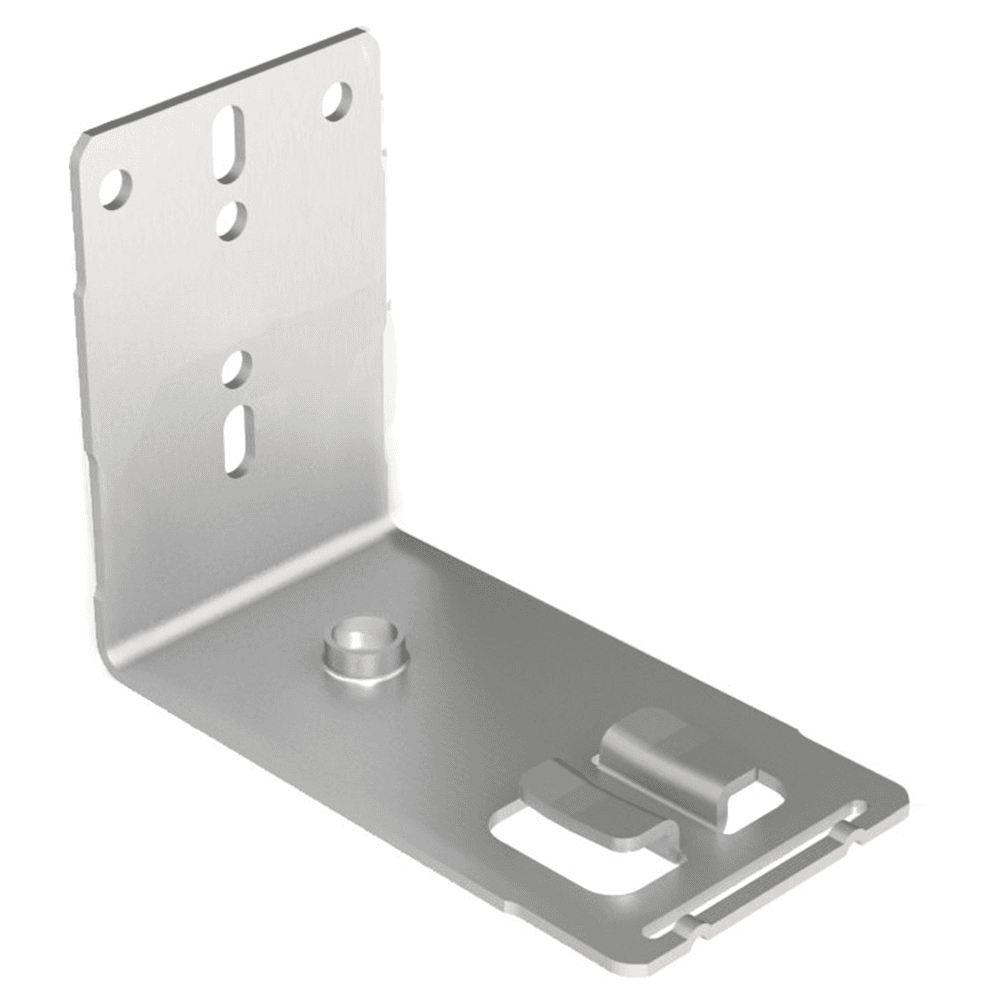

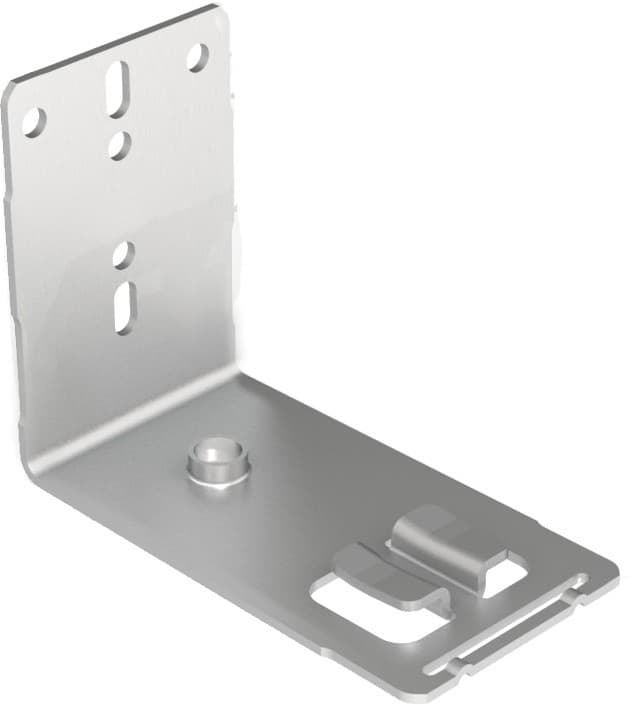

Tandem Narrow Rear Mounting Bracket
Item # B295.3550
•Mfr # 295.3550.01
$1.11
/Each
24 items
$1.00/Each
100 items
$0.96/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Tandem Narrow Rear Mounting Bracket
NOTE: TWO REQUIRED PER DRAWER
Features:
• For TANDEM 554 and 563 H/F series runners only
• For applications with side recess space limitations (end panel)
• Maximum dynamic load capacity 45 lb
• Lateral self-alignment 3 (1/8")
• Non-handed, one-piece stamped steel design, zinc-coated
• Maximum inside cabinet depth is 15 (19/32") less than 295.3750.03 allows
• Use at least three #6 wood screws
• Not for use with 563 series 9" runners
NOTE: TWO REQUIRED PER DRAWER
Features:
• For TANDEM 554 and 563 H/F series runners only
• For applications with side recess space limitations (end panel)
• Maximum dynamic load capacity 45 lb
• Lateral self-alignment 3 (1/8")
• Non-handed, one-piece stamped steel design, zinc-coated
• Maximum inside cabinet depth is 15 (19/32") less than 295.3750.03 allows
• Use at least three #6 wood screws
• Not for use with 563 series 9" runners
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Length | |
| Finish | ZInc |
| Drawer Length | |
| Closing Type | |
| Model | Tandem |
| Load Capacity | |
| Travel | |
| Product Type | Rear Mounting Bracket |
| Left or Right | |
| Cabinet Type | |
| Mounting Type | |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 0.1" |
| Cabinet Width | |
| Thickness | |
| Overlay |
