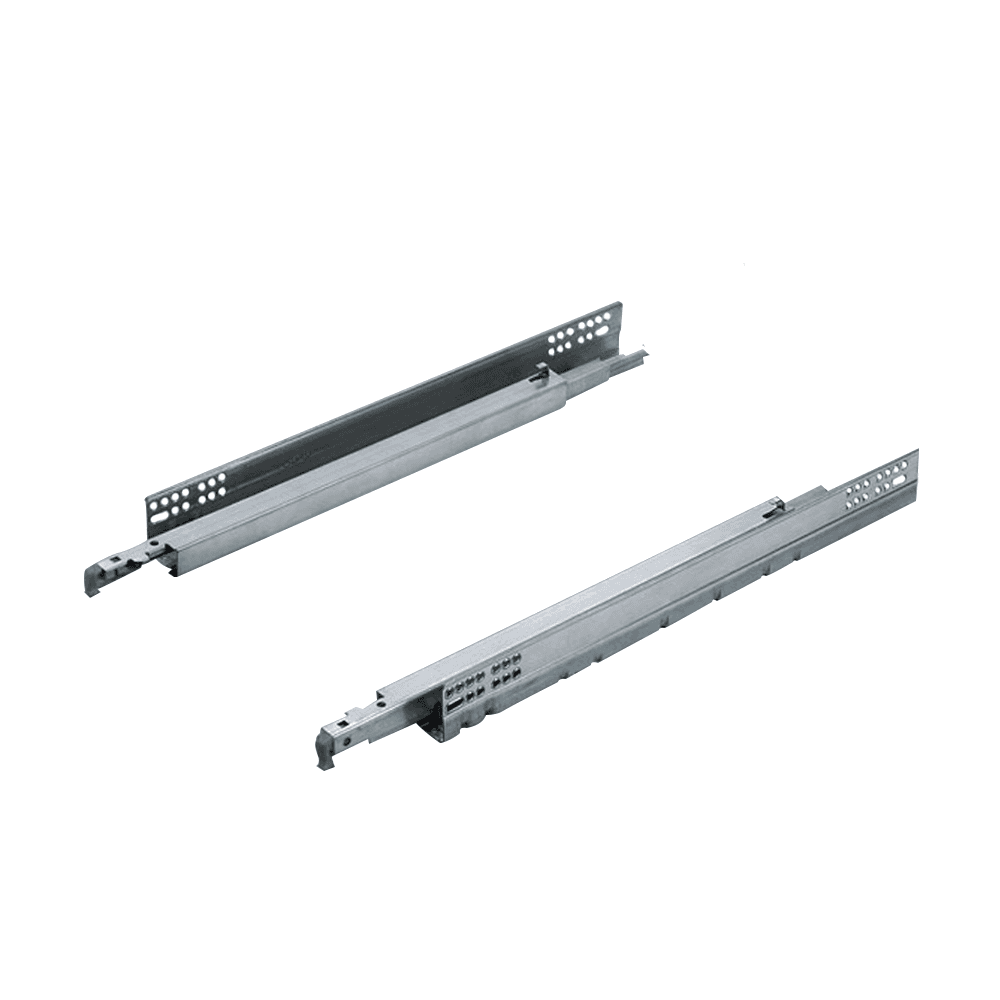

21" Futura SMOVE 7955 Undermount Drawer Slide for 3/4" Material, 100lb Capacity,Full Extension, Soft-Closing
Item # SALA7955.533-CP6
•Mfr # A7955/533-CP6
Drawer Length:
Product Details
Futura Smove Standard Duty Undermount Slides for Drawer Thickness up to 3/4"
Futura, the concealed runner produced by Salice, is suitable for all drawer opening applications, with full•extension.
With Smove soft close feature fully integrated in the runner system.
Features:
• Load capacity: 100 lbs static/75 lbs dynamic.
• Full Extension
• With Smove soft closing.
• Adjustable clips allow for easy drawer insertion and removal.
• Finish: bright zinc-plated.

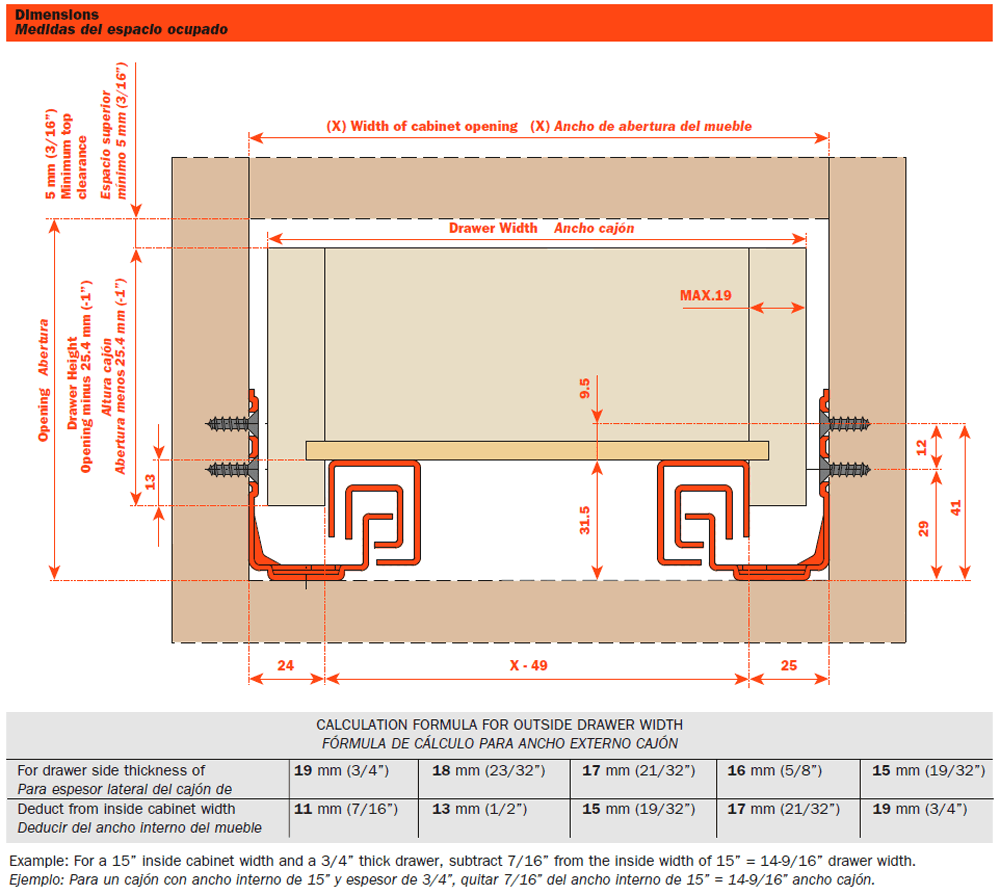

• For 19 mm (3/4") max drawer material.
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw

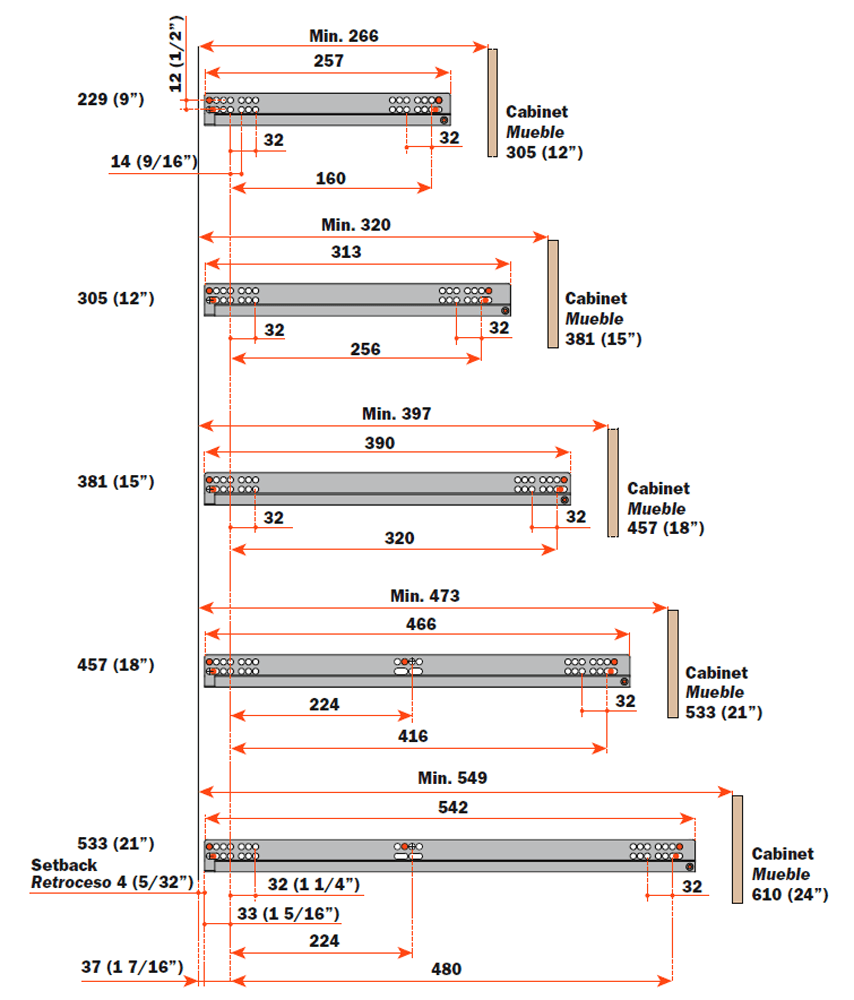

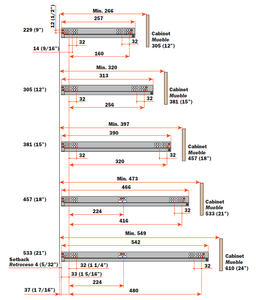

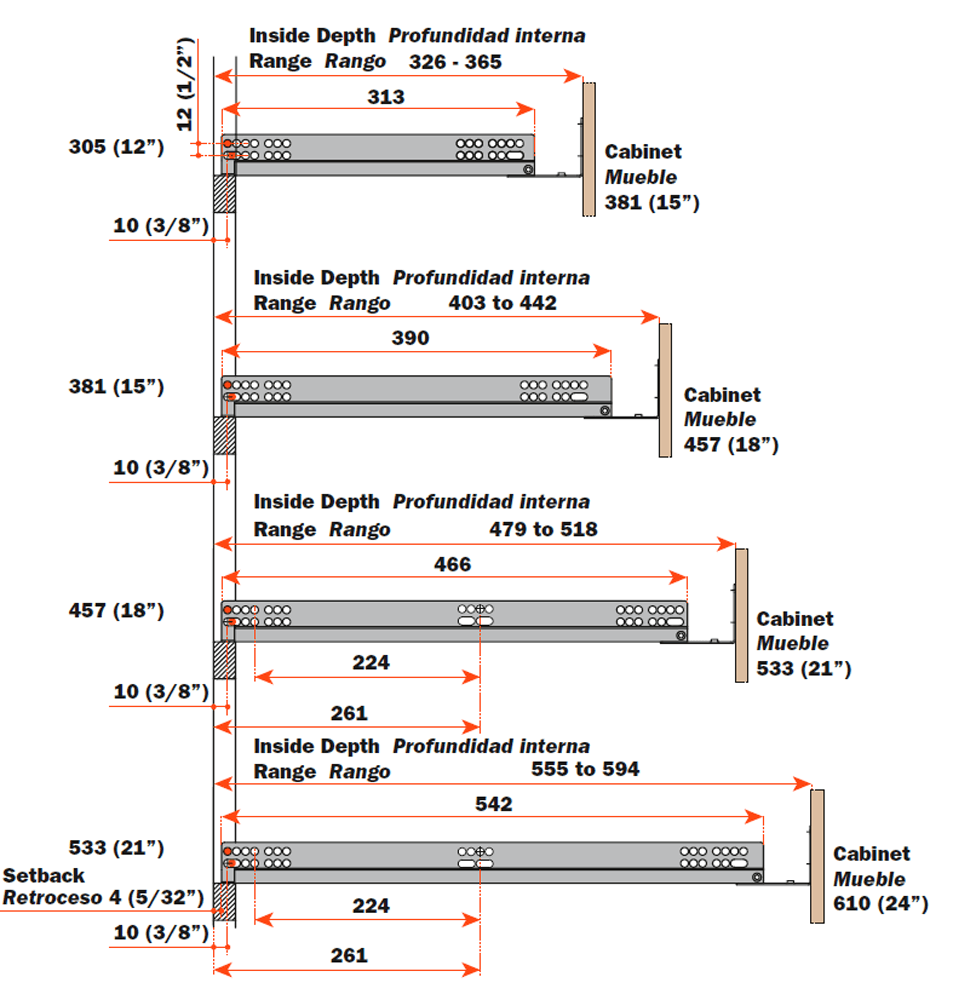

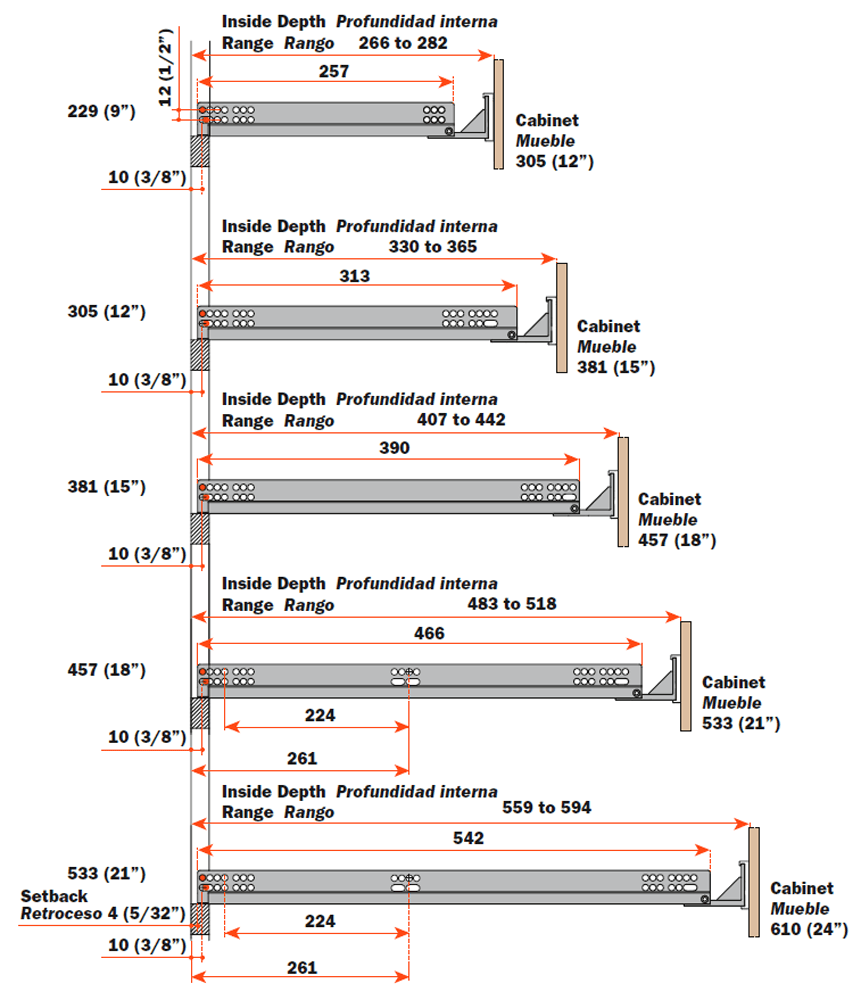

Setback on Standard Drawers: 4mm (5/32")

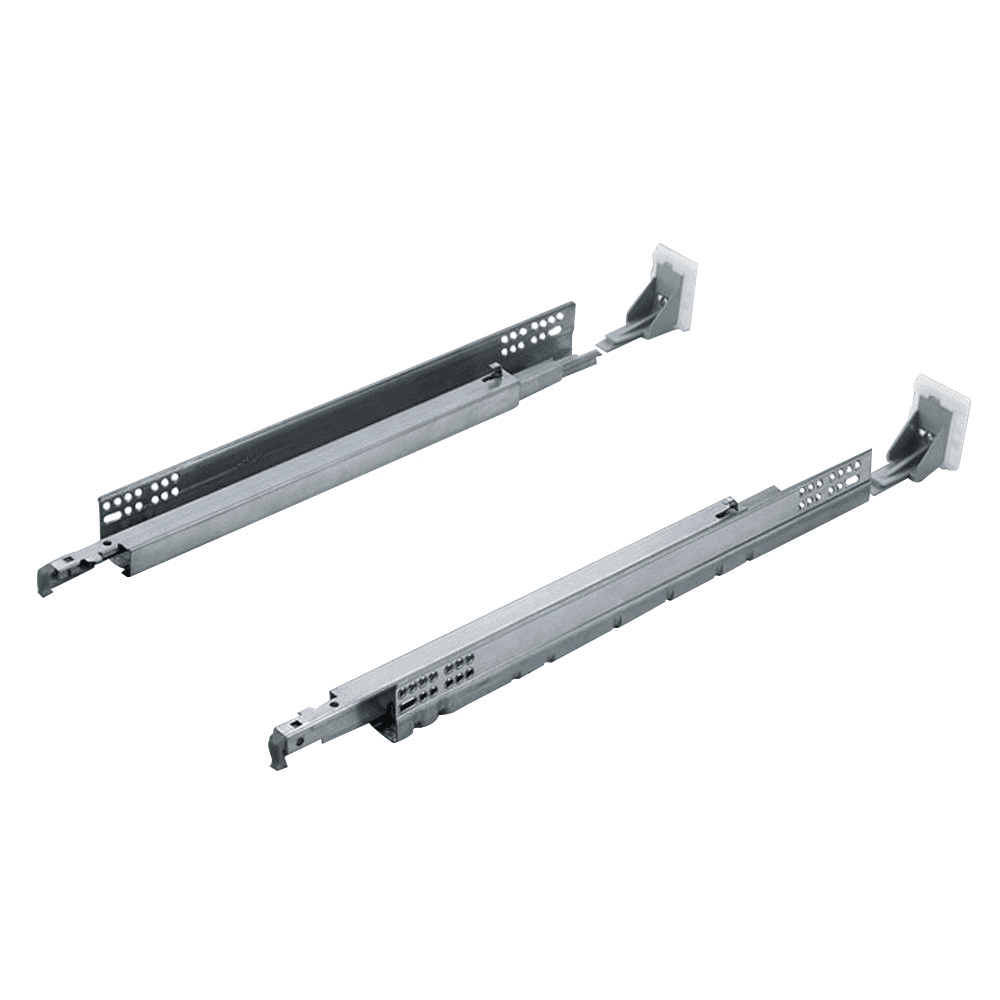

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Futura, the concealed runner produced by Salice, is suitable for all drawer opening applications, with full•extension.
With Smove soft close feature fully integrated in the runner system.
Features:
• Load capacity: 100 lbs static/75 lbs dynamic.
• Full Extension
• With Smove soft closing.
• Adjustable clips allow for easy drawer insertion and removal.
• Finish: bright zinc-plated.
• For 19 mm (3/4") max drawer material.
Install with #6 x 5/8" Flat Head Wood Screw or #6 x 11.5mm System Screw
Setback on Standard Drawers: 4mm (5/32")
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Specifications
| Box Quantity | 1 |
| Finish | Bright Zinc-Plated |
| Drawer Length | 21" |
| Closing Type | Soft-Closing |
| Model | Futura |
| Load Capacity | 100lb |
| Travel | Full Extension |
| Product Type | Undermount Drawer Slide |
| Left or Right | Both (Pair) |
| Mounting Type | Undermount |
| Material Thickness | 3/4" |
