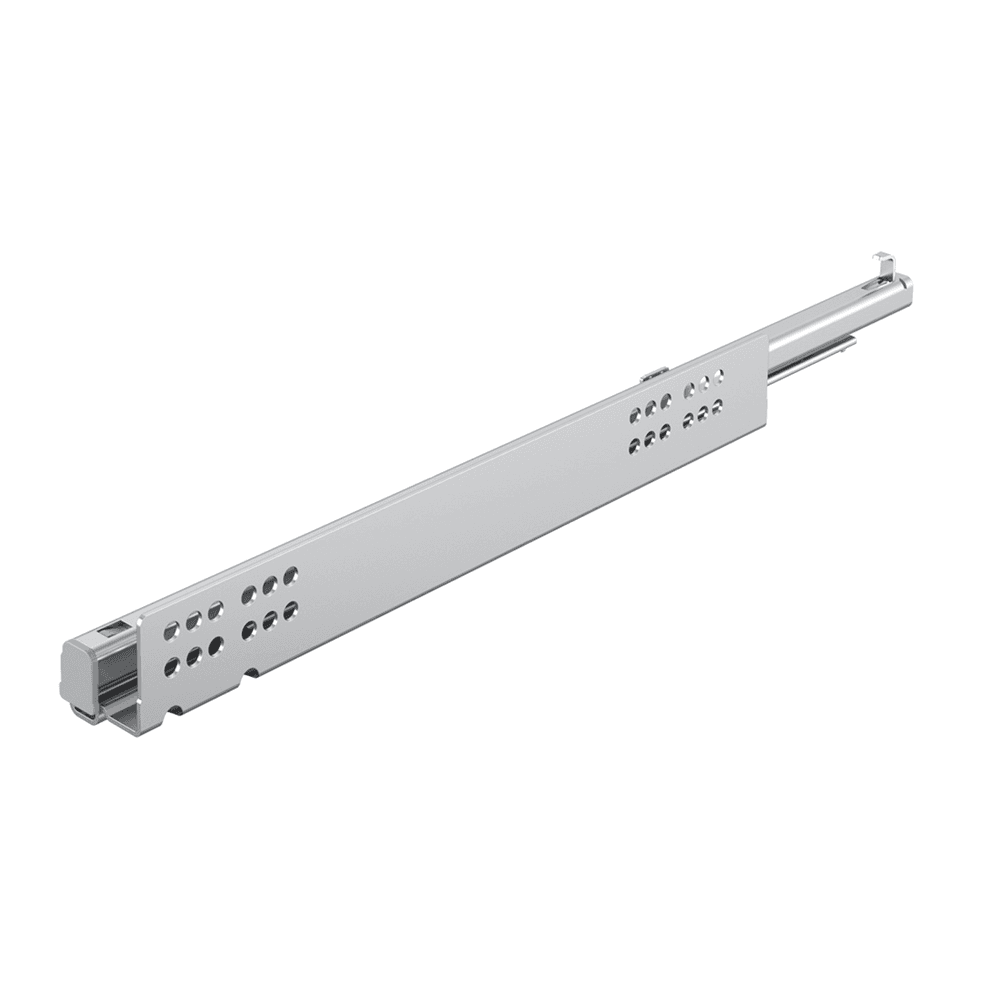

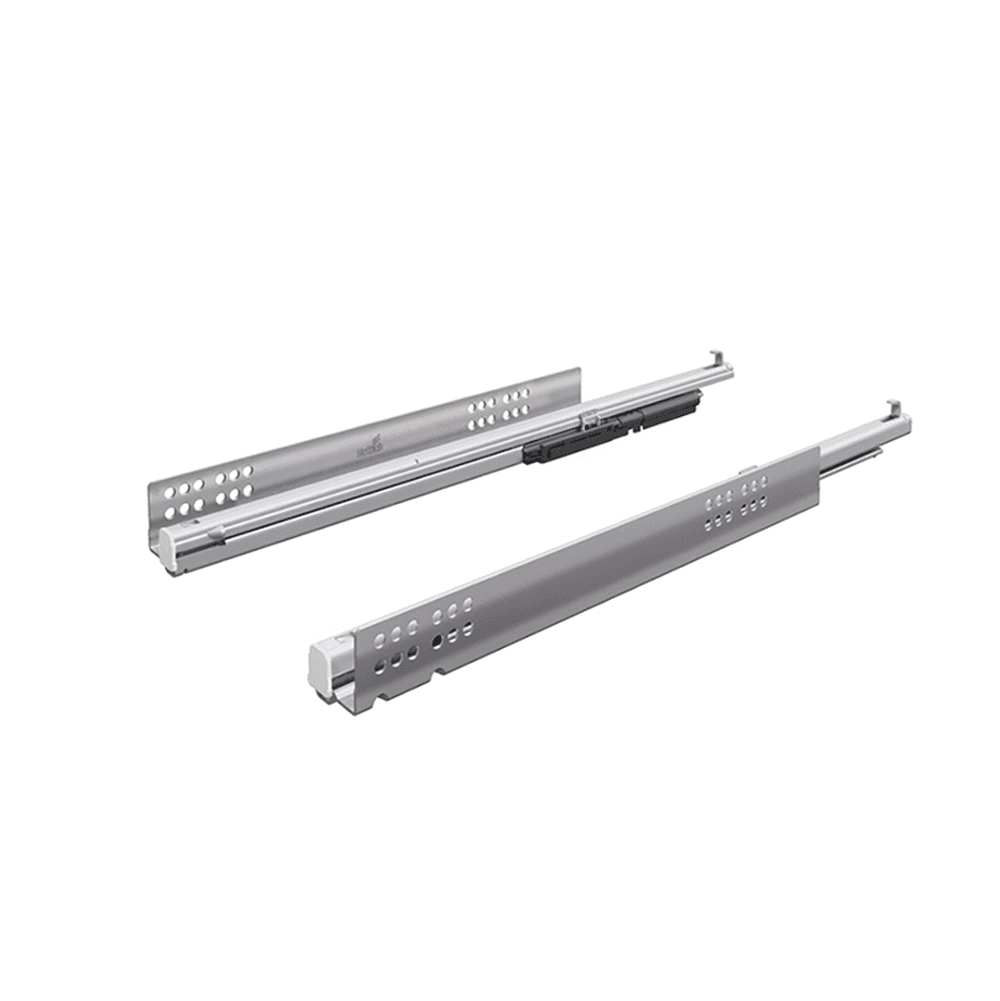

21"Quadro V6 IW21 Right-Hand Undermount Drawer Slide for 5/8" Material, 100lb Capacity Full Extension with Silent System Soft-Closing
Item # HET9134332
•Mfr # 9134332
Product Details
Quadro V6 IW21 Standard Duty Undermount Slides for Drawer Thickness up to 5/8"
RIGHT SIDE
Left side and right side slides sold seperately!
Quadro drawer runners guarantee the ultimate in drawer convenience. With attractive design from concealed installation. With long life and constant top performance. The robust, resilient runners provide the steel balls with optimum control - for perfect vertical and lateral stability.
The optional Silent System gently shuts drawers in complete silence. The Push to open function automatically opens the pull-out in response to a light press on the front panel - for handleless fronts.
Features:
• Silent System: the integrated Silent System closes the drawer quietly and gently

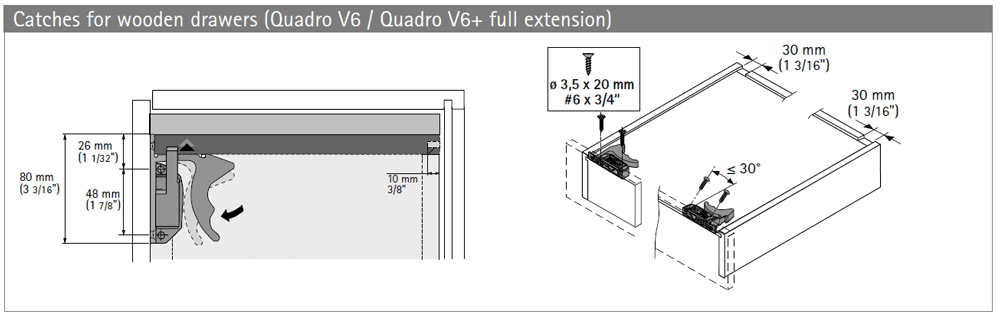

• Convenient slide on installation with catches and tool-less height adjustment
• Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements
• Load capacity up to 90 lbs dynamic (100 lbs static), as per ANSI/BHMA 156.9 grade 1 specifications on a 21" length slide
• Galvanized steel, suitable for rooms exposed to moisture

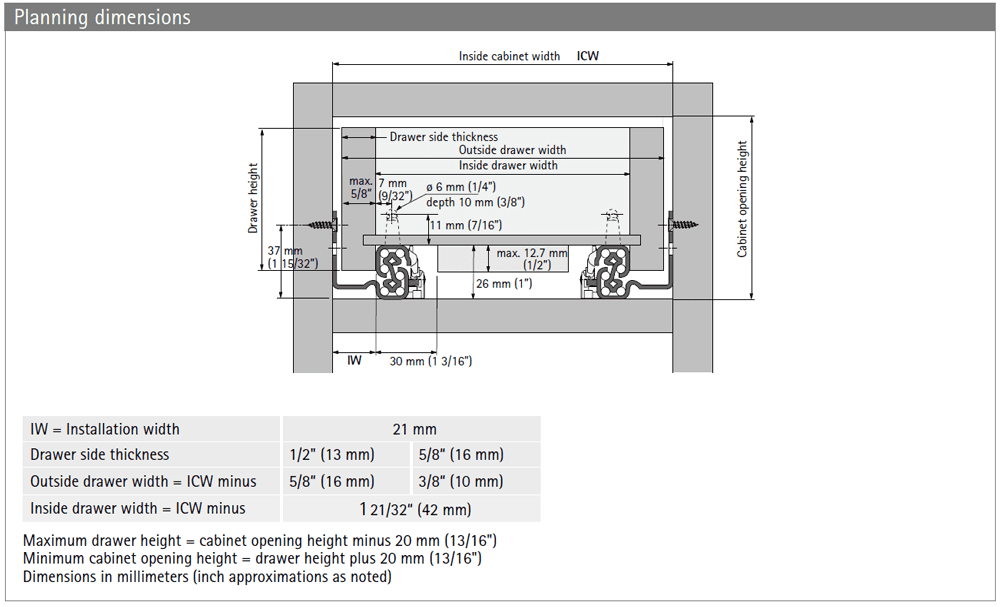

• For 1/2" (13 mm) or 5/8" (16 mm) drawer side thickness
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
RIGHT SIDE
Left side and right side slides sold seperately!
Quadro drawer runners guarantee the ultimate in drawer convenience. With attractive design from concealed installation. With long life and constant top performance. The robust, resilient runners provide the steel balls with optimum control - for perfect vertical and lateral stability.
The optional Silent System gently shuts drawers in complete silence. The Push to open function automatically opens the pull-out in response to a light press on the front panel - for handleless fronts.
Features:
• Silent System: the integrated Silent System closes the drawer quietly and gently
• Convenient slide on installation with catches and tool-less height adjustment
• Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements
• Load capacity up to 90 lbs dynamic (100 lbs static), as per ANSI/BHMA 156.9 grade 1 specifications on a 21" length slide
• Galvanized steel, suitable for rooms exposed to moisture
• For 1/2" (13 mm) or 5/8" (16 mm) drawer side thickness
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Specifications
| Box Quantity | 10 |
