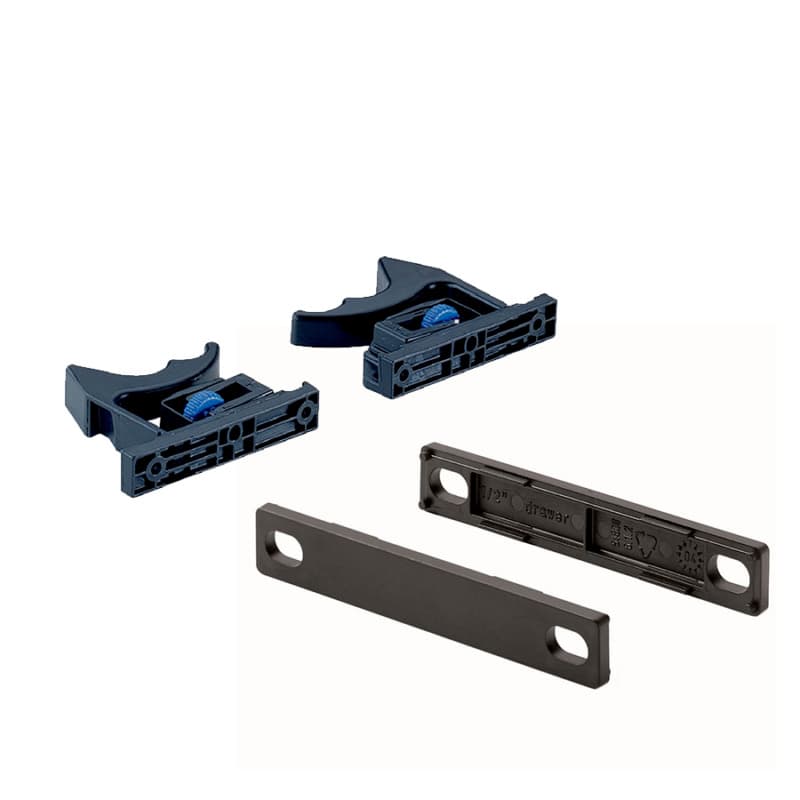

Quadro Locking Device Set with Spacer
Item # HET9026839
•Mfr # 9026839
$1.60
/Pair
10 items
$1.42/Pair
Min Order: 1
Qty mult. by: 1
Product Details
FOR USE WITH HETTICH V6 IW21 DRAWER SLIDES FOR 1/2" OR 5/8" DRAWER THICKNESS APPLICATIONS

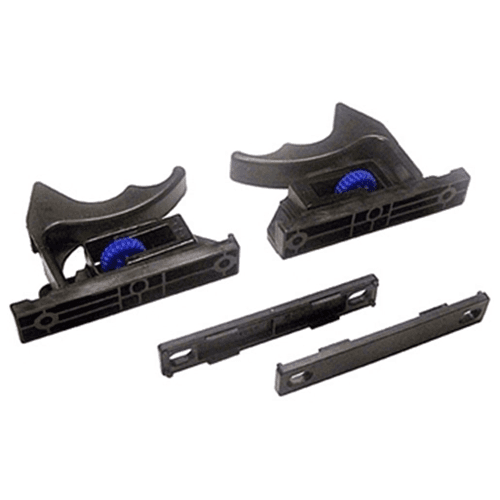

• Set contains one pair front fixing clips left/right for 16 mm (5/8") drawer subfront thickness, and two optional spacers for 13 mm (1/2") drawer subfront thickness
• With + 2 mm toolless height adjustment
• Minimum drawer inside width = 165 mm (6 1/2")

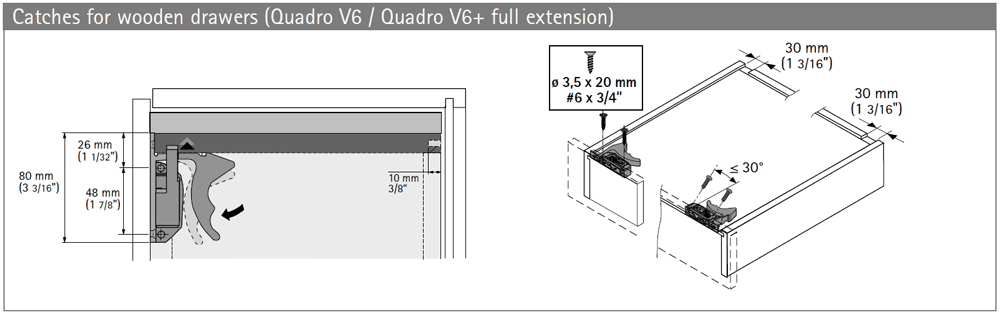

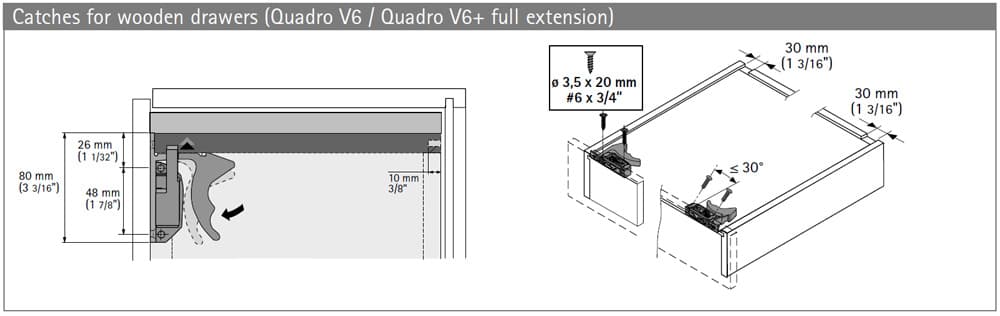

• Installation recommended with two # 6 x 7/8" flat head screws per clip
• Set contains one pair front fixing clips left/right for 16 mm (5/8") drawer subfront thickness, and two optional spacers for 13 mm (1/2") drawer subfront thickness
• With + 2 mm toolless height adjustment
• Minimum drawer inside width = 165 mm (6 1/2")
• Installation recommended with two # 6 x 7/8" flat head screws per clip
Specifications
| Box Quantity | 1 |
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Quadro V6 IW21 |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Standard |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
