Quadro Locking Device Set for 1/2" Material Thickness
Item # HET9140416
•Mfr # 9140416
$1.34
/Set
100 items
$1.13/Set
500 items
$1.05/Set
Min Order: 1
Quantity Multiple by: 1
Product Details
FOR USE WITH HETTICH V6 IW21 DRAWER SLIDES FOR 1/2" DRAWER THICKNESS APPLICATIONS

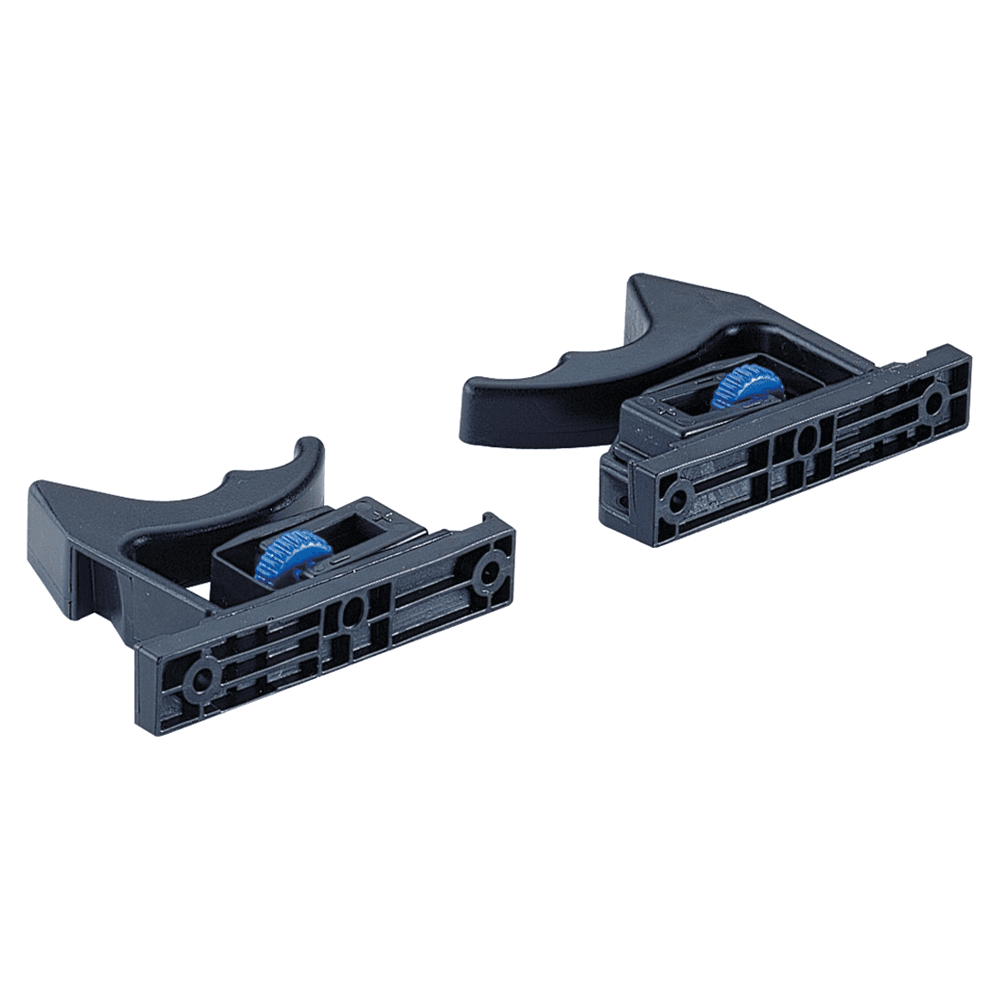

• Contains one pair front fixing clips left/right each
• With + 2 mm toolless height adjustment
• Minimum drawer inside width = 165 mm (6 1/2")

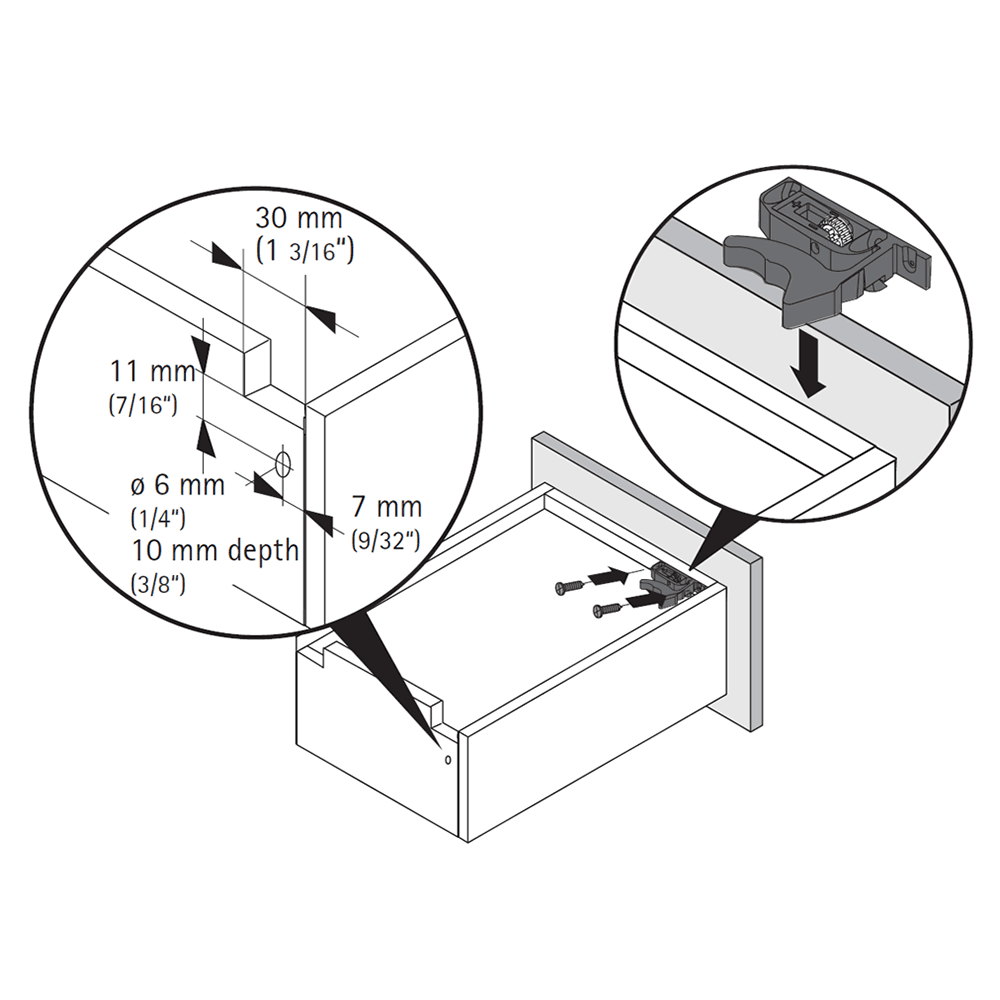

• Installation recommended with two # 6 x 3/4" flat head screws per clip
• Contains one pair front fixing clips left/right each
• With + 2 mm toolless height adjustment
• Minimum drawer inside width = 165 mm (6 1/2")
• Installation recommended with two # 6 x 3/4" flat head screws per clip
Specifications
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Quadro V6 IW21 |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Standard |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 1/2" |
| Cabinet Width | |
| Thickness | |
| Overlay |
