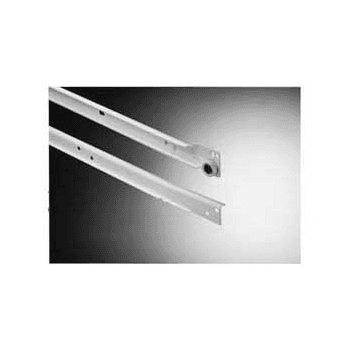

6600 Euro Drawer Slide with 75lb Capacity, 3/4 Extension, Bottom-Mount, Self-Closing, White Epoxy, 20", Polybag
Item # G6600-20WH
•Mfr # 01505-05 POLY
Product Details
Features:
• 3/4 extension
• Side mounted application with bottom lip for easy location
• Adapts to face frame or frameless applications
• Higher side screw holes prevent drawer sides from splitting
• Self-closing action at 86mm (3-3/8") with stability washer behind captive roller
• 12.7mm (1/2") side clearance
• Tolerance adjustment is 3mm
• Profiled to prevent contact with protruding screw heads
• Fasten using #6 x 5/8" flat head philips head wood screws
• Steel construction with baked-on epoxy coated finish
• 3/4 extension
• Side mounted application with bottom lip for easy location
• Adapts to face frame or frameless applications
• Higher side screw holes prevent drawer sides from splitting
• Self-closing action at 86mm (3-3/8") with stability washer behind captive roller
• 12.7mm (1/2") side clearance
• Tolerance adjustment is 3mm
• Profiled to prevent contact with protruding screw heads
• Fasten using #6 x 5/8" flat head philips head wood screws
• Steel construction with baked-on epoxy coated finish
Specifications
| Box Quantity | 1 |
| Length | 20" |
| Finish | White Epoxy |
| Closing Type | Self-Closing |
| Load Capacity | 75lb |
| Travel | 3/4 Extension |
| Product Type | Euro Drawer Slide |
| Mounting Type | Bottom-Mount |
| Material | Nylon |
| Slide Type | Roller |
