Movento Lateral Stabilizer Set for 763/769
Item # BZS7M686MU-GR
•Mfr # ZS7M686MU
$26.87
/Set
10 items
$25.84/Set
Min Order: 1
Quantity Multiple by: 1
Product Details
MOVENTO is the latest advancement in concealed runner technology. It brings together all of the features, innovations and benefits that Blum has developed since first manufacturing drawer runners in the 1960s.
Features:
• Increases lateral stability
• Synchronizes left and right runners to prevent drawer racking
• Ideal for wide applications using MOVENTO
• Does not increase load capacity
• Frameless and blocked-out face frame applications 305 (12") to 610 (24") length drawers
• Recommended for opening widths 610 (24") and wider

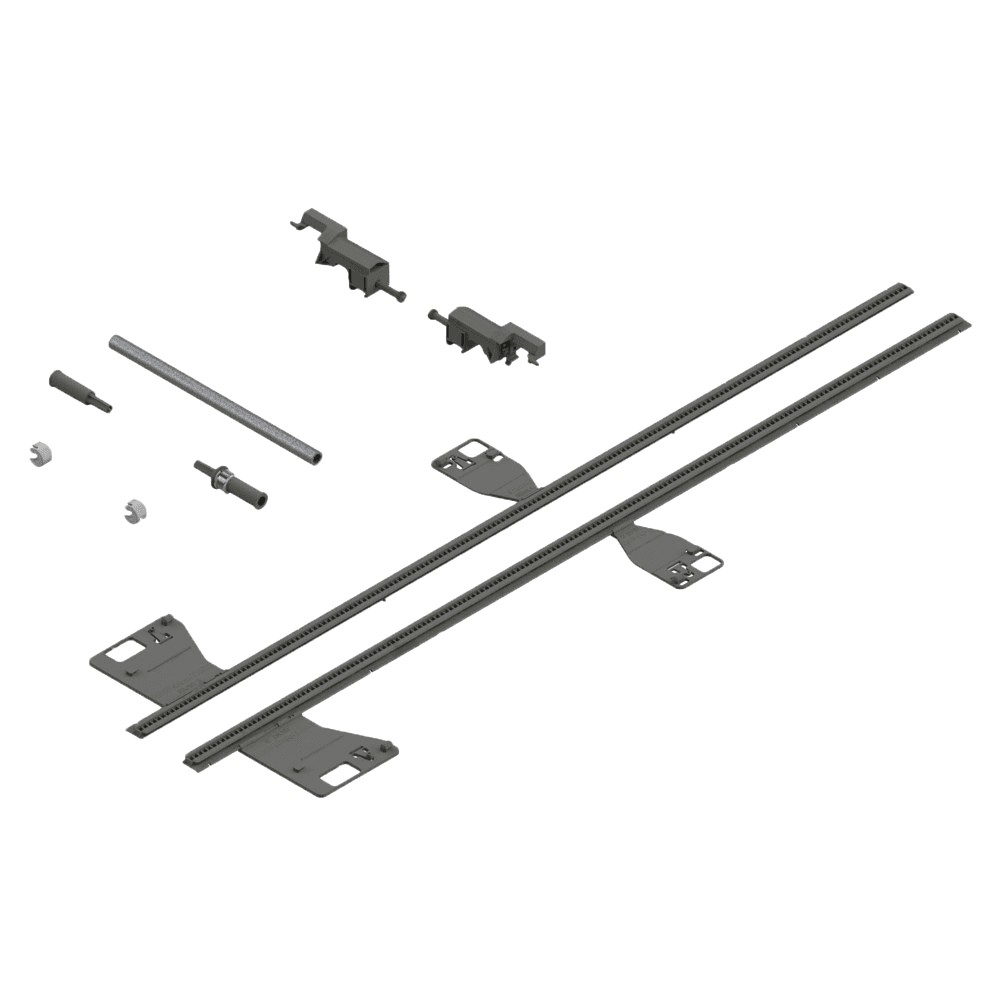

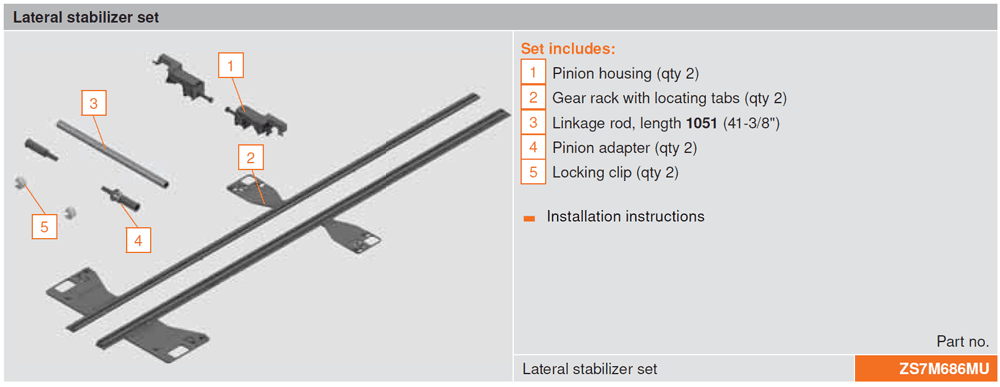

Set Includes:
• (2) Pinion housing
• (2) Gear rack with locating tabs
• (2) Pinion adapter
• (2) Locking clip
• Linkage rod, length 1051 (41-3/8")
Features:
• Increases lateral stability
• Synchronizes left and right runners to prevent drawer racking
• Ideal for wide applications using MOVENTO
• Does not increase load capacity
• Frameless and blocked-out face frame applications 305 (12") to 610 (24") length drawers
• Recommended for opening widths 610 (24") and wider
Set Includes:
• (2) Pinion housing
• (2) Gear rack with locating tabs
• (2) Pinion adapter
• (2) Locking clip
• Linkage rod, length 1051 (41-3/8")
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Movento |
| Load Capacity | |
| Travel | |
| Product Type | Lateral Stabilizer Set |
| Left or Right | |
| Cabinet Type | |
| Mounting Type | |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
