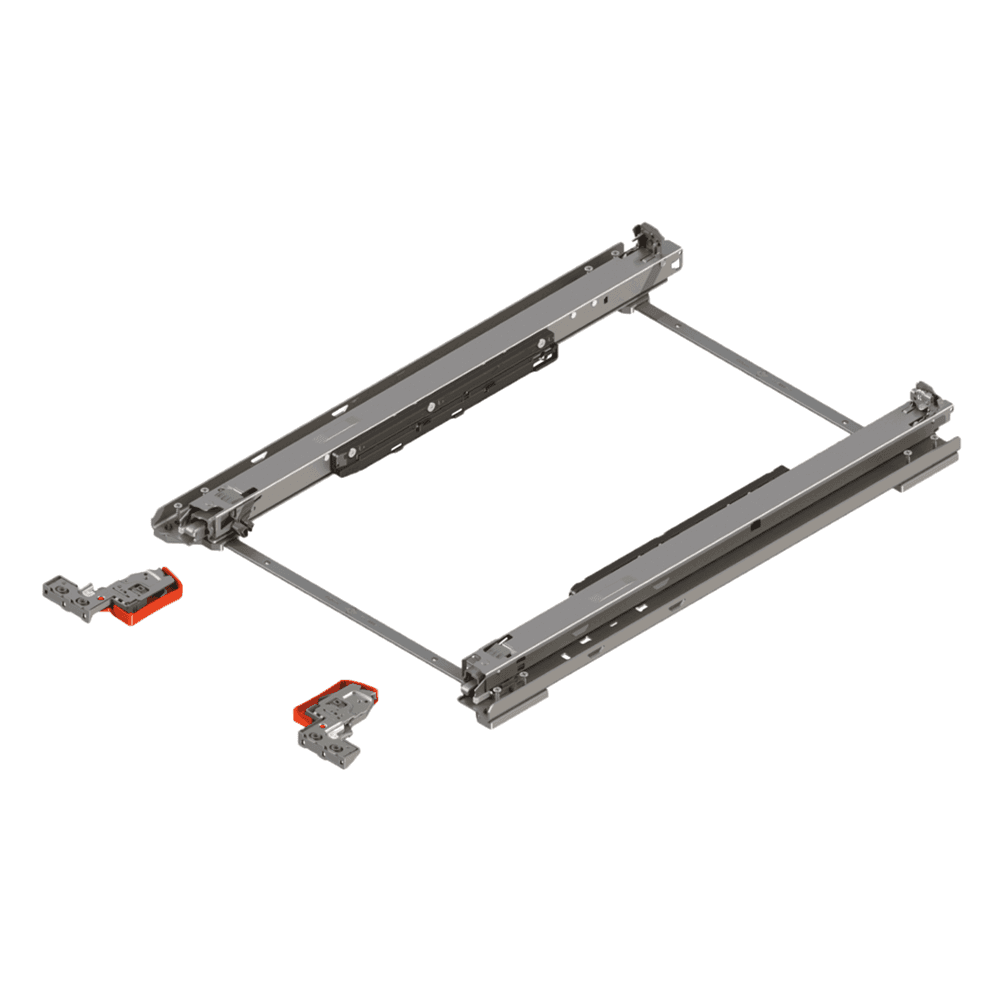

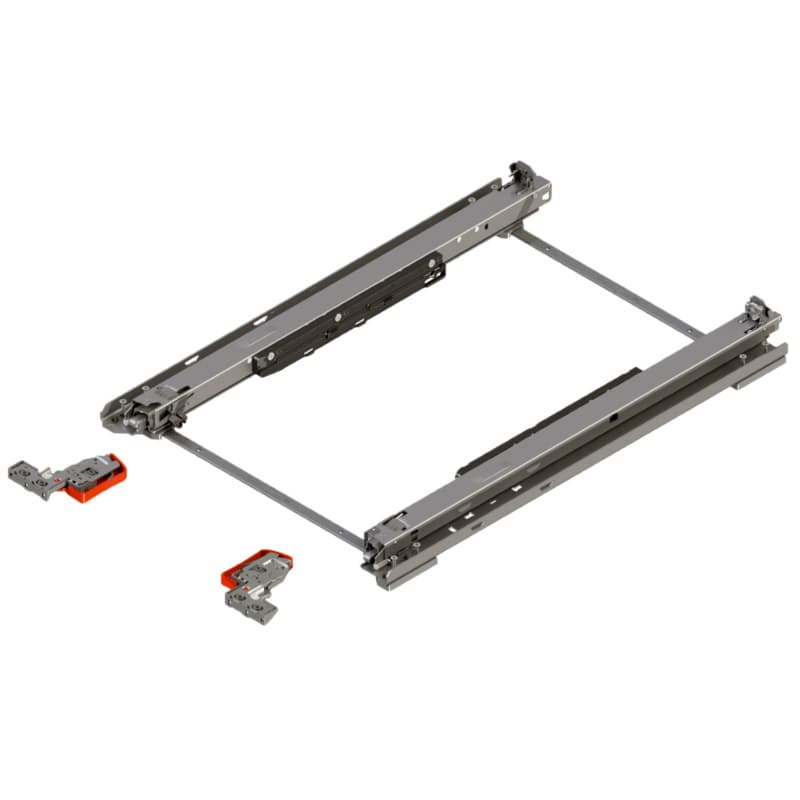

Movento Waste/Recycle Drawer Set for Tip-on Blumotion for 12" minimum opening width
Item # B769R5337SB
•Mfr # 769R5337SB
Product Details
MOVENTO is the latest advancement in concealed runner technology. It brings together all of the features, innovations and benefits that Blum has developed since first manufacturing drawer runners in the 1960s.
Description:
• Pre-assembled bottom mount set
• MOVENTO heavy duty full extension concealed runners with BLUMOTION
• For 12" minimum opening widths
• For 16 (5/8") drawer side thickness
• 19 (3/4") over extension
• For face-frame and frameless applications
• Tool-free side-to-side, height and tilt adjustment
• Maximum 6 (1/4") cabinet bottom recess
• 135lb static load capacity
• Designed to be used with SERVO-DRIVE or TIP-ON BLUMOTION
Set Includes:
• MOVENTO heavy duty runner set with pre-mounted #6 x 1" wood screws for installation (qty 8)
• Standard locking device (qty 2) with #6 x 5/8" wood screws for installation (qty 4)
Description:
• Pre-assembled bottom mount set
• MOVENTO heavy duty full extension concealed runners with BLUMOTION
• For 12" minimum opening widths
• For 16 (5/8") drawer side thickness
• 19 (3/4") over extension
• For face-frame and frameless applications
• Tool-free side-to-side, height and tilt adjustment
• Maximum 6 (1/4") cabinet bottom recess
• 135lb static load capacity
• Designed to be used with SERVO-DRIVE or TIP-ON BLUMOTION
Set Includes:
• MOVENTO heavy duty runner set with pre-mounted #6 x 1" wood screws for installation (qty 8)
• Standard locking device (qty 2) with #6 x 5/8" wood screws for installation (qty 4)
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Finish | Zinc |
| Closing Type | Soft-Closing |
| Model | Movento |
| Load Capacity | 135lb |
| Travel | Full Extension |
| Product Type | Waste/Recycle Drawer Set |
| Cabinet Type | Frameless/Face Frame |
| Mounting Type | Undermount |
| Material | Steel |
