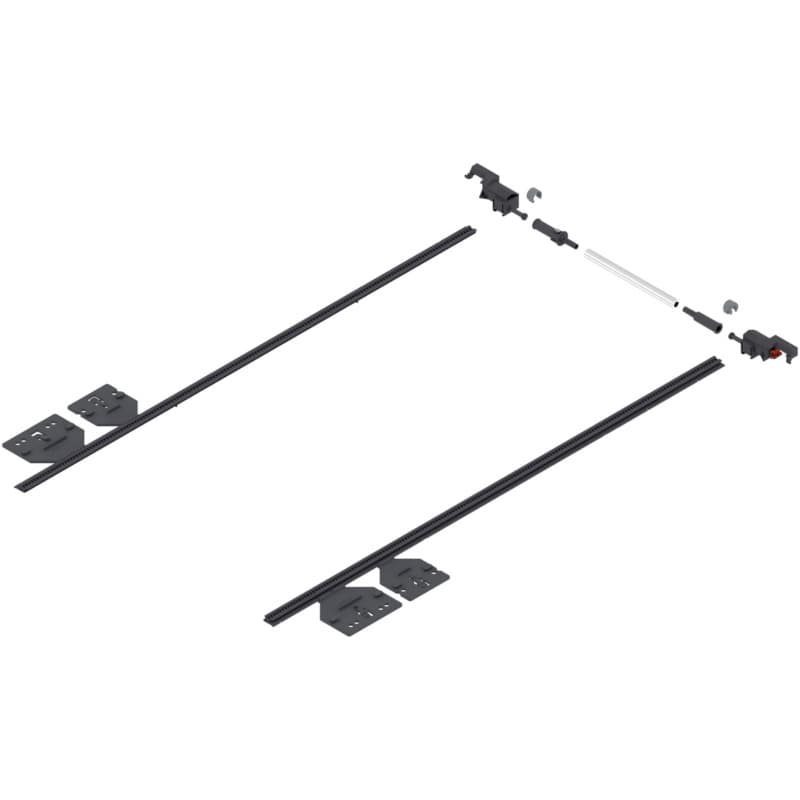

Tandem 563/569 Lateral Stabilizer Kit for Drawer System, 27", Gray
Product Details

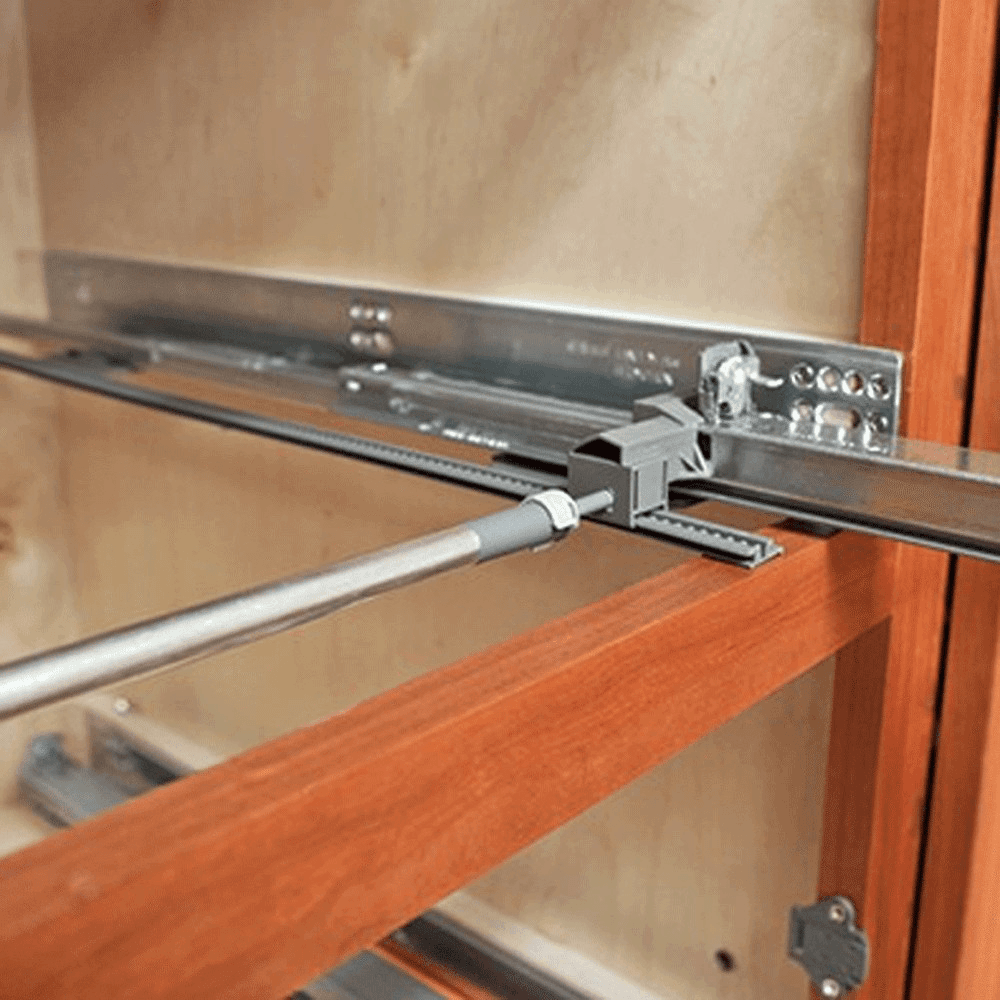

Stabilizer increases lateral stability as it synchronizes left and right runners to prevent drawer racking. Ideal for wide applications using TANDEM 563/569H Series. This does not increase load capacity.
Features:
• Panel and blocked-out face frame applications: 9" - 27" (229mm - 686mm) drawer length
• Face frame applications with rear attachment: 12" - 21" (305mm - 533mm) drawer length
• Recommended for opening widths: 24" (610mm) and wider
• Maximum opening cabinet width: 46-21/32" (1185mm)
• Minimum inside cabinet depth: Setback + runner length + 23/32" (18mm)

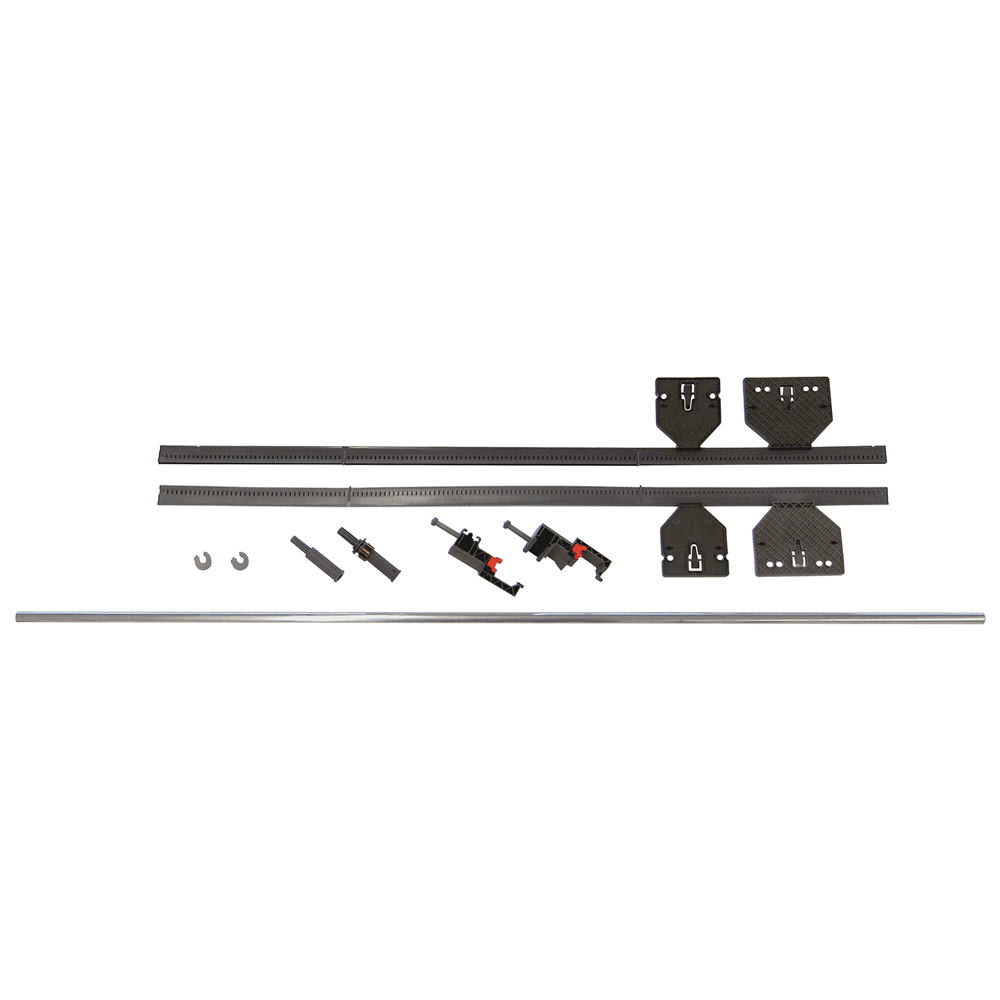

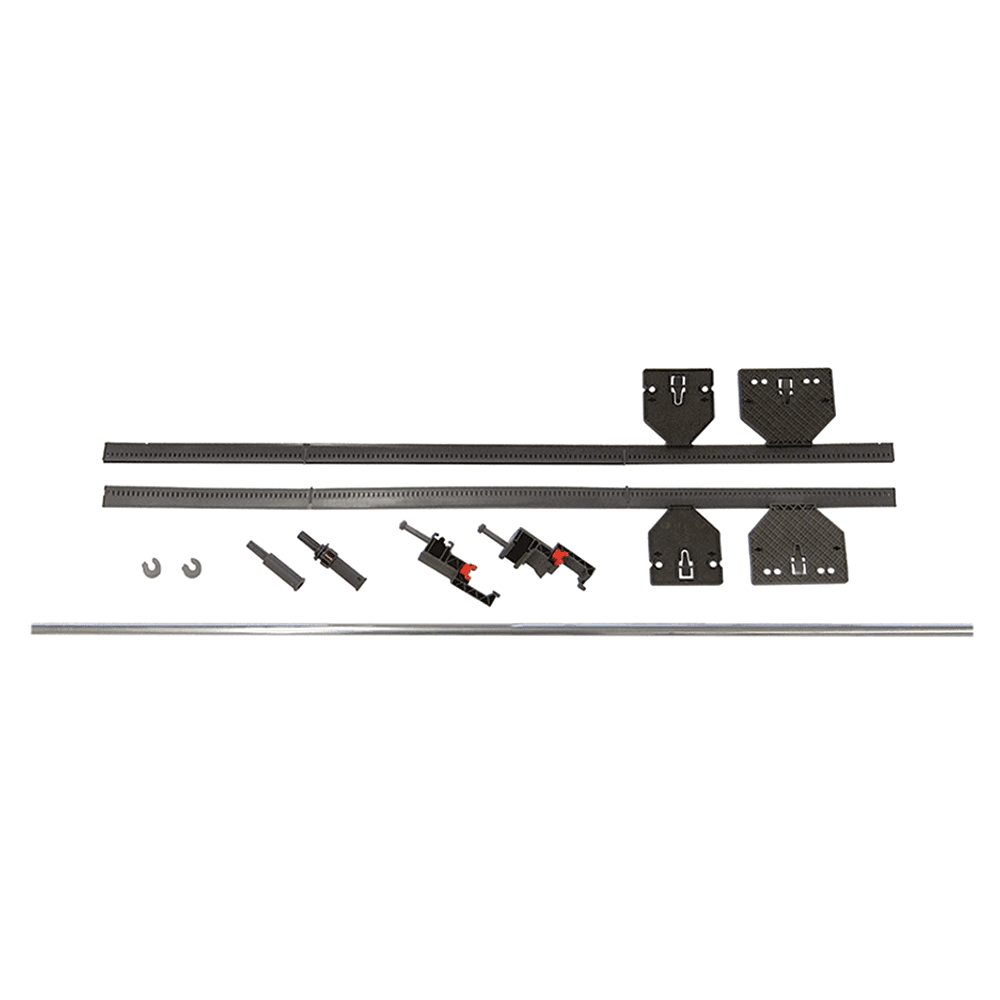

Set Includes:
• Two pinion housing
• Two gear rack with locating tabs
• 34-29/32" (887mm) linkage rod
• Two pinion adapter
• Two locking clip
• Installation instructions
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 10 |
| Product Type | Stabilizer Kit |
| Length | |
| Finish | Gray |
| Width | 24" |
| Height | |
| Mounting Type | |
| Thickness | |
| Material | Aluminum |
| Overlay |
