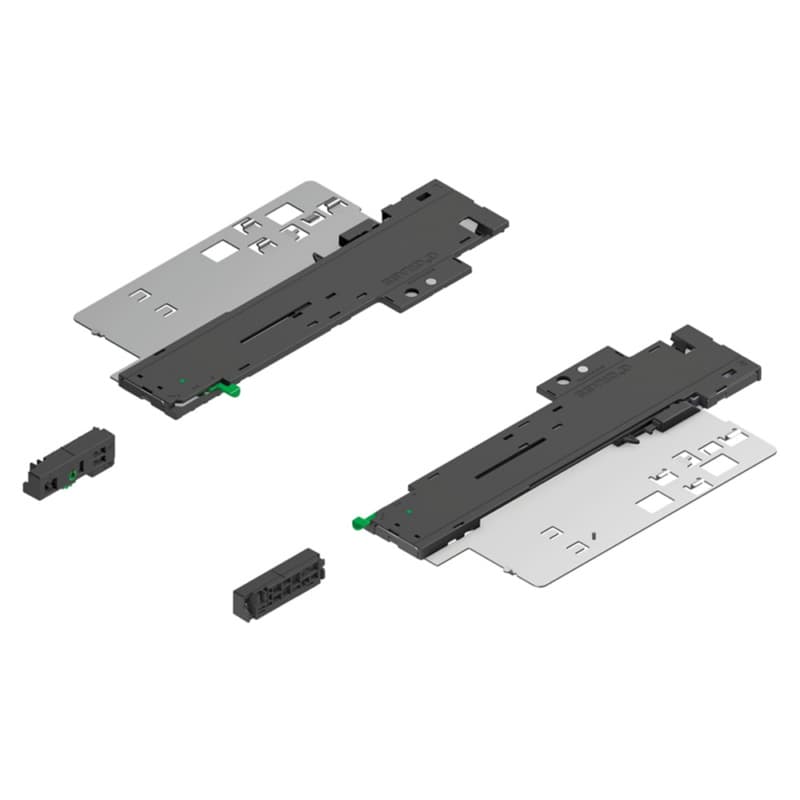

Dynapro Tipmatic Push-To-Open and Soft-Close Set, Unit & Activator

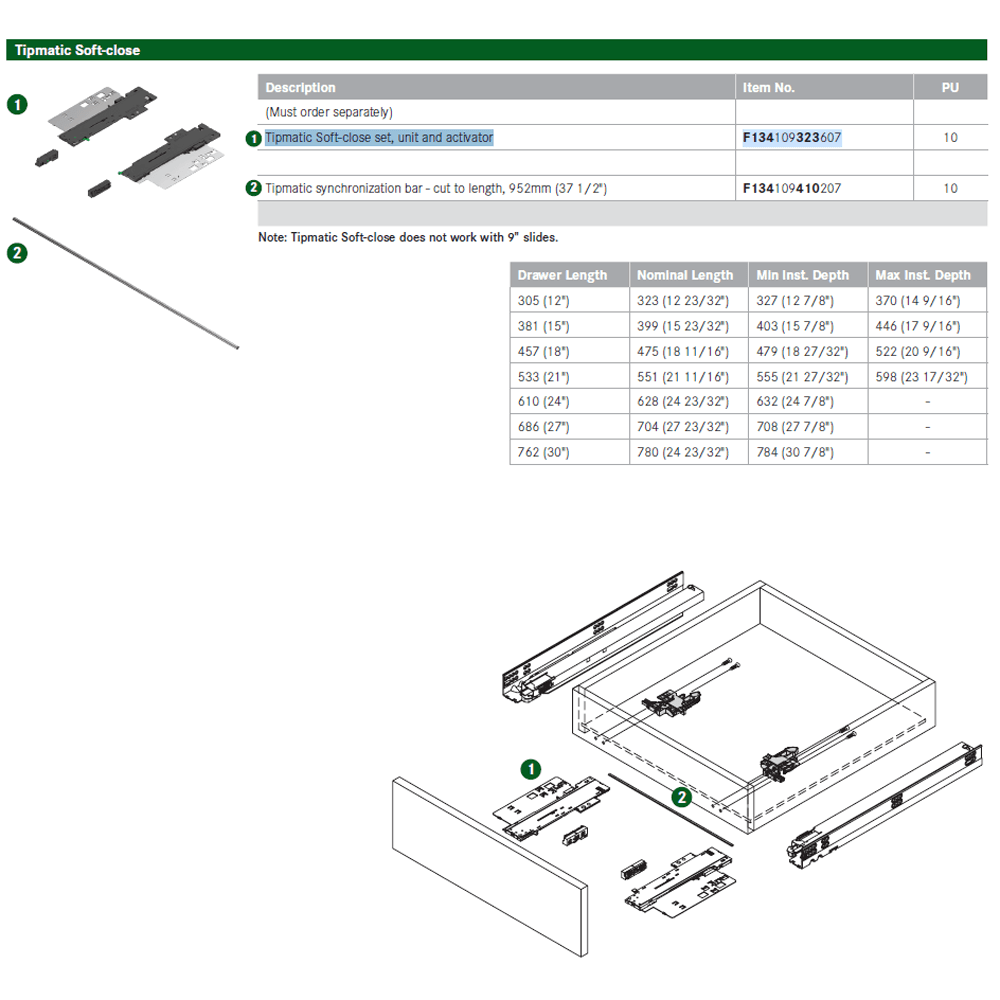

DynaPro Tipmatic Soft-close set, unit and activator

Adds Push-To-Open functionality, allowing hands free opening to drawers installed with Dynapro Drawer Slides

Features:
• Face frame or frameless applications from 16mm (5/8") up to 19mm (3/4") drawer material
• Mechanical opening system for handle-free fronts
• Combines Tipmatic function with Soft-close damping
• Tool-free assembly of the Tipmatic Soft-close unit
• One unit for nominal lengths 305mm (12") up to 762mm (30")
• 3-tier adjustment for the opening force

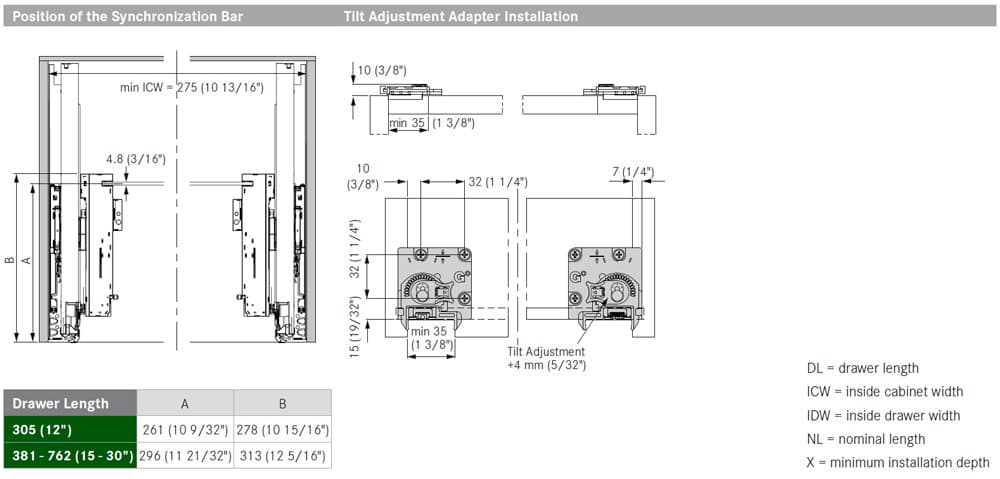

• Wide activation zone due to synchronization bar
• Works with all Dynapro types including heavy duty
• Works with Vionaro drawers
• Dynapro Tipmatic Soft-close works with all Dynapro front locking devices
• For drawer widths up to 1168mm (46")

NOTE: Tipmatic Soft-Close does not work with 9" Slides

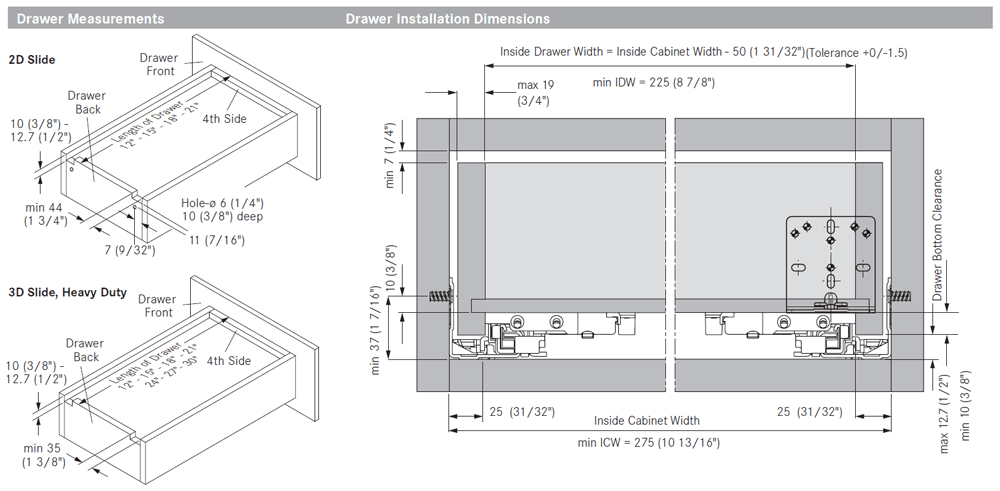

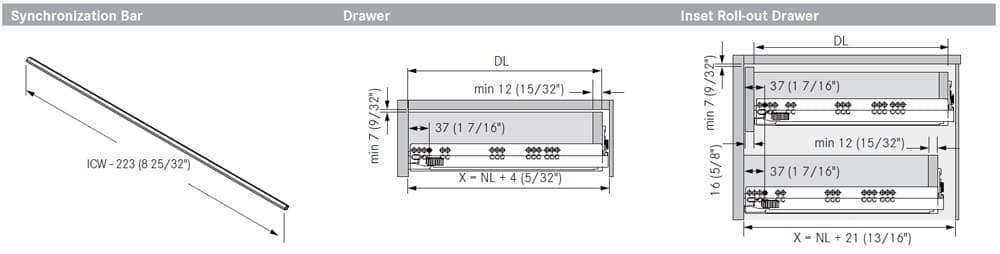

Syncronization Bar Sold Seperately
