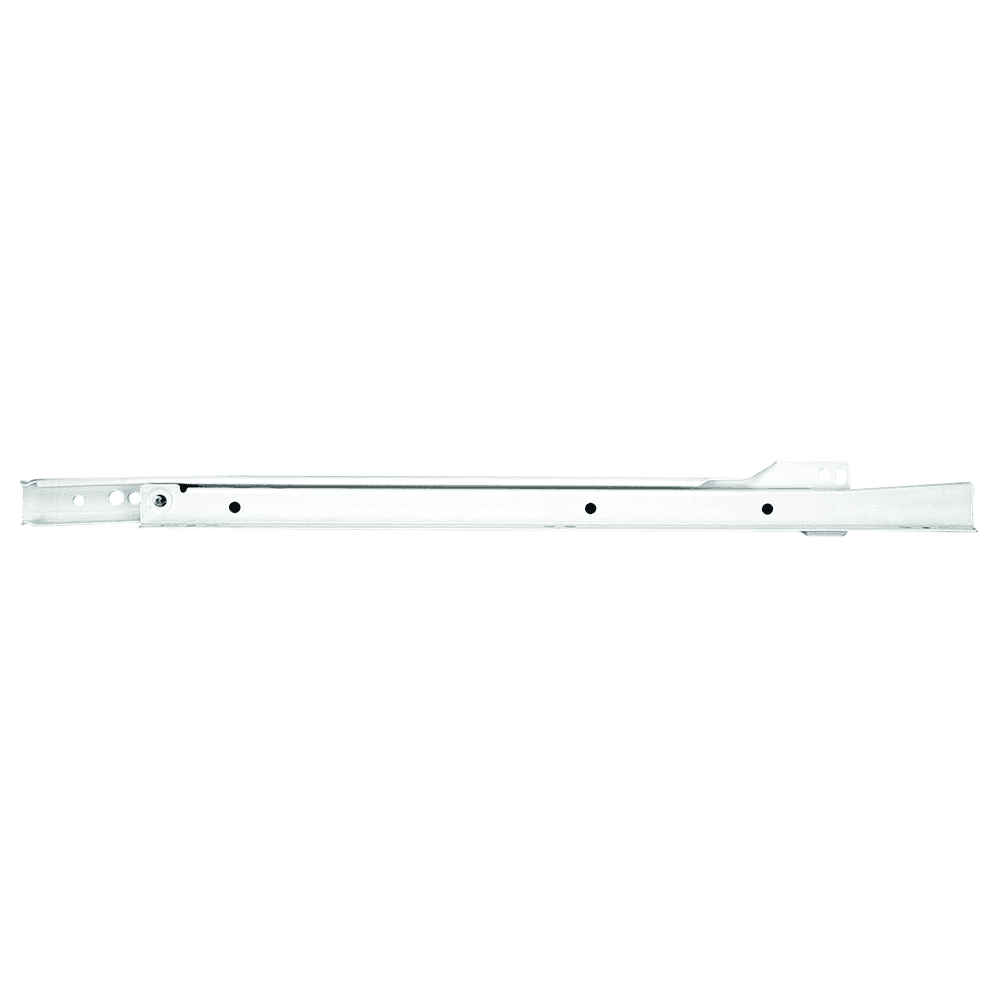

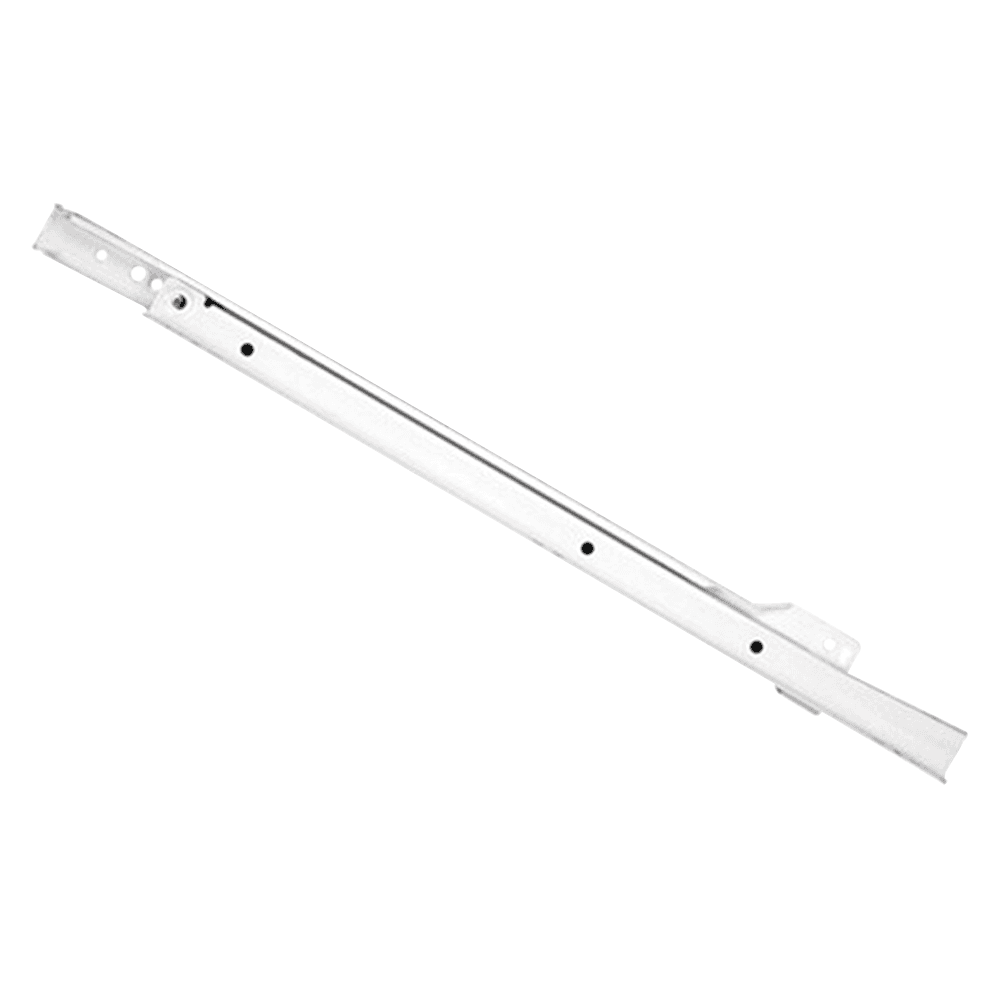

1805 Left-Hand Euro Slide Drawer Member with 75lb Capacity, 3/4 Extension, Side-Mount/Bottom-Mount, Self-Closing, White, 13-3/4
Item # KV1805Q97WH-14
•Mfr # 1805-97 WH 350
Length:
Product Details
Features:
• 13-3/4" Epoxy Coated Euro Slide Drawer Member in White finish
• KV Model #1805 Series
• Side clearance 1/2" (12.5mm) plus, 1/32" minus, 0" each side
• Height (35.5mm)
• 32mm Pattern: Yes
• Features: Self-closing design, positive double-out stop, lift out disconnect
• Recommended fasteners: #6 x 5/8" Phillips Pan Head
• 13-3/4" Epoxy Coated Euro Slide Drawer Member in White finish
• KV Model #1805 Series
• Side clearance 1/2" (12.5mm) plus, 1/32" minus, 0" each side
• Height (35.5mm)
• 32mm Pattern: Yes
• Features: Self-closing design, positive double-out stop, lift out disconnect
• Recommended fasteners: #6 x 5/8" Phillips Pan Head
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 100 |
| Length | 13-3/4" |
| Finish | White |
| Closing Type | Self-Closing |
| Load Capacity | 75lb |
| Travel | 3/4 Extension |
| Product Type | Euro Slide Drawer Member |
| Mounting Type | Side-Mount/Bottom-Mount |
Item # KV1805Q97WH-14
•Mfr # 1805-97 WH 350
Length:
Product Details
Features:
• 13-3/4" Epoxy Coated Euro Slide Drawer Member in White finish
• KV Model #1805 Series
• Side clearance 1/2" (12.5mm) plus, 1/32" minus, 0" each side
• Height (35.5mm)
• 32mm Pattern: Yes
• Features: Self-closing design, positive double-out stop, lift out disconnect
• Recommended fasteners: #6 x 5/8" Phillips Pan Head
• 13-3/4" Epoxy Coated Euro Slide Drawer Member in White finish
• KV Model #1805 Series
• Side clearance 1/2" (12.5mm) plus, 1/32" minus, 0" each side
• Height (35.5mm)
• 32mm Pattern: Yes
• Features: Self-closing design, positive double-out stop, lift out disconnect
• Recommended fasteners: #6 x 5/8" Phillips Pan Head
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 100 |
| Length | 13-3/4" |
| Finish | White |
| Closing Type | Self-Closing |
| Load Capacity | 75lb |
| Travel | 3/4 Extension |
| Product Type | Euro Slide Drawer Member |
| Mounting Type | Side-Mount/Bottom-Mount |
