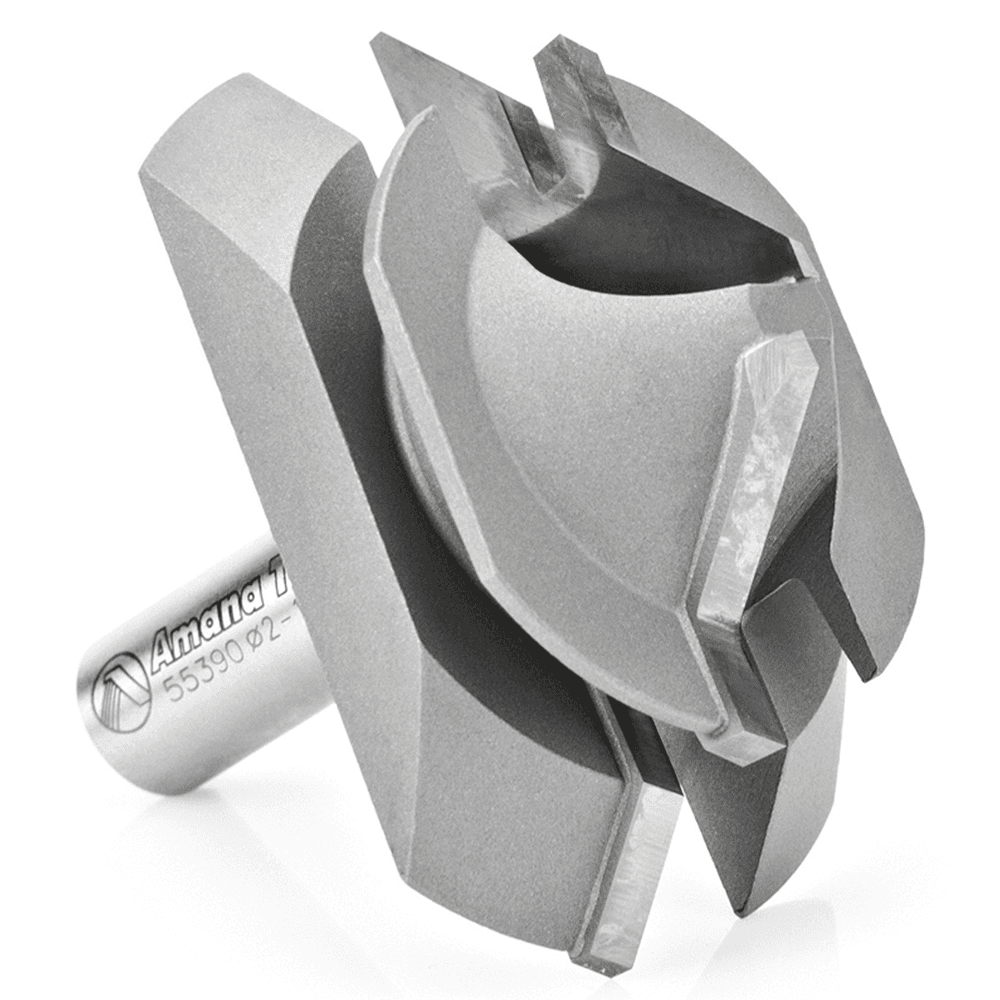

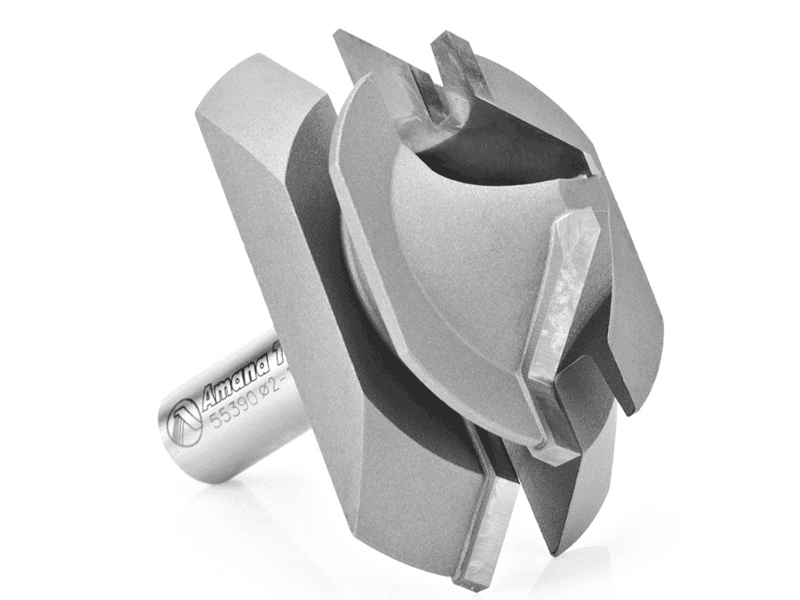

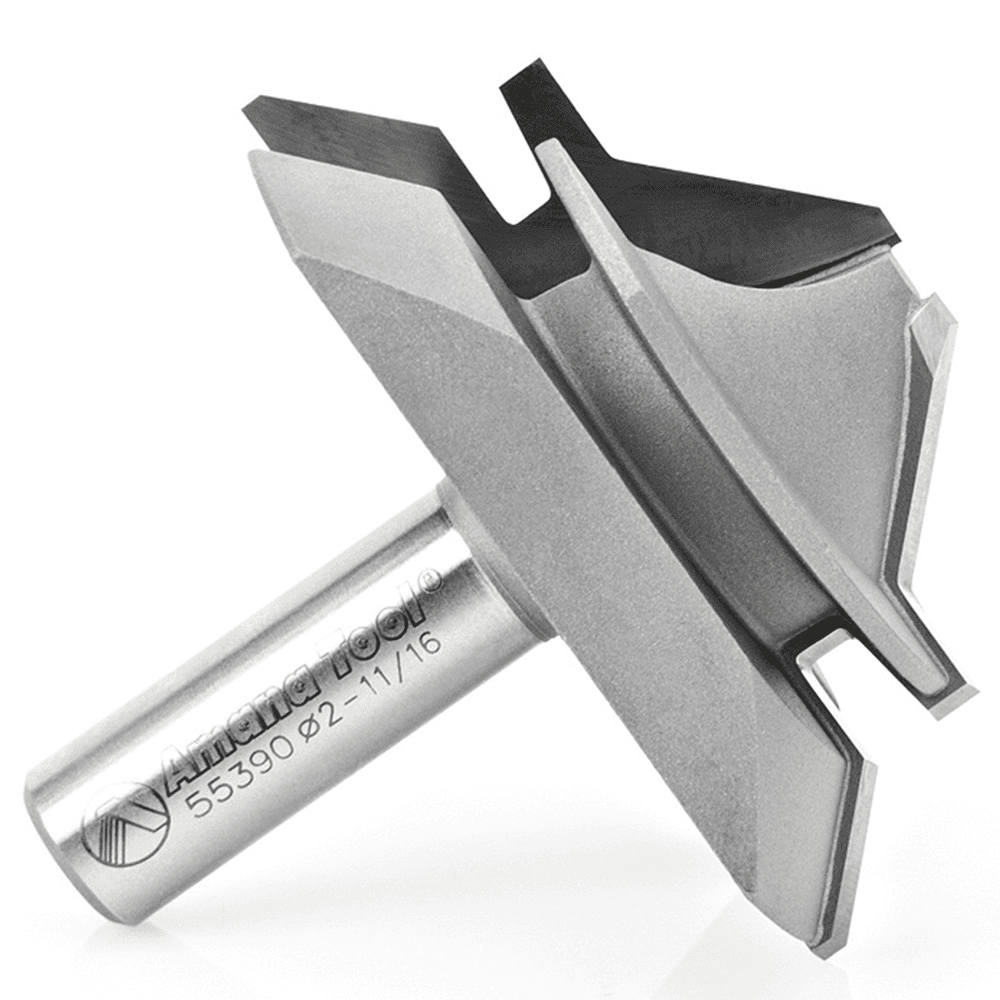

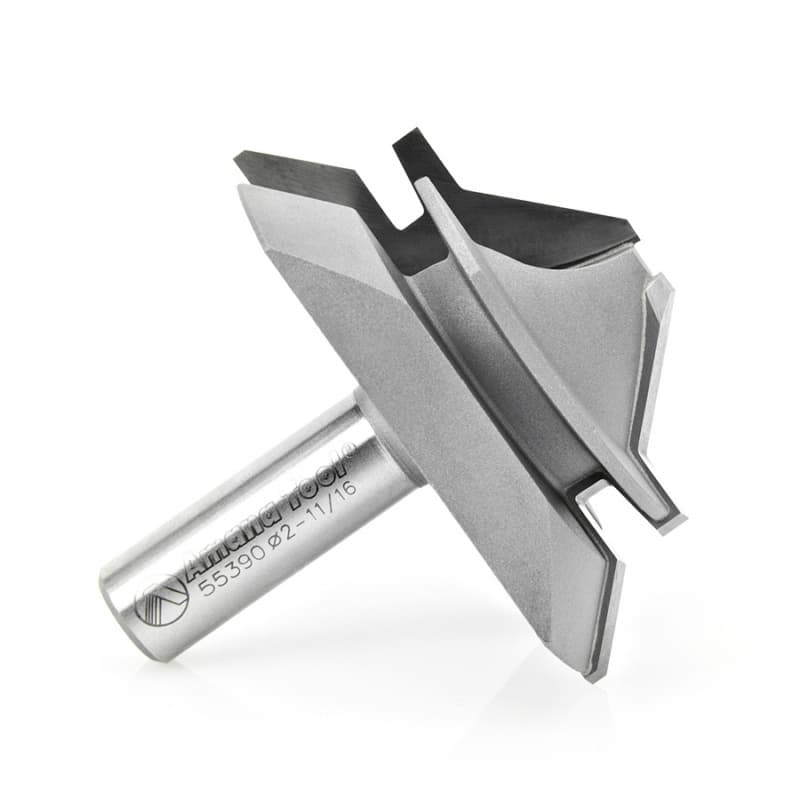

2-11/16" x 45° Lock Miter Bit, 2-Flute, 1/2" Shank
Item # AN55390
•Mfr # 55390
$107.67
/Each
Min Order: 1
Quantity Multiple by: 1
Product Details

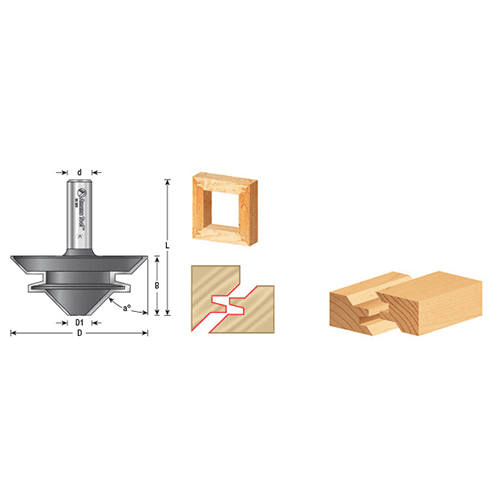

The lock miter is an interlocking edge-to-edge joint, typically used at the corners of casework. Used in a table-mounted router, run at reduced speed, this bit cuts both halves of the joint. The same setup of bit and fence cuts both parts. One part is laid flat on the tabletop and fed across the cutter. The second is braced vertically against the fence and fed across the cutter. For best results use in a table-mounted router.
Features:
• Double flute
• Can be used on 5/8" through 1-1/8" thick material
• First piece is cut flat (horizontal) and the second is cut perpendicular (vertical) to the first for a perfect fit
• There is no need to realign the router depth provided that the wood is centered to the cutting edge of the bit
• Not recommended for use in a pin router or a router table unless the Length of your material can be handled easily
Features:
• Double flute
• Can be used on 5/8" through 1-1/8" thick material
• First piece is cut flat (horizontal) and the second is cut perpendicular (vertical) to the first for a perfect fit
• There is no need to realign the router depth provided that the wood is centered to the cutting edge of the bit
• Not recommended for use in a pin router or a router table unless the Length of your material can be handled easily
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Height | |
| Width | |
| Cutting Diameter | 2-11/16" |
| Application | |
| Material | Carbide Tipped |
| Product Type | Lock Miter Bit |
| Length | 2-5/8" |
| Degree of Cut | 45° |
| Shank Diameter | 1/2" |
