1/2" x 2-3/4" Carbide Tipped Countersink Bit with Adjustable Depth-Stop/No-Thrust Ball Bearing, #8 Screw
Item # AN55240
•Mfr # 55240
$46.07
/Each
Product Details

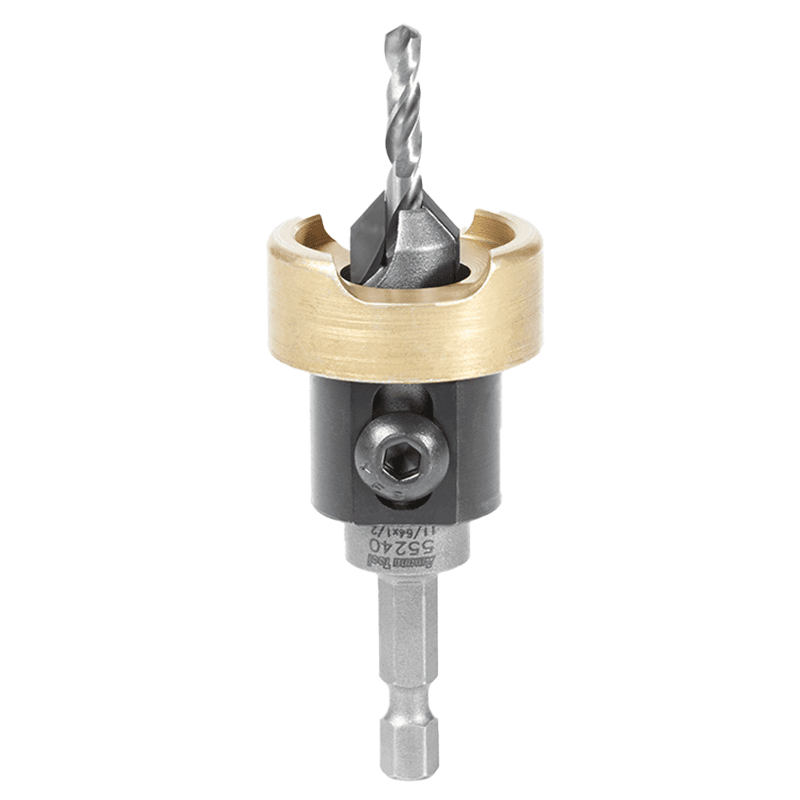

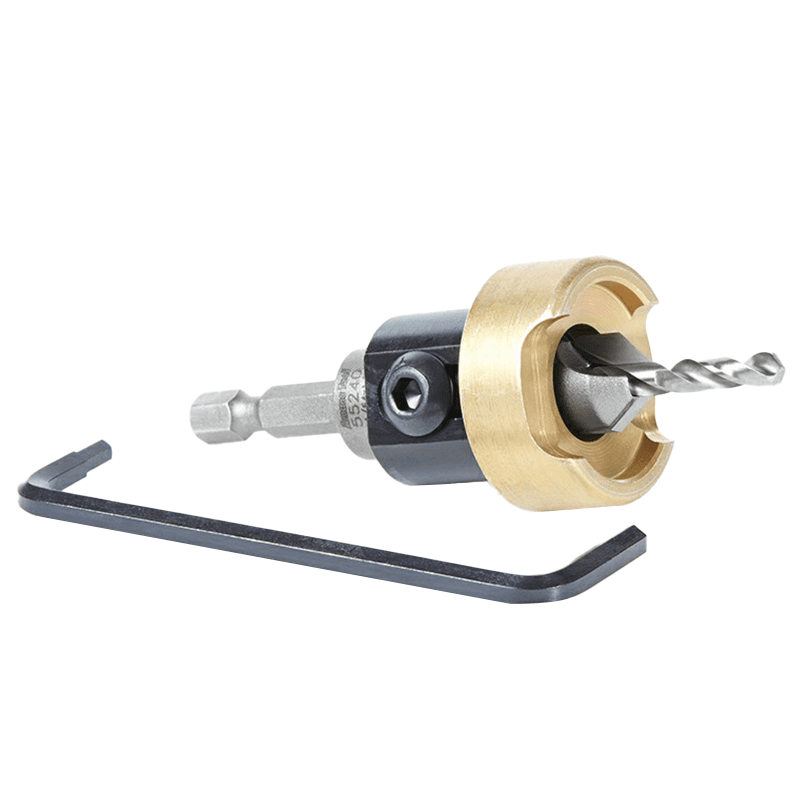

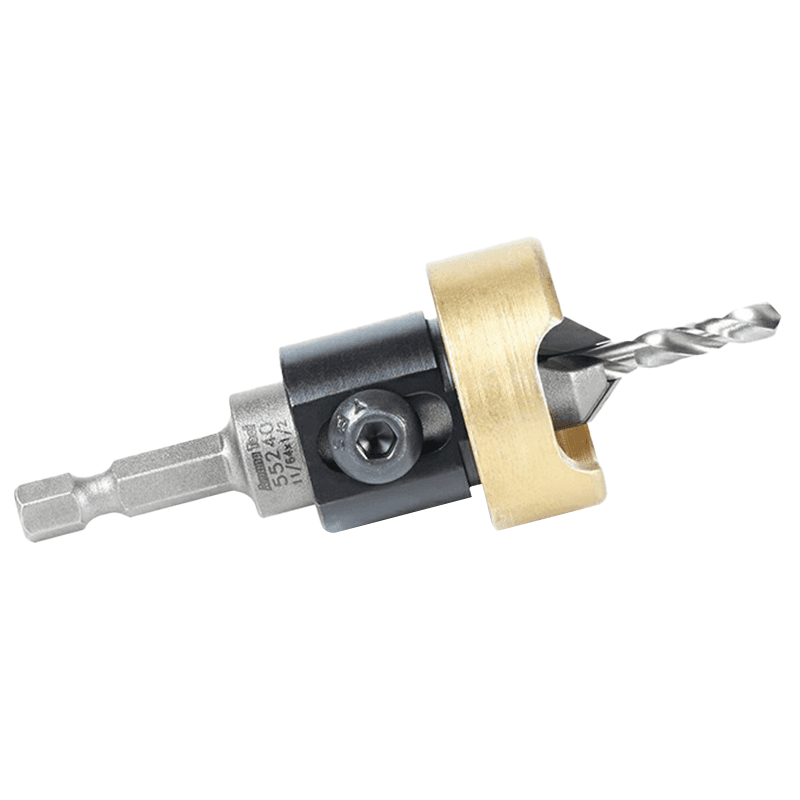

An adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces. It also has an open space to allow for chip evacuation. The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop. Enables users to drill a pilot hole and tapered countersink in one step.
The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.
Features:
• 1/2" countersink bit
• 3/64" - 3/8" of cutting height
• A must have tool for every woodworker
• 2-Wing
• Quick release 1/4" hex shank
• Slow spiral, HSS?M2 fully ground drill bit included
Excellent for Drilling:
• Natural Woods
• Man-Made Boards
• MDF
• Chipboard
• Plywood
• Aluminum/Non-Ferrous
• Aluminum Composite Material (ACM)
• Composites
• Composite Decking Materials
• High Density Polyethylene (HDPE)
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.
Features:
• 1/2" countersink bit
• 3/64" - 3/8" of cutting height
• A must have tool for every woodworker
• 2-Wing
• Quick release 1/4" hex shank
• Slow spiral, HSS?M2 fully ground drill bit included
Excellent for Drilling:
• Natural Woods
• Man-Made Boards
• MDF
• Chipboard
• Plywood
• Aluminum/Non-Ferrous
• Aluminum Composite Material (ACM)
• Composites
• Composite Decking Materials
• High Density Polyethylene (HDPE)
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Cutting Diameter | 1/2" |
| Length | 2-3/4" |
| Product Type | Countersink Bit |
| Drill Hole Size | 11/64" |
| Material | Carbide Tipped |
| Screw Size | #8 |
| Shank Diameter | 1/4" |
Item # AN55240
•Mfr # 55240
$46.07
/Each
Product Details
An adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces. It also has an open space to allow for chip evacuation. The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop. Enables users to drill a pilot hole and tapered countersink in one step.
The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.
Features:
• 1/2" countersink bit
• 3/64" - 3/8" of cutting height
• A must have tool for every woodworker
• 2-Wing
• Quick release 1/4" hex shank
• Slow spiral, HSS?M2 fully ground drill bit included
Excellent for Drilling:
• Natural Woods
• Man-Made Boards
• MDF
• Chipboard
• Plywood
• Aluminum/Non-Ferrous
• Aluminum Composite Material (ACM)
• Composites
• Composite Decking Materials
• High Density Polyethylene (HDPE)
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.
Features:
• 1/2" countersink bit
• 3/64" - 3/8" of cutting height
• A must have tool for every woodworker
• 2-Wing
• Quick release 1/4" hex shank
• Slow spiral, HSS?M2 fully ground drill bit included
Excellent for Drilling:
• Natural Woods
• Man-Made Boards
• MDF
• Chipboard
• Plywood
• Aluminum/Non-Ferrous
• Aluminum Composite Material (ACM)
• Composites
• Composite Decking Materials
• High Density Polyethylene (HDPE)
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Cutting Diameter | 1/2" |
| Length | 2-3/4" |
| Product Type | Countersink Bit |
| Drill Hole Size | 11/64" |
| Material | Carbide Tipped |
| Screw Size | #8 |
| Shank Diameter | 1/4" |
