The 24° Bevel Angle Built for Solid Surface Fabrication

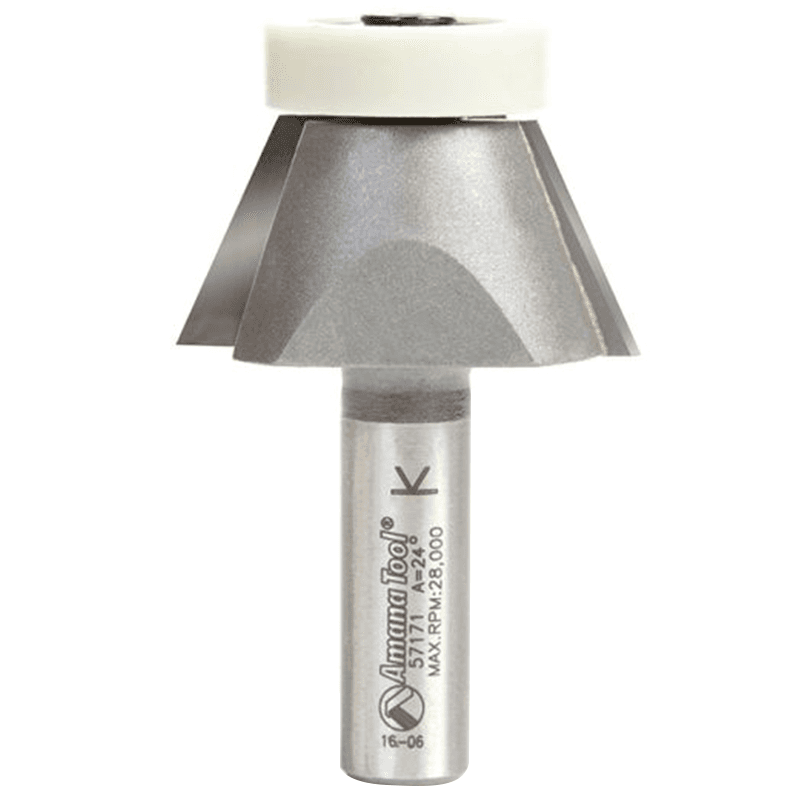

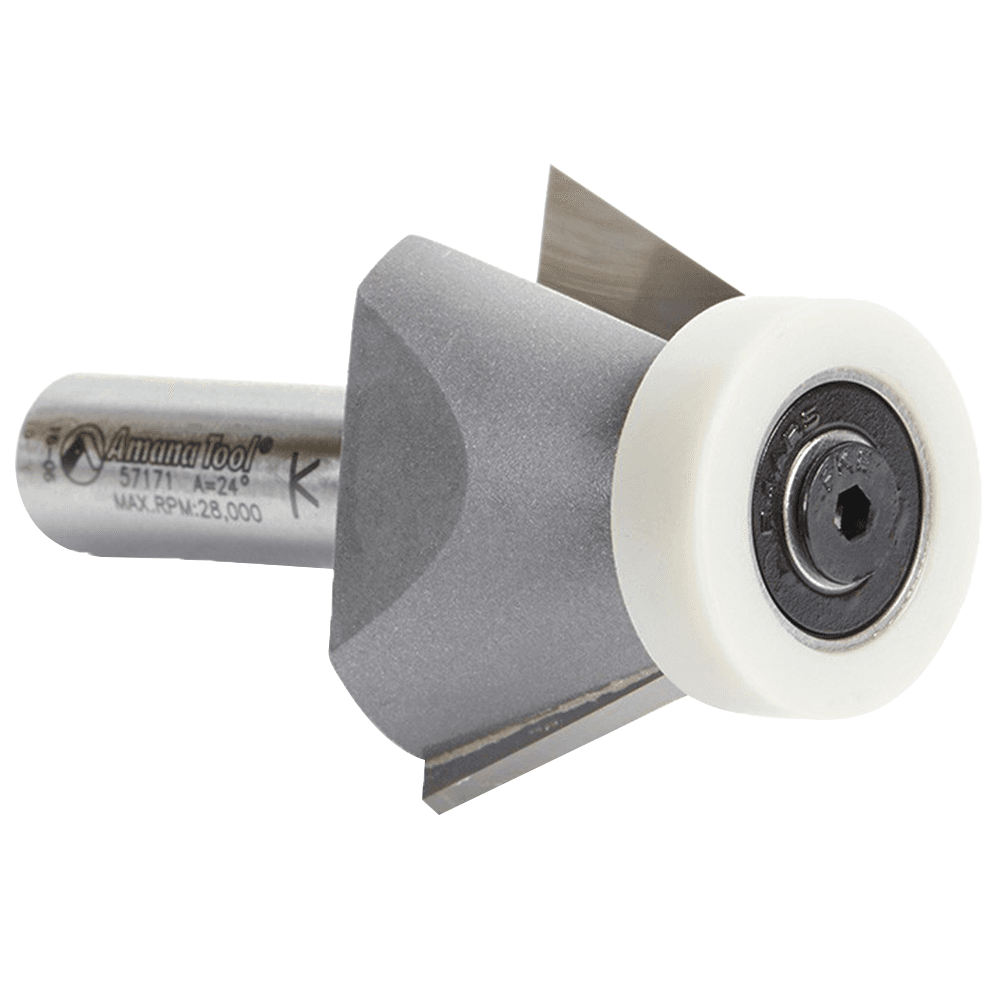

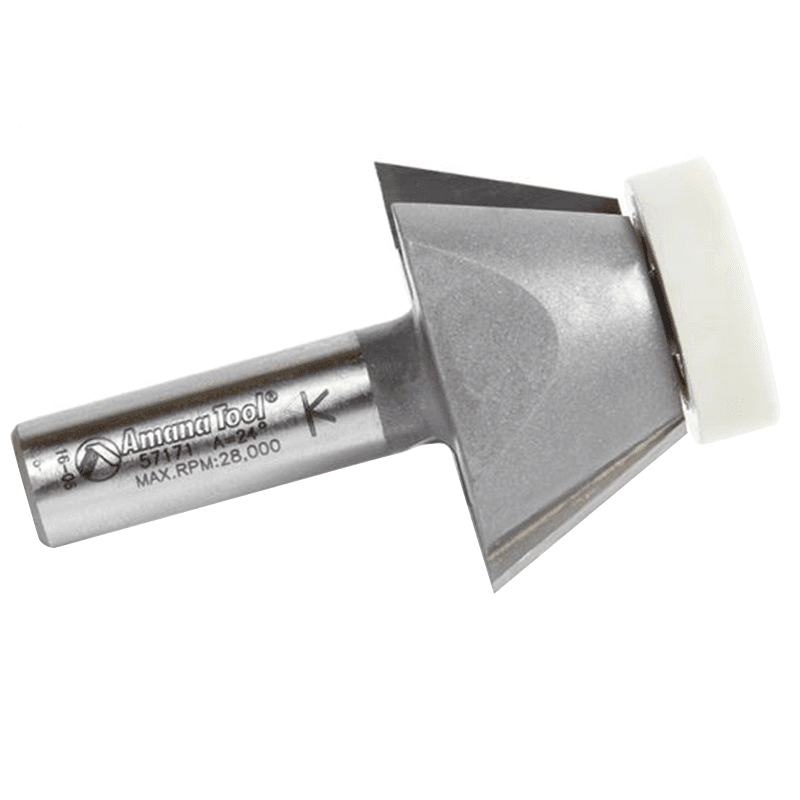

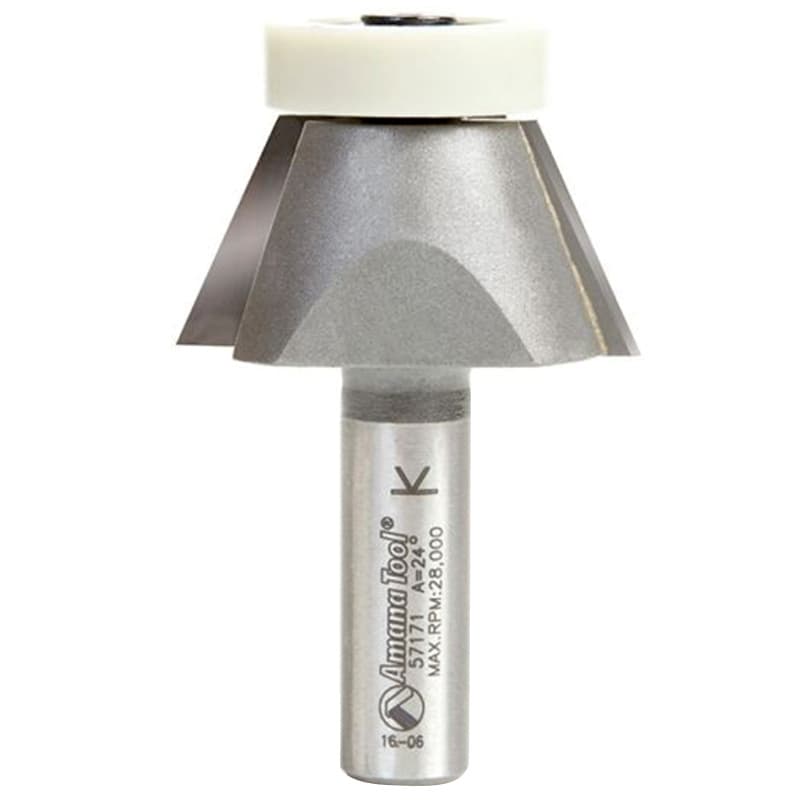

The Amana Tool 57171 is a 1-3/4 inch, 24-degree bevel edge router bit designed to trim sink openings in solid surface countertops as part of a seamless installation. With a 1/2 inch shank and 2-flute geometry, it delivers the clean, angled edge that solid surface seamless sink methods require.
Key Features
• 24-degree bevel angle matches the geometry called for in solid surface seamless sink installations, not laminate work.
• 1-3/4 inch cutting diameter provides the span needed to trim a full sink rim approach in a single routing pass.
• 2-flute design produces a smooth, controlled cut in solid surface material without tearing the edge.
• 1/2 inch shank seats in standard 1/2 inch router collets and delivers the rigidity a bevel cut demands.
• Amana Tool construction holds edge retention through repeated passes on dense solid surface.
Where This Bit Belongs in the Install
Seamless sink fabrication in solid surface is a multi-step process, and the bevel bit is the step that creates the angled mating face between the countertop edge and the sink bowl wall. After the cutout is opened and roughed in, the 24-degree bevel bit trims the countertop material back to the bowl at the correct angle so the seam adhesive has a consistent, matched surface to bond. The geometry matters: solid surface installations call for a 24-degree bevel, which is a different angle than the 10-degree bevel used when working with laminate. Using the wrong bevel produces a gap at the seam line that adhesive cannot reliably fill. This bit handles the solid surface side of that workflow.
Material and Construction
Amana Tool builds this bit for the cutting demands of solid surface material, which is denser and more abrasive than laminate but still requires a clean, chip-free edge to accept a tight seam bond. The 2-flute geometry moves chips efficiently and keeps heat from building in the cut zone, both of which matter when the finished edge goes straight into adhesive contact. The 1/2 inch shank minimizes deflection during the angled pass, keeping the bevel face consistent around the full perimeter of the cutout.
Who Reaches for This Bit
Solid surface fabricators installing Karran seamless sinks or bonding Durasein bowls into solid surface countertops are the primary users. The 24-degree angle is the documented choice for solid surface seam preparation, so shops that work across both laminate and solid surface keep this bit alongside its 10-degree counterpart rather than treating one bit as a substitute for the other. If the job is laminate, this is not the right bit — the 10-degree version handles that work.
FAQ
What is the difference between this bit and a 10-degree bevel bit?
The 10-degree bevel bit is used to trim laminate countertops for seamless sink installations. This 24-degree bit is used for solid surface countertops. The two angles match the geometry each material requires for a tight, bondable seam — they are not interchangeable.
Does this bit require a bearing to guide the cut?
The source data for this SKU does not specify an included or built-in bearing. Confirm your router setup and guiding method against the manufacturer's installation documentation before routing.
Is a 1/2 inch collet required?
Yes. The 1/2 inch shank requires a router with a 1/2 inch collet. It will not seat in a 1/4 inch collet.
Can this bit be used on quartz or stone countertops?
This bit is a woodworking-grade router bit suited to solid surface material. Quartz and natural stone require diamond tooling; this bit is not appropriate for those materials.
The Right Angle for the Right Material
When the job calls for a seamless solid surface sink installation, having the correct 24-degree bevel bit on hand means the trim pass goes cleanly and the seam is ready to bond — no improvising with the wrong geometry and no rework on an expensive countertop.
