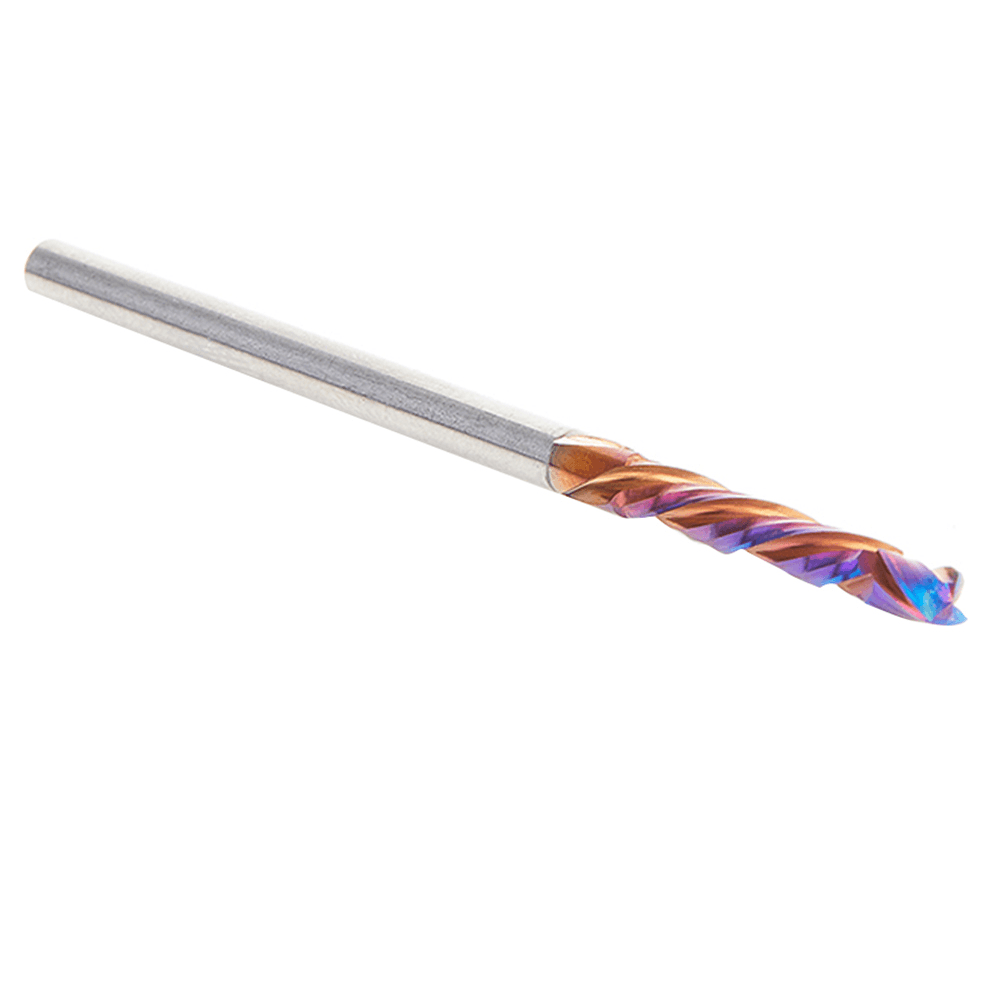

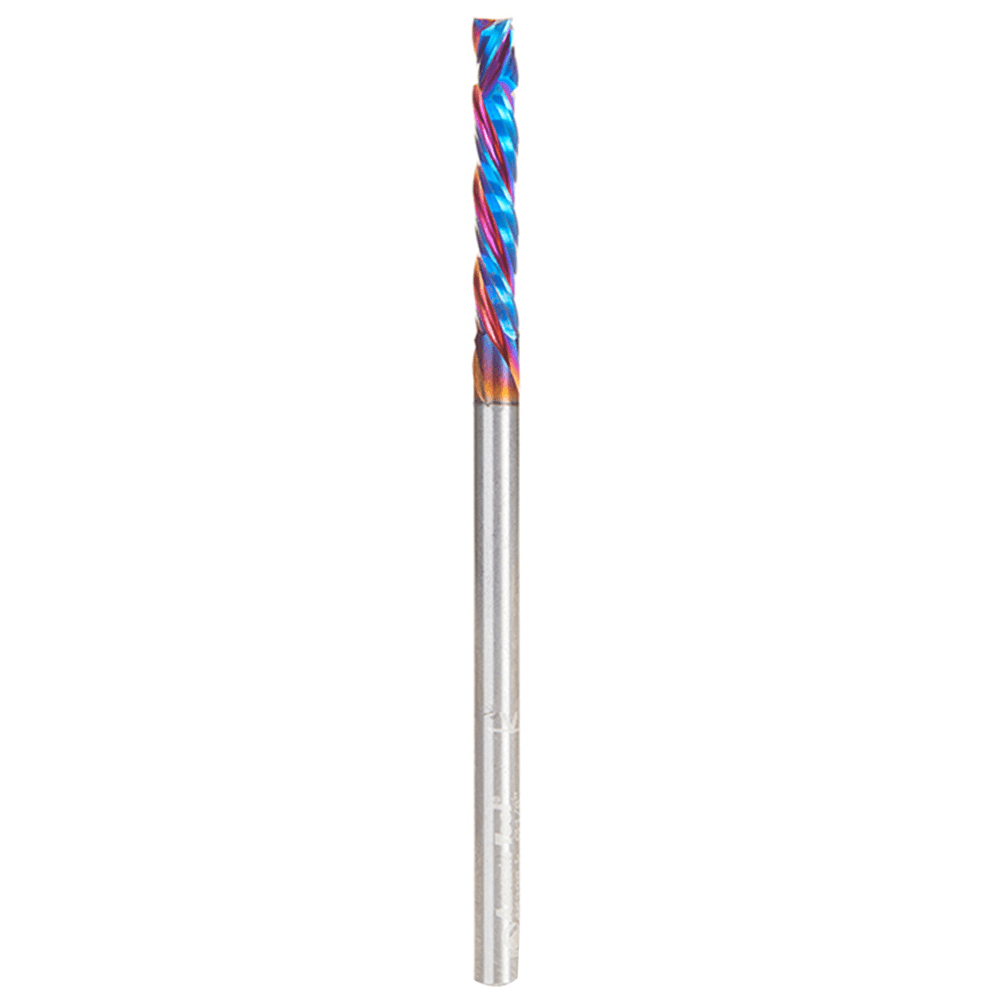

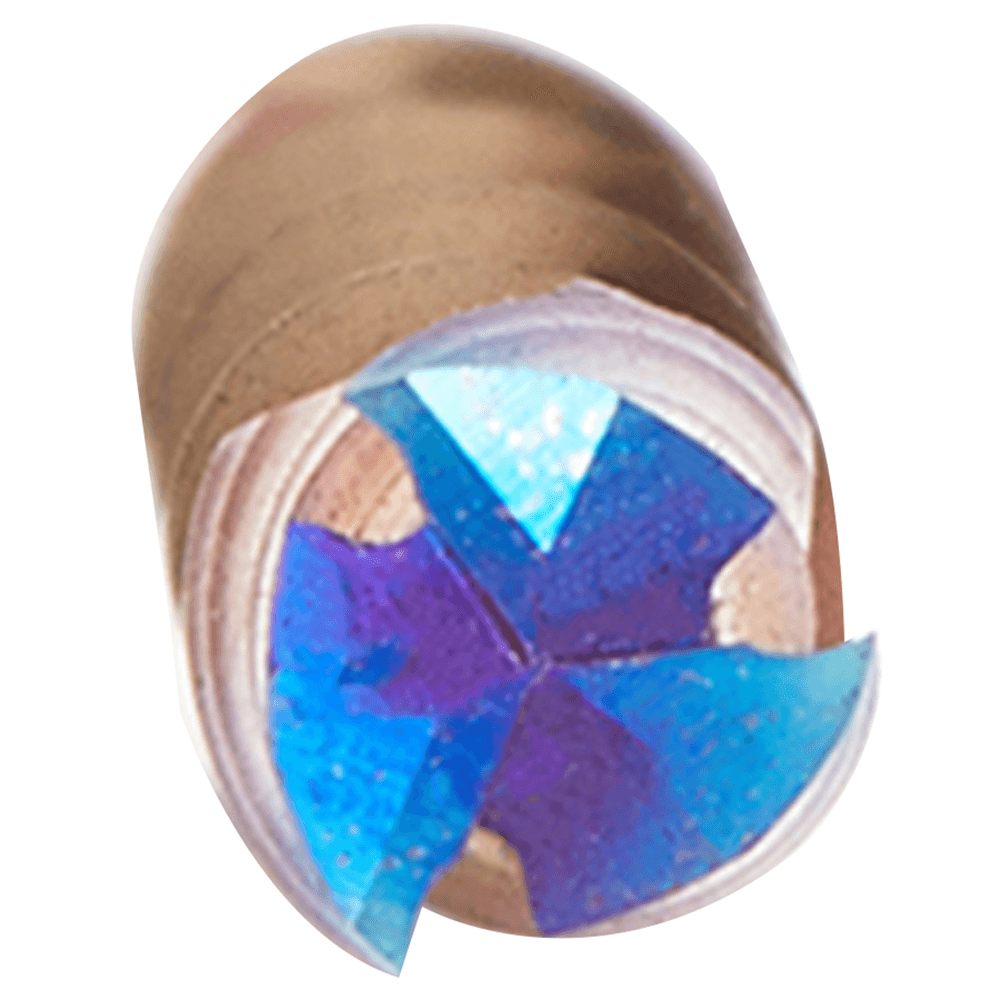

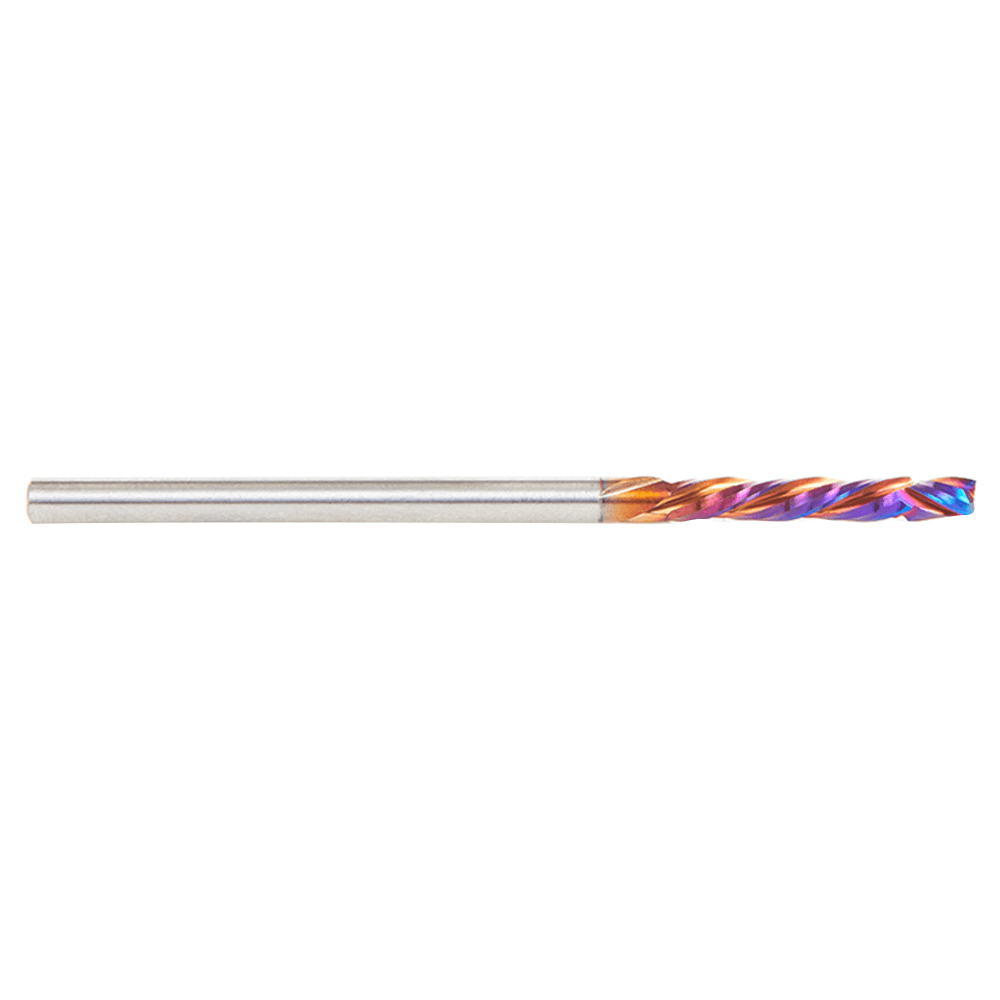

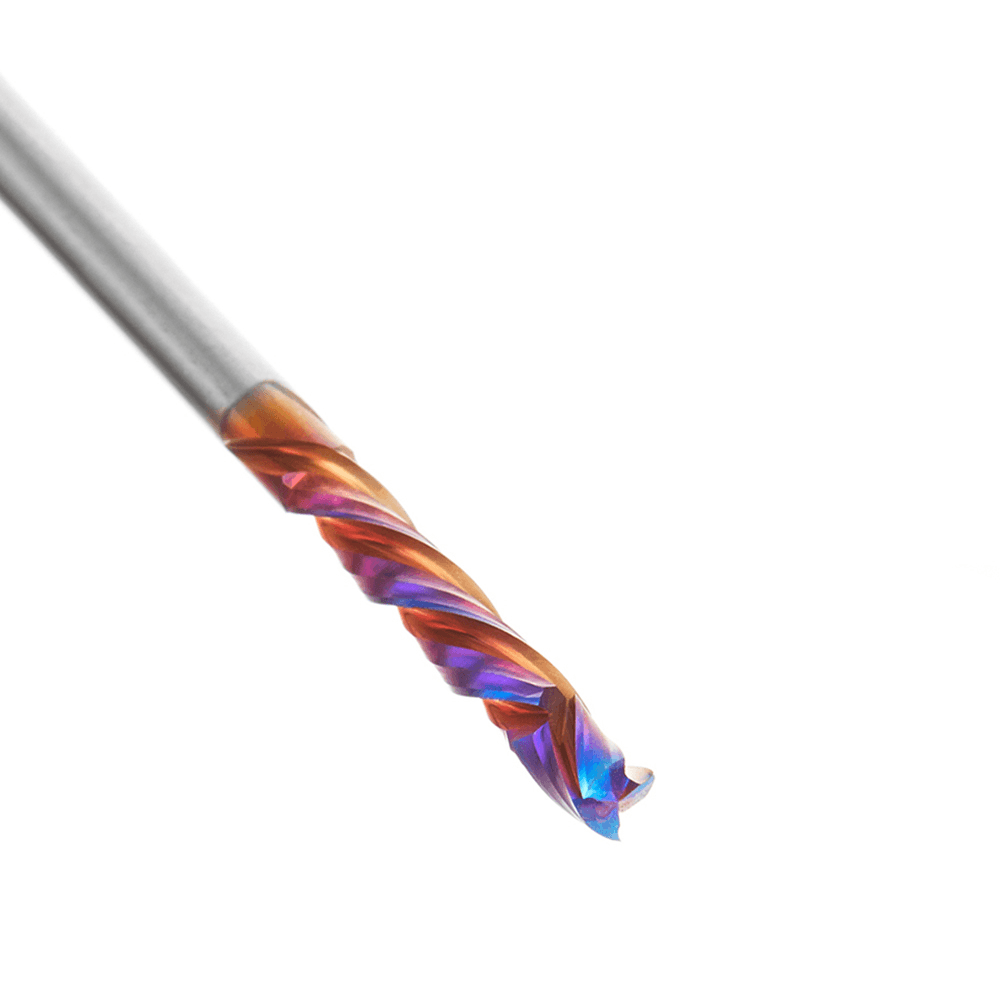

1/8" x 2-1/2" CNC Spektra Mortise Compression Spiral Bit, 3-Flute, 1/8" Shank
Item # AN46398-K
•Mfr # 46398-K
$73.19
/Each
Min Order: 1
Qty mult. by: 1
Product Details
These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising grooving and dado. 13/16" of cutting height.
Our Spektra bits feature a nACo nanocomposite coating with an extreme nano hardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
• nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
• Coating prevents high heat and oxidation which is detrimental to cutting tool performance
• Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
• nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.
Excellent for Cutting:
• MDF/HDF
• Laminate
• Laminated Plywood
• Melamine
• Particle Board
• Softwood/Hardwood
• Veneered Plywood
Recommended RPM 20,000 - 21,000.
Our Spektra bits feature a nACo nanocomposite coating with an extreme nano hardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
• nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
• Coating prevents high heat and oxidation which is detrimental to cutting tool performance
• Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
• nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.
Excellent for Cutting:
• MDF/HDF
• Laminate
• Laminated Plywood
• Melamine
• Particle Board
• Softwood/Hardwood
• Veneered Plywood
Recommended RPM 20,000 - 21,000.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood

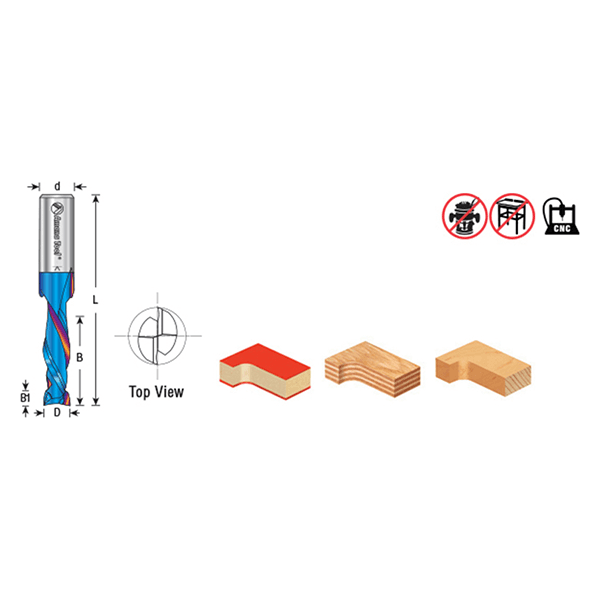

Specifications
| Box Quantity | 1 |
| Height | |
| Width | |
| Cutting Diameter | 1/8" |
| Application | |
| Material | Solid Carbide |
| Product Type | Mortise Compression Spiral Bit |
| Length | 2-1/2" |
| Degree of Cut | |
| Shank Diameter | 1/8" |
