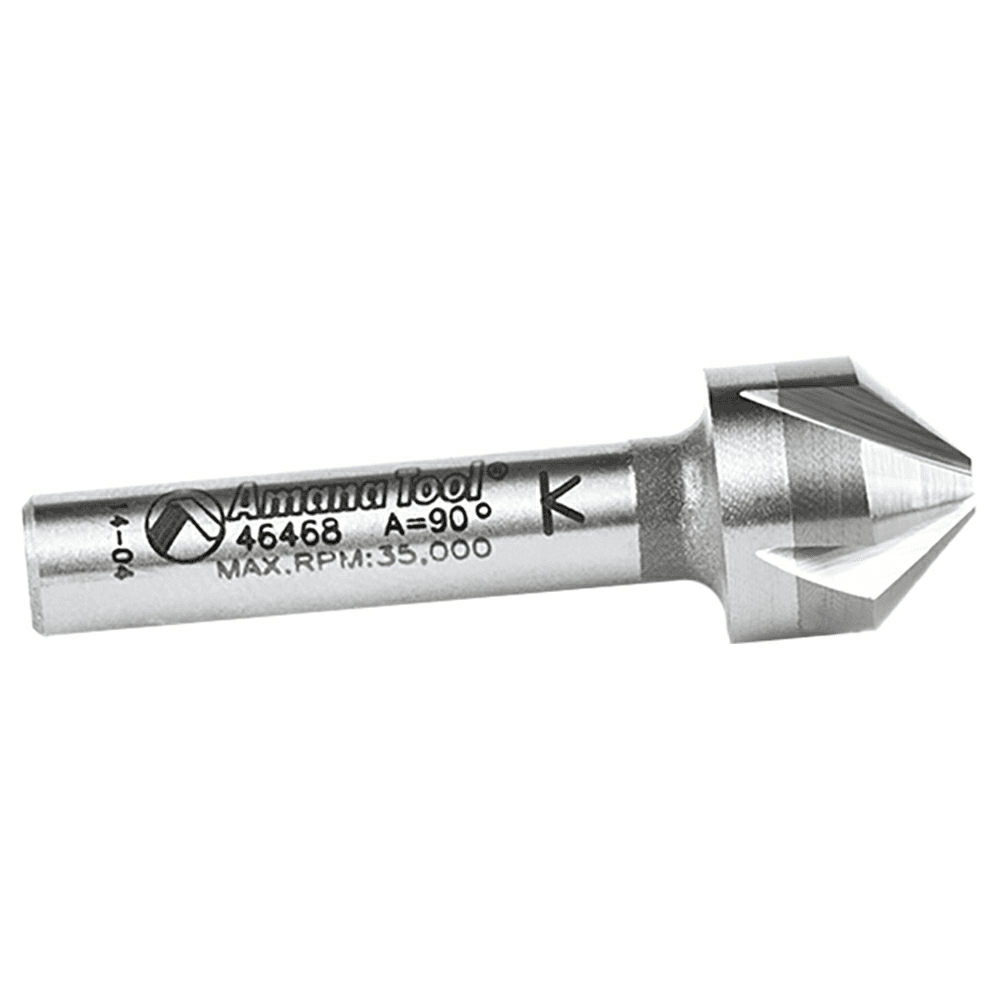

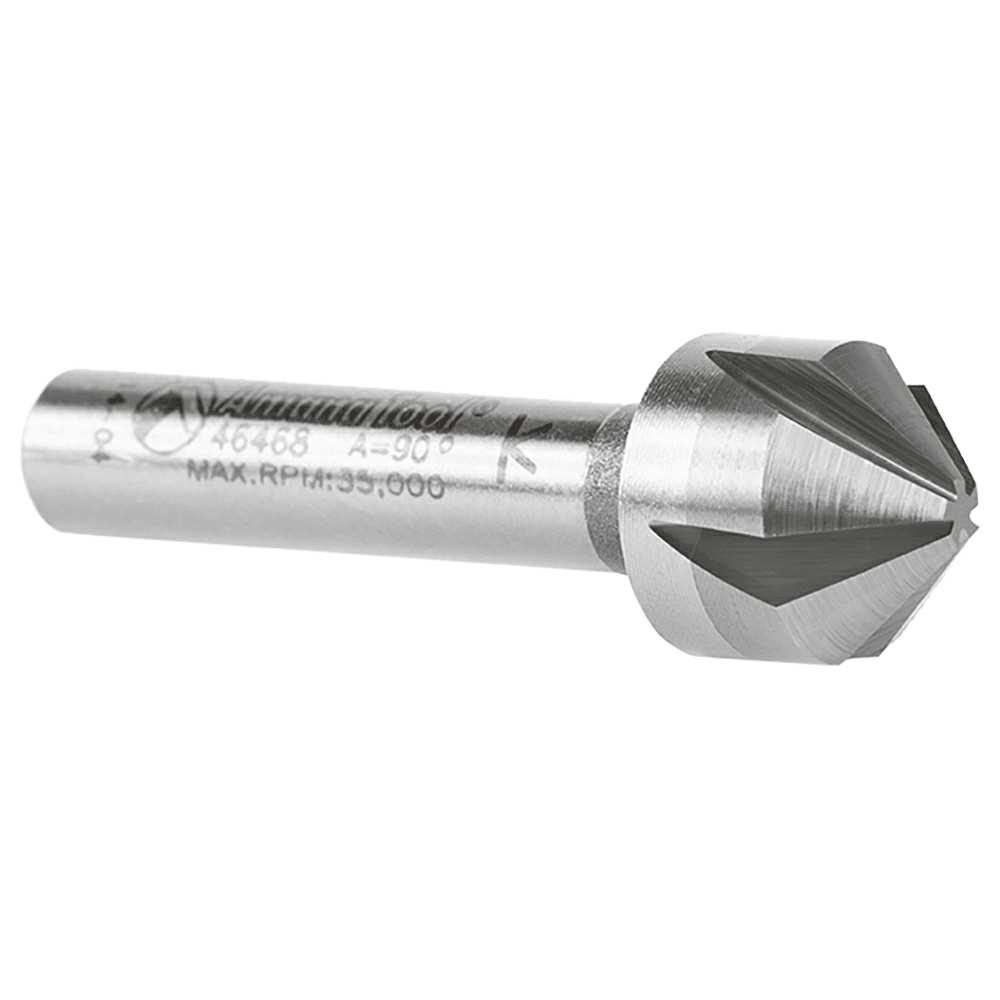

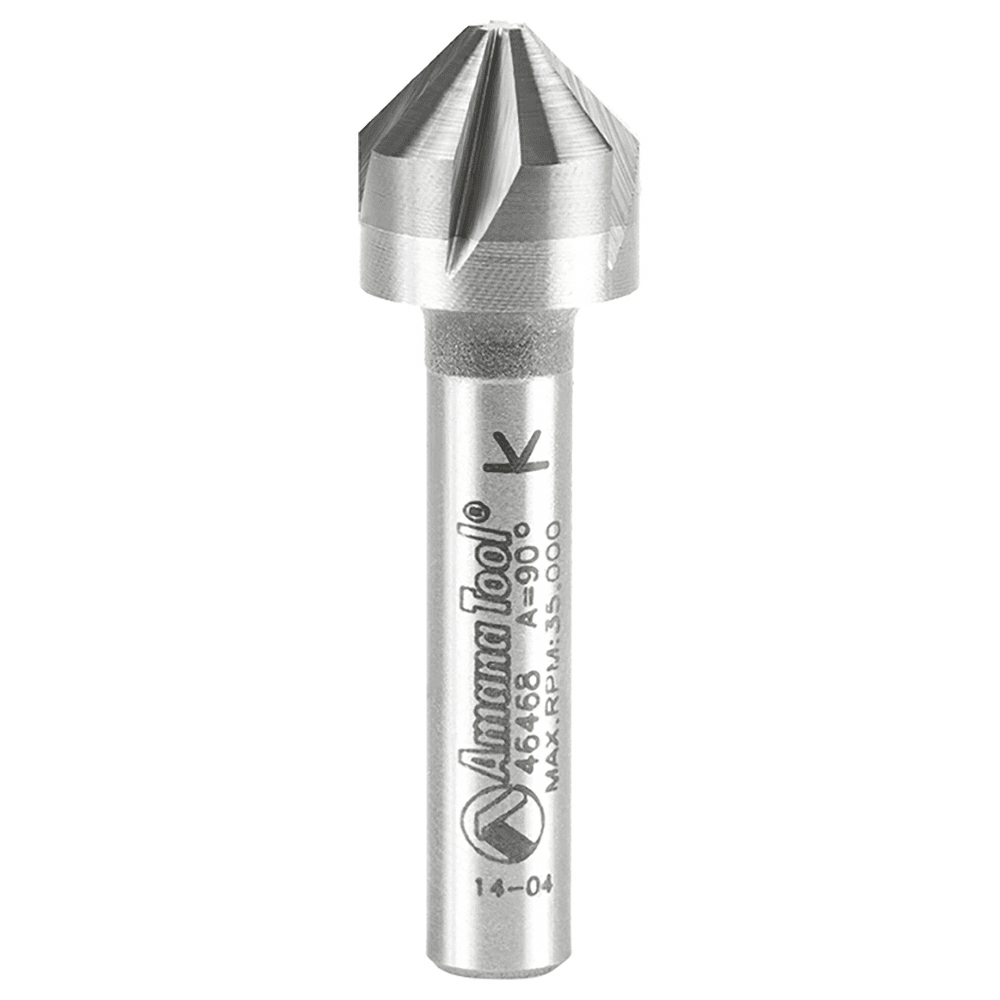

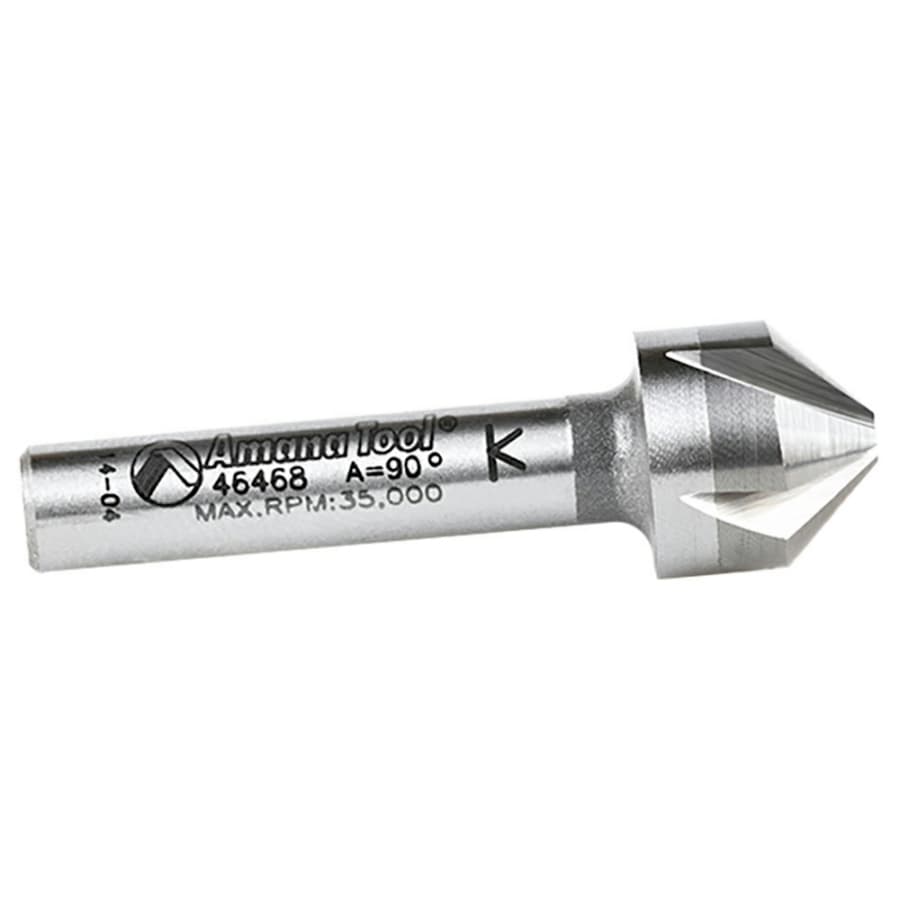

1/2" x 1-9/16" CNC Countersink/Chamfer Router Bit, 5-Flute, 1/4" Shank
Item # AN46468
•Mfr # 46468
$78.39
/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Designed for making 90 degree countersinks and chamfering. 5mm of cutting height.
These bits make it possible to chamfer edges, holes and contours with a "contour" or "bore" CNC operation and still have the option to use a sufficient lead-in distance.

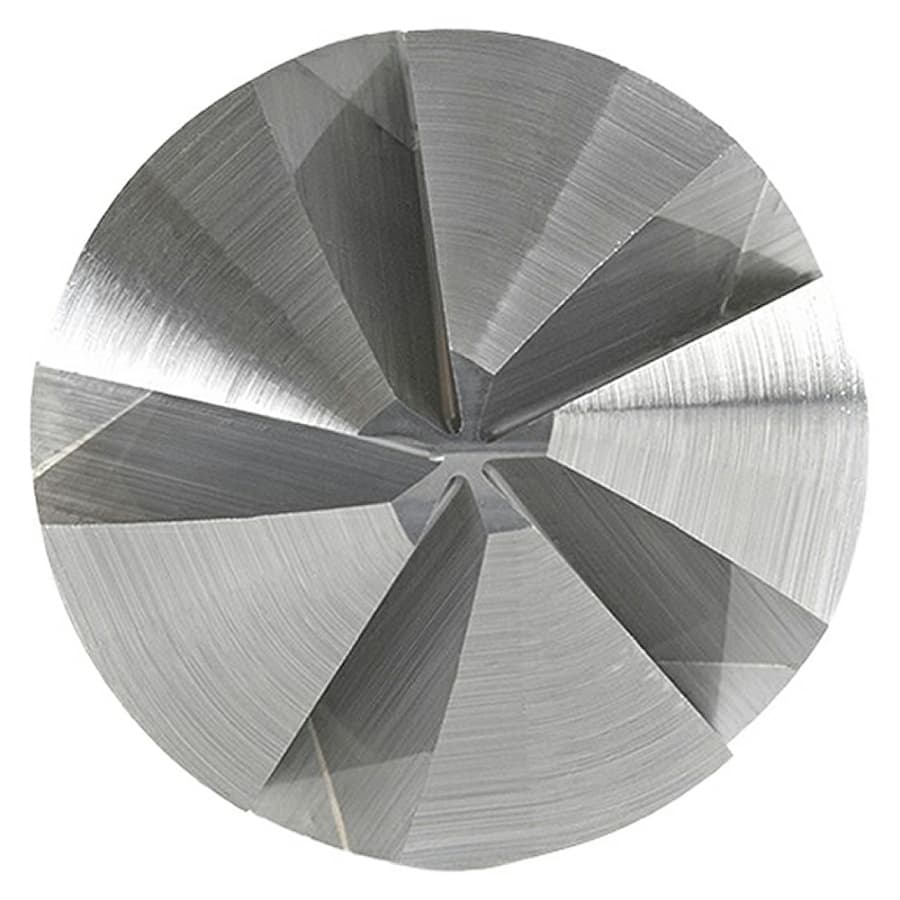

Item no. 46468 utilizes a 3mm diameter tip width, making cuts into the tightest corners and smallest details achievable.
Excellent for:
• GFR (Glass Fiber Reinforced Polymer - Plastic Materials)
• CFRP (Carbon Fiber Reinforced Polymer - Plastic Materials)
• FRP (Fiber Reinforced Plastic)
• Micarta (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
• MMC (Metal Matrix Composite)
• Honeycomb
• Thermoset Composites
• Thermosetting Plastics
CNC Countersink:
Drilling countersinks with these bits on the CNC machine is a great way to save time and have your pieces look great every time!
With the adjustable depth drill bit you can adjust them for whatever size material you're working with. They are best used with a drilling toolpath, utilizing the peck drill option at 0.25" per pass with a 0.125" retract height.
For best results run at 3,000 RPM with a 30 IPM (Inches Per Minute) plunge rate. No feed rate needs to be set with these as they only move up and down with the Z axis, not side to side. If your software doesn't allow a 0 feed rate, you can enter 1 IPM (Inch Per Minute) in the feed rate as a placeholder.
• For countersinks with 1/4" round shank, use 1/4" spring collet
• For countersinks with 5/16" round shank, use 7-8mm spring collet
• For countersinks with 3/8" round shank, use 9-10mm spring collet
These bits make it possible to chamfer edges, holes and contours with a "contour" or "bore" CNC operation and still have the option to use a sufficient lead-in distance.
Item no. 46468 utilizes a 3mm diameter tip width, making cuts into the tightest corners and smallest details achievable.
Excellent for:
• GFR (Glass Fiber Reinforced Polymer - Plastic Materials)
• CFRP (Carbon Fiber Reinforced Polymer - Plastic Materials)
• FRP (Fiber Reinforced Plastic)
• Micarta (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.)
• MMC (Metal Matrix Composite)
• Honeycomb
• Thermoset Composites
• Thermosetting Plastics
CNC Countersink:
Drilling countersinks with these bits on the CNC machine is a great way to save time and have your pieces look great every time!
With the adjustable depth drill bit you can adjust them for whatever size material you're working with. They are best used with a drilling toolpath, utilizing the peck drill option at 0.25" per pass with a 0.125" retract height.
For best results run at 3,000 RPM with a 30 IPM (Inches Per Minute) plunge rate. No feed rate needs to be set with these as they only move up and down with the Z axis, not side to side. If your software doesn't allow a 0 feed rate, you can enter 1 IPM (Inch Per Minute) in the feed rate as a placeholder.
• For countersinks with 1/4" round shank, use 1/4" spring collet
• For countersinks with 5/16" round shank, use 7-8mm spring collet
• For countersinks with 3/8" round shank, use 9-10mm spring collet
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood

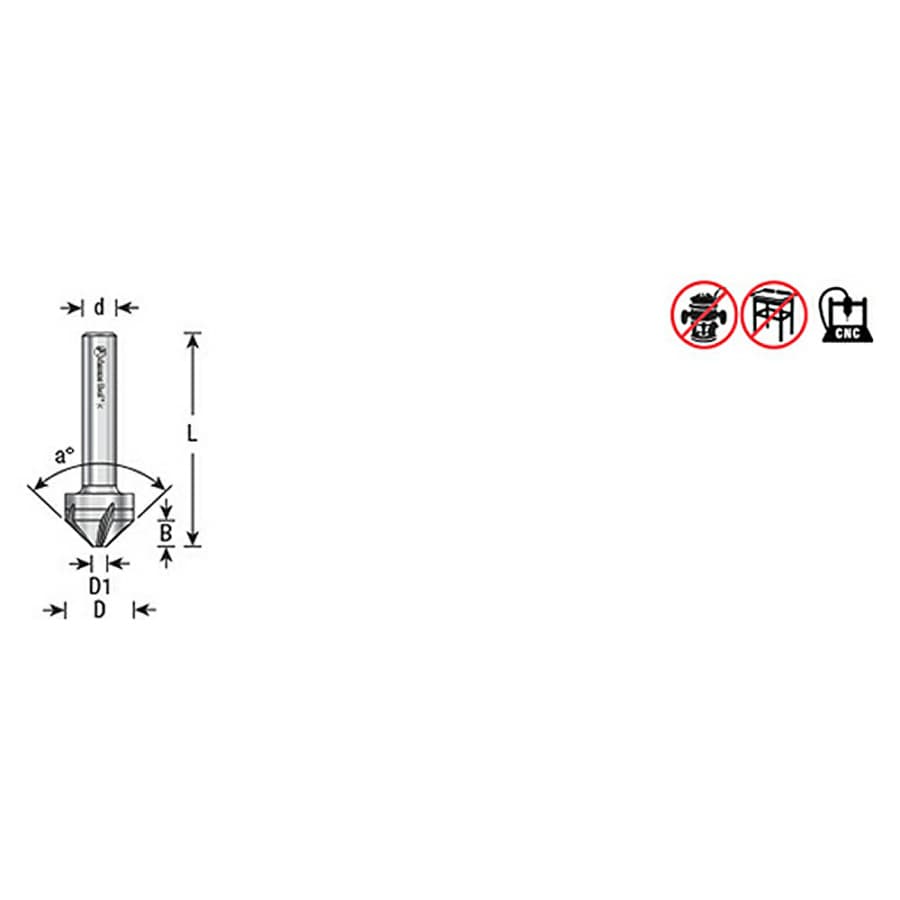

Specifications
| Height | |
| Width | |
| Cutting Diameter | 1/2" |
| Application | |
| Material | Solid Carbide |
| Product Type | Countersink/Chamfer Router Bit |
| Length | 1-9/16" |
| Degree of Cut | 90° |
| Shank Diameter | 1/4" |
