Name: 2-1/2" x 3-3/16" x 1" Radius Beading Router Bit, 2-Flute, 1/2" Shank
Brand: Amana Tool
Availability: BackOrder

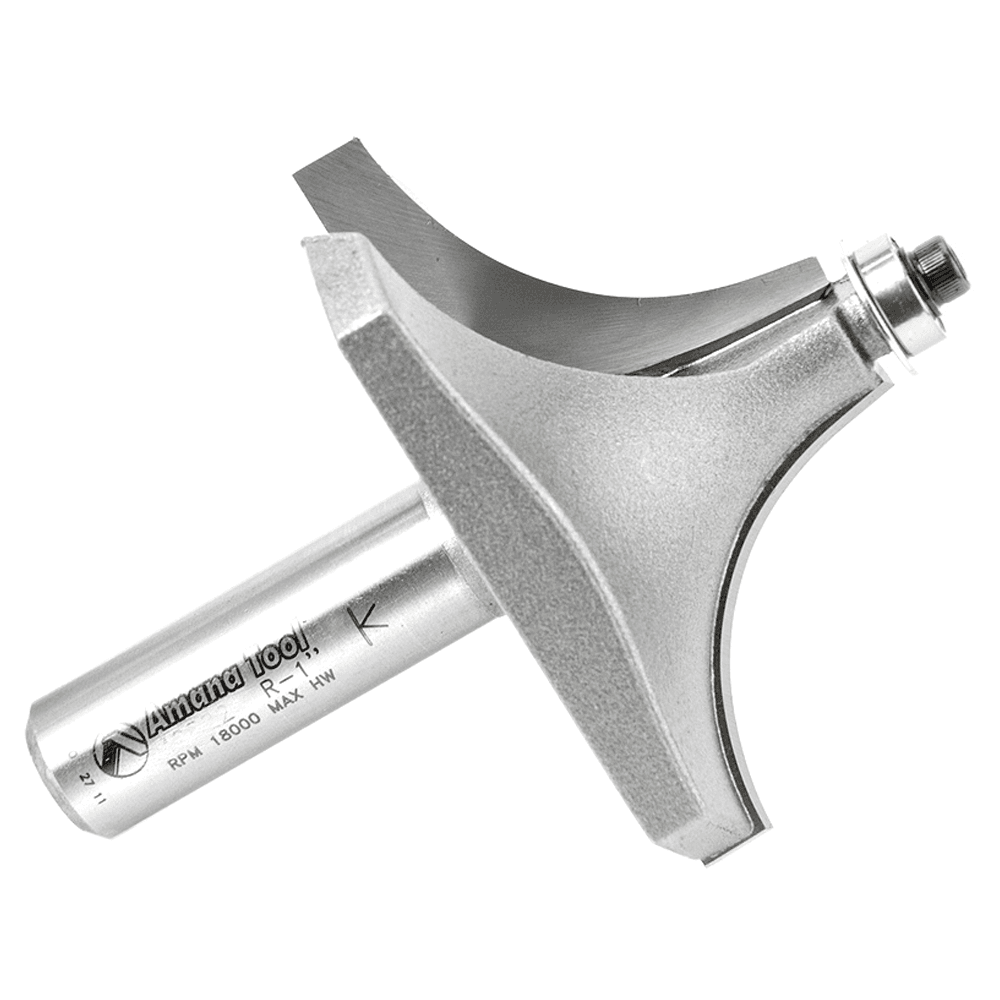

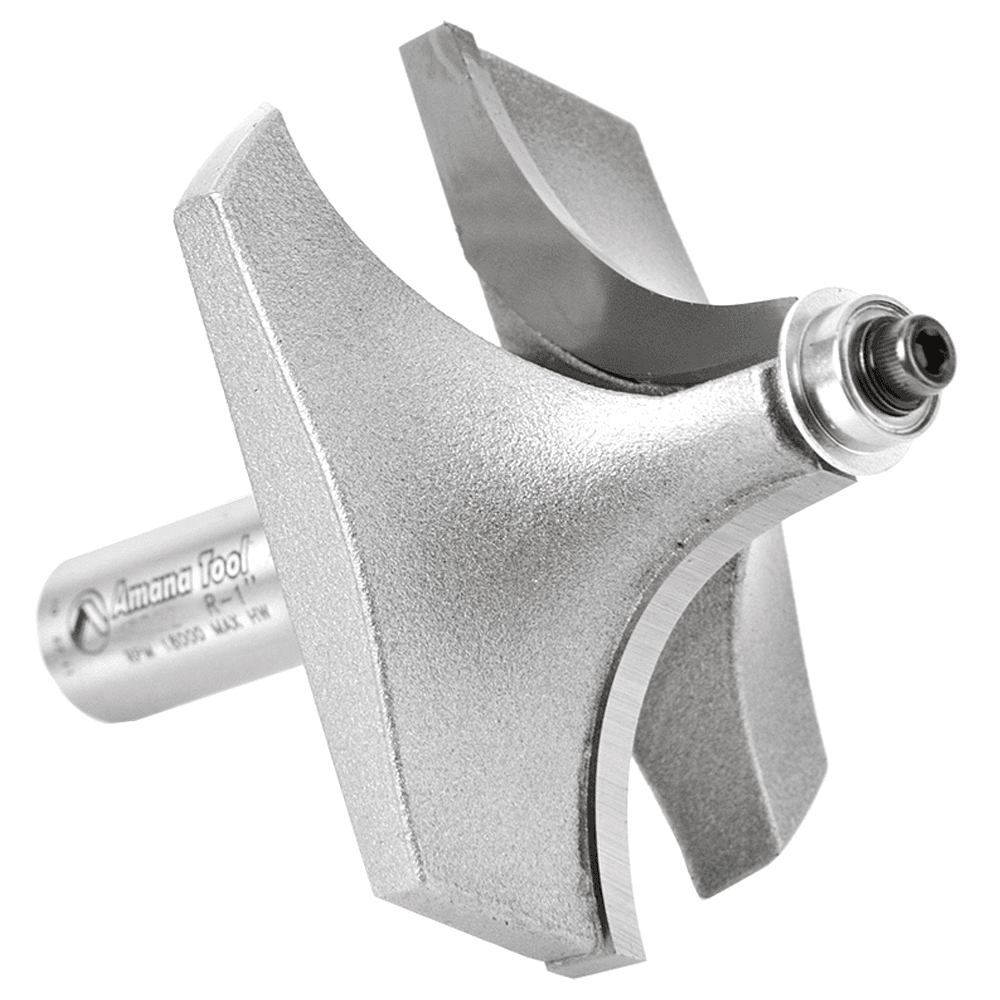

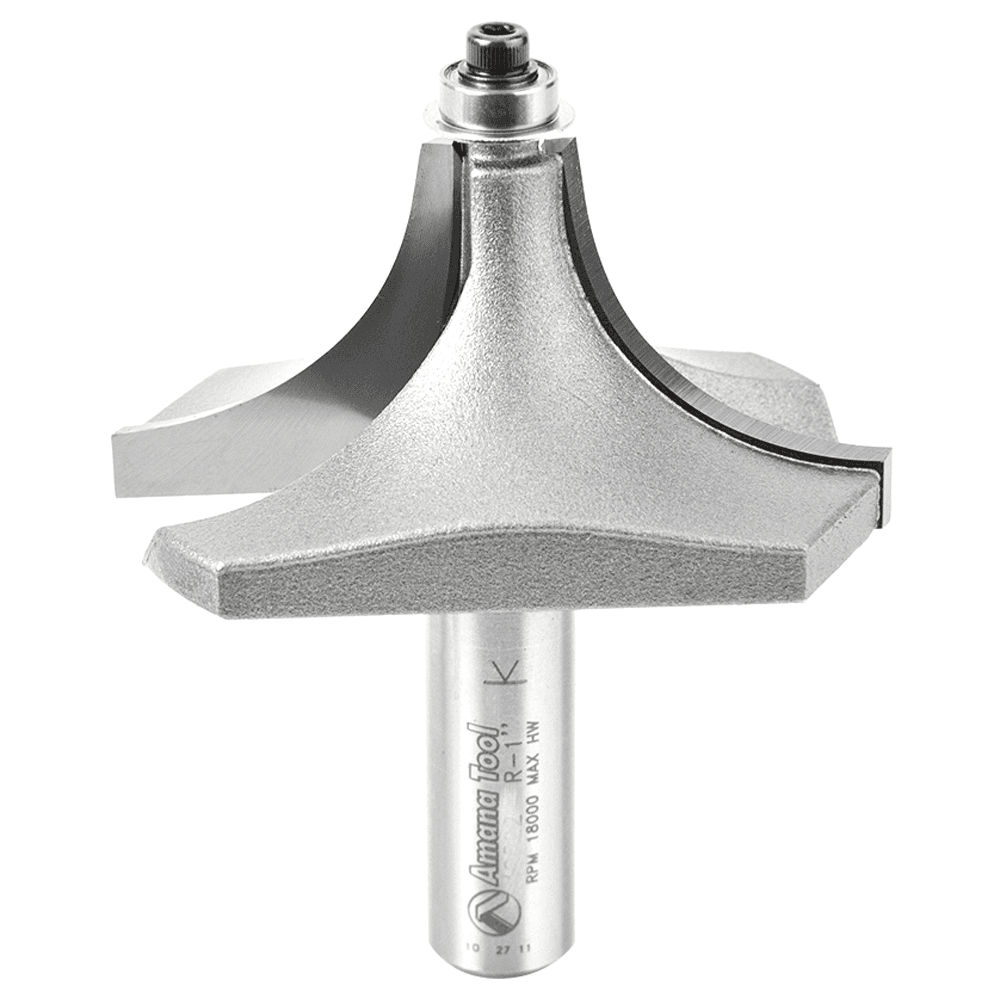

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing (& vice versa).

Features:
• 1-1/4" of cutting height
• Maximum RPM: 18,000
• Use in a table-mounted router

Not for use in a handheld router. Not guaranteed due to extreme diameter and radius. For best results it is recommended to use a smaller radius bit or chamfer the material prior to using these large radius tools. Tool life will be prolonged and a smoother finish will result.

Box Quantity	1
Diameter (in)	2-1/2 in
Shank Diameter (in)	1/2 in
Cutting diameter (mm)	2-1/2 in
Product Type	Beading Router Bit
Overall Length (in)	3-3/16 in
Material Type	Carbide

Box Quantity	1
Diameter (in)	2-1/2 in
Shank Diameter (in)	1/2 in
Cutting diameter (mm)	2-1/2 in
Product Type
