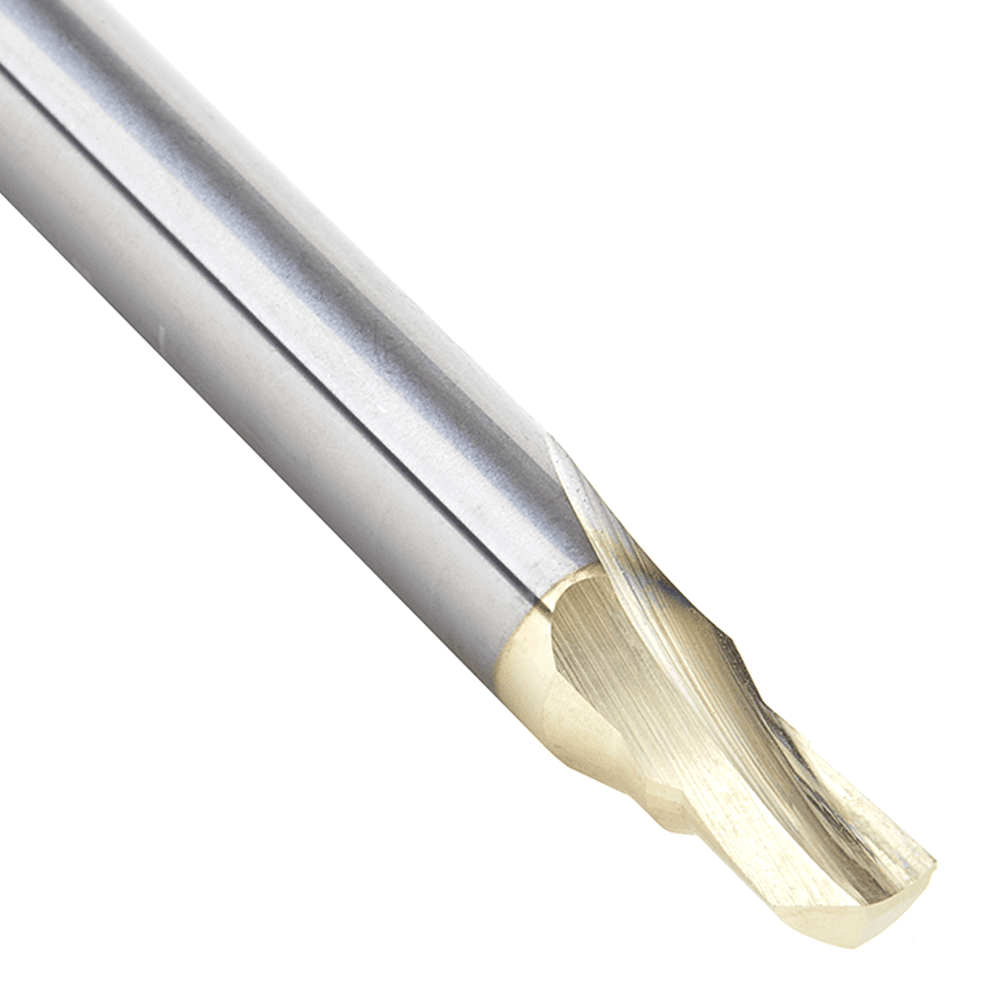

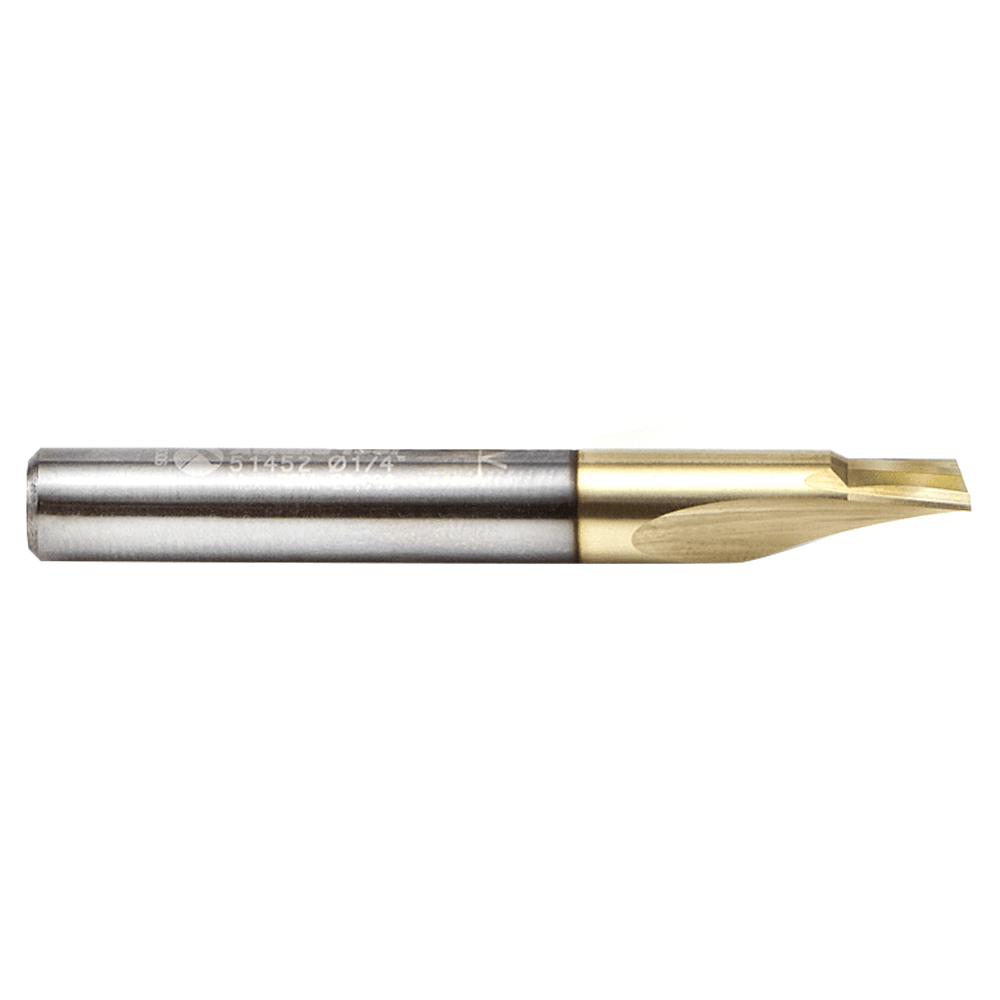

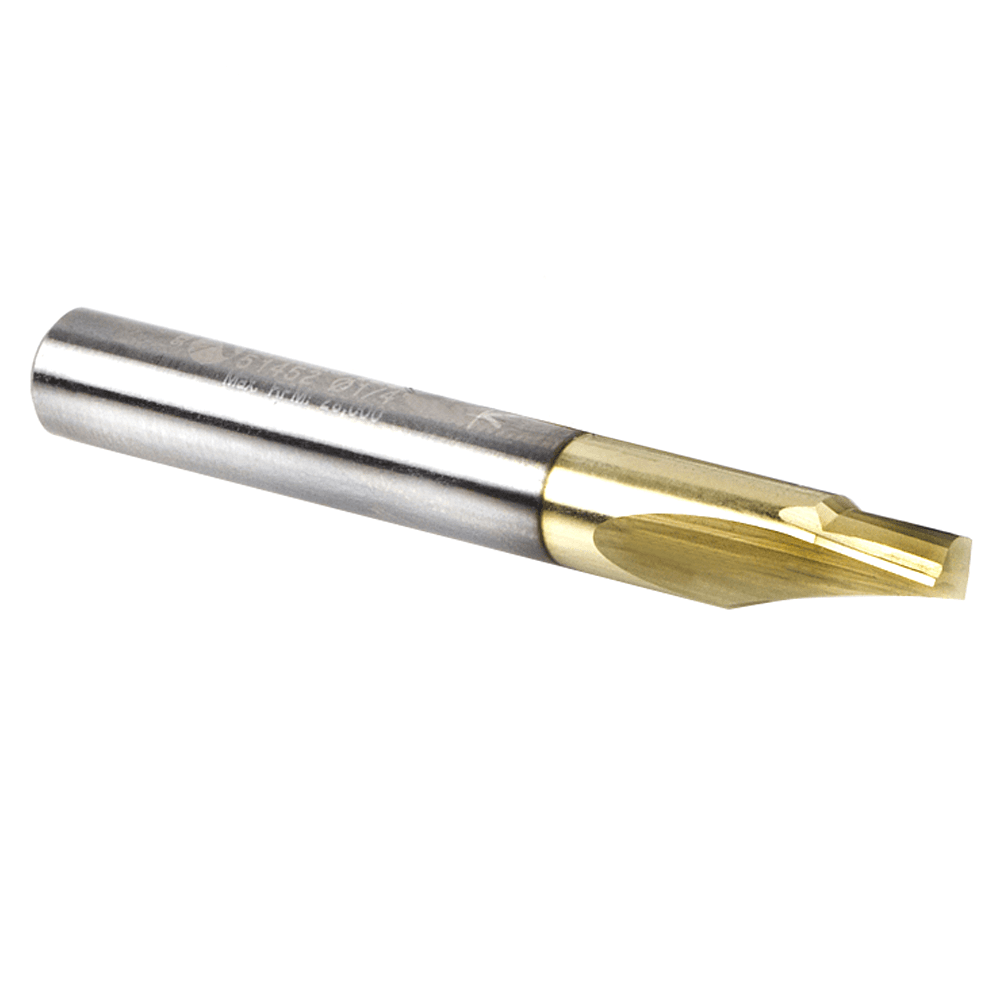

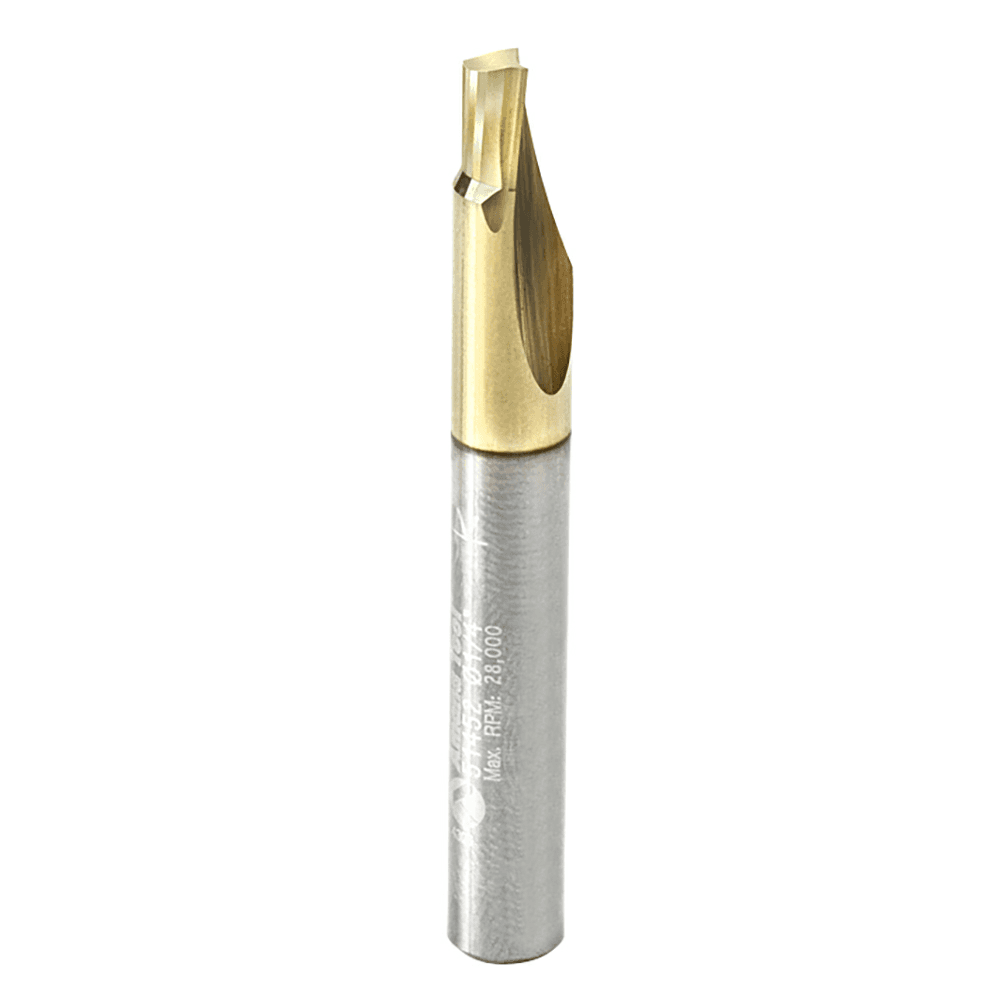

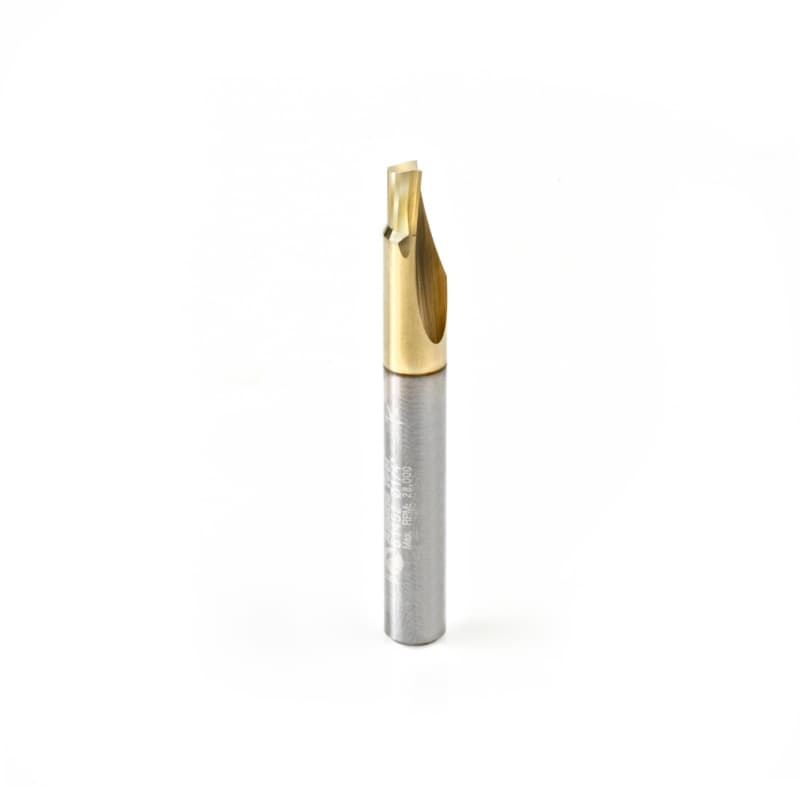

1/4" x 2" ZrN Coated Soft Aluminum Cutting Up-Cut Straight Bit, 1-Flute, 1/4" Shank
Item # AN51452
•Mfr # 51452
$55.71
/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Solid carbide single flute aluminum router bits, Zirconium Nitride (ZrN) coated, are especially designed to cut soft grades of aluminum sheet, (3003 grade) to achieve a satisfactory finished edge. 1/4" of cutting height.
Benefits of ZrN Coating:
• Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
• High resistance to wear
• Extended tool life
• Less friction and heat buildup
• High resistance to wear
Excellent for Cutting:
• Acrylonitrile-Butadiene-Styrene (ABS)
• Aluminum sheet (3003 grade)
• Aluminum 5052
• Brass
• Bronze
• Copper
• Fomex with Aluminum Face
• Gold
• Non-Ferrous Metals
• Polycarbonate (Lexan)
• Silver
Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.
Benefits of ZrN Coating:
• Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
• High resistance to wear
• Extended tool life
• Less friction and heat buildup
• High resistance to wear
Excellent for Cutting:
• Acrylonitrile-Butadiene-Styrene (ABS)
• Aluminum sheet (3003 grade)
• Aluminum 5052
• Brass
• Bronze
• Copper
• Fomex with Aluminum Face
• Gold
• Non-Ferrous Metals
• Polycarbonate (Lexan)
• Silver
Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Height | |
| Width | |
| Cutting Diameter | 1/4" |
| Application | |
| Material | Solid Carbide |
| Product Type | Straight Bit |
| Length | 2" |
| Degree of Cut | |
| Shank Diameter | 1/4" |
