3/8" x 2-3/8" Carbide Tipped Countersink Bit with Adjustable Low Friction Depth Stop, #4 Screw

Item # AN55293
Mfr # 55293

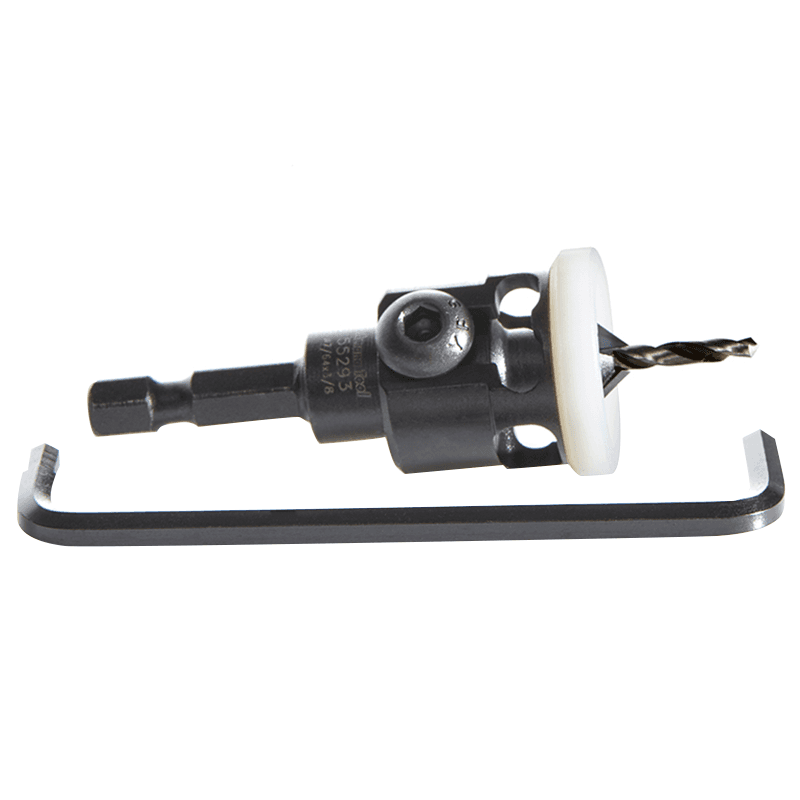

3/8" x 2-3/8" Carbide Tipped Countersink Bit with Adjustable Low Friction Depth Stop, #4 Screw - Main Image

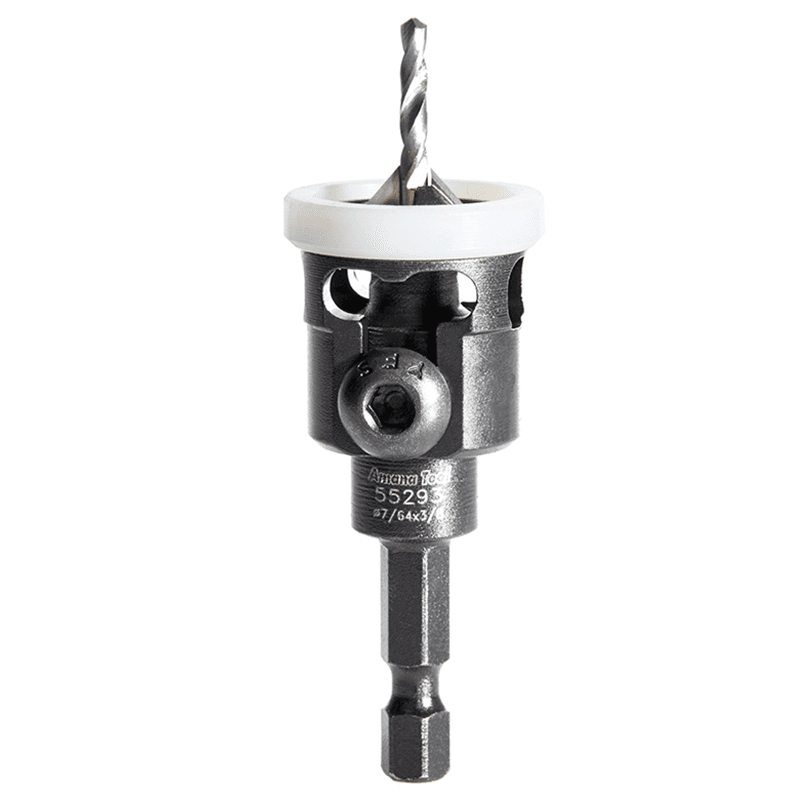

3/8" x 2-3/8" Carbide Tipped Countersink Bit with Adjustable Low Friction Depth Stop, #4 Screw - Alt Image 1

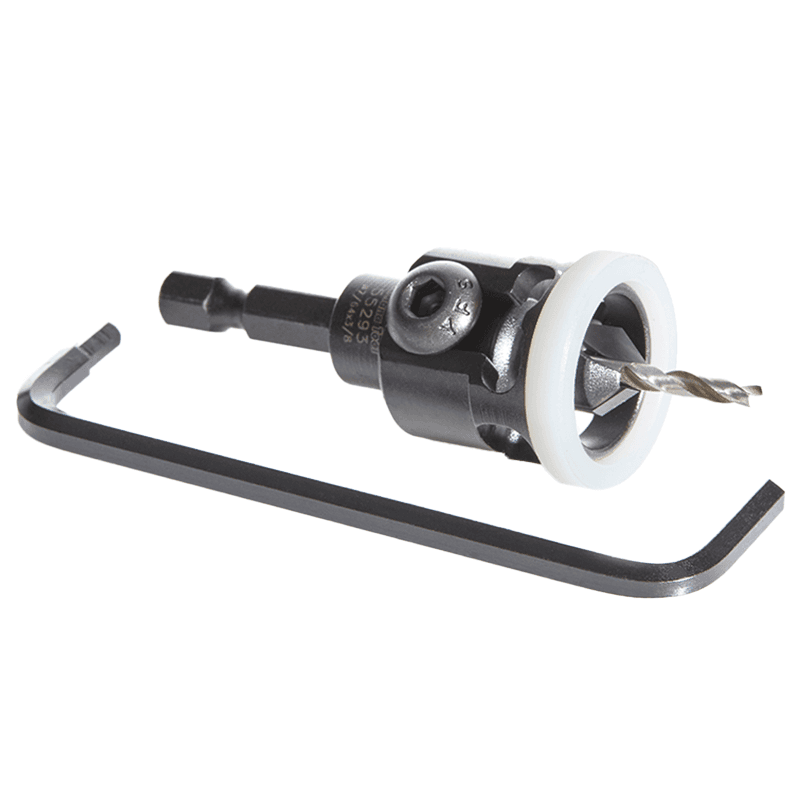

3/8" x 2-3/8" Carbide Tipped Countersink Bit with Adjustable Low Friction Depth Stop, #4 Screw - Alt Image 2
$38.12
/Each
Qty /
Min Order: 1
Qty mult. by: 1

Product Details

These tools combine carbide 3/8" diameter countersink, high-speed-steel drill bit and free-spinning, low friction depth-stop. The countersink leaves a clean hole edge and the adjustable depth-stop doesn't mar the surface. The large openings around the collar allow the chips to clear effectively and eliminate clogging. Low friction polymer collar. No surface scratches or burn marks. 5/64" - 11/32" of cutting height.

Quick release 1/4" hex shank with slow spiral, HSS?M2 fully ground drill bit included.

Excellent for Drilling:
• Natural Woods
• Man-Made Boards
• MDF
• Chipboard
• Plywood
• Aluminum/Non-Ferrous
• Aluminum Composite Material (ACM)
• Composites
• Composite Decking Materials
• High Density Polyethylene (HDPE)

Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Specifications

Box Quantity1
