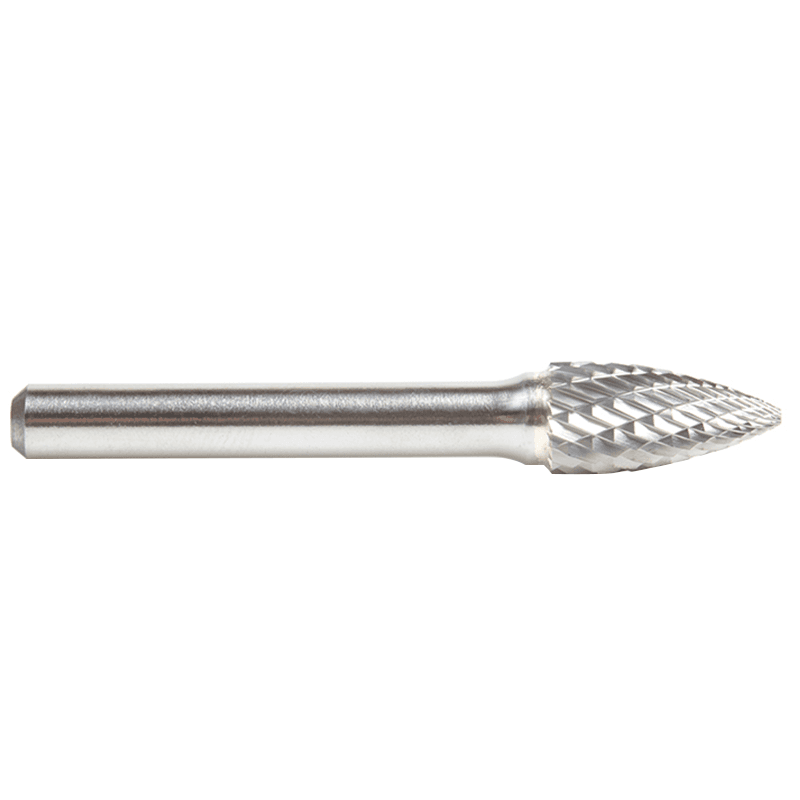

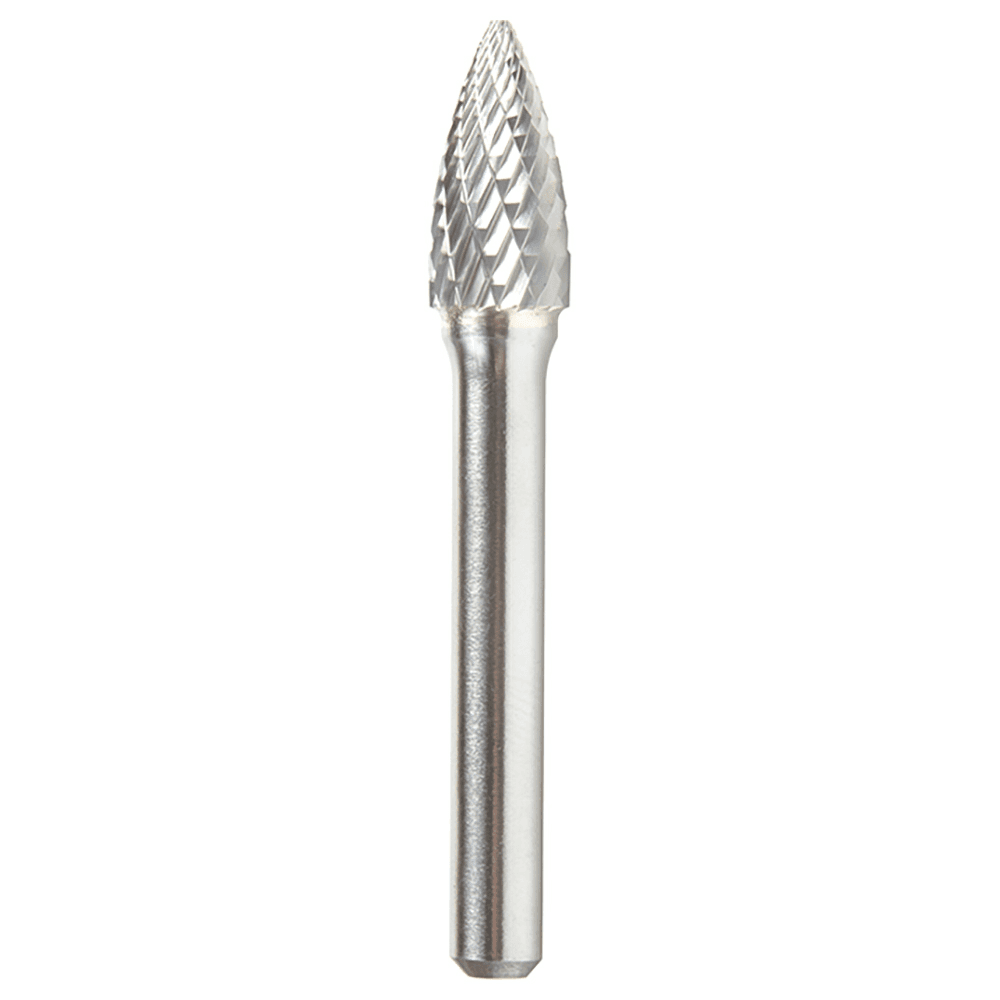

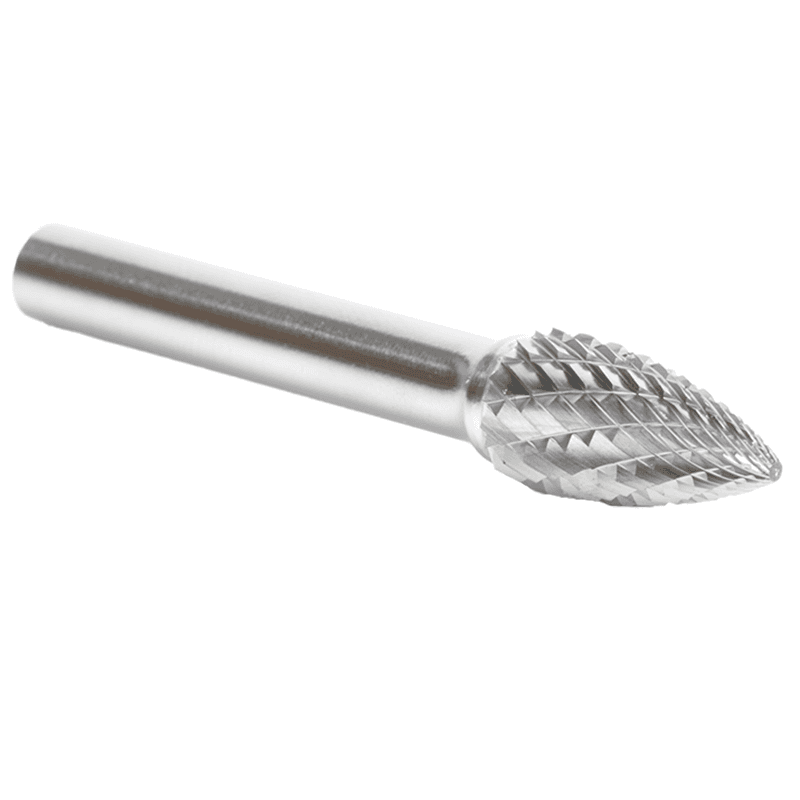

3/8" x 2-1/2" Pointed Tree Shape Double Cut Burr Bit, 1/4" Shank
Item # ANBURS-194
•Mfr # BURS-194
$20.30
/Each
Min Order: 1
Qty mult. by: 1
Product Details
Benefits of the Double Cut (DC) flute include rapid removal of a broad range of materials combined with excellent operator control. It does this by incorporating a positive-cutting rake angle that gives great "bite" into the material and yet, is not so aggressive that the operator fatigues quickly after using it in a hand piece. The steel shanks are ground, which sets them apart from our competitors. The solder joints are clean, with no excess solder gaping out from the sides between the carbide bud and the shank. 3/4" of cutting height.
Applications: To be used with air or electrically driven hand die-grinder with a typical collet mechanism or knee mill with an air-driven spindle speeder such as an Air Turbine product. Use of a quality spindle speeder may greatly improve performance of miniature tooling.
Excellent for Cutting:
• Aluminum
• Brass
• Bronze
• Copper
• Cast Iron
• Steel: 40-55rc
• Steel: 55-60rc
• Steel: Carbon
• Steel: Nickel
• Chrome
• Stainless Steel
• Steel Weldments
• Titanium
More sizes, shapes and types available upon request.
Warning: Not to be used in conventional Routers.
Applications: To be used with air or electrically driven hand die-grinder with a typical collet mechanism or knee mill with an air-driven spindle speeder such as an Air Turbine product. Use of a quality spindle speeder may greatly improve performance of miniature tooling.
Excellent for Cutting:
• Aluminum
• Brass
• Bronze
• Copper
• Cast Iron
• Steel: 40-55rc
• Steel: 55-60rc
• Steel: Carbon
• Steel: Nickel
• Chrome
• Stainless Steel
• Steel Weldments
• Titanium
More sizes, shapes and types available upon request.
Warning: Not to be used in conventional Routers.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | |
| Width | |
| Cutting Diameter | 3/8" |
| Application | |
| Material | Solid Carbide |
| Product Type | Burr Bit |
| Length | 2-1/2" |
| Degree of Cut | |
| Shank Diameter | 1/4" |
