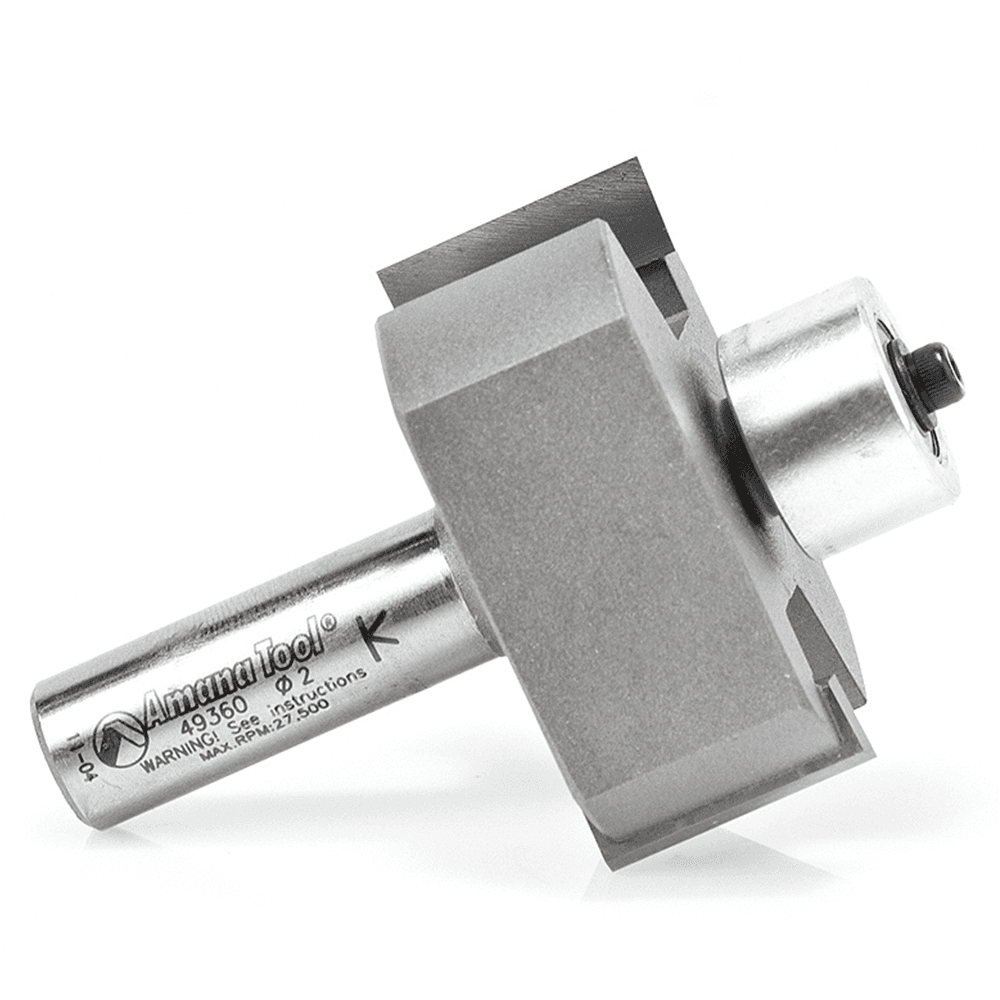

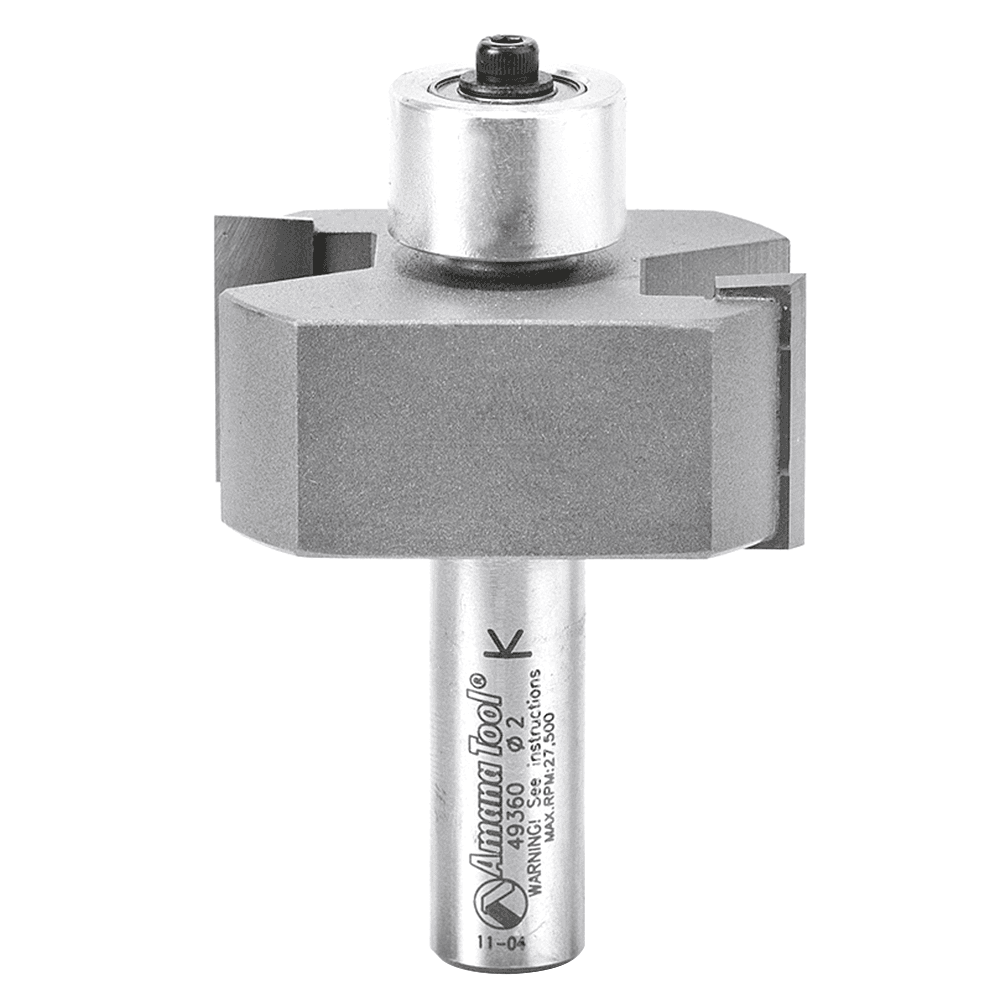

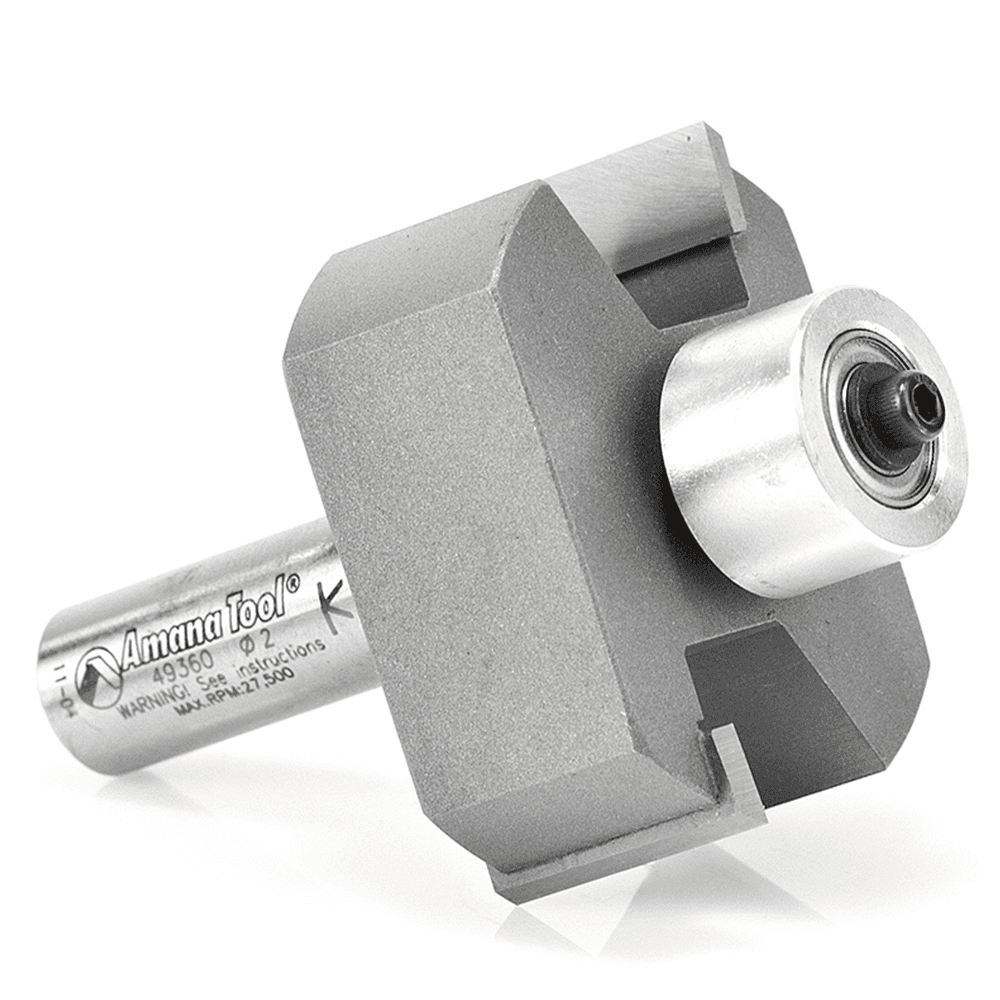

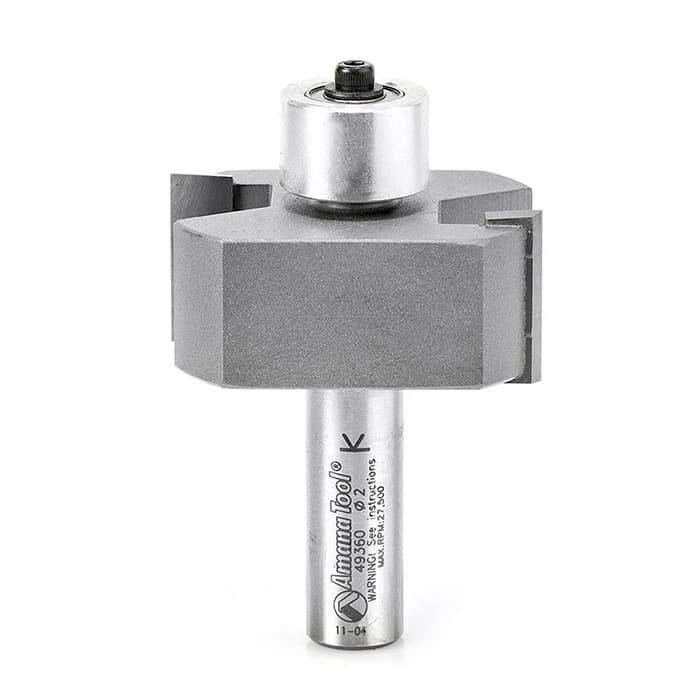

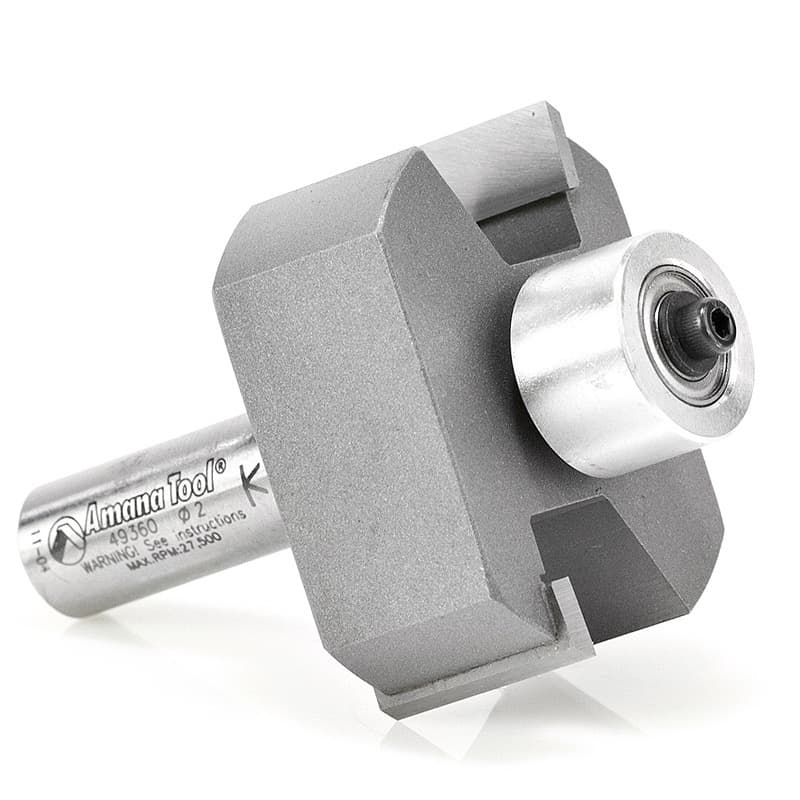

2" x 3" Super Rabbet Bit, 2-Flute, 1/2" Shank
Item # AN49360
•Mfr # 49360
$114.47
/Each
Min Order: 1
Qty mult. by: 1
Product Details
This ingenious tool features both interchangeable cutting edges and an interchangeable guide collar, enabling you to cut a wide range of rabbets. Changing the collars on the twin ball-bearing guide steps the cut width in 1/16" increments from flush through 3/4" with five extra "plywood"O sizes.

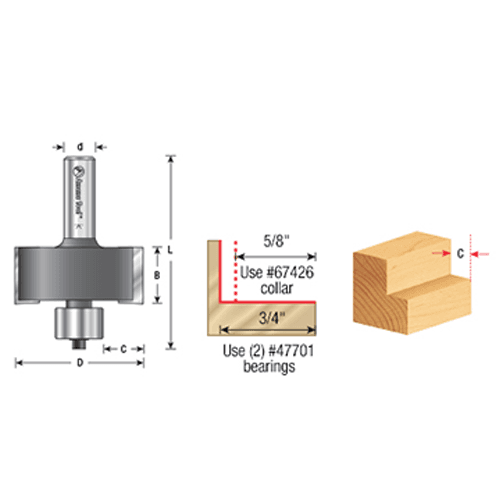

Between the standard and optional collars, there are 18 different rabbet sizes available. The deep guide collar design adds stability to the tool for hand-held router operations. The basic 2"-diameter bit includes a hex key, instructions, and all necessary parts for 5/8" and 3/4" deep rabbets.
The "RC"O version has extra-long double-edged carbide inserts which enables the bit to cut 30mm high. Inserts can be rotated or replaced without removing the bit from the router.
Features:
? Double flute
? With ball bearing guides
? Enables rabbet cuts from flush through 3/4"" in 1/16"" increments and five undersized plywood sizes, using optional collars
? Particularly useful when working with large stock, or when a precise rabbet depth is required (i.e.. 23/32 depth for plywood)
Between the standard and optional collars, there are 18 different rabbet sizes available. The deep guide collar design adds stability to the tool for hand-held router operations. The basic 2"-diameter bit includes a hex key, instructions, and all necessary parts for 5/8" and 3/4" deep rabbets.
The "RC"O version has extra-long double-edged carbide inserts which enables the bit to cut 30mm high. Inserts can be rotated or replaced without removing the bit from the router.
Features:
? Double flute
? With ball bearing guides
? Enables rabbet cuts from flush through 3/4"" in 1/16"" increments and five undersized plywood sizes, using optional collars
? Particularly useful when working with large stock, or when a precise rabbet depth is required (i.e.. 23/32 depth for plywood)
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | |
| Width | |
| Cutting Diameter | 2" |
| Application | |
| Material | Carbide Tipped |
| Product Type | Super Rabbet Bit |
| Length | 3" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
