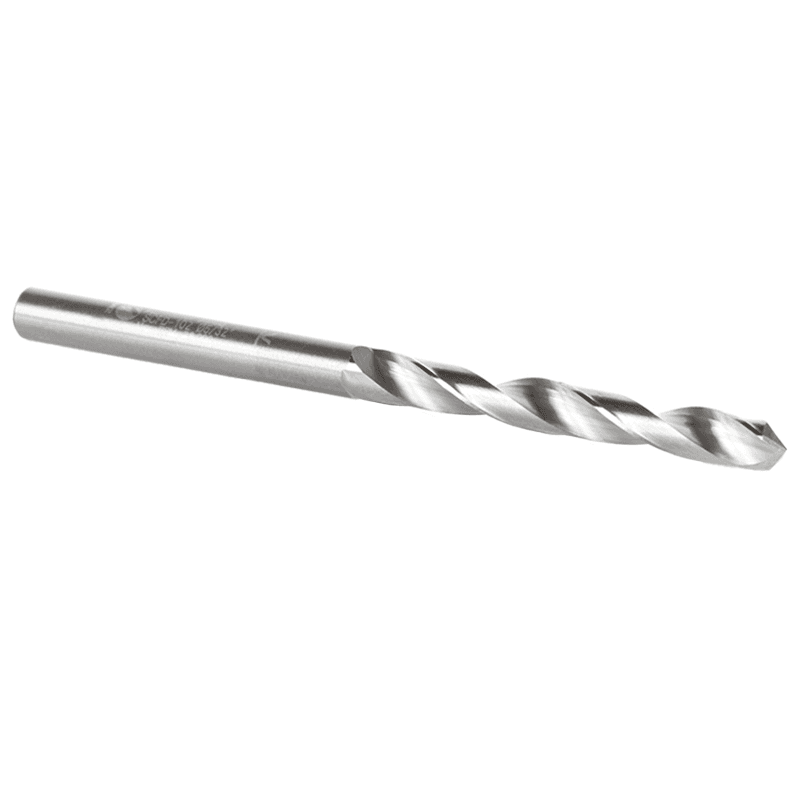

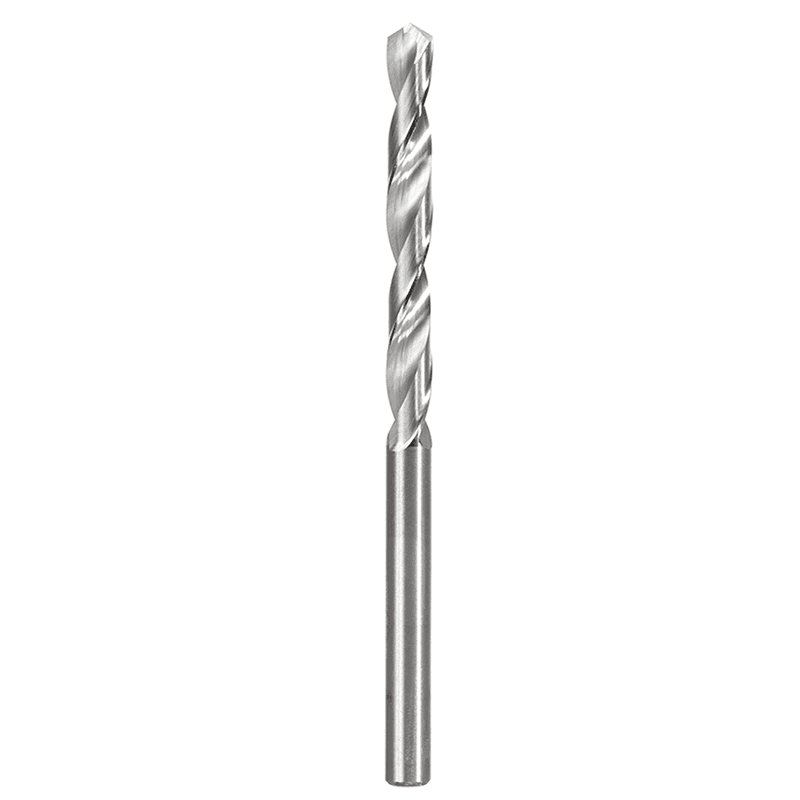

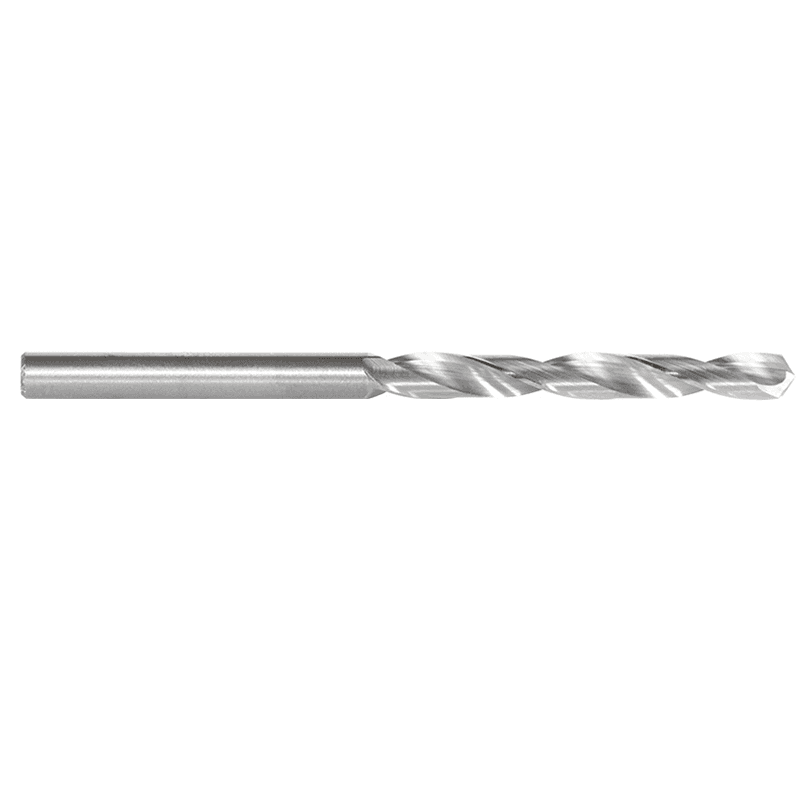

Name: 5/32" x 2-1/2" CNC 4-Facet 118° Drill Point Bit, 5/32" Shank
Brand: Amana Tool
Availability: BackOrder

Amana Tool's 4 facet jobber length fractional drills consist of 2 cutting edges with 2 facets per cutting edge. The facets consist of the lip relief and the lip clearance angle.

Multi-faceted drill geometries translate into improved centering accuracy, thereby producing rounder, precise holes less likely for "bell mouthing". Our premium grade carbide substrate insures increased tool life by a minimum factor of 10X's over HSS coated bits, all while often eliminating the need for a prior center punch or spotting procedure. Also good for drill press. 1-3/8" of cutting height.

Excellent for:
• Aluminum
• Aluminum 5052
• Aluminum Alloys
• Aluminum Alloyed Si >?10%
• ACM
• Brass
• Bronze
• Copper
• Copper Alloys
• Fomex with Aluminum Face
• Steels
• Tool Steels
• Free Machining Stainless Steels
• Soft Cast Irons
• Medium Cast Irons
• Malleable Cast Irons
• Magnesium
• Nickel Alloys
• Low Carbon Steels
• Medium Carbon Steels
• High Tensile (35-45 Rc)?Steels
• High Tensile (45+ Rc)?Steels
• Soft Titanium
• Titanium Alloys Hard Titanium

Box Quantity	1
Diameter (in)	5/32 in
Cutting Height (in)	1-3/8 in
Shank Diameter (in)	5/32 in
Cutting diameter (mm)	5/32 in
Product Type	Brad Point Drill Bit
Overall Length (in)	2-1/2 in
Material Type	VHM

Box Quantity	1
Diameter (in)	5/32 in
Cutting Height (in)	1-3/8 in
Shank Diameter (in)	5/32 in
Cutting diameter (mm)
