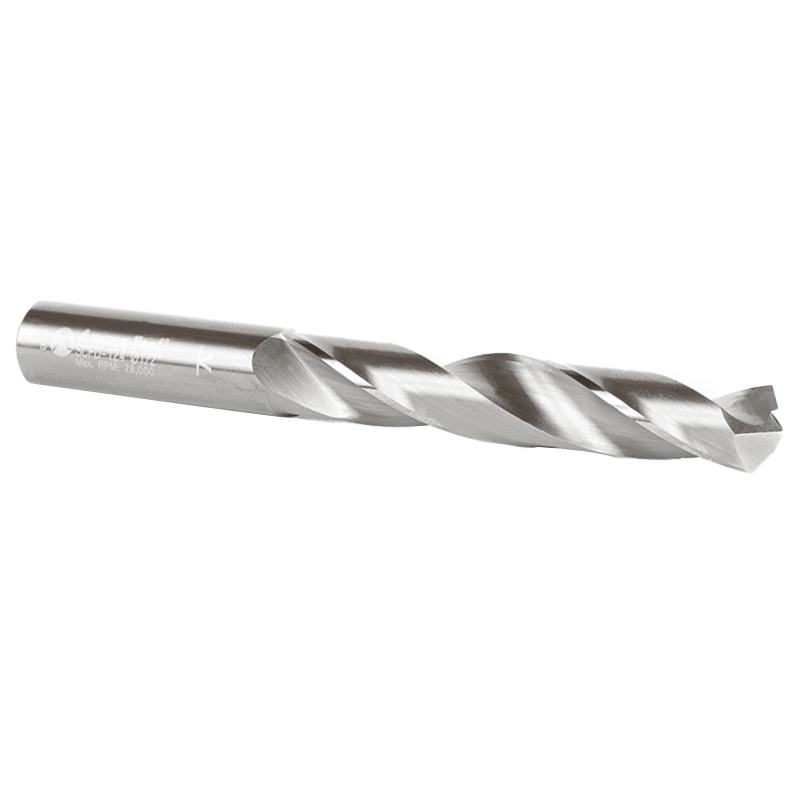

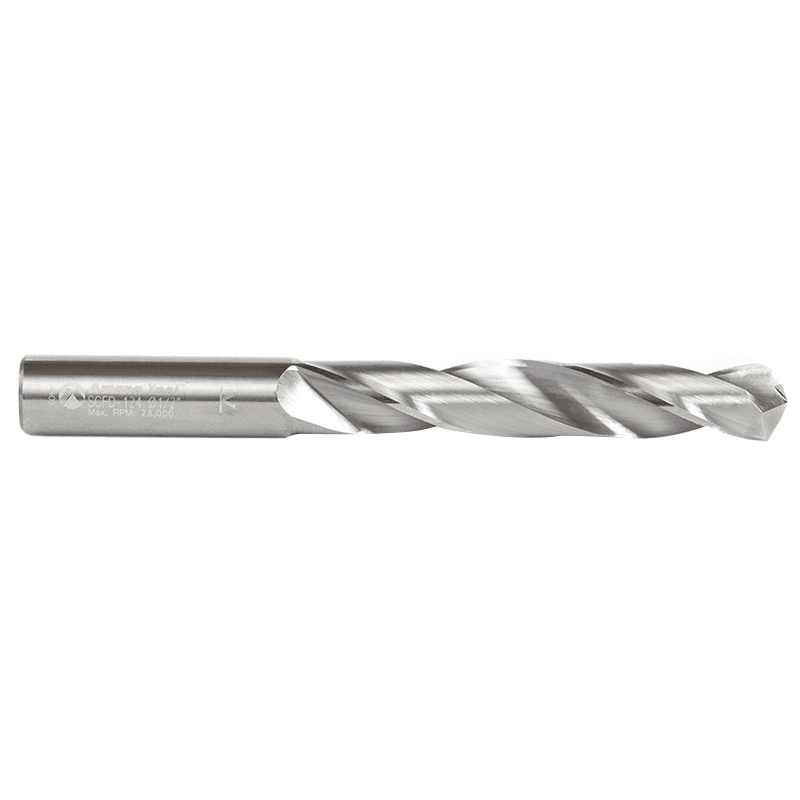

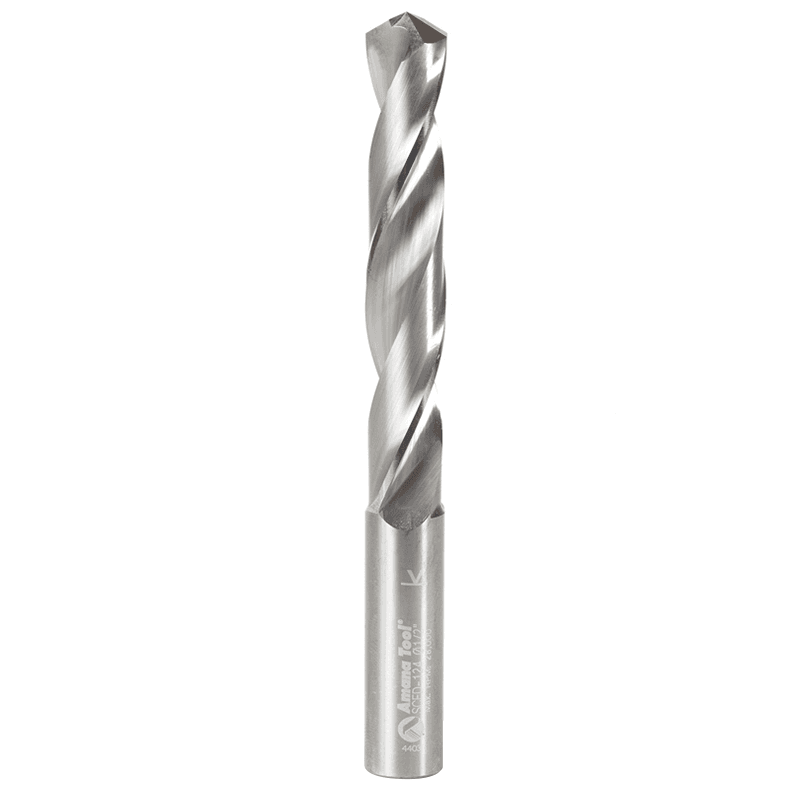

1/2" x 4-3/4" CNC 4-Facet 118° Drill Point Bit, 1/2" Shank
Item # ANSCFD-124
•Mfr # SCFD-124
$115.09
/Each
Min Order: 1
Quantity Multiple by: 1
Product Details
Amana Tool's 4 facet jobber length fractional drills consist of 2 cutting edges with 2 facets per cutting edge. The facets consist of the lip relief and the lip clearance angle.
Multi-faceted drill geometries translate into improved centering accuracy, thereby producing rounder, precise holes less likely for "bell mouthing". Our premium grade carbide substrate insures increased tool life by a minimum factor of 10X's over HSS coated bits, all while often eliminating the need for a prior center punch or spotting procedure. Also good for drill press. 3" of cutting height.
Excellent for:
• Aluminum
• Aluminum 5052
• Aluminum Alloys
• Aluminum Alloyed Si >?10%
• ACM
• Brass
• Bronze
• Copper
• Copper Alloys
• Fomex with Aluminum Face
• Steels
• Tool Steels
• Free Machining Stainless Steels
• Soft Cast Irons
• Medium Cast Irons
• Malleable Cast Irons
• Magnesium
• Nickel Alloys
• Low Carbon Steels
• Medium Carbon Steels
• High Tensile (35-45 Rc)?Steels
• High Tensile (45+ Rc)?Steels
• Soft Titanium
• Titanium Alloys Hard Titanium
Multi-faceted drill geometries translate into improved centering accuracy, thereby producing rounder, precise holes less likely for "bell mouthing". Our premium grade carbide substrate insures increased tool life by a minimum factor of 10X's over HSS coated bits, all while often eliminating the need for a prior center punch or spotting procedure. Also good for drill press. 3" of cutting height.
Excellent for:
• Aluminum
• Aluminum 5052
• Aluminum Alloys
• Aluminum Alloyed Si >?10%
• ACM
• Brass
• Bronze
• Copper
• Copper Alloys
• Fomex with Aluminum Face
• Steels
• Tool Steels
• Free Machining Stainless Steels
• Soft Cast Irons
• Medium Cast Irons
• Malleable Cast Irons
• Magnesium
• Nickel Alloys
• Low Carbon Steels
• Medium Carbon Steels
• High Tensile (35-45 Rc)?Steels
• High Tensile (45+ Rc)?Steels
• Soft Titanium
• Titanium Alloys Hard Titanium
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Application | |
| Cutting Diameter | 1/2" |
| Length | 4-3/4" |
| Material | Solid Carbide |
| Product Type | Drill Point Bit |
| Screw Size | |
| Shank Diameter | 1/2" |
| Rotation |
