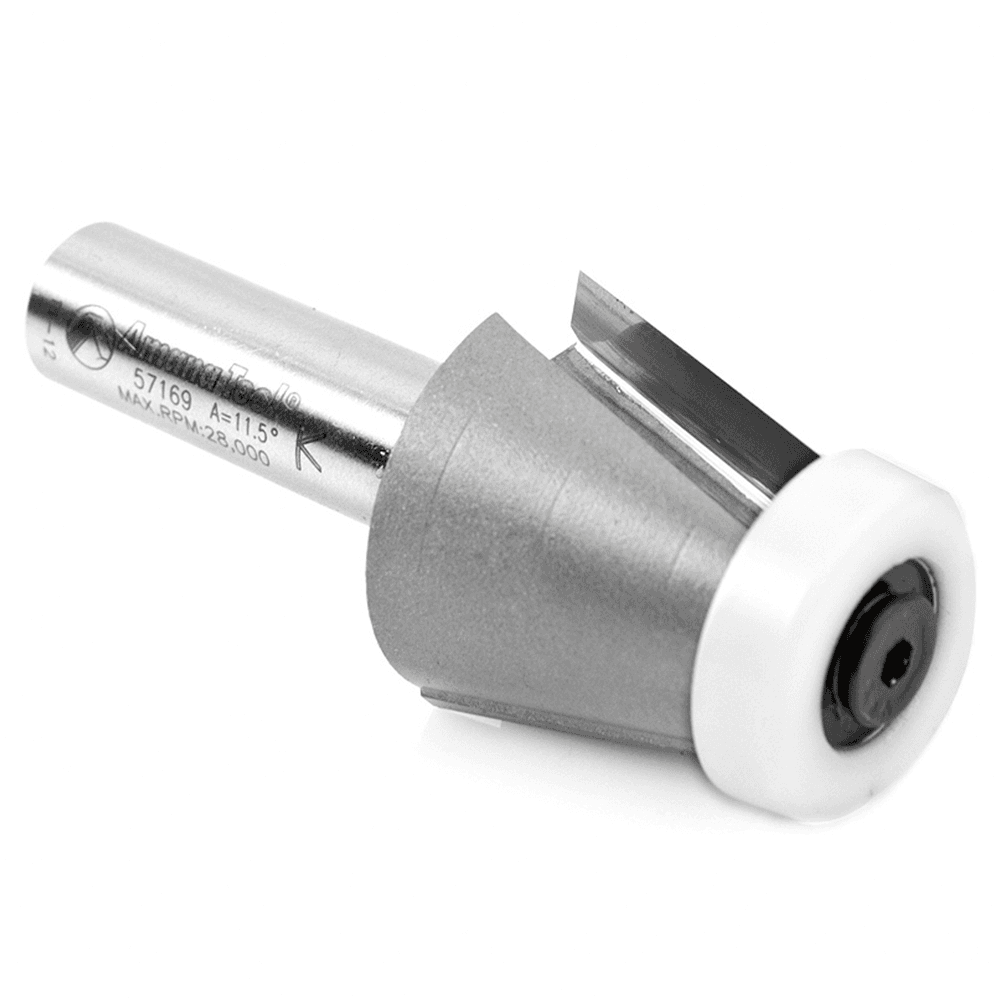

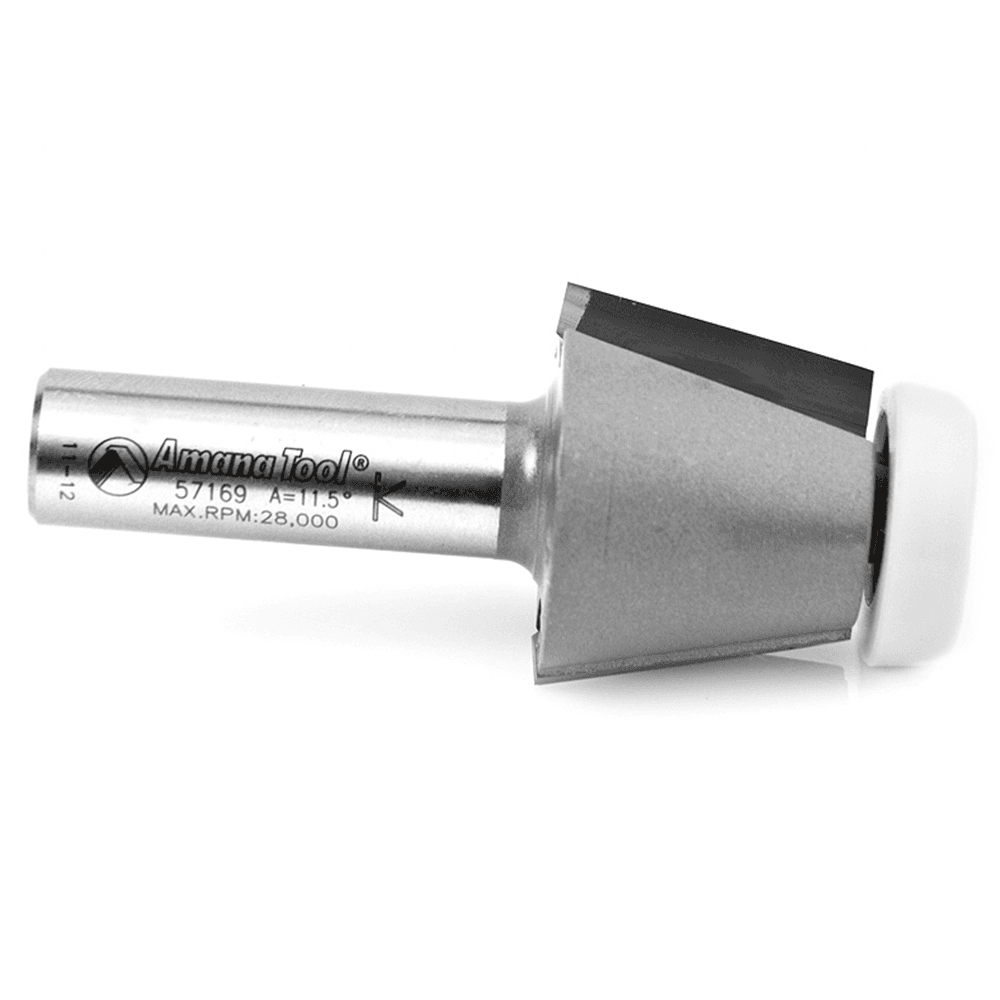

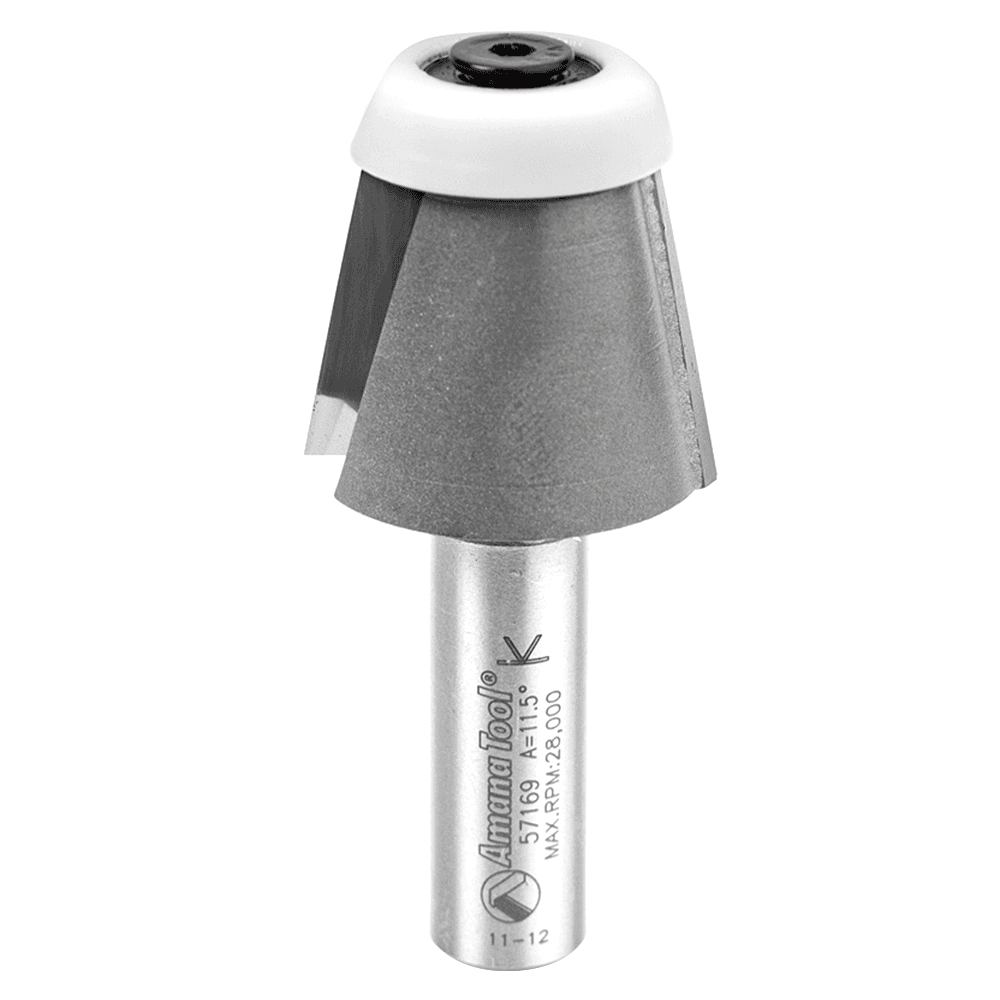

Bevel Router Bit Built for Seamless Sink Edge Work
The Amana Tool 57169 is a 2-flute bevel router bit designed for trimming countertop material flush to a sink's bowl wall during seamless sink installations. With a 1-3/16 inch cutting diameter, 3-1/8 inch overall length, and a 1/2 inch shank, it is the precision cutting tool at the center of the seamless fabrication process for Karran Edge and compatible sink series.
Key Features
• Bevel geometry trims countertop material at the correct angle to meet the sink bowl wall cleanly during a seamless installation.
• 2-flute design delivers smooth, controlled cutting passes on laminate and solid surface countertop materials.
• 1/2 inch shank mounts securely in standard router collets used in professional fabrication setups.
• 1-3/16 inch cutting diameter is sized for the sink-edge trimming passes required in seamless fabrication workflows.
• Lansen Sink Edge designation identifies this as a purpose-built sink fabrication bit, not a general-purpose profile bit.
Where This Bit Earns Its Place in the Workflow
Seamless sink installation is a multi-step process, and the bevel trim cut is where the countertop surface transitions into the bowl. After the sink is positioned and the initial cutout is made, this bit rides the reference surface and shaves the countertop edge back to the sink wall at the correct bevel angle. Done right, the result is a tight, seam-free transition with no exposed substrate and no visible edge gap. Done with the wrong bit, it shows. This tool is built specifically for that critical trim pass on Karran Edge series sinks and compatible seamless installations in laminate and solid surface countertops.
Construction and Cutting Performance
Amana Tool builds this bit for the demands of professional fabrication shops. The two-flute configuration balances chip clearance and surface quality, reducing tearout on laminate face materials during the bevel trim pass. The 1/2 inch shank provides the rigidity needed for consistent depth and angle control over the length of a sink cutout. At 3-1/8 inches overall, the bit has enough reach to handle the countertop thicknesses common in residential and light commercial fabrication without the shank interfering with the router base.
Who Reaches for This Bit
Cabinet shops and countertop fabricators installing Karran Edge, Q Series, or acrylic A Series sinks in laminate and solid surface tops are the core users. This bit belongs in the kit alongside the seam adhesive, mixing tips, and applicator gun — it is the cutting tool step, not an optional add-on. Fabricators who run seamless sink installs regularly keep one in rotation as a dedicated sink bit rather than repurposing a general trim bit. If the job involves a standard undermount in stone or quartz, this bit is not the right tool — the seamless method and this bevel geometry are specific to laminate and solid surface fabrication.
What countertop materials is this bit intended for?
This bit is used for seamless sink installations in laminate and solid surface countertops. It is not intended for stone, quartz, or other mineral-based countertop materials.
Does this bit work with any seamless sink, or only Karran?
Amana Tool designates this as a Lansen Sink Edge bit and it is documented in Karran's seamless installation workflows for the Edge and compatible series. If you are fabricating a different brand's seamless sink, verify that the required bevel angle matches this bit's geometry before proceeding.
Is a bearing included with this bit?
The product data does not confirm a bearing on this SKU. Review the full specification and confirm your fabrication method's reference-surface requirements before ordering.
What router collet does the 1/2 inch shank require?
A standard 1/2 inch router collet accepts this shank. Most professional-grade fixed-base and plunge routers used in countertop fabrication accommodate a 1/2 inch collet.
The Right Tool Keeps the Seam Where It Belongs
A seamless sink installation lives or dies at the trim cut. This Amana Tool bevel bit gives fabricators the geometry and build quality to make that pass with confidence, delivering the flush, seam-free transition that makes the finished countertop and sink look like one continuous surface.
